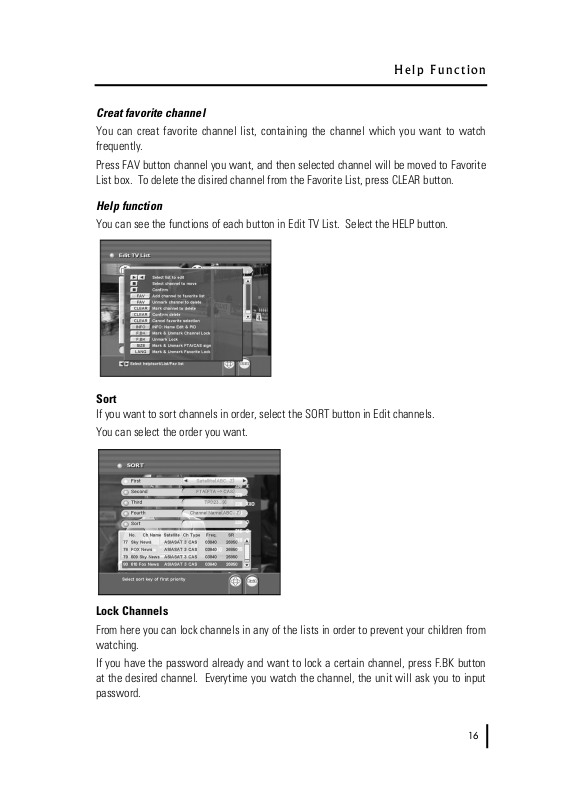

Creat favorite channel

You can creat favorite channel list, containing the channel which you want to watch
frequently.

Press FAV button channel you want, and then selected channel will be moved to Favorite
List box. To delete the disired channel from the Favorite List, press CLEAR button.

Help function

You can see the functions of each button in Edit TV List. Select the HELP button.

Sort

If you want to sort channels in order, select the SORT button in Edit channels.
You can select the order you want.

Lock Channels

From here you can lock channels in any of the lists in order to prevent your children from
watching.

If you have the password already and want to lock a certain channel, press F.BK button
at the desired channel. Everytime you watch the channel, the unit will ask you to input
password.

16

H e lp Function

Edit Channel Name

1. Press INFO button on Edit TV or Edit Radio list. Cursor will be moved by using VOL
, CH .

2. Press OK button on desired alphabet. To delete pre-selected alphabet, press CLEAR button.

3. To change character set(upper, lower, number), press INFO button. By using MENU

button, it will be automatically stored and moved to previous menu.

Parental Control

If you use this funciton you have to enter the password everytime you start this satellite
receiver.

1. Select Parental Control on the installation.

2. To secure program setting and installation, select Change Password.

3. Input 4 digits New Password. And input password Confirm New once more. After all

the password function is set, the unit will ask you to input password to get into the menus
of Installation and System Settings. Input correct password which was already stored.

If the password is forgotten, contact your service provider.

17

S e ttings and O p e r a t i o n s

4.3 Other functions

Audio Selection

If broadcasting channel is supporting multi language, different language can be selected
from Audio Selection.

1. To select different language on current channel, select Audio Selection on the Main
Menu.

2. Press OK button on your favorite language.
According to different audio data on each channel, up to 4 different audio language

types can be selected.

TV Guide

Press GUIDE button of RCU for channel information. This function works in digital mode
only.

Teletext function

Pressing the TEXT button will open a Teletext page. Select teletext pages with the
numeric buttons on the RCU.

From Teletext Screen

CLEAR

Ov er la y ba ck gr ou nd screen and te le te xt mo de according to th e f ol lo wi ng

18

O t her functio n s

order(transparency - Teletext only - Opacity)

INFO

Hold of current Teletext page

PAGE UP/DOWN

Move previous and next page in one

CH UP/DOWN

Move previous and next page in one

FAV/TV/RADIO/F.BK/LANG/AUDIO

100/200/300/400/500/600 page level

0 ~ 9

Select Teletext page

EXIT

Exit teletext mode

Clock Function

- From the Front Pannel

Menu button

The clock shows 12:00 o’clock on the front panel when the power is off. If user press
MAIN button, the 12:00 o’clock is on and off continually and then user can set up the
time using the VOL, CH, OK buttons. If user press MENU button again, the setting is
finished and the time works regularly.

Channel button

This CH

allows user to set up the time.

Volume button

This VOL

allows user to set up the minute.

OK button

This OK button allows user to finish the setup of time. If user press OK button after
setting up time, the on and off is gone on the front panel and the time works regularly.

[ Screen Division Function ]

You can check other channels (still picture mode) while you are watching a specific alive
channel with this function.

1. In the full screen mode, press "OSD” key in the Remote Control then you will get
4 divided pictures.

19

S e ttings and O p e r a t i o n s

2. By pressing "VOL " key, you can select a frame one by one.
Selected frame will provide you a live picture.

3. By pressing ”CH

“ key, you can change the channel in

the selected frame.

4. Press “Exit” key, then the function goes to the full screen mode.

5. If you press “OSD” key one more time in the No.1 stage above, you will have
13 divided pictures and operations are same as above.
