User
Ū
Ū
s Guide
Digital Satellite Receiver
Information contained in this manual is subject to change without notice. No part of this
publication may be copied, reproduced, or translated to another language for any
purpose.
FOR YOUR SAFETY
Ҷ Be sure to read the user manual before starting the operation of the receiver.
ҶDo not open the housing. The receiver contains high-voltage components and parts.
Ҷ Even after switching off the receiver still contains high-voltage for a while.
Ҷ Do not expose to rain or moisture.
Ҷ Do not make objects or fluid enter the housing through the ventilation slot. If any
spilt liquid went into to the housing, unplug the power cord and call your local
service provider.
Ҷ Do not place close to any heat source.
Ҷ Do not press with hard or heavy object.
Ҷ To protect possible malfunction by lighting, we recommend you to use power surge
unit. Call your local dealer for advise.
FOR YOUR SAFETY
II
For Your Safety
1. Before Getting Started 1
1.1 Main Features 1
1.2 Accessories 2
2. Controls and Functions 3
2.1 Front Pannel 3
2.2 Rear Pannel 4
2.3 Remote Control Unit 5
3. Connections 7
3.1 Connecting to the TV, VCR and Satellite Antenna 7
3.2 Connecting DiSEqC switch 7

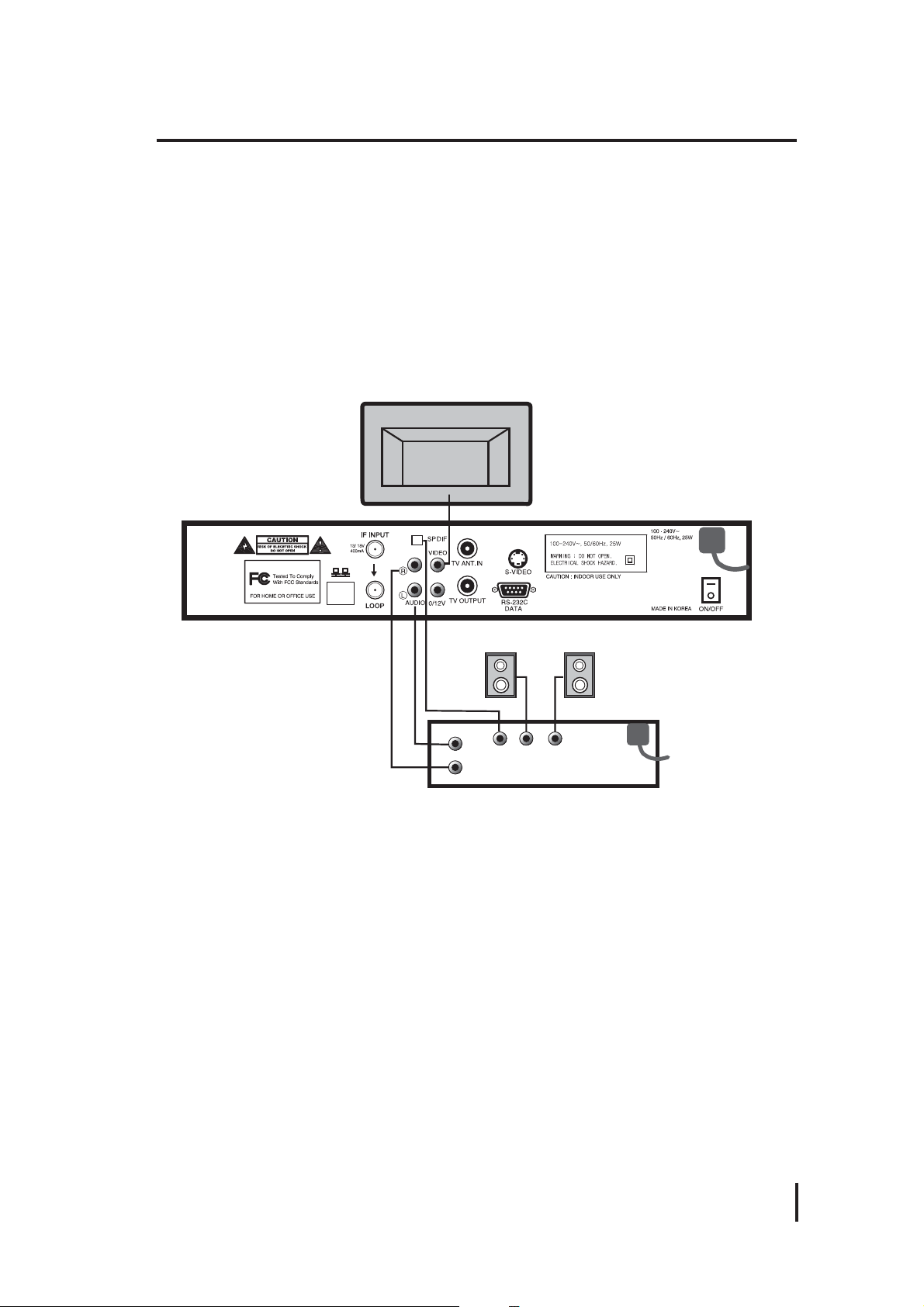

3.3 Connecting to the TV, HiFi system and SPDIF 8
4. Settings and Operations 9

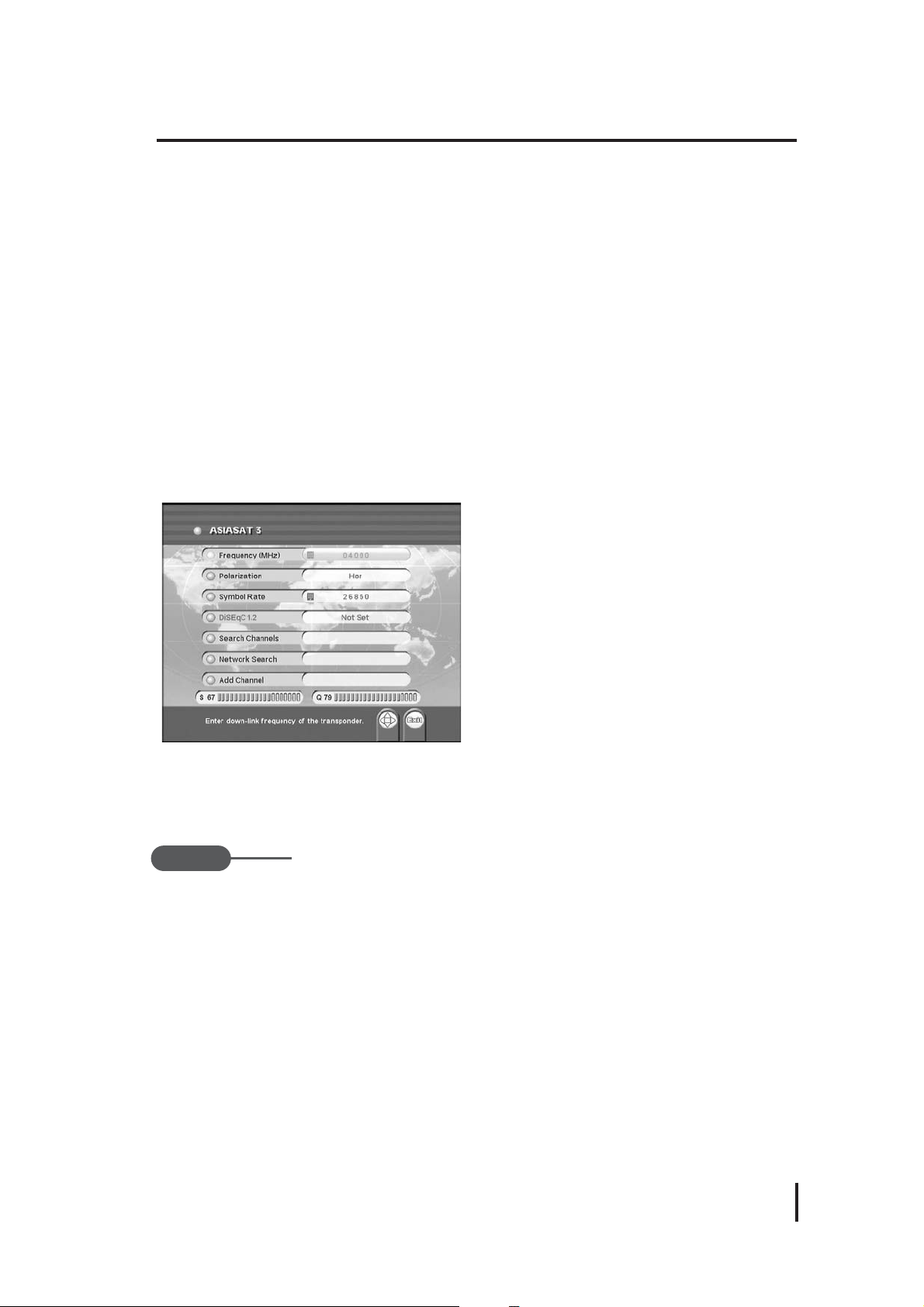

4.1 Basic Settings 9
4.2 Viewing TV(or Radio) 14
4.3 Other functions 18
4.4 System Settings 21

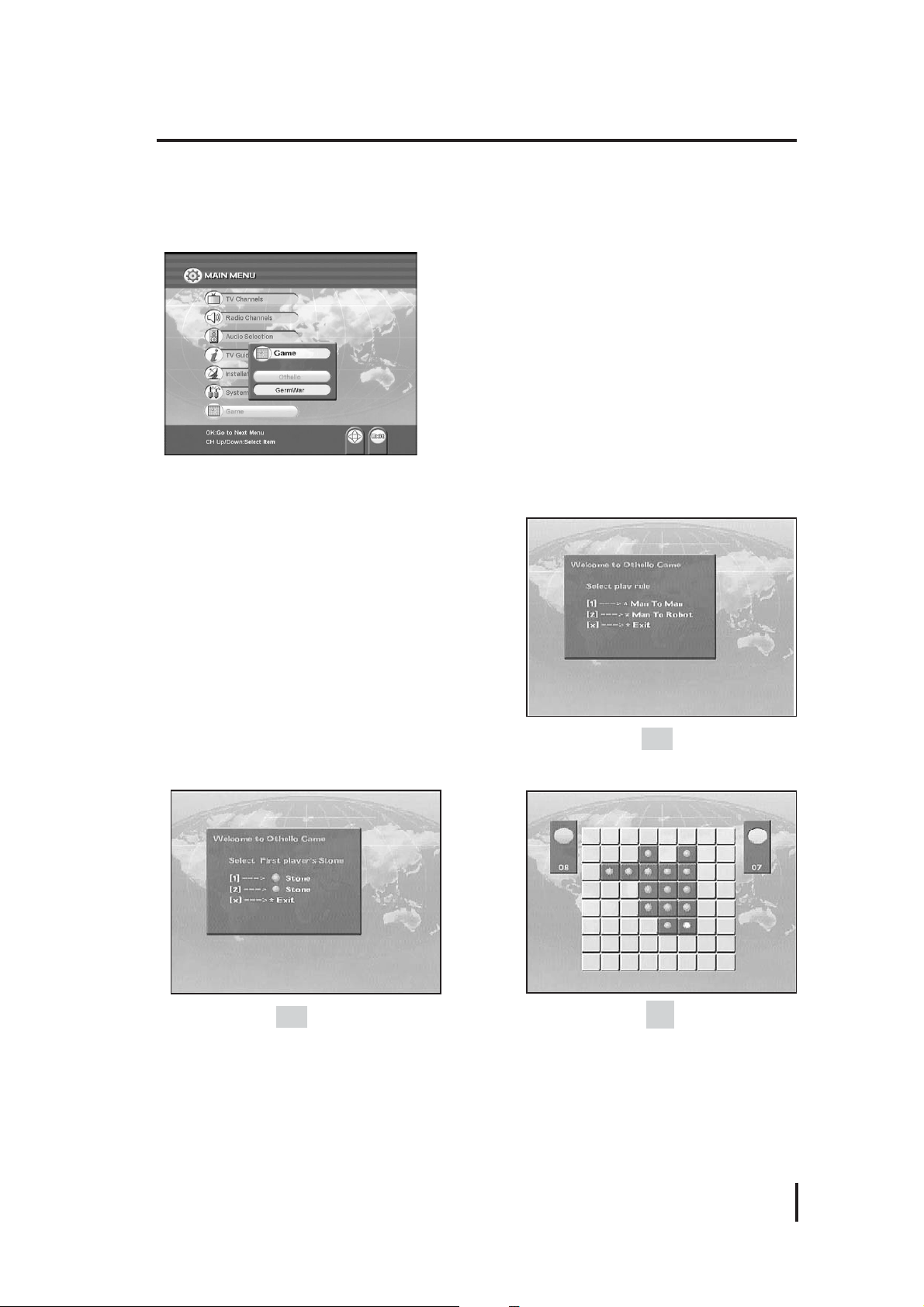

4.5 Game 24
5. Appendix 25
5.1 Troubleshooting 25
5.2 Specification 25
5.3 Glossary 26
III
CONTENTS
1.1 Main Features
Ҷ Easy Menu Function
Ҷ TV Guide Function
Ҷ RF Output Function
Ҷ Electronic Program Guide(EPG) for On Screen Channel Information
Ҷ Software Upgrading Function Through RS-232C Cable by PC
Ҷ Perfect DiSEqC 1.2 and 0/12V Support for Various Antenna System or 2-LNB on 1
Antenna System
Ҷ Supports of Ku/C band, SCPC and MCPC
Ҷ Additional Audio Output Function for Connection to Hi-Fi Audio System
Ҷ Other Functions of Remote Controller, Receiving Level Selection, Channel Editing,
Menu Language Selection and Audio Selection
Ҷ Digital free-to-air Satellite Receiver
Ҷ NTSC & PAL Output Function
Regardless of the TV type, NTSC and PAL channels can be viewed by selection
When PAL channel is viewed on NTSC TV, small deletion on up & down sides of the screen
may occur and it is normal, as its conversion is managed by software. And darker color on the
bottom side of the screen may occur, when NTSC channel is viewed on PAL TV.
Ҷ 1200 Transponders and 1820 Channel Memory Function
Ҷ Teletext Supported
Ҷ Multi Language Function(Menu, Audio)
BEFORE GETTING STARTED
1
Note
1.2 Accessories
RCA cable
User’s Guide
Batteries(AAA)
Remote Control Unit
2
Accessories
2.1 Front pannel
STANDBY ON
Turn the power on/off.
Volume
ȭ
ȭ ȯ
Control volume, change item on menu or input frequency value.
Channel
ƞ
ƞ Ơ
Change channel, move menu, or input frequency value.
OK
Select menu or value on menu item.
MENU
Shows the menu application.
CONTROLS AND FUNCTIONS
2
2.2 Rear pannel
IP Connection
Network interface
DIGITAL
It receives signals from the LNB in the range of 950 ~ 2150MHz. Connect a satellite dish
to DIGITAL.
OUT
It sends signal to the another receiver.
AUDIO
It provides stereo audio output. Connect the audio on TV to AUDIO with RCA cable.
SPDIF
Output for connection to a digital amplifier
VIDEO
It provides composite video output. Connect the Video on TV to VIDEO with RCA cable.
0/12 VOLT
The 0/12V jack provides 0 or 12V output for external LNB switch.
TV ANT IN
The signal supplied to this connector from a TV antenna will be sent to TV antenna
output. Connect a TV antenna to TV ANT IN.
TV OUTPUT
It provides a modulated audio and video from the receiver. Connect the TV/VCR on TV to
TV/VCR with the RF cable.
S-VIdeo
It provides high definition screen.
RS-232C DATA
It receives data by connecting to PC for software upgrading. Connect with RS-232C
cable a PC and receiver.
ON/OFF
The switch is to turn on or off the main power of the receiver mechanically.
3
Rear pannel
2.3 Remote Control Unit
CONTROLS AND FUNCTIONS
4
Open the controller cover on the back and insert two batteries (AAA - 1.5V).
POWER
Turn the power on/off.
TV/SAT
Select between TV Channels and Satellite
channels for RF output.
Numeric(0~9)
Change channel or input frequency value.
F. BK
It is to move to previous channel.
AUDIO
Select Stereo, Main or Sub from multi
language channels available.
CLEAR
Clear wrong number input or delete channel
from TV (Radio) list or favorite channel list.
MUTE
Deactivate current sound.
MENU
Shows the menu application.
Page UP/DOWN
Move to previous/next page on TV(Radio),
Favorite Channels or Edit TV(Radio)
Channels.
EXIT
Exit from the menu.
Volume
ȭ
ȭ ȯ
Control volume, change item on menu or input frequency value.
Channel
ƞ
ƞ Ơ
Change channel, move menu, or input frequency value.
OK
Select menu or value on menu item.
INFO
Shows the information of current channel. Click the INFO button twice, TELETEXT mode
will be displayed.
GUIDE
Shows the broadcasting information.(Video - Audio - LNB)
FAV
Add TV or Radio channel to the favorite list on Edit TV(Radio) Channels, or watch favorite
channel from your favorite list.
WIDE
Select between standard 4:3 and wide 16:9 screen sizes.
SUBT
Visible / Invisible For the Subtitle.
TEXT
Change to Teletext mode.
LANG
Select the audio language from 2 or more audio language channels available.
TV
Change to TV mode from radio channel.
RADIO
It is for fast change to radio mode from TV channel. Shows the current Radio program list.
5
Remote Control Unit
3.1 Connecting to the TV, VCR and Satellite Antenna
It is not necessary to adjust power, as the product is of free - voltage (110~220V )
1. Connect the RF cable from the TV OUTPUT on the satellite receiver to a TV and
connect the RF modulate on the VCR and the TV ANT.IN.
3. Connect an antenna to the LNB socket on the VCR or other receiver and cable of the
satellite dish to the DIGITAL on the satellite receiver.
3.2 Connecting DiSEqC switch
If you have one antenna equipped with many LNBs or two antennas with one LNB on
each, you need a DiSEqC switch.
1. Connect the LNBs to a DiSEqC switch at first.
2. Connect the antenna cable to the OUT connector on the DiSEqC switch and connect
the end of the cable to the DIGITAL on the satellite receiver.
Connections
7
DiSEqC switch
