Coolpad 2938 User Manual
Coolpad 2938
User Manual
YULONG COMPUTER TELECOMMUNICATION SCIENTIFIC (SHENZHEN) CO., LTD
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Your Coolpad 2938 is a business assistant smart phone, which supports GSM and CDMA
online at the same time.
l Thank you very much for purchasing our products.
l This document is only applicable to Coolpad 2938. Any difference between descriptions
in this document and actual product, please refer to your mobile device for actuality.
l Changes to product details are possible without prior notice. Application offering may
vary. All rights reserved.
Version: V1.0; First edition in April 2008
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Guide to Safety and Effective Use
To use your device safely and effectively, please read the following information carefully
before operating your device.
Important note: Please answer the call or reduce volume before putting the device near your
ear, so as to avoid impairment to hearing.
Care and Maintenance
Your device is a product of superior design and craftsmanship and should be treated with care.
The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this
product for many years. When using the device, charger and accessories:
· Switch off your device in any places where posted notices require you to do so or where use of
the device is forbidden (including airdrome, gas station and hospital, etc.)
· Keep the device and all its parts and accessories out of the reach of children.
· Keep the device and its accessories away from liquid or humidity areas.
· Do not store the device in too hot or too cold areas.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
· Do not place the device near a flame, or a lighted cigar or cigarette.
· Do not dye or paint the device.
· Do not drop, throw or bend the device.
· Do not store the device in a place where the computer disks, credit cards, travel cards or other
magnetic objects are stored. Otherwise, the information stored on the disks or credit cards may be
affected by the device.
· Do not store the device or battery in areas that may get very hot (over 60°C), such as on the
instrument panel of a vehicle or windowsill or behind the glass sheet irradiated directly by sunlight.
· Do not try to disassemble or repair the device or any other accessories without authorization.
· Only use manufacturer-approved batteries and chargers to avoid potential danger.
· Only use a slightly wet or antistatic cloth to clean the device, avoiding unpredictable damages to
your device. Never use a dry or electrostatic cloth, chemicals or detergents containing abrasive
ingredients to clean the device, as its covers may be damaged.
· Some parts such as the liquid crystal display and camera are frangible, please take care and
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
protect the device from bumps or pressure.
· In case the device, battery, charger or any accessory does not function normally, please take it to
the nearest authorized service center. Our qualified personnel will assist you in solving problems,
and arrange repair if necessary.
Gas Station
Switch off your device when in or near a gas station and obey all safety signs and
instructions there. In such areas, sparks generated during the use of the device could cause an
explosion or fire.
Flammable and Explosive Area
Switch off your device when in or near any area with a potentially flammable and explosive
atmosphere and obey all safety signs and instructions there. In such areas, sparks or radio
waves generated during the use of the device could cause an explosion or fire.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Airplane
Switch off your device when on an airplane and obey all safety signs and instructions there.
The radio wave sent by the device may interfere with the navigation devices and control system
of the airplane, thus making the automatic control device of the airplane receive wrong
information and perform incorrect operation, which may result in danger and even crash.
Health Care Facilities
Switch off your device when in a health care facility and obey all safety signs and
instructions there. The radio wave sent by the device may affect normal running of electronic
medical devices. Moreover, it may interfere with operation of the pacemaker, which endangers
patients’ lives.
Personal Medical Devices
This mobile device may affect operation of pacemaker or other implanted devices. Please
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
avoid placing your device over the pacemaker, such as in a pectoral pocket. When using the
device, please put the device near the ear opposite the pacemaker, and try to keep the device
15cm (six inches) away from the pacemaker at least. If you have any reason to suspect that the
interference is taking place, please switch off your device immediately. Consult your physician
for details.
For other medical devices, please consult their manufacturers for details.
Road Safety
Always pay full attention to road safety when you are driving. If, the use of the “hand free”
device is allowed by driving terms, it is recommended you only use the “hand free” kit applicable
to your device; otherwise, you should pull off the road and park before making or answering a
call.
Child Safety
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Do not let children play with the device or its accessories. They may accidentally hurt
themselves or other person and cause damage the device or accessories. Your mobile device
or its accessories may include detachable parts, which may present a choking hazard to
children.
Disused Battery
Do not dispose of the disused battery as the ordinary household waste. For correct
disposing method, please refer to local stipulations on disposal of disused electronic products.
Use of Original Accessories
Charger
Connect the AC charger to the specified power outlet with the same mark. Make sure that
the cable is placed in proper position and protected from damages and pressure. To avoid risk
of electronic shock, please disconnect the charger from the power outlet before cleaning it. It is
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
forbidden to use the charger outdoors or in a humid area. Do not replace the cable or plug of the
charger.
Battery
It is suggested that you charge the new battery (or one that has not been used for a long
time) for at least 12 hours (but NOT more than 24 hours) before use. When charging your
battery, keep it in temperatures ranging from -5 to +45. The maximum performance of a ℃℃
new battery or one that has not been used for a long time can be achieved only after several
complete charge and discharge cycles.
Please only use the original charger to charge the battery. Do not short-circuit the battery. Do
not dispose of the battery in a fire as it may explode.
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
Contents
1 GETTING STARTED..................................................................................1
1.1 VIEWING YOUR DEVICE..................................................................................1
1.2 BATTERY........................................................................................................3
1.3 UIM/SIM CARD .............................................................................................6
1.4 PRIVATE MODE...............................................................................................7
1.5 USAGE OF 5-WAY JOYSTICK ...........................................................................8
2 BASIC OPERATIONS................................................................................9
2.1 SWITCHING THE DEVICE ON/OFF ...................................................................9
2.2 INDICATORS ON THE STATUS BAR.................................................................10
2.3 INPUT METHODS..........................................................................................12
3 PHONE FUNCTIONS...............................................................................13
3.1 MAKING A CALL ............................................................................................15
0
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
3.2 SPEED DIAL.................................................................................................15
3.3 ANSWERING A CALL......................................................................................17
3.4 FEATURES AVAILABLE DURING A CALL..........................................................18
4 CONTACTS.............................................................................................19
4.1 GROUP ........................................................................................................20
4.2 CREATING A NEW CONTACT ENTRY..............................................................21
4.3 CREATING A CONTACT ON PHONE ................................................................21
4.4 CONTACT AND GROUP..................................................................................21
4.5 FINDING A CONTACT .....................................................................................23
4.6 QUICK LOCATION .........................................................................................23
4.7 COPYING CONTACTS ON UIM/SIM CARD TO PHONE....................................24
4.8 COPYING CONTACTS ON PHONE TO UIM/SIM CARD....................................24
4.9 VIEWING ASSOCIATED INFORMATION OF A CONTACT.....................................25
4.10 SECURITY SETTINGS..................................................................................25
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
4.11 VIEWING MESSAGES CAPACITY..................................................................25
5 CALL LOG...............................................................................................26
5.1 VIEWING CALL DETAILS................................................................................26
5.2 OPERATIONS AVAILABLE IN CALL LOG ...........................................................26
5.3 SECURITY SETTINGS....................................................................................26
6 MESSAGES.............................................................................................27
6.1 MAIN VIEW...................................................................................................27
6.2 WRITING A NEW MESSAGE...........................................................................28
6.3 READING A MESSAGE...................................................................................29
6.4 SETTINGS.....................................................................................................30
6.5 SEARCHING A MESSAGE...............................................................................30
6.6 TEMPLATES..................................................................................................31
7 WAP........................................................................................................32
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
8 E-MAIL.....................................................................................................32
8.1 MANAGING ACCOUNTS.................................................................................32
8.2 WRITING AN E-MAIL MESSAGE .....................................................................33
8.3 REMOTE MANAGER......................................................................................34
8.4 SEARCHING E-MAIL MESSAGES....................................................................35
9 CALENDAR.............................................................................................35
9.1 DIFFERENT VIEWS........................................................................................35
9.2 CREATING A SCHEDULED EVENT ..................................................................36
9.3 MANAGING SCHEDULED EVENTS..................................................................37
9.4 QUERYING SCHEDULED EVENTS..................................................................38
10 MEMOS.................................................................................................38
10.1 CREATING A NEW MEMO ............................................................................38
10.2 MANAGING MEMOS....................................................................................39
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
10.3 SEARCHING IN THE MEMOS ........................................................................39
11 TASKS...................................................................................................40
12 ALARM...................................................................................................40
13 MY FILES...............................................................................................41

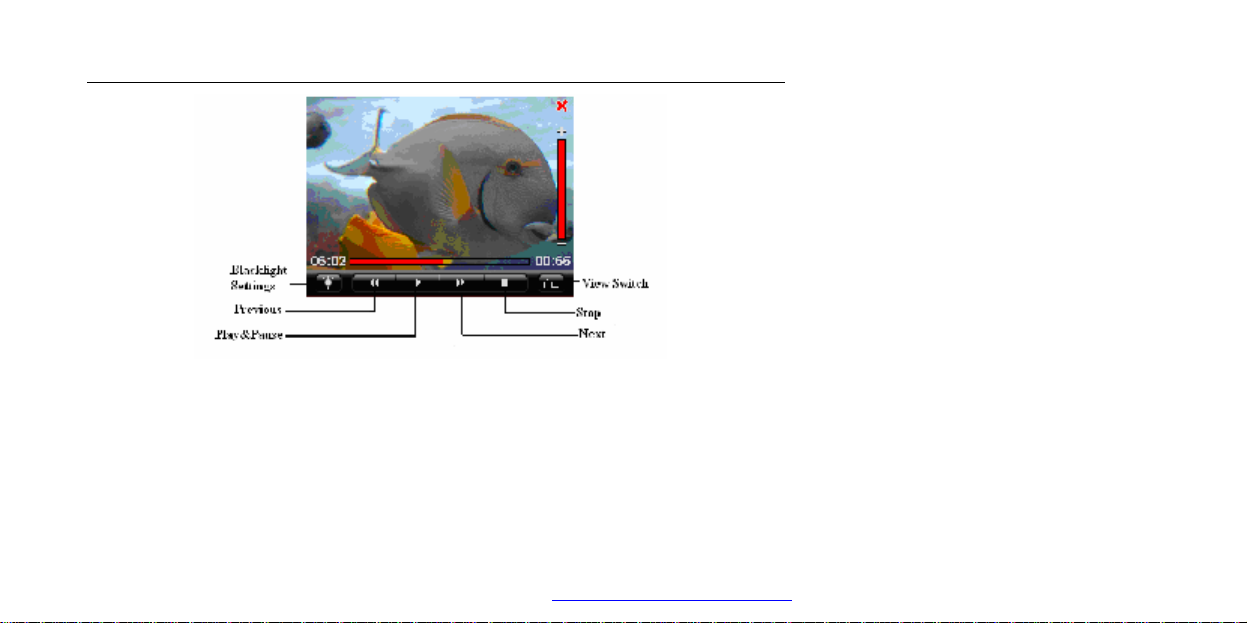

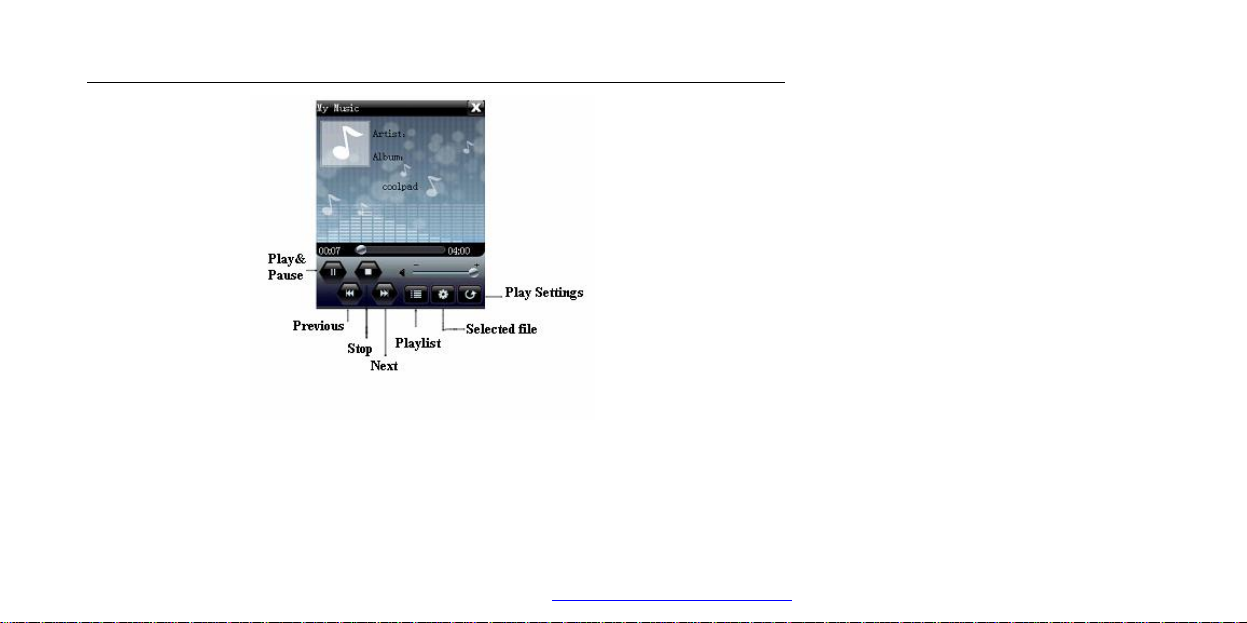

14 COOLPAD PLAYER...............................................................................41
15 CAMERA...............................................................................................45
15.1 TAKING A PHOTO ........................................................................................46
15.2 VIEWING PHOTOS......................................................................................47
15.3 MAKING A VIDEO RECORDING ....................................................................47
16 RINGTONES..........................................................................................47
17 ALBUM...................................................................................................48
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
18 RECORDER..........................................................................................49
18.1 RECORDING A SOUND CLIP ........................................................................49
18.2 DELETING A SOUND CLIP ...........................................................................50
19 RADIO...................................................................................................50
20 GAMES..................................................................................................51
21 CONTROL PANEL.................................................................................52
21.1 STANDBY SETTINGS...................................................................................52
21.2 CALL SETTINGS..........................................................................................52
21.3 NETWORK SETTINGS..................................................................................55
21.4 DEVICE SETTINGS......................................................................................56
22 PROFILES.............................................................................................56
23 CONNECTIVITY....................................................................................57
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
23.1 U-DISK ......................................................................................................57
23.2 PC BACKUP...............................................................................................58
24 MODEM.................................................................................................60
25 CALL FILTER.........................................................................................62
25.1 MAIN VIEW.................................................................................................63
25.2 ADDING A NEW GROUP................................................................................64
26 TOOLS...................................................................................................64
27 BLUETOOTH.........................................................................................64
APPENDIX TECHNICAL INFORMATION....................................................70
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
1 Getting Started
1.1 Viewing Your Device
1
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
Table 1.1 Functions of Shortcut Keys
Keys Functions
GSM Dial Make a call in GSM.
Delete/Back key In active status, press it to return upper directory.
Function as Delete key when editing text.
Dial key Make a call in CDMA.
End key During a call, press it to end the call.
In any interface other than the active call interface, press and hold it to
enter the standby interface.
OK key In standby interface, press it to browse internet.
In Camera, press it to take pictures.
Other interfaces: Press it to select the highlighted item or perform
corresponding function.
2
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
Up key In list interface, press it to move the cursor upwards.
Down key In list interface, press it to move the cursor downwards.
Left key In standby mode, press it to activate U-Mail.
Right key In standby mode, press it to activate Contacts.
Volume keys During a call or in the playback interface, press it to adjust the volume.
Record key A shortcut to record.
1.2 Battery
Removing the cover
Press the buckle under the cover, and then lift the cover on its sides and pull it down to
remove it from the mobile device.
Replacing the cover
1. Put the mobile device with its front facing down.
2. Line up the buckles on the cover top and lateral and the buckle position. Push it down
3
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
and upward. Fasten the buckle on the below to replace the cover.
Installing the battery
1. Insert the latch on the top battery into the latch hole on the top battery compartment.
2. Press the battery down and replace the back cover.
Removing the battery
1. Remove the back cover from the mobile device first.
2. Use the buckles on both sides to remove the battery.
Caution: Switch off the mobile device before replacing, installing or removing battery.
Charging the battery
1. Put the side with an arrowhead on the charger port and the device frontispiece on the
same side. Insert the charger port into the charger jack on the bottom.
2. Insert the other charger port into a power outlet.
3. Upon completion of charging, unplug the charger from the mobile device, and
disconnect it from the power outlet.
4
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
Tips:
1. Your device can monitor and display corresponding battery information. Tap on the
status bar to display the power level.
2. When the battery is charging, a blinking indicator will be displayed on the status bar
(device is ON); or message USB charging is displayed on screen (device is OFF).
3. If the battery charge is extremely low, the device will shut down automatically. Please
charge the battery in time.
4. You can charge the battery at any time, even if the device is off or switching on. Charging
upon switching on will not compromise the device performance.
5. You can not use a desktop charger and an USB cable to charge the battery at the same
time. (For USB jack, the output voltage is 5V and the current 250mA. It can be used to
charge any device that below 250mA, e.g. Bluetooth headset.)
Caution: Please follow the correct procedures to switch on/off the device. In order to avoid
loss of data, do not install or remove the battery when the battery is being charged or the
5
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
device is switching on.
1.3 UIM/SIM Card
A UIM/SIM card is an intelligent card provided by the mobile communication carrier. This
mobile device can perform some operations on the absence of UIM/SIM card. However,
network access and communications are performed only on the presence of UIM/SIM card.
Coolpad 2938 is a dual-mode dual-working mobile phone. You can insert two cards at the same
time.
Procedures for inserting/removing a UIM/SIM card:
1. Remove the back cover first.
2. Push the upper card slot to the left side and open the catch on the card slot.
3. Insert the card into the slot. The upper slot is slot2, the other is slot1.
4. Snap the slot and replace the back cover.
Caution:
1. Switch off the device before replacing, inserting or removing a UIM/SIM card; otherwise, a
6
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
fault may occur to the device;
2. The UIM card must be inserted in slot1.
1.4 Private Mode
This mobile device supports two modes: normal mode and private mode. In Private mode,
you can mark some data stored in the device (even a whole folder in some module) as private,
such as contacts, call log, SMS and calendar and so on. Private data is invisible in Normal
mode and labeled in special color in Private mode. For example, if you set a contact as private,
then all information concerned this contact are hided in Normal automatically for absolute
security.
If your device enters the standby state in Private mode, it switches to Normal mode
automatically when activated.
To switch to Private mode, follow the procedures below:
1. In any interface, use the stylus to scratch the screen from top to bottom incessantly
(the stylus cannot stay on the screen);
7
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
2. In the pop-up box, select Private mode as the active mode;
3. Enter the correct private password (the original password is null, directly tap OK to
enter Private mode);
4. Select the application you want to access, or change the password.
• Private mode: You can view private entries and normal entries.
• Normal mode: You can only view normal entries.
• Set PW: You can change the password for enabling private mode.
• OK: Confirm your selection and make it effective.
• Cancel: Cancel your selection.
Caution: Folders marked as private can only be accessed in Private mode.
1.5 Usage of 5-way Joystick
The 5-way joystick is mainly used to move the cursor in data application area. The Left can
be used to move the cursor to the menu area and the Right key to move the cursor to button
area. Press the OK key to perform operation. When the cursor is in menu area, press the OK
8
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
key of 5-way joystick to pop up a drop-down menu.
On the home screen, the Left and Right keys can be used to switch screen; the Up and
Down keys can be used to move the highlighted application icon. Press the OK key to launch
the highlighted application.
2 Basic Operations
2.1 Switching the Device On/Off
1. When the device is ON, press and hold the Power key until the Shut Down dialog
box appears, where you can select Shut Down to switch off the device or select
Disable/Enable Antenna to disable/enable the communication feature;
2. When the device is OFF, press and hold the Power key. Select the power-on mode
from the Please Select a Mode dialog box according to your needs.
3. The Power key can serve as the Inactivate/Activate key. To turn your display off, just
press the Power key briefly. Briefly press again to activate it.
9
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
2.2 Indicators on the Status Bar
Indicators on the status bar are used to indicate various current working states of the
device, as shown in the table below:
Indicators
Function and Relative Operations
Indicates signal strength, tap it to view network status.
Indicates unreachable, antenna disabled or no UIM/SIM card inserted.
Indicates the battery charge.
Blinking indicates that the battery is charging.
A call is in progress.
You have missed calls. Tap it to view details of the missed call.
Connecting network. Blinking indicates for data stream.
The revolving icon indicates checking network.
10
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Coolpad 2938 User Manual
Unread short messages. Tap it to view details of unread messages.
Maximum of short messages on the UIM/SIM card reached.
New PUSH messages arrive.
There is an alarm set for the event.
General mode
Flight mode
Meeting mode
Outdoor mode
Quiet mode
VIP mode
Call an application when several applications are launched.
11
PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn
Loading...
