Personal Fan Features
Versatile and Portable. Depending on which model you have,
CoolMate accessories allow you to move your fan from your bedroom, office
or workspace to a vehicle, RV, boat, small plane, golf cart or even at tent!
Dripless operation! CoolMate’s mist is virtually “dry” and never leaves
a puddle . The world’s ONLY misting fans suitable for use indoors or in a
vehicle
Aromatherapy attachment - A unique feature! For a refreshing,
cool breeze with a pleasant aroma such as Lavender, try adding drops of
Essential Oils to the fan’s aromatherapy attachment.
Save electricity! Use your fan to “spot cool,” or as a supplement to your
existing A/C system and save on your next electricity bill.
No hose-hookup necessary. CoolMate fan’s have an internal water
tank. Fill it and enjoy up to 8 hours of refreshing mist (on LOW MIST setting).
Reusable Funnel-Filter included. Refill the fan with tap water using
ONLY the reusable funnel-filter (included). The filter reduces the mineral
content of tap water to ensure long lasting, maintenance free operation.
Unit #18, 170 Wilkinson Road, Brampton, Ontario CA, L6T 4Z5
Need Assistance? Call Us First!
Toll Free: U.S. and Canada 1-866-793-7874
Email: [email protected]

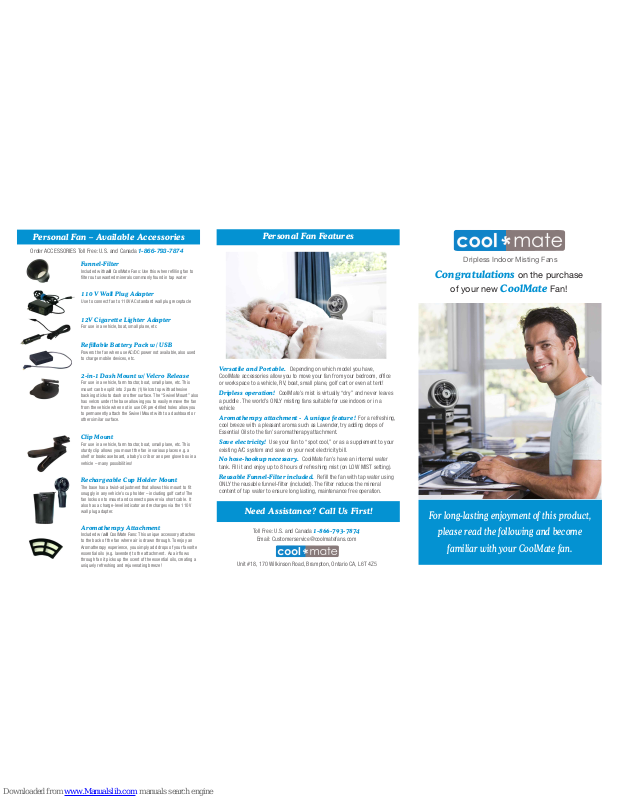

Congratulations on the purchase
of your new CoolMate Fan!
Personal Fan – Available Accessories
Order ACCESSORIES Toll Free: U.S. and Canada 1-866-793-7874
Funnel-Filter
Included with all CoolMate Fans: Use this when refilling fan to
filter out unwanted minerals commonly found in tap water
12V Cigarette Lighter Adapter
For use in a vehicle, boat, small plane, etc
110 V Wall Plug Adapter
Use to connect fan to 110V AC standard wall plug receptacle
Refillable Battery Pack w/ USB
Powers the fan when use AC/DC power not available, also used
to charge mobile devices, etc.
2-in-1 Dash Mount w/ Velcro Release
For use in a vehicle, farm tractor, boat, small plane, etc. This
mount can be split into 2 parts (1) Velcro top with adhesive
backing sticks to dash or other surface. The “Swivel Mount” also
has velcro under the base allowing you to easily remove the fan
from the vehicle when not in use OR pre-drilled holes allow you
to permanently attach the Swivel Mount with to a dashboard or
other similar surface.
Clip Mount
For use in a vehicle, farm tractor, boat, small plane, etc. This
sturdy clip allows you mount the fan in various places e.g. a
shelf or bookcase board, a baby’s crib or an open glove box in a
vehicle – many possibilities!
Rechargeable Cup Holder Mount
The base has a twist-adjustment that allows this mount to fit
snuggly in any vehicle’s cup holder – including golf carts! The
fan locks on to mount and connects power via short cable. It
also has a charge-level indicator and recharges via the 110V
wall plug adapter.
Aromatherapy Attachment
Included w/ all CoolMate Fans: This unique accessory attaches
to the back of the fan where air is drawn through. To enjoy an
Aromatherapy experience, you simply add drops of your favorite
essential oils (e.g. lavender) to the attachment. As air flows
through fan it picks up the scent of the essential oils, creating a
uniquely refreshing and rejuvenating breeze!
Dripless Indoor Misting Fans
For long-lasting enjoyment of this product,
please read the following and become
familiar with your CoolMate fan.
Page 2
What Makes CoolMate Great?
It creates a microscopic mist so ultra-fine it evaporates almost immediately
once in contact with the breeze of the fan. CoolMate misting heads are
dripless making the fans suitable for indoor use.
Do not tamper with or remove mist head.
Doing so may cause permanent damage. If mist head becomes damaged
beyond repair, DO NOT return product to store. Please call Toll Free: U.S.
and Canada 1-866-793-7874.
Is your fan NOT creating mist?
It may be for one of the following reasons:
1. Water level too low SOLUTION: When water level reaches approx.
5%, the misting function will stop automatically to protect the mist head. Please
refill fan’s internal water tank and re-push HI or LOW mist setting.
2. Air lock SOLUTION: If fan previously ran out of water before the
misting function was turned OFF, an air lock may have formed in the system. To
remedy, gently but firmly shake the fan to unblock the water passages.
3. Water tank is empty SOLUTION: Refill tank using funnel-fliter
supplied with your fan. DO NOT over fill.
4. Mineral deposit on Nano-Mist Generator misting head
SOLUTION: Gently swab misting head with ONLY cotton tip swab dipped in
commercial solutions noted for removing mineral deposits (e.g. CLR) or plain
white vinegar. Repeat gentle swabbing several times for thorough cleaning.
Basic Trouble Shooting
CoolMate’s Secret
CoolMate’s secret is its patented
“Nano-Mist Generator” misting
head with hundreds of tiny holes
controlled by a micro-chip.
1. Using funnel (supplied), fill the fan’s
internal water tank with clean tap or
distilled water (Do NOT overfill) 2. Plug
AC cord into fan and wall 3. Select mist
setting HI or LOW 4. Select fan speed
setting HI or LOW
DO NOT ADD OILS TO
INTERNAL WATER TANK –
APPLY ONLY TO AROMATHERAPY ATTACHMENT
Aromatherapy!
Add drops of your favorite
Essential Oils (e.g. Lavender)
to create a cool and scented
theraputic breeze.
Here’s how to do it ...
1. Turn fan OFF
2. Remove Attachment from
back of fan and add several
drops of your favourite
Essential Oil to the fabric
3. Return Attachment to
back of fan and turn fan ON
Important!
Need Assistance or Replacement Parts?
More Info at www.coolmatefans.com
Email: [email protected]
Unit #18, 170 Wilkinson Road,
Brampton, Ontario CA, L6T 4Z5
Toll Free: U.S. and Canada 1-866-793-7874
Quick Start Guide
Place fan on table top
or other level surface
Getting to Know Your Personal Fan
1. LOW SETTING: 6-second mist control (mist on for 2
seconds, off for 6 seconds)
2. HI SETTING: 2-second mist control (mist on for 2
seconds, off for 2 seconds)
3. Fan Speed ON - LOW/ HIGH / OFF
4. Refilling Cap (Add water through the [supplied]
1
2
3
4
5
6
7
filter into the fan’s internal water tank. DO NOT spill water
on the fan motor. DO NOT over fill. DO NOT submerge fan
to refill. UNPLUG fan when refilling.
5. Misting Head (DO NOT TOUCH the Nano-Mist Generator
misting head. It is computer controlled, handle with care)
6. 110 Volt AC power cord 7. 12 Volt DC power cord
Basic Parts and Operation
1
3
4
2
Create a scented
breeze that cools
and rejuvenates!
Fan tilts forward
and back allowing
you to control the
breeze flow
