Cooline PT360, PT036 User Manual

Download

Page 1

INSTALLATION,

OPERATION

MAINTENANCE

MANUAL

SINGLE PACKAGED ROOF TOP AIR CONDITIONERS

'PT' SERIES

MODELS: PT036 - PT360

Part Number: 800-213-03

Page 2

INDEX

Contents Page

General

Model decoding ...................................................................................................................................................... 2

General statement .................................................................................................................................................. 3

Warranty ................................................................................................................................................................. 3

Safety issues .......................................................................................................................................................... 3

Inspection for damage ............................................................................................................................................ 3

Installation instructions

General................................................................................................................................................................... 4

Location of unit ....................................................................................................................................................... 4

Service clearance ................................................................................................................................................... 5

Rigging instructions ................................................................................................................................................ 5

Condensate drain connection................................................................................................................................. 6

Duct connection...................................................................................................................................................... 6

Electric heater ........................................................................................................................................................ 6

Unit weight & weight distribution ............................................................................................................................ 6

Unit dimensions ................................................................................................................................................. 7-11

Cable size............................................................................................................................................................. 12

Operation instructions

Start-up inspection & check list ............................................................................................................................ 12

Electrical data .................................................................................................................................................. 13-14

Performex controller, operation & functions .................................................................................................... 15-16

Crankcase heater ................................................................................................................................................. 16

Pump down control............................................................................................................................................... 16

Maintenance instructions

Airflow adjustment ................................................................................................................................................ 17

Crankcase heater ................................................................................................................................................. 17

Cleaning of coils & filters ...................................................................................................................................... 17

Belt tension testing procedure ......................................................................................................................... 17-18

Field wiring connections ....................................................................................................................................... 18

Preventive maintenance schedule ....................................................................................................................... 19

Trouble shooting chart ..................................................................................................................................... 20-21

Typical schematic wiring diagram....................................................................................................................22-29

Parts list ................................................................................................................................................................ 30

CONTINUING RESEARCH RESULTS IN STEADY IMPROVEMENTS.

THEREFORE, THESE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Page 3

UNIT

ACCESSORIES

MANUAL

DAMPER

N : STANDARD UNIT

C :FRESH AIR

UNIT

ACCESSORIES

MANUAL

DAMPER

N : STANDARD UNIT

C :FRESH AIR

OTHER

OPTIONS

PDS

OPTION

COIL

CONDENSER

COIL

EVAPORATOR

N : STANDARD UNIT

I : ANTI-ICE

OPTION

N : NO PDS

AL. FINS

J : IGT + ENHANCED

AL. FINS

J : IGT + ENHANCED

CONTACT

U :UVM

V : VOLT FREE

P : PDS OPTION

MHG. FINS

L : IGT + CORRU-

MHG. FINS

L : IGT + CORRU-

GATED CU. FINS

K :IGT + ENHANCED

K : IGT + ENHANCED

HEATER

OPTIONS

(kW/STAGE)

N : NO HEATER

A : 5/1

B : 6/1

C : 7.5/1

D : 10 /2

E : 12/2

DRIVE

OPTIONS

DRIVE

N : DIRECT

MODEL DECODING

OTHER

OPTIONS

PDS

OPTION

COIL

CONDENSER

COIL

EVAPORATOR

HEATER

OPTIONS

(kW/STAGE)

DRIVE

OPTIONS

N : STANDARD UNIT

I : ANTI-ICE

U :UVM

OPTION

N : NO PDS

P : PDS OPTION

AL. FINS

K : IGT + ENHANCED

AL. FINS

K : IGT + ENHANCED

A : 5/1*

B : 6/1*

C : 7.5/1

D : 10 /2

K : ALT. II

MHG. FINS

E : 12/2

F : 15 /2

J : IGT + ENHANCED

N : NO HEATER

J : ALT. I

CONTACT

V : VOLT FREE

GATED CU. FINS

L : IGT + CORRU-

GATED CU. FINS

L : IGT + CORRU-

G : 20 /2

C : 7.5/1

D : 10 /2

E : 12/2

F : 15 /2

G : 20 /2

H : 25/2

J : 30/2**

MODELS: PT036 - PT060 (DIRECT DRIVE MOTOR)

MOTOR

BLOWER

REFRIGERA-

TION CIRCUIT

SUPPLY

( V-Ph-Hz )

ELECTRICAL

3, 4 & 5

NOMINAL

COOLING

CAPACITY

1& 2

BASIC

W : 0.75 HP ODP

S : SINGLE

L : 380/415-3-50

036

(MBH)

W : 0.75 HP ODP

(4 WIRE)

048

UNIT

COOLINE

PACKAGED

Y : 1 HP ODP

060

MODELS: PT075 - PT360 (BELT DRIVEN MOTOR)

MOTOR

BLOWER

REFRIGERA-

TION CIRCUIT

SUPPLY

( V-Ph-Hz )

ELECTRICAL

3, 4 & 5

NOMINAL

COOLING

CAPACITY

1& 2

BASIC

C : 1.5 HP ODP

S : SINGLE

L : 380/415-3-50

075

(MBH)

D : 2 HP ODP

D :DUAL

(4 WIRE)

090

UNIT

COOLINE

PACKAGED

E : 3 HP ODP

F : 3 HP TEFC

100

120***

G : 5 HP ODP

H : 5 HP TEFC

J : 7.5 HP ODP

180

215

K : 7.5 HP TEFC

J : 7.5 HP ODP

K : 7.5 HP TEFC

240

300

L : 10 HP ODP

M : 10 HP TEFC

L : 10 HP ODP

360

M : 10 HP TEFC

N : 15 HP ODP

P : 15 HP TEFC

– Applicable for PT075 models only.

– Applicable for models PT180 & above only.

– 3 HP motor only available for PT120.

***

NOTE:

Page 4

GENERAL

GENERAL STATEMENT

This unit is from the PT series that was designed & built for the optimum performance. However, it is required that you become well acquainted with good practices for the proper installation/operation/and maintenance procedures in order to ensure a safe trouble free operation, year after year.

Please read through the whole manual contents before you attempt to install/operate/ and maintain the unit.

Most of the procedures described in this manual require certain skills and experience. The installation and other maintenance procedures should be performed only by highly skilled and experienced technicians. The end user’s role should be limited to the cleaning of the filter.

Please consult your nearest “COOLINE” representative for further information.

The PT units can be supplied, depending on the End User requirement, as the basic “Cool Only” version, or the “Heat & Cool” version (with electric heater module).

WARRANTY

All of the PT series of Packaged Roof Top Units are covered by the standard warranty terms against any manufacturer defect. Should you encounter any problem that falls under the warranty terms please contact your nearest “COOLINE” representative.

SAFETY ISSUES

There are three degrees of safety hazards that are identified throughout this manual as WARNING (where the situation will result in personal injury), CAUTION (where personal injury might occur), and ATTENTION (where minor personal injury and/or property damage could happen). Please understand and respect those identifications.

WARNING: The PT units operate on a high voltage with moving parts (at high speed) which can lead to serious injuries and/ or damage to the unit. Never attempt to service the unit unless the main electrical power supply has been disconnected.

CAUTION: Extra care should be observed when installing, test running, adjusting, servicing, or maintaining the unit as the hazard of explosion, fire, electrical shock, and potential personal injury and property damage are present.

When performing any task pertaining to the installation and maintenance of the unit, the skilled technician should observe all the applicable safety measures (wear of safety helmet, boots, gloves, and goggles. Use of proper handling materials for brazing and use of wet cloth for quenching. A fire extinguisher should be easily accessible etc.). He should also read all the instructions and information in this Manual prior to attempting to perform any installation or servicing of the unit.

All applicable local codes should also be observed.

INSPECTION FOR DAMAGE

The unit should be carefully inspected visually for any sign of physical damage due to mishandling. Whenever a damage is detected, please indicate it on the corresponding delivery note before you sign it and inform your nearest “COOLINE” office.

Page 5

INSTALLATION INSTRUCTIONS

GENERAL

These units are shipped completely assembled, charged, and wired. They do not require any field installation of refrigerant tubing. Units require external power, thermostat wiring, condensate drain piping and ducting as applicable.

Size of unit for an installation should be based on a heat gain calculation made according to applicable standards. Units must also be installed in accordance with regulations of the "National Fire Protection Association" and local electrical codes. Where local regulations conflicts with the instructions in this manual, installer should adhere to local standards.

Prepare your concrete pad or steel stand based on the corresponding dimensions. Remove shipping protective covers and wooden crating and lift unit from base and place in position with suitable rubber vibration isolators.

All field installed accessories are to be installed by the customer with necessary reinforcements as required.

LOCATION OF UNIT

When selecting the location for the unit, the following points should be kept in mind:

1. Provisions for a concrete pad or steel stand base.

2. That the terrain allows for drainage away from the unit.

3. If the unit is to be roof mounted, inspect the roof for load bearing capacity. The roof should have sufficient structural strength to carry the weight of the unit.

4. Install unit on vibration isolation pads, i.e. on rubber mounting pads.

5. Availability of electric power.

6. To position the unit for unrestricted air circulation of the condenser air inlet and to prevent any possibility of air recirculation from the condenser fan discharge air (see figure on next page).

7. Check minimum clearances required for your unit, with regard to walls, or other obstructions (see figure on next page).

8. Air cooled equipment should not be installed under low structural overhangs which can cause condenser air recirculation or restriction. Observe minimum of clearance (see figure on next page).

9. Care should be taken to prevent air from other sources from entering condenser, if this air is at a high temperature.

10. Level the unit on its final location and be sure that the levelling tolerance is ±5 mm per linear meter in any direction.

CAUTION: Do not install the unit as indoor unit, install it in an open area, and unit air inlets must not be located near exhaust vents or other source of contaminated air.

Page 6

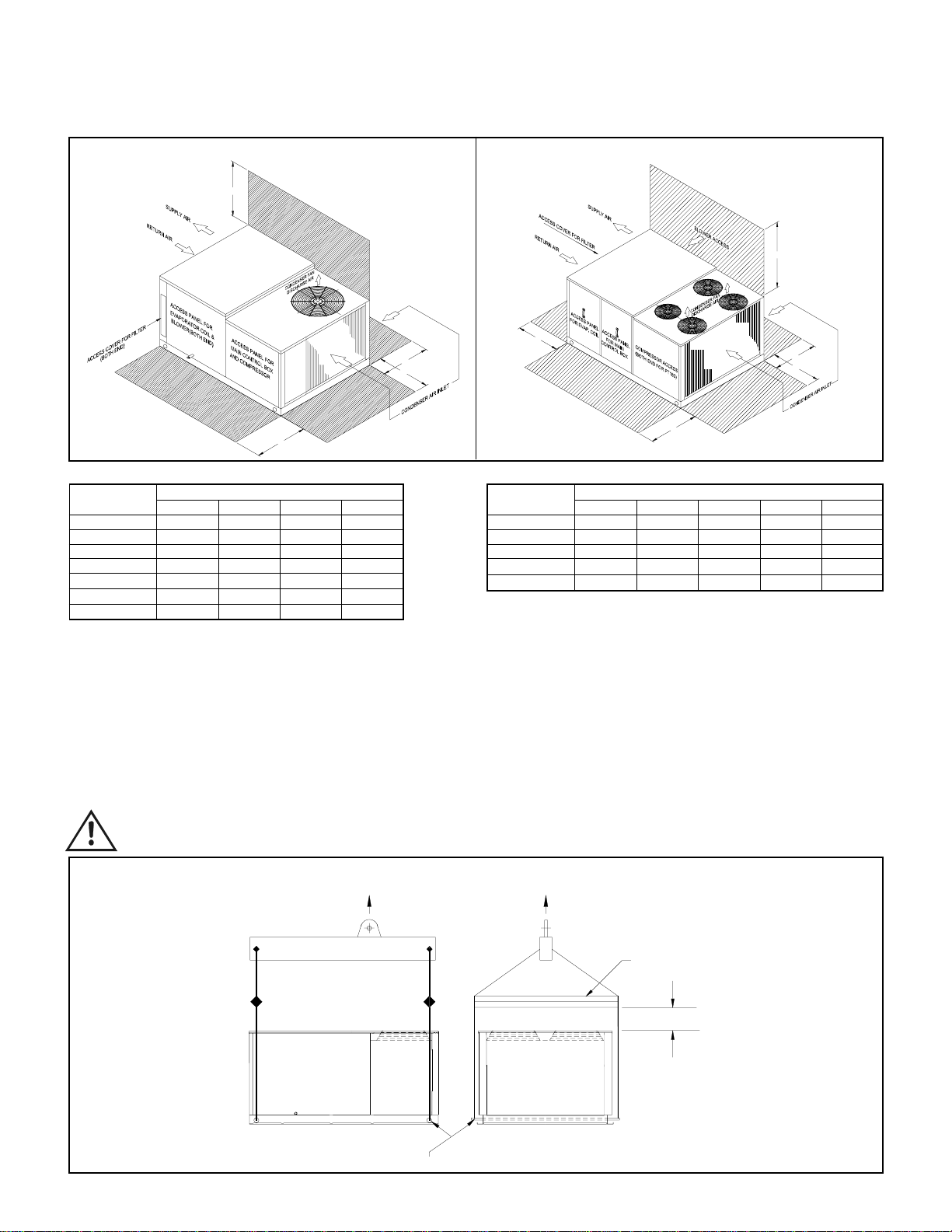

SERVICE CLEARANCE

MODELS: PT036 - PT120

NOTE: All dimensions are in cm.

MODEL DIMENSIONS

NUMBER A B C D

PT036 85 105 85 150 PT048 85 105 85 150 PT060 85 105 85 150 PT075 90 105 90 200 PT090 90 105 90 200 PT100 90 105 90 200 PT120 90 105 90 200

A :Clearance dimension from condenser coil B : Clearance dimension from compressor, control box, blower, evaporator coil & filter C : Clearance dimension from condenser coil & filter D : Clearance dimension over the condenser fan

MODELS: PT180 - PT360

C A

NOTE: Only two condenser fans for models PT180 - PT240.

MODEL DIMENSIONS

NUMBER A B C D E

PT180 120 120 115 250 90 PT215 120 120 115 250 90 PT240 120 120 115 250 90 PT300 120 120 115 250 90 PT360 120 120 115 250 90

A : Clearance dimension from condenser coil B : Clearance dimension from compressor, control box & evaporator coil C : Clearance dimension from condenser coil & blower D : Clearance dimension over the condenser fan E : Clearance dimension from filter access panel

RIGGING INSTRUCTIONS

ATTENTION TO RIGGERS

• Insert 2" nominal pipe through holes in the base rail as shown in the figure below for slings.

• Holes in base rail are centered around the unit center of gravity.

• Use wooden pallet or spreader bar when rigging, to prevent the slings from damaging the unit.

• Rollers may be used to move the unit on the roof or ground.

CAUTION: All panels should be in place when rigging.

MODELS: PT036 - PT360

LIFT

COMPRESSOR

END

NOMINAL PIPE THRU UNIT FOR SLINGS TO AVOID BASE DAMAGE.

LIFT

SPREADER BAR

PROPER CLEARANCE TO BE

PROVIDED.

Note: 1 .PIPE DIA 1 1/2" FOR PT036 TO PT075 MODELS

2. PIPE DIA 2" FOR PT090 TO PT360 MODELS

Page 7

CONDENSATE DRAIN CONNECTION

• Use standard PVC pipe with NPT connection for the condensate drain. Provide a 'P' trap immediately at the condensate drain connection.

• Piping has to be sloped away from the unit.

• Remember to remove the drain hole plug before operating the unit. Avoid bends & elbows.

DUCT CONNECTION

The units can be connected to the ducting in horizontal configuration. Connect ducting using flexible duct connection. The duct should be properly designed and the drive package should match the required CFM & corresponding external static pressure.

ATTENTION: Avoid abrupt changes in size and/or direction of duct to ensure proper unit performance.

ELECTRIC HEATERS

Electric heater kit is installed in the unit at the supply air opening space.

UNIT WEIGHT & WEIGHT DISTRIBUTION

MODEL

NUMBER

PT036 PT048 PT060 PT075 PT090 PT100 PT120 PT180 PT215 PT240 PT300 PT360

JP K

JKML

116

134

135

155

182

186

226

256

130

145

WEIGHTS (Kg.)

152

202

216

101

105

148

151

108

177

181

221

249

105

103

107

158

175

CONDENSER SECTION

MQ L

SUPPL Y AIR/ RETURN AIR

Page 8

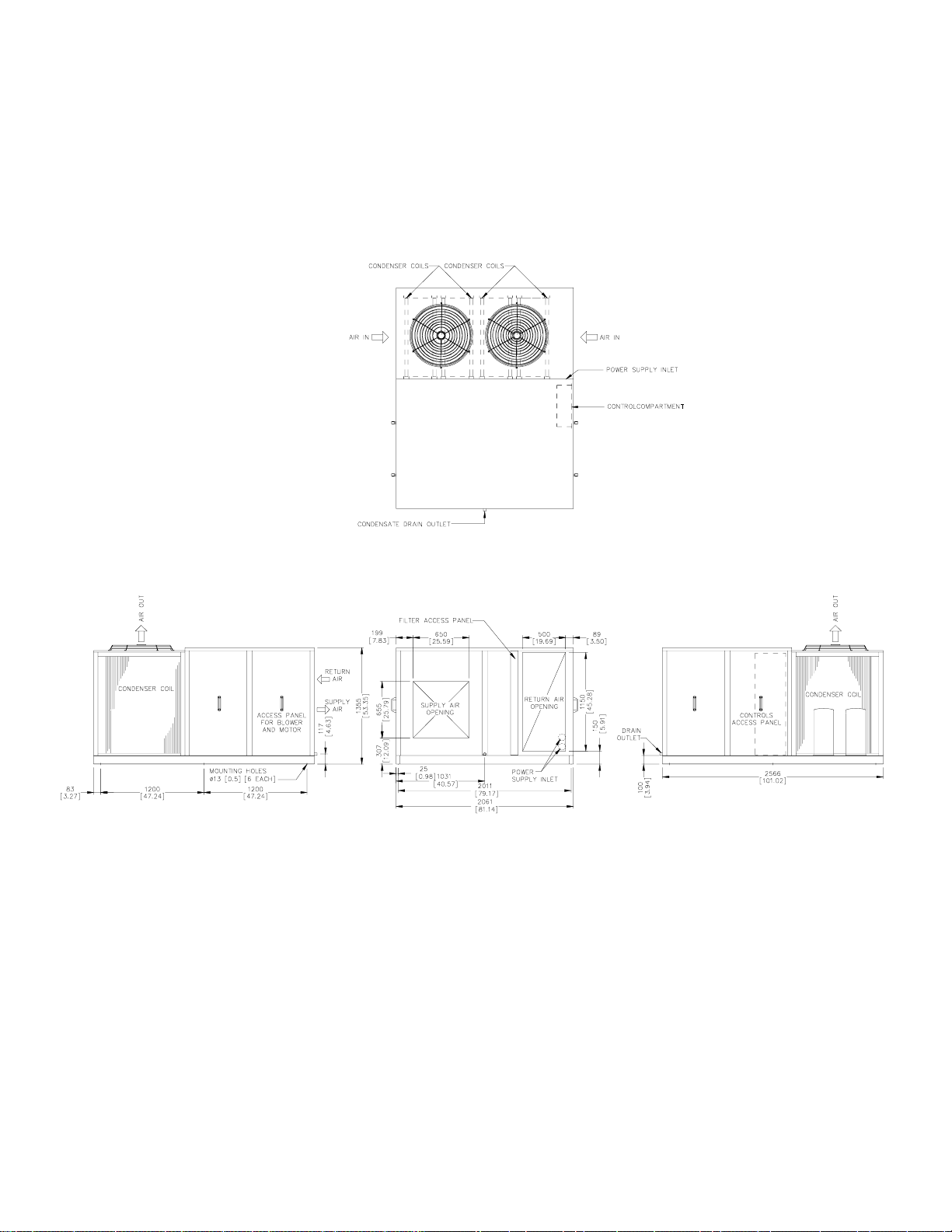

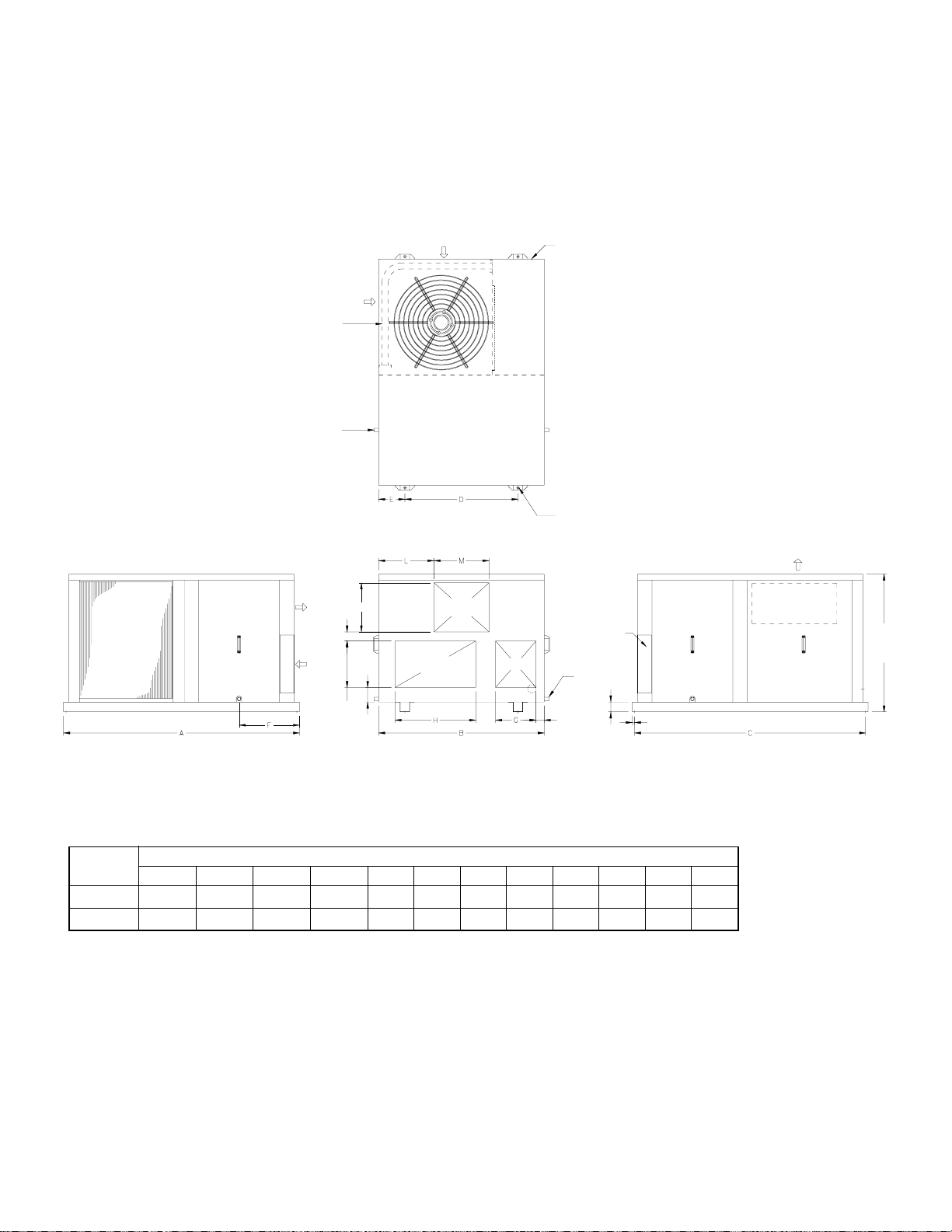

UNIT DIMENSIONS

PT036 - PT075

CONDENSER COIL

CONDENSATE DRAIN OUTLET [BOTH ENDS]

SUPPLY AIR

RETURN AIR

AIR IN

COMPARTMENT

COMPRESSOR/CONTROL

TOP VIEW

SUPPLY

RETURN A IR

OPENING

AIR

OPENING

FRESH AIR

OPENING

POWER SUPPLY INLET

MOUNTING HOLES Ø 13 [0.5] [ 4 EACH]

FILTER ACCESS

PANEL [BOTH ENDS]

DRAIN OUTLET [BOTH ENDS]

ACCESS PANEL

FOR BLOWER

AND MOTOR

AIR OUT

COMPRESSOR/CONTROLS

ACCESS PANEL

850 [33.46]

MODEL

51 [2.00]

286 [11.27]

SIDE VIEW

90 [3.53]

FRONT VIEW

DIMENSIONS

ABCDEFGHJKLM

15 [0.59]

61 [2.41]

PT036 - PT060 1460(57.48) 1025(40.35) 1430(56.3) 700(27.56) 163(6.42) 373(14.68) 250(9.84) 500(19.69) 57(2.24) 304(11.96) 343(13.49) 340(13.39)

PT075 1775(69.88) 1150(45.28) 1745(68.7) 800(31.5) 175(6.89) 480(18.9) 325(12.8) 672(26.46) 80(3.15) 280(11.02) 275(10.83) 600(23.62)

NOTE:

1. All dimensions are in mm (dimensions in brackets are in inches).

2. Service clearance should be 1200mm (4 feet) on all sides.

SIDE VIEW

Page 9

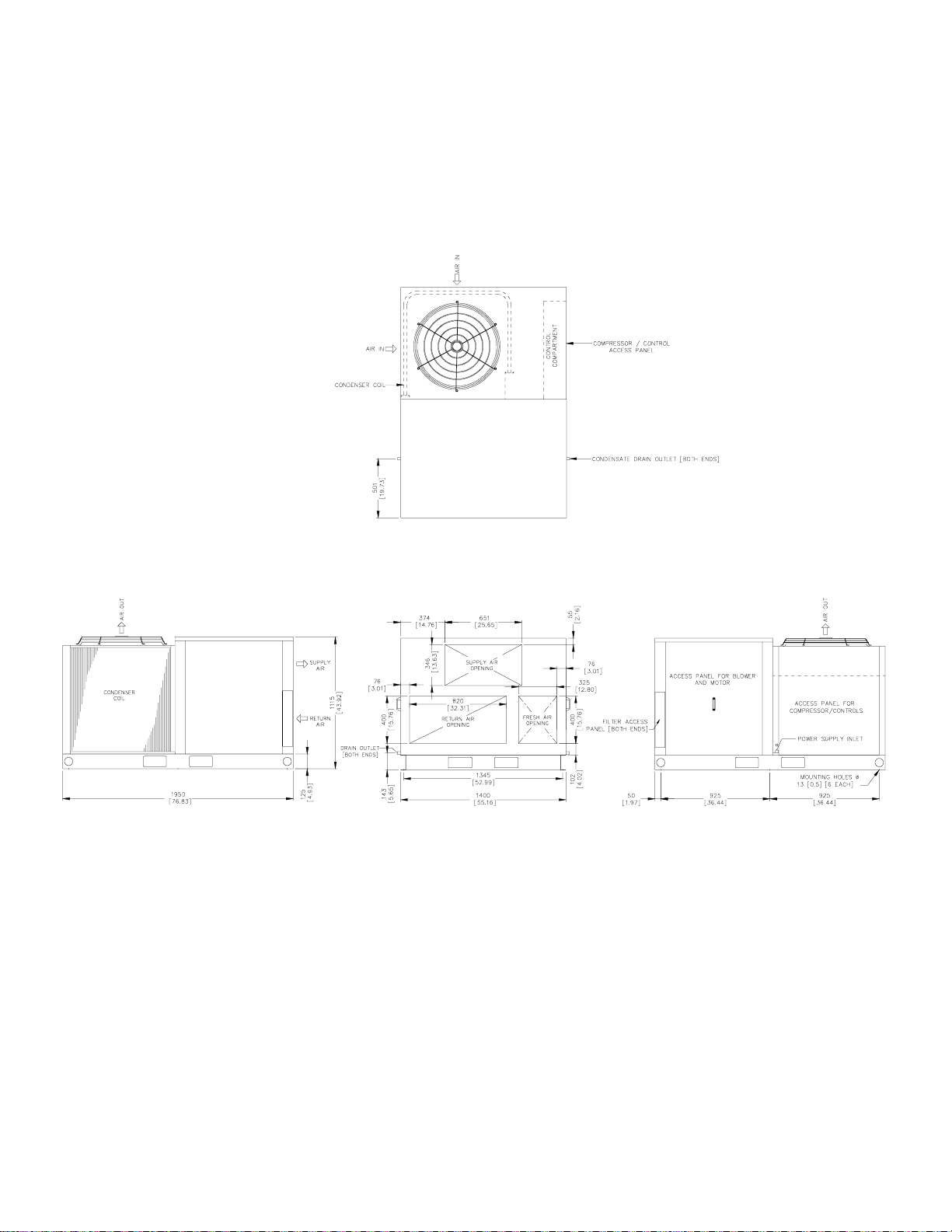

UNIT DIMENSIONS

PT090 - PT120

TOP VIEW

SIDE VIEW

NOTE:

1. All dimensions are in mm (dimensions in brackets are in inches).

2. Service clearance should be 1200mm (4 feet) on all sides.

SIDE VIEWFRONT VIEW

Page 10

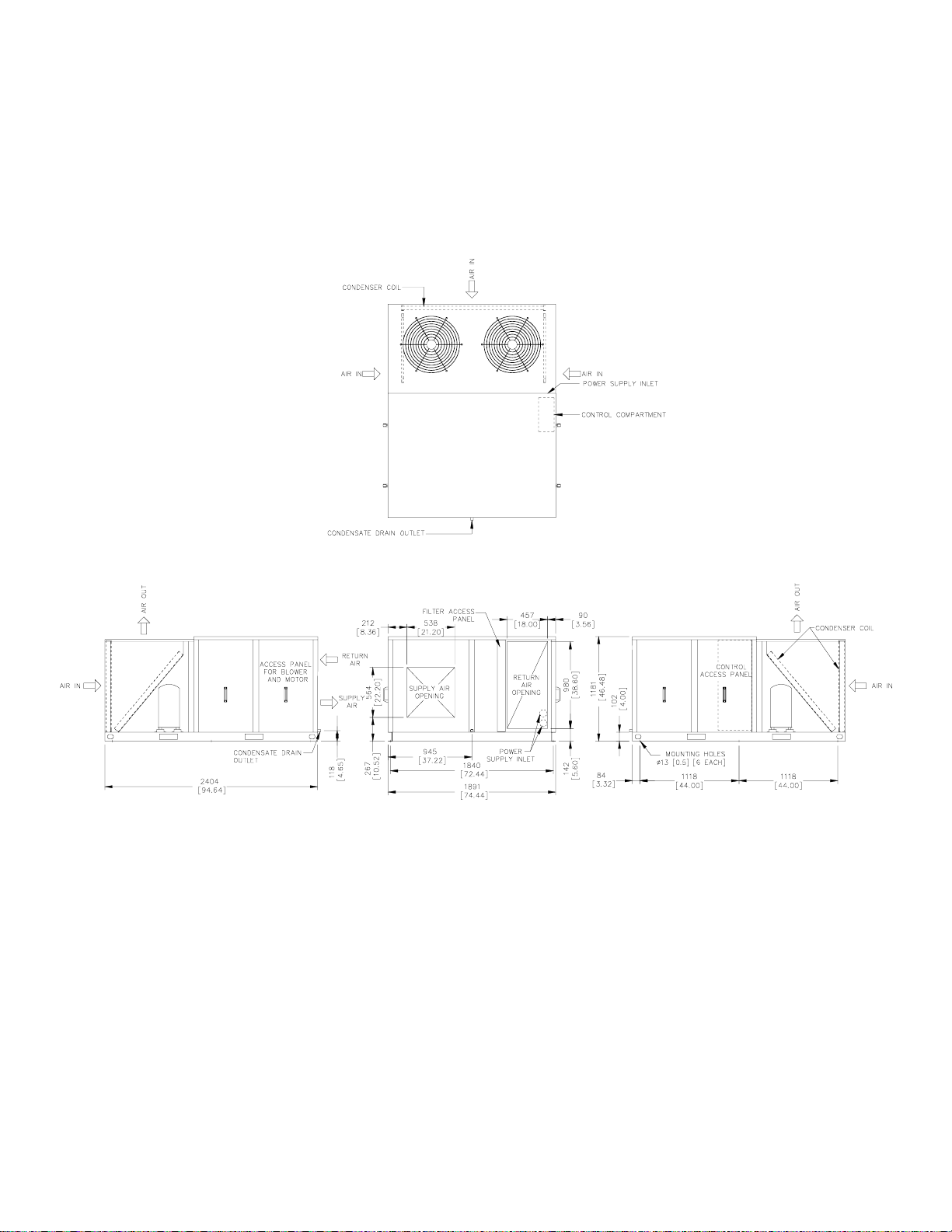

UNIT DIMENSIONS

PT180

TOP VIEW

SIDE VIEW SIDE VIEWFRONT VIEW

NOTE:

1. All dimensions are in mm (dimensions in brackets are in inches).

2. Service clearance should be 1200mm (4 feet) on all sides.

Page 11

UNIT DIMENSIONS

PT215 - PT240

TOP VIEW

SIDE VIEW SIDE VIEW

NOTE:

1. All dimensions are in mm (dimensions in brackets are in inches).

2. Service clearance should be 1200mm (4 feet) on all sides.

FRONT VIEW

Page 12

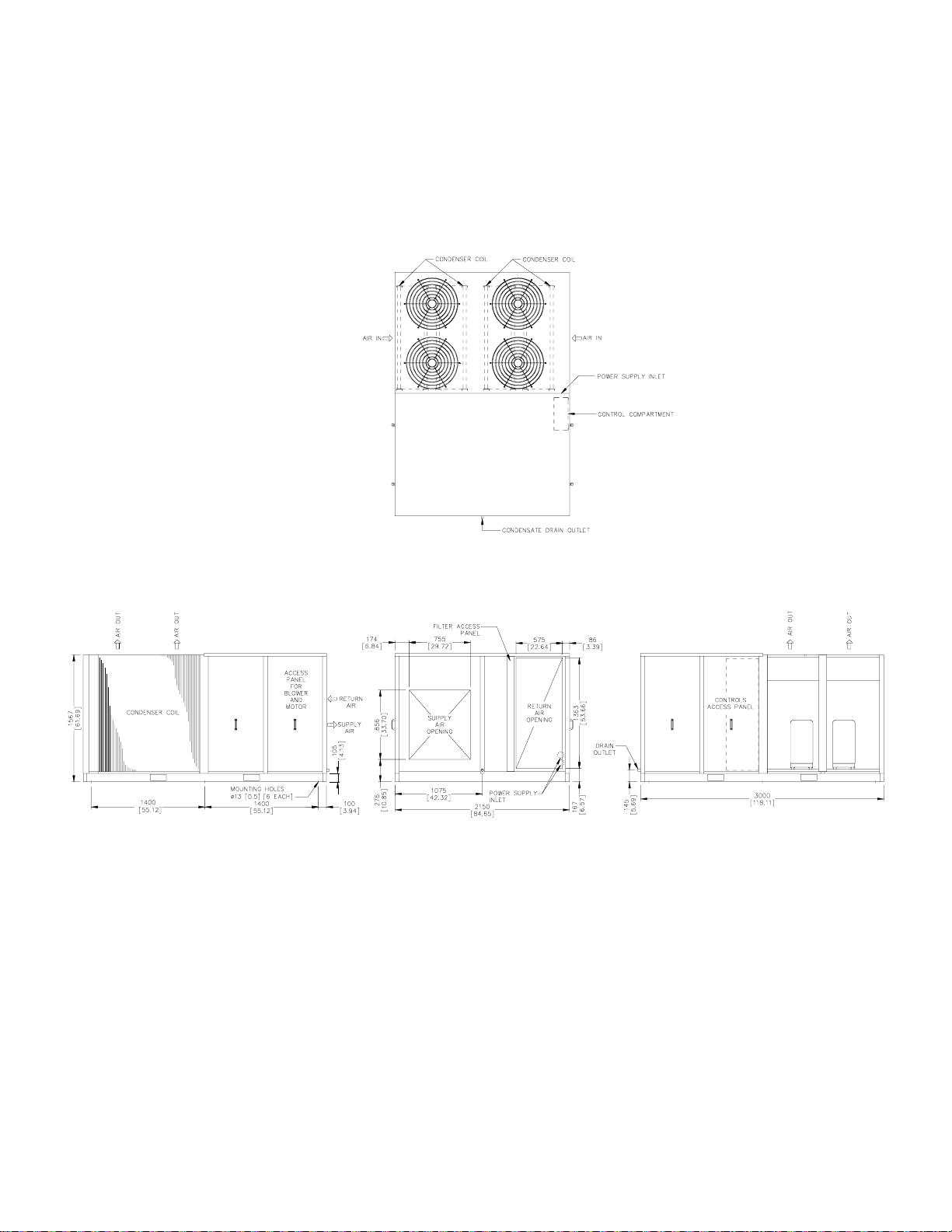

UNIT DIMENSIONS

PT300 - PT360

TOP VIEW

SIDE VIEW

NOTE:

1. All dimensions are in mm (dimensions in brackets are in inches).

2. Service clearance should be 1200mm (4 feet) on all sides.

FRONT VIEW

SIDE VIEW

Page 13

CABLE SIZE

• All wiring should be in accordance with local standards.

• Before making any connection, check the electric power supply, it must have the same characteristics as what is displayed in the

nameplate.

• For selecting cable size, refer to wire ampacity table at different MCA (Minimum Circuit Amps) provided in unit electrical data, which

is listed as a guideline (see table below).

• Wiring connection to the unit must have suitable insulation of a minimum temperature of 60

POWER

SUPPLY

380/415-3-50

(4 wire)

LEGEND: MCA - Minimum Circuit Amps

MODEL

No.

PT036 15.2 14 2.5 PT048 20.8 12 4 PT060 22.1 12 4 PT075 20.9 12 4 PT090 25.1 10 6 PT100 30 10 6 PT120 33.6 8 10 PT180 54.8 6 16 PT215 60 6 16 PT240 65 4 25 PT300 80.3 3 26.6 PT360 92.8 2 33.6

MCA

CONDUCTOR SIZE

AWG

METRIC

Notes: 1. Customer is to select cable size also with cross reference as per cable manufacturer data for voltage reduction per unit

length. The above cable ampacity table is for guidance only.

2. The selected cables for specified units is as per following characteristics: a. Unit without electric heaters. b. Any extra electrical accessories shall add to MCA rate, for more information, refer to unit electrical tables in the catalog.

OPERATION INSTRUCTIONS

START-UP INSPECTION & CHECK LIST

After the installation is completed in all respect, the following points should be covered before the system is switched on for operation.

1. Check unit location as per installation instructions.

2. Make sure all electrical fasteners/connections are tight and clean.

3. All controls are set according to manufacturer's instructions (low & high pressure switch, pump down solenoid, etc...)

4. Make sure all valves are open (compressor suction & discharge service valves, liquid line, etc.).

5. Follow all the instructions from the warning tags and stickers.

6. Check if condenser & blower fan are free to turn without wobbling.

7. Remove straps & wooden pieces that holds the compressor in place during transportation.

8. Compressor crankcase heater should be energized for 24 hours (special attention should be taken to disable compressor contactor before energizing the unit.

9. Expansion valve bulb is strapped properly at correct location (applicable for PT075 - PT360 only).

10. Circuit breaker/fused disconnect switch.

11. Blower fan belt is properly tightened and pulleys are properly aligned (applicable for PT075 - PT360 only).

12. All refrigerant service valve caps are installed.

13. All piping, piping insulation and piping supports are properly installed.

14. Thermostat is the right one and installed properly.

15. Connect the manifold gauge to suction & discharge line service valves. Prepare recommended instruments for checking Voltage, Amps, RPM, CFM, static pressure, etc.

16. Start the blower fan and condenser fan. Check the amperage against the nameplate ampere.

17. Start the compressor & observe the compressor discharge and suction pressures. If not within system design limits, determine why & take corrective action.

Page 14

MODELS: PT036 - PT060

MODEL

NUMBER

PT036

PT048

PT060

POWER SUPPLY

(V-Ph-Hz)

380/415-3-50 342 457 2.3 5.9 42 0.75 5.5

(4 WIRE)

380/415-3-50 342 457 2.3 10.4 55 0.75 5.5

(4 WIRE)

380/415-3-50 342 457 2.3 9.6 65 1 7.8

(4 WIRE)

VOLTAGE

MIN. MAX. FLA RLA LRA HP FLA kW FLA

MODELS: PT075 & PT090

DESCRIPTION

POWER SUPPLY

(V-Ph-Hz)

VOLTAGE

RANGE

342 457 2.3

RANGE

(each)

FLAMax.Min.

(1.9 FOR

PT090)

ELECTRICAL DATA

FM COMPRES-

SOR

COMPR-

ESSOR

(each)

RLA LRA HP FLA

1.523.4

101 12380/415-3-50 (4 WIRE)

BLOWER

MOTOR

ELECTRIC

HEATER

– – 15.2 20

5/6 7.6/9.1 16.4/18.3 20/20

7.5/10* 11.4/15.2 21.1/25.9 25/30

12* 18.2 29.6 30

– – 20.8 30

5/6 7.6/9.1 20.8/20.8 30/30

7.5/10* 11.4/15.2 21.1/25.9 35/30

12* 18.2 29.6 30

– – 22.1 30

5/6 7.6/9.1 22.1/22.1 30/30

7.5/10* 11.4/15.2 24/28.8 30/30

12* 18.2 32.5 35

MCA

MOCP

MODEL NUMBER

PT075 PT090

ELECTRIC

HEATER

Nom. kW

7.5/10* 11.4/15.2 20.7/23.3 30/30

12*/15* 18.2/22.8 27/32.8 30/35

3.6

7.5/10* 11.4/15.2 20.9/23.5 30/30

12*/15* 18.2/22.8 27.3/33 30/35

FLA

– – 20.7 30

5/6 7.6/9.1 20.7/20.7 30/30

– – 20.9 30

5/6 7.6/9.1 20.9/20.9 30/30

MOCPMCA

COMPR-

ESSOR

(each)

RLA LRA HP FLA

8.2

LEGEND:

FLA - Full Load Amps

HP - Horse Power

BM - Blower Motor

LRA - Locked Rotor Amps

RLA - Rated Load Amps

MCA - Minimum Circuit Amps

MOCP - Maximum Over Current Protection

FM - Fan Motor (Condenser)

*Combination of heater modules

233.6

ELECTRIC

HEATER

Nom. kW

7.5/10* 11.4/15.2 24/24 30/30

12*/15* 18.2/22.8 27.3/33 30/35

4.7

7.5/10* 11.4/15.2 25.1/25.1 30/30

12*/15* 18.2/22.8 28.6/34.4 30/35

FLA

– – 24 30

5/6 7.6/9.1 24/24 30/30

20* 30.4 42.5 45

– – 25.1 30

5/6 7.6/9.1 25.1/25.1 30/30

20* 30.4 43.9 45

MOCPMCA

MODELS: PT100 & PT120

DESCRIPTION

POWER SUPPLY

(V-Ph-Hz)

VOLTAGE

RANGE

342 457 1.9

(each)

FLAMax.Min.

COMPR-

ESSOR

(each)

RLA LRA HP FLA

233.6

55 10.4380/415-3-50 (4 WIRE)

4.7

MODEL NUMBER

PT100 PT120

ELECTRIC

HEATER

Nom. kW

7.5/10 11.4/15.2 28.9/28.9 35/35

10*/12* 15.2/18.2 28.9/28.9 35/35

15*/20* 22.8/30.4 33/42.5 35/45

7.5/10 11.4/15.2 30/30 40/40

10*/12* 15.2/18.2 30/30 40/40

15*/20* 22.8/30.4 34.4/43.9 40/45

FLA

– – 28.9 35

– – 30 40

MOCPMCA

COMPR-

ESSOR

(each)

RLA LRA HP FLA

354.7

9.2

ELECTRIC

HEATER

Nom. kW

10*/12* 15.2/18.2 29.1/29.1 35/35

15*/20* 22.8/30.4 34.4/43.9 35/45

10*/12* 15.2/18.2 33.6/34.3 40/40

15*/20* 22.8/30.4 40/49.5 40/50

FLA

– – 29.1 35

7.5/10 11.4/15.2 29.1/29.1 35/35

25* 38 53.4 60

– – 33.6 40

7.5/10 11.4/15.2 33.6/33.6 40/40

25* 38 59 60

MOCPMCA

Page 15

ELECTRICAL DATA

MODELS: PT180 & PT215

DESCRIPTION

POWER

SUPPLY

(V-Ph-Hz)

380/415-3-50 (4 WIRE)

VOLTAGE

RANGE

342 457 1.9

MODELS: PT240 & PT300

DESCRIPTION

POWER SUPPLY

(V-Ph-Hz)

VOLTAGE

RANGE

342 457 1.9

(each)

FLAMax.Min.

(each)

FLAMax.Min.

COMPR-

ESSOR

(each)

RLA LRA HP FLA

17.3 &

16.4

COMPR-

ESSOR

(each)

RLA LRA HP FLA

9.2

111

7.5

7.51013

118 19.6380/415-3-50 (4 WIRE)

15.1

MODEL NUMBER

PT180 PT215

ELECTRIC

HEATER

Nom. kW

7.5/10 11.4/15.2 51/51 60/60

10*/12* 15.2/18.2 51/51 60/60

15*/20* 22.8/30.4 51/51 60/60 25*/30* 38/45.6 59/68.5 60/70

7.5/10 11.4/15.2 54.8/54.8 70/70

10*/12* 15.2/18.2 54.8/54.8 70/70

15*/20* 22.8/30.4 54.8/54.8 70/70 25*/30* 38/45.6 63.8/73.3 70/80

FLA

– – 51 60

– – 54.8 70

MOCPMCA

COMPR-

ESSOR

(each)

RLA LRA HP FLA

19.2

125

7.5

9.2

MODEL NUMBER

PT240 PT300

ELECTRIC

HEATER

Nom. kW

7.5/10 11.4/15.2 60.9/60.9 80/80

10*/12* 15.2/18.2 60.9/60.9 80/80

15*/20* 22.8/30.4 60.9/60.9 80/80 25*/30* 38/45.6 63.8/73.3 80/80

7.5/10 11.4/15.2 63/63 80/80

10*/12* 15.2/18.2 63/63 80/80

15*/20* 22.8/30.4 63/63 80/80 25*/30* 38/45.6 66.4/75.9 80/80

FLA

– – 60.9 80

– – 63 80

MOCPMCA

COMPR-

ESSOR

(each)

RLA LRA HP FLA

25.6

7.51013

167

15.1

ELECTRIC

HEATER

Nom. kW

10*/12* 15.2/18.2 56.2/56.2 70/70

15*/20* 22.8/30.4 56.2/56.2 70/70 25*/30* 38/45.6 59/68.5 70/70

10*/12* 15.2/18.2 60/60 70/70

15*/20* 22.8/30.4 60/60 70/70 25*/30* 38/45.6 63.8/73.3 70/80

Nom. kW

10*/12* 15.2/18.2 78.2/78.2 100/100

15*/20* 22.8/30.4 78.2/78.2 100/100 25*/30* 38/45.6 78.2/78.2 100/100 35*/40* 53.2/60.8 82.8/92.3 100/100

10*/12* 15.2/18.2 80.3/80.3 100/100

15*/20* 22.8/30.4 80.3/80.3 100/100 25*/30* 38/45.6 80.3/80.3 100/100 35*/40* 53.2/60.8 85.4/94.9 100/100

FLA

– – 56.2 70

7.5/10 11.4/15.2 56.2/56.2 70/70

– – 60 70

7.5/10 11.4/15.2 60/60 7070

ELECTRIC

HEATER

FLA

– – 78.2 100

– – 80.3 100

MOCPMCA

MODEL: PT360

DESCRIPTION

POWER SUPPLY

(V-Ph-Hz)

380/415-3-50 (4 WIRE)

VOLTAGE

RANGE

342 457 1.9

(each)

FLAMax.Min.

COMPR-

ESSOR

(each)

RLA LRA HP FLA

1015 15.1

19827.8

22.6

MODEL NUMBER

PT360

ELECTRIC

HEATER

Nom. kW

10*/12* 15.2/18.2 85.3/85.3 110/110

15*/20* 22.8/30.4 85.3/85.3 110/110 25*/30* 38/45.6 85.3/85.3 110/110 35*/40* 53.2/60.8 85.4/94.9 110/110

10*/12* 15.2/18.2 92.8/92.8 110/110

15*/20* 22.8/30.4 92.8/92.8 110/110 25*/30* 38/45.6 92.8/92.8 110/110 35*/40* 53.2/60.8 94.8/104.3 110/110

FLA

– – 85.3 110

– – 92.8 110

MOCPMCA

LEGEND:

FLA - Full Load Amps

HP - Horse Power

BM - Blower Motor

LRA - Locked Rotor Amps

RLA - Rated Load Amps

MCA - Minimum Circuit Amps

MOCP - Maximum Over Current Protection

FM - Fan Motor (Condenser)

*Combination of heater modules

Page 16

Performex-1TM CONTROLLER : OPERATION & FUNCTIONS

The COOLINE Packaged units are provided with technologically advanced new PerformexTM Controller Microprocessor Based Electronic Control Board, incorporating the following benefits and features:

- COMPLETE UNIT CONTROL: Provides complete unit control for heating and cooling application whether single

stage or two stage utilizing the input from sensor that measure temperatures during unit operation.

- COMPRESSOR LOCKOUT: If any of the unit’s safety controls trip due to abnormal conditions the Electronic

Control locks out the compressor, preventing restart, unless attended by qualified service technicians. The unit can be re-started only by reset the thermostat after ensuring safe system conditions.

- LEAD LAG OPERATION: The unit electronic controls automatically alternate lead and lag the compressors for

even operation. Compressor #1 can be set always lead as an option.

- ANTI-RECYCLE TIMER: For compressor safety in case of accidental manual reset or immediate recycling of

thermostat due to load demand. This considerably improves compressor life.

- PUMP DOWN OPTION: In units equipped with pump down system the time delay creates the required time gap between

the solenoid opening and compressor start to equalize the pressure in the system prior to compressor start up.

- AUTO/MANUAL RESET OF THE ALARM SIGNALS.

- FULL CONTROL OF THE INDOOR FAN: Fan operation can be selected either to run continuously or stage with

the compressor/heaters.

- PROTECTION: The PerformexTM Controller will provide the following protection:

1. Compressor high pressure protection (option)

2. Compressor low pressure protection

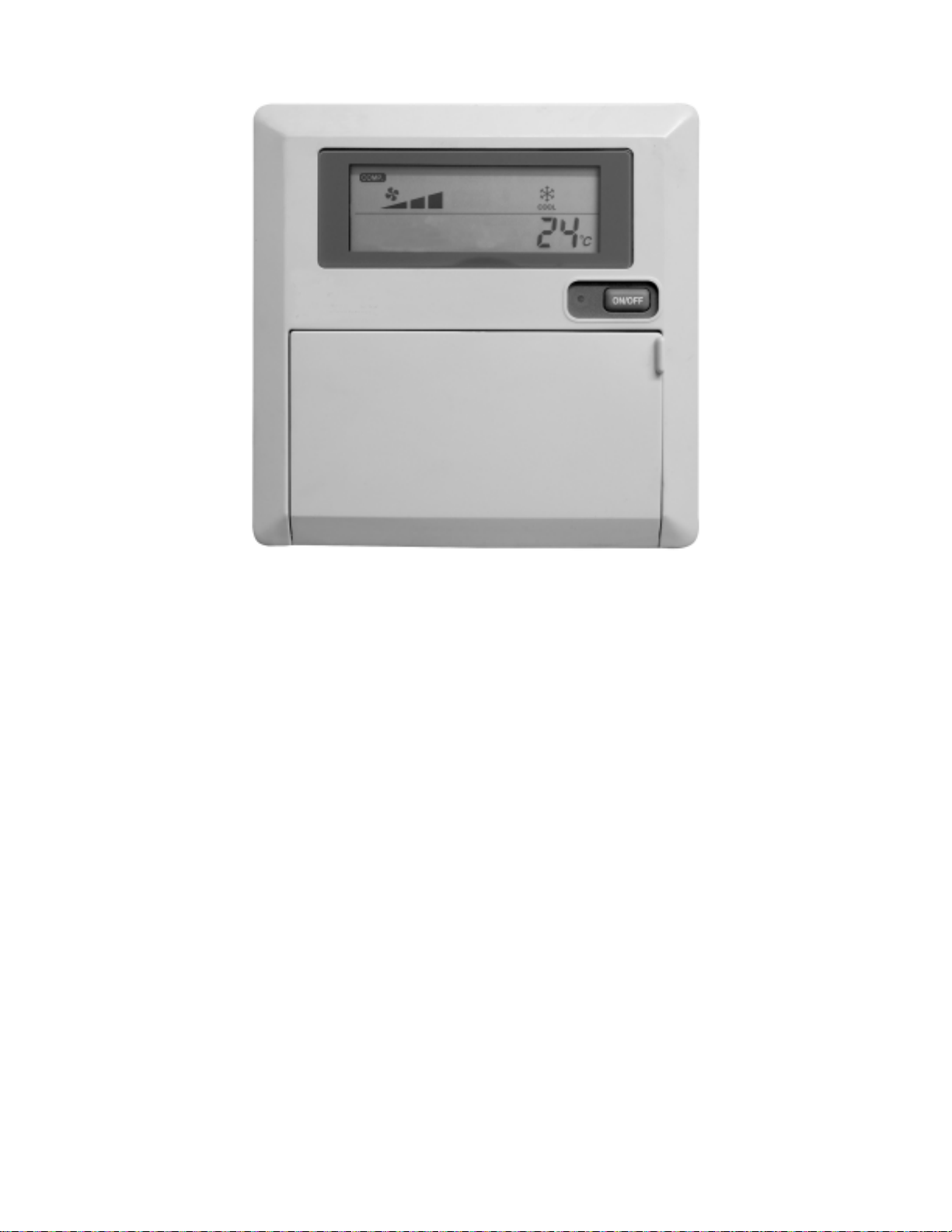

ELECTRONIC THERMOSTAT

LCD display: a) Room temperature display

b) Mode of operation (Cool/Heat/Auto/Fan system control)

c) Set temperature

d) Compressor Status - ON/OFF/FAULT

e) Error Codes

1. ON/OFF: Press the ON/OFF button & the unit shall be switched ON. A status Led adjacent to this button shall light up indicating the

unit is switched ON. To shut off the unit, press this button again.

2. MODE: Press the mode button to select the desired mode. On selection the corresponding icon shall be displayed on the LCD

display panel.

3. TEMPERA TURE RANGE AND SETTING: The operating temperature range is 16

the UP or DN button to select the desired temperature. The temperature setting is effective only for the Cool, Heat and Auto modes.

4. INDOOR (EVAPORAT OR) FAN: There is one indoor fan with single fan speed. When fan speed on LCD panel is HIGH, indoor fan

will always turns on. Indoor fan can be set off, when the compressor is cut off by setting the fan speed to AUTO on the LCD panel by pressing Fan button. By pressing the Fan button again the fan speed can resume to HIGH.

C to 300C (610F to 860F), both inclusive. Press

5. COOL MODE: Whenever the unit is started in cool mode (without Pump Down Solenoid-PDS), the compressors will be turned on

one by one depending on the load requirement of the unit.

6. HEAT MODE (HEATER MODEL): Whenever the unit is started in heat mode, the heaters shall be switched ON one by one to

meet the load requirement.

Page 17

7. LEAD/LAG OPERATION: Whenever a compressor needs to be on, the controller will turn on the compressor with

the shorter accumulated run time provided its 3 minutes minimum off time has lapsed. Otherwise the other compressor will on first. Similarly, the compressor with the longer accumulated run time will be the first one to be cut off. This is to load the compressors evenly over long run period. Balance loading is enabled when compressor #1 lead option is disabled.

8. AUTO MODE: In Auto mode, operating mode will be selected automatically between Heat and Cool mode, depend-

ing on the Room Temperature and Set Temperature.

9. ERROR CODE:

Error code is displayed on the LCD panel. When system on and error code is shown, the ON/OFF LED on the LCD panel will blink. When system off, error code is still display for thermistor error but the ON/OFF LED will be off.

E06 Compressor 1 high pressure trip (or contact open) E07 Compressor 2 high pressure trip (or contact open), (not applicable for single compressor units) E10 Compressor 1 low pressure trip E11 Compressor 2 low pressure trip, (not applicable for single compressor units)

CRANKCASE HEATER

The crankcase heater is provided to hold the compressor oil reservoir at higher temperature than the coldest part in the system.

• Power must be supplied to crankcase heater for a minimum of 12-hours prior to system start-up. If power is off for 6-hours or more,

crankcase heater must be energized for 12-hours before operating the system. Otherwise compressor damage may result.

PUMP DOWN CONTROL

If the unit is provided with pumpdown system, then a solenoid type valve is installed in the liquid line ahead of expansion valve to prevent flow of refrigerant into the evaporator during off cycle. The controller is wired to solenoid valve which energize in cooling and opening the valve. Whenever the thermostat temperature is satisfied, the solenoid will close followed compressor off after pumping the refrigerant from low side of the system until the low pressure switch open the control circuit.

Page 18

MAINTENANCE INSTRUCTIONS

AIRFLOW ADJUSTMENT (Applicable for PT075 - PT360 only)

The airflow could be adjusted by adjusting pulleys of blower motor or belt tension with proper mounting and alignment of the pulleys:

• Refer to fan performance tables in the catalog for selecting applicable airflow, RPM and brake horse power at specified static

pressure.

• Select the appropriate drive as per motor and blower characteristic in the catalog.

• The set screw shall be loosened to make the pulley moving.

• Adjust pulley’s diameter, opening counter clockwise to reduce RPM and further reduce airflow, while closing clockwise increases

RPM and airflow.

• Tighten the set screw and then install the belts.

• Test the unit operating airflow for further adjustment.

CRANKCASE HEATER

• Periodic checking for proper operation or crankcase heater is highly recommended as follows:

a) Check continuity of the heater using multimeter device. b) Check grounding of the heater by Meggar device (to prevent electrical hazards). c) Observe whether the heater is warming down the compressor near the oil sump.

CLEANING OF COILS & FILTERS

• Turn off the power supply.

• Take out access panel of evaporator coil.

• Remove the filter from its access panel.

• Protect electrical components and motors from water washing.

• Clean the coil by flushing water by pressure washer followed by compressed air from supply to return direction.

• Filter shall be cleaned every six month, in some hygienic application it is recommended for replacement.

• Cleaning drain pan and trap is recommended once in a year to prevent bacteria growing under the coil.

BELT TENSION TESTING PROCEDURE INSTRUCTION (Applicable for PT075 - PT360 only)

To determine the lbs. force required to tension a drive, you simply do the following:

1. Measure the Belt span as shown.

2. Divide belt span by 64 to get belt deflection needed to check tension.

3. Set large "0" ring on span scale at required belt deflection. This scale is in 1/16" increments.

4. Set small "0" ring at zero on the "Force Scale" (plunger).

5. Place the larger end of the tension checker squarely on one belt at the center of the belt span. Apply force on the plunger until the bottom of the large "0" ring is even with the top of the next belt or with the bottom of a straight edge laid across the sheaves.

6. Read the force scale under the small "0" ring to determine force required to give the needed deflection.

7. Compare the force scale reading with the correct value for the belt style and cross section used, as given in table on next page. The force should be between the minimum and maximum values shown.

8. If there is too little deflection force, the belts should be tightened. If there is too much deflection force, the belts should be loosened.

Note: Tension new drives at the maximum deflection force recommended. Check the tension at least two times during the first day's operation as there normally will be a rapid decrease in belt tension until belts have run in. Check the tension periodically after the first day's operation and keep tension in recommended area. The correct operating tension for a V-belt drive is the lowest tension at which the belts will not slip under the peak load conditions. Shafts must be adequate for the tensions required.

Page 19

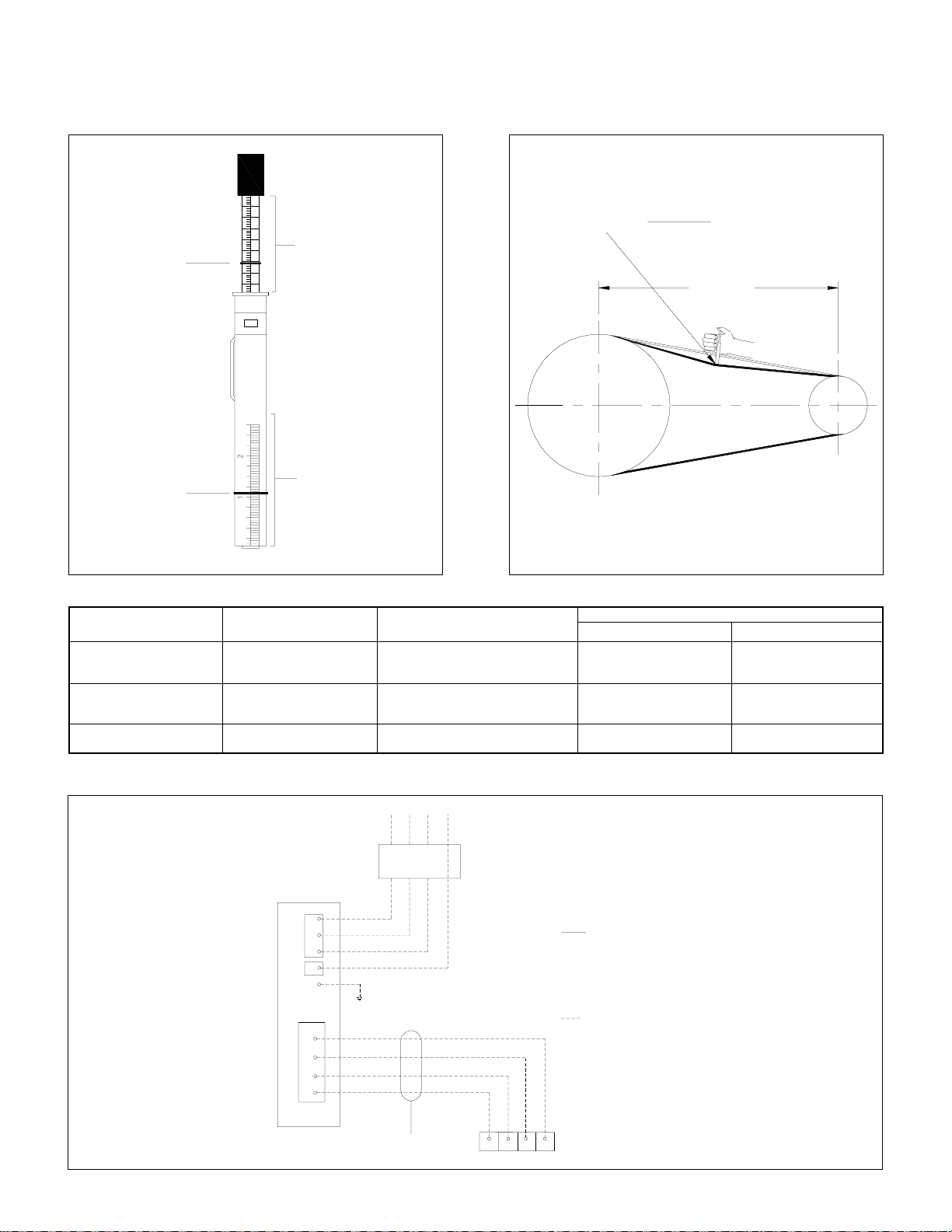

BELT TENSION TESTING PROCEDURE

BELT SPAN

SMALL

"0"

RING

DEFLECTION =

FORCE SCALE

BELT SPAN

LARGE

"0"

RING

SPAN SCALE

BELT TENSION CHECKER MEASURE THE BELT DEFLECTION FORCE

BELTS

BELT TYPE

–

BELT CROSS SECTION

3 L

4 L

5 L

SMALL PULLEY PITCH DIA. (P.D.)

RANGE

1.25 – 1.75 2 – 2.25

2.5 – 3

2.1 – 2.8 3 – 3.5

3.7 – 5 3 – 4.2

4.5 – 5.2

DEFLECTION FORCE - LBS.

MINIMUM

1/2 5/8 3/4

1-1/8 1-1/2 1-7/8

2-3/8

MAXIMUM

5/8 7/8

1-1/8 1-5/8

2-1/8 2-5/8

2-7/8 3-3/8

TYPICAL HIGH AND LOW VOLTAGE FIELD WIRING CONNECTIONS

FUSED DISCONNECT SWITCH

OR CIRCUIT BREAKER

A INDOOR THERMOSTAT

LEGEND ECB - ELECTRONIC CONTROL BOARD

HVTB - HIGH VOLTAGE TERMINAL BLOCK LI - LINE1 L2 - LINE2 L3 - LINE3

N - NEUTRAL TERMINAL BLOCK G - GROUND

FIELD WIRING

+5V GND

PACKAGED UNIT CONTROL PANEL

L1 L2

HVTBNTB

N G

GND

+5V

ECB

B A

L1 L3L2

CONTROL WIRES-INTERCONNECTING

( USE 16 TO 22 AWG WIRE)

Page 20

PREVENTIVE MAINTENANCE SCHEDULE

CAUTION: Disconnect power supply and allow all rotating parts to stop before servicing the unit.

FREQUENCY OF MAINTENANCE, MONTHS

I T E M

(FIRST 4 YEARS)

Clean air filter (Aluminum)*

Pressure wash condenser & cooling coil as required

Check blower belt, tension, wear tear/replace if required

Check alignment of pulleys

Clean drain pan, drain pipe

Clean blower wheel

Check for loose bolts/screws & tighten as necessary

Check all electrical controls, components, wiring terminals, etc..., for sparks, over heat, loose connections/repair or correct

Check for rusted/paint

Check all temperature, pressure readings as applicable and satisfy the operation performance

Run test all motors and check the amperage

Grease/oil as required

Check vibration isolators

Clean and fix thermal bulbs in the correct location. Insulate it.

Check canvass connections, insulation damage

* If fiberglass filters used, replace it yearly. NOTE: Always observe for abnormal noise or vibration.

MAINTENANCE TOOLS/EQUIPMENT REQUIRED

STANDARD : Screw drivers (Slot & Phillips), adjustable wrenches, pliers, refrigeration wrenches & socket set wrenches, pulley

puller, etc.

SPECIAL : Manifold gauge set, R-22 charging cylinder, belt tension checker, leak detector, vacuum pump with electronic gauges,

thermometer, hook type ammeter/voltmeter/ohmmeter and oxy-acetylene brazing set etc.

Page 21

TROUBLE SHOOTING CHART

SYMPTOM CAUSES CHECK & CORRECTIVE MEASURE

Thermostat shows no display

Thermostat LCD panel display is not bright & does not function properly

Blower not running, compressor short cycles

Blower running, no sufficient air

Blower running, but with not enough supply air

Blower running and delivers excess air

Blower runs, compressor not working

Compressor runs, but short cycling

Thermostat shows faulty indication

Low suction pressure

High suction pressure

High discharge pressure

1. Power off/Blown fuse

2. Faulty field wiring

3. Loose connections

4. Defective thermostat

1. Battery life is over

1. Blower belt slipped/not fixed

2. Faulty wiring

3. Burned wiring

4. Defective blower motor contactor

5. Defective blower motor

1. Wrong rotation (Applicable initial start up/or after a power failure), 3 phase motor

1. Loose Belt

2. Variable pulley wide open

3. Return air obstructed

4. High static pressure

5. Improper pulley selection

6. Closed dampers/improper air balance

7. Dirty filter

8. Dirty cooling coil

1. Variable pulley needs more tightening

2. Improper pulley/motor selection

3. Low external static pressure

1. Safety circuit open due to low suction pressure, high discharge pressure, overload protector

2. Defective compressor contactor

3. Burned wiring

4. Defective compressor

1. Safety circuit open due to: a) Low suction pressure b) High discharge pressures

c) Overload protector

2. Thermostat in cold location

3. High thermostat setting

1. Safety circuit open due to: a) Low pressure switch b) High pressure switch c) Overload protector

1. Less Freon

2. Loose belt

3. Variable pulley widely open

4. Dirty filter

5. Dirty cooling coil

6. Return air restricted

7. Improper expansion valve bulb installation/location

Restriction in expansion valve/filter dryer

1. Excess freon charge

2. Excess air quantity

3. High room temperature condition

4. Undersize unit (serving large area)

5. Expansion valve widely open

6. Defective compressor valve

1. Condenser fan motor not working properly

2. Excess freon charge

3. Dirty condenser

4. High ambient condition/Air in condenser obstructed

5. Defective fan motor capacitor

6. Defective fan motor

1. Check the power. Switch ON the circuit breaker. Replace fuse if it blown.

2. Check wiring against diagram.

3. Check and correct it.

4. Replace it.

1. Replace battery

1. Correct belt. Check tension and alignment.

2. Check wiring against diagram.

3. Check and correct it.

4. Replace if.

5. Replace it.

1. Check the rotation of blower, interchange phase of blower motor from blower motor contactor.

1. Adjust it & check belt tension.

2. Adjust the pitch of the pulley.

3. Check and remove the obstructions.

4. Verify static pressure and fan performance data.

5. Change pulley (if blower motor ampere within rated load).

6. Check all dampers opened properly. Balance air.

7. Clean it.

8. Clean it.

1. Adjust the pitch of the pulley.

2. Select suitable combination.

3. Check the duct design.

1. Re-set the unit and determine the reason. Check high & low pressure (refer to symptom for "low/ high suction pressure & high discharge pressure").

2. Replace it.

3. Check and replace it.

4. Replace it.

1. a) Verify the reason

(refer to symptom for "low suction pressure")

b) Verify the reason for high discharge pressure

(refer to symptom for "high discharge pressure").

c) Check dome temperature. RLA each phase.

Verify the reason.

2. Check and relocate as required.

3. Lower the temperature setting to 210C for test.

1. a) Verify the reason & correct it

for "low suction pressure")

b) Verify the reason for high discharge pressure.

(refer to symptom for "high discharge pressure").

c) Check comp. RLA against nameplate for each phase,

check comp. dome temperature, etc. & correct it.

1. Check for gas leak & charge freon as required.

2. Adjust it. Check belt tension.

3. Adjust the pulley.

4. Clean it.

5. Clean it.

6. Check return air grille sizes, etc. against design.

7. Verify and correct it.

8. Check and correct/replace it.

1. Verify and adjust it.

2. Adjust air quantity.

3. Check & verify. Isolate the area to be cooled & observe.

4. Check design/unit selection.

5. Check superheat & adjust it, if required.

6. Check and replace compressor.

1. Fan blade stuck with ventury. Check & correct it.

2. Check freon and adjust it, if necessary.

3. Clean it.

4. Verify the reason and correct it.

5. Check and replace it.

6. Check and replace it.

for low suction pressure

(refer to symptom

Page 22

TROUBLE SHOOTING CHART

SYMPTOM CAUSES CHECK & CORRECTIVE MEASURE

Unit works continuously, no sufficient cooling

Unit not cooling properly during night time

Not sufficiently cooling during daytime

Cooling coil ices up

Unit is not restarting (after a cut-off)

Unit is taking long time to restart Compressor goes lockout (pump

down system) Taking more time for the pumpdown

cycle, cooling coil ices up Noisy unit

Unit operational noise listening inside the building

Compressor not working

Circuit breaker of the unit trips

1. Low suction pressure

2. High discharge pressure

3. Less air quantity

4. Cooling coil ices up

5. Second stage (If exists) not working

6. Serving large area

1. Low ambient condition

2. Safety low pressure switch open due to low suction pressure

3. Fan cycling (whenever applicable) setting low

4. Thermostat setting too low

5. Cooling coil ices-up

6. Less air quantity

1. High discharge pressure

2. High thermostat setting

3. Serving large area

4. Less air quantity

5. High ambient condition

6. Dirty condenser

1. Less freon

2. Less air quantity

3. Dirty filter

4. Dirty cooling coil

1. Safety circuit open due to low pressure switch

1. Thermostat in cold location

1. Imbalance freon

2. Malfunctioning pumpdown solenoid valve

1. Leaky pumpdown solenoid valve

1. Improper installation

2. Improper vibration isolators

3. Loose parts or mountings

4. Tubing rattle

5. Bent fan blade causes vibration

6. Defective bearings

7. Belt tension is high

8. Blower motor pulley is not aligned

1. Improper installation

2. Improper vibration isolators

3. Abnormal noise in the unit

4. Unit too close to the slab/wall openings

5. Duct design (high static)

6. Wooden packing beneath the compressor is not removed

1. Low voltage

2. Single phase failure

3. Burned wirings

4. Overload protector open

5. Defective contactor

6. Burned compressor motor winding

7. Damaged (stuck) compressor

1. Burned wirings

2. Grounded wirings

3. Faulty field wiring

4. Grounded compressor/blower motor

5. Undersize circuit breaker

1. Verify the reason & correct it for "low suction pressure")

2. Verify the reason and adjust the freon, if required.(refer to symptom for "high discharge pressure").

3. Refer to symptom for "blower works, less air".

4. Determine the reason "cooling coil ice up")

5. Set the thermostat to lower temperature (21 or verify the reason.

6. Check the design.

1. Check and verify the ambient temperature.

2. Check the reason and correct it symptom for "low suction pressure")

3. Adjust the fan cycling.

4. Adjust the thermostat setting.

5.Verify the reason and correct it symptom for "cooling coil ice up").

6.Verify the reason and correct it symptom for "blower works, less air")

1. Check and verify the reason (refer to symptom for "high discharge pressure").

2. Adjust thermostat.

3. Check the design/unit selection.

4. Check and verify the reason for "blower works, less air")

5. Check the ambient condition.

6. Clean it.

1. Check for gas leak & charge freon as required.

2. Determine the reason and correct it symptom for "blower works, less air")

3. Clean it.

4. Clean it.

1. Rectify the reason of low suction pressure to symptom for "low suction pressure")

1. Shift the location as required.

1. Check freon charge and confirm FLA.

2. Check pumpdown solenoid valve operation.

1. Check pumpdown solenoid valve and replace it.

1.Check and correct it properly.

2. Check and correct it properly.

3. Check and tighten.

4. Tighten the pipe support.

5. Check the balance, alignment, bracket, etc. Correct it/replace it.

6. Replace the motor.

7. Adjust belt tension.

8. Align pulley.

1. Check and correct it.

2. Check and correct it.

3. Verify the reason of noisy unit & correct it.

4. Verify the design/Relocate the unit if necessary.

5. Check & verify the design.

6. Remove wooden packing (if any).

1. Rectify the reason & correct it.

2. Check the compressor amperage each phase.

3. Check and correct it.

4. Check and verify the reason.

5. Check and replace it.

6. Check and replace it.

7. Check and replace it.

1. Check and correct the wiring.

2. Check meggar test.

3. Check wiring against diagram.

4. Replace it, if required.

5. Check the circuit breaker ratings.

(refer to symptom

(refer to symptom for

& correct it.

(refer to

(refer to .

(refer to symptom

(refer to

(refer

C)/

Page 23

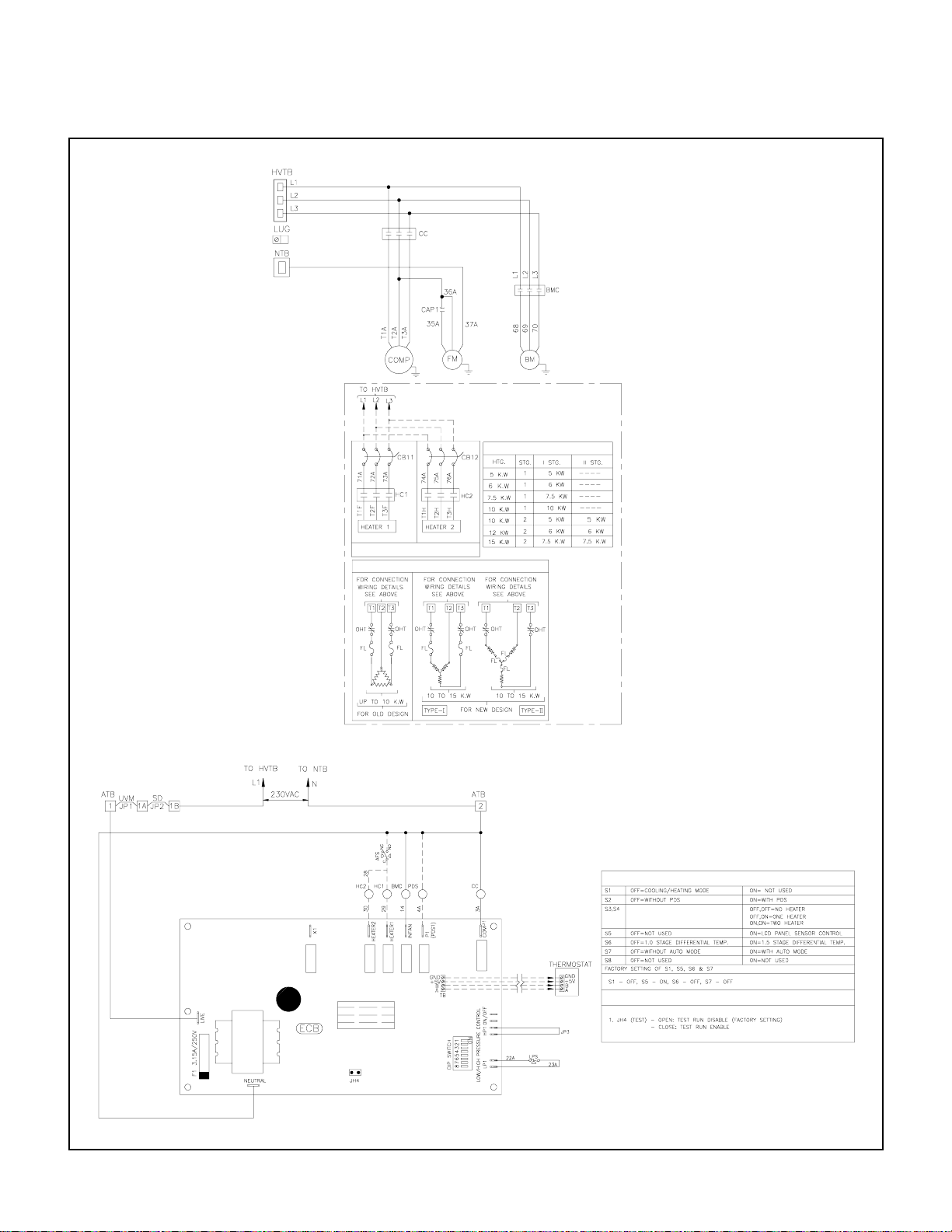

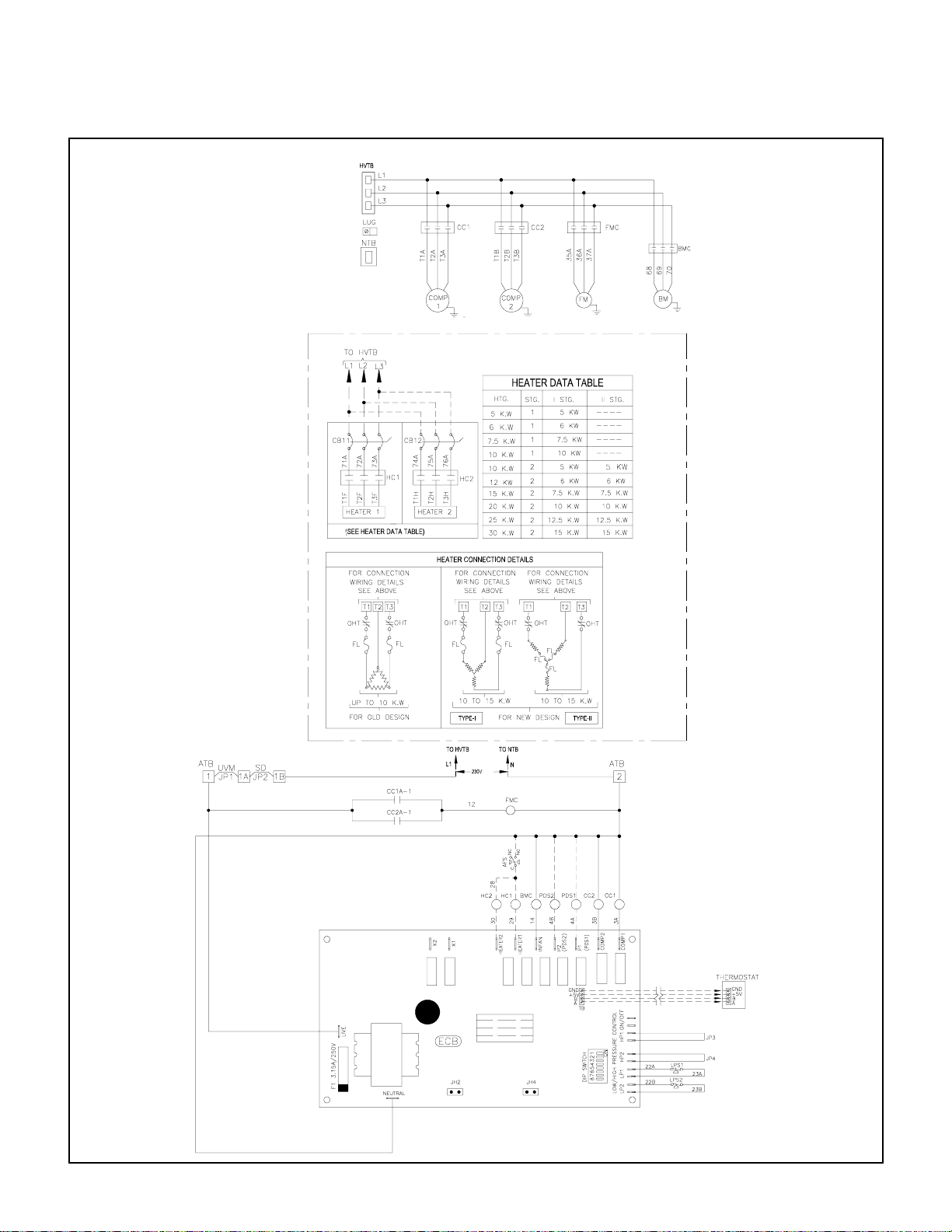

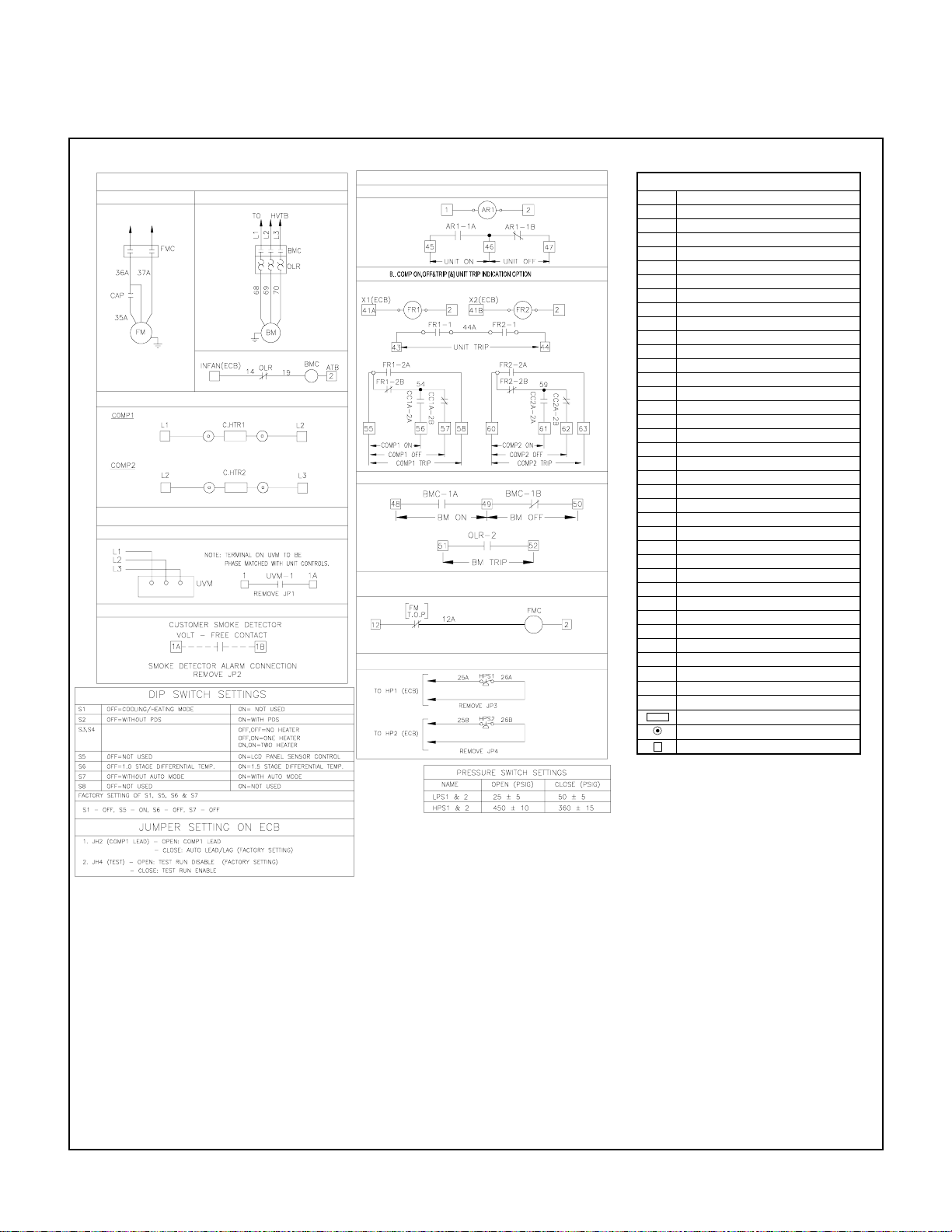

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT036 - PT075 (Single compressor units)

HEATER DATA TABLE

(SEE HEATER DATA TABLE)

HEATER CONNECTION DETAILS

DIP SWITCH SETTINGS

JUMPER SETTING ON ECB

NOTE: 1. Refer to next page for legend, notes & wiring diagram for optional items.

2. Refer to unit control box (inside panel) for exact wiring diagram.

Page 24

FACTORY INSTALLED B.M SPEED

TO HVTB

TO NTB

PRESSURE SWITCH SETTINGS

CRANKCASE HEATER CONNECTION

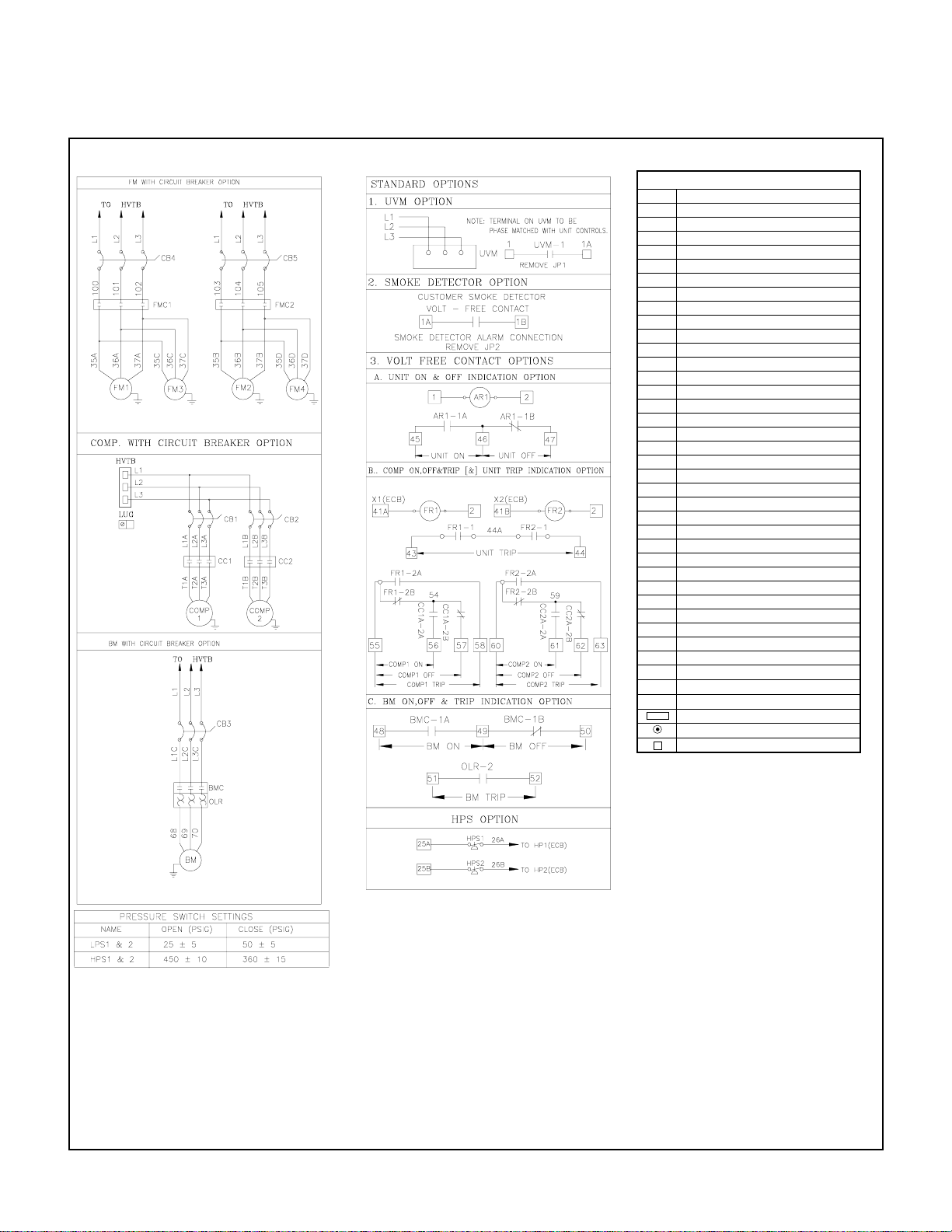

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT036 - PT075 (Single compressor units)

STANDARD OPTIONS

1. UVM OPTION

2. SMOKE DETECTOR OPTION

3. VOLT FREE CONTACT OPTIONS

A. UNIT ON & OFF INDICATION OPTION

C. BM ON,OFF & TRIP INDICATION OPTION

4. HPS CONNECTION OPTION

AR AUXILIARY RELAY AFS AIRFLOW SWITCH ATB AUXILIARY TERMINAL BLOCK BM BLOWER MOTOR BMC BLOWER MOTOR CONTACTOR CC COMPRESSOR CONTACTOR CCA AUXILIARY CONTACT CB CIRCUIT BREAKER C. HTR CRANKCASE HEATER COMP COMPRESSOR ECB ELECTRONIC CONTROL BOARD FCS FAN CYCLING SWITCH F FUSE FL FUSE LINK FM FAN MOTOR (CONDENSER) FMC FAN MOTOR CONTACTOR FR FAULT RELAY HC HEATER CONTACTOR HPS HIGH PRESSURE SWITCH HVTB HIGH VOLTAGE TERMINAL BLOCK HTR HEATER JP JUMPER L1 LINE 1 L2 LINE 2 L3 LINE 3 LPS LOW PRESSURE SWITCH LUG LUG GROUND NTB NEUTRAL TERMINAL BLOCK O/L OVER LOAD OHT OVER HEAT THERMOSTAT PDS PUMP DOWN SOLENOID SSPS SOLID STATE PROTECTIVE SYSTEM SD SMOKE DETECTOR TRANS TRANSFORMER T'STAT THERMOSTAT UVM UNDER VOLTAGE MONITOR

_ _ _

1. POWER SUPPLY, 380/415V-3PH-50Hz.

2. ANY WIRE REPLACEMENT SHOULD BE OF 900C OR ITS

EQUIVALENT. USE COPPER CONDUCTOR WIRES ONLY.

3. IF PDS & HEATERS ARE FACTORY INSTALLED, PLEASE

READ BROKEN LINES AS CONTINUOUS LINES.

4. POWER MUST BE SUPPLIED TO CRANKCASE HEATER FOR

MINIMUM OF 12 HOURS PRIOR TO SYSTEM START UP. IF POWER IS OFF 6 HOURS OR MORE, CRANKCASE HEATER MUST BE ON FOR 12 HOURS BEFORE OPERATING THE SYSTEM.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN COMPRESSOR DAMAGE.

5. FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

TO BE PROVIDED BY CONSUMER WITH RATING AS RECOMMENDED BY COOLINE.

6. COMPRESSOR IS PROVIDED WITH INTERNAL OVERLOAD.

7. IF ANY CHANGE IN DIP SWITCH SETTING IS REQUIRED,

TURN OFF POWER FIRST & SET REQUIRED SETTING.

LEGEND

FIELD WIRING DISCONNECT TAB - 1/4" SPLICE-CLOSED END TERMINAL BLOCK OR TERMINATION POINT

NOTES

Page 25

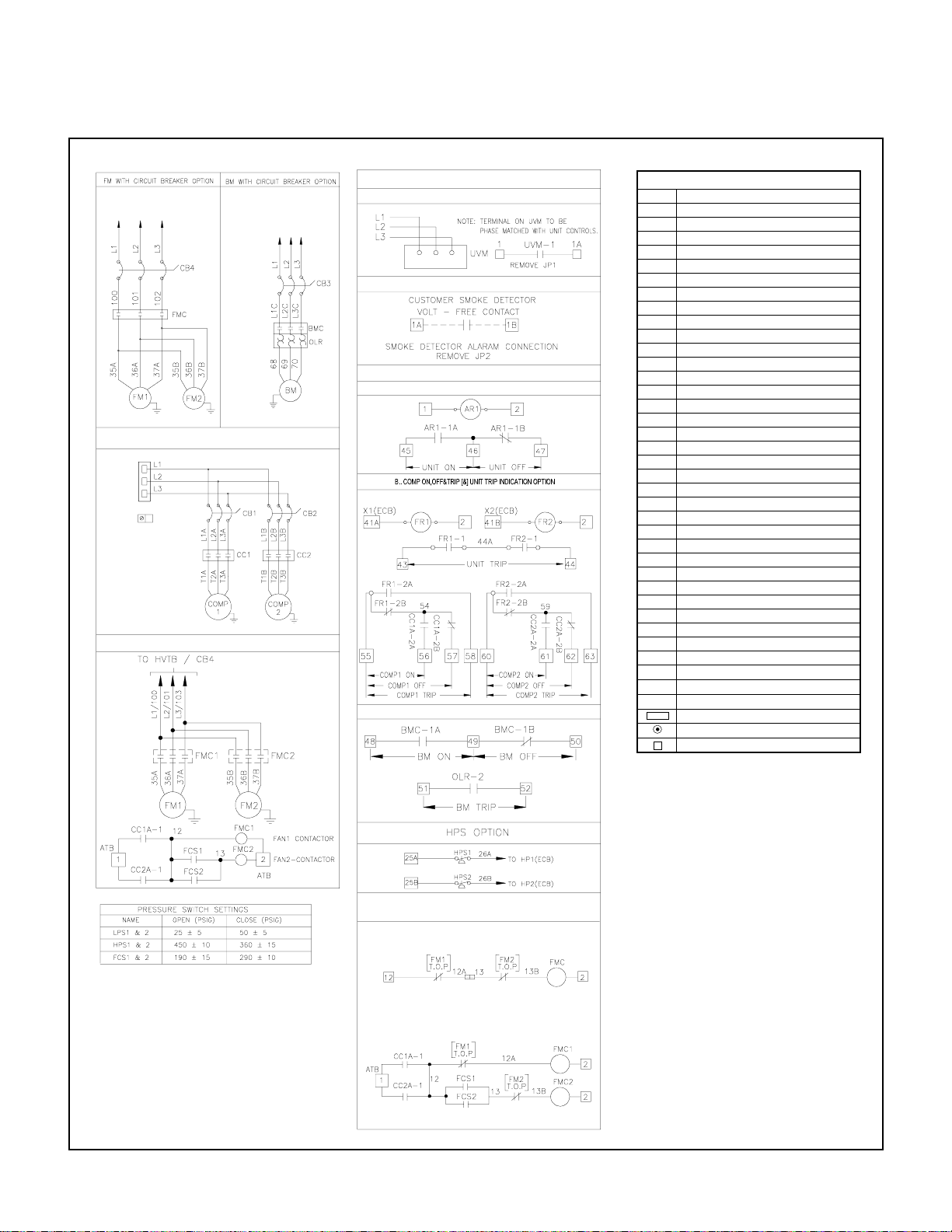

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT090 - PT120 (Dual compressor units)

NOTE: 1. Refer to next page for legend, notes & wiring diagram for optional items.

2. Refer to unit control box (inside panel) for exact wiring diagram.

Page 26

CONNECTION APPLICABLE FOR

1PH FM ONLY

TO HVTB

TO NTB

CRANKCASE HEATER CONNECTION

STANDARD OPTIONS

1. UVM OPTION

2. SMOKE DETECTOR OPTION

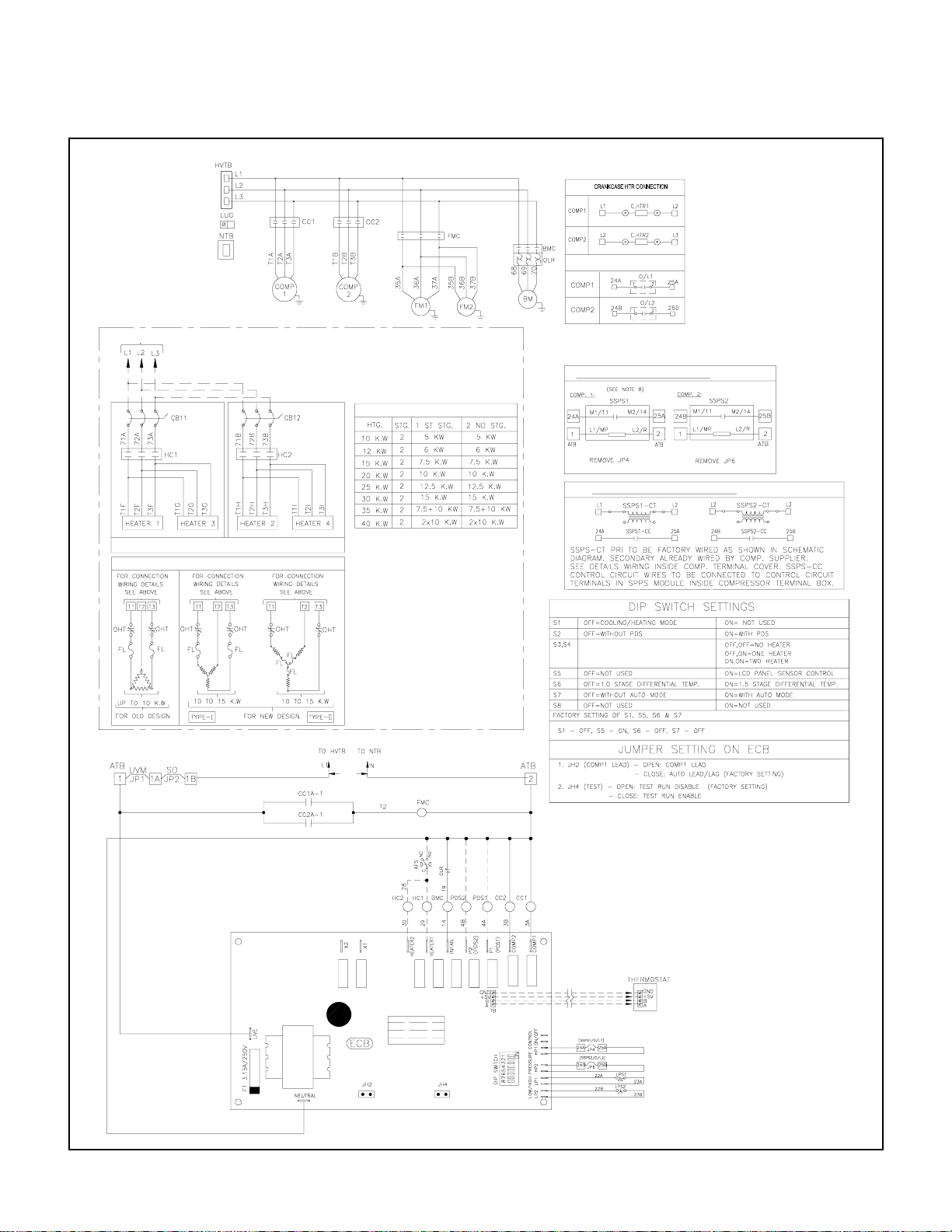

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT090 - PT120 (Dual compressor units)

3. VOLT FREE CONTACT OPTIONS

BM WITH EXTERNAL OLR

A. UNIT ON & OFF INDICATION OPTION

C. BM ON,OFF & TRIP INDICATION OPTION

FAN MOTOR CONTROL CONNECTION

(APPLICABLE FOR FM WITH T.O.P)

HPS OPTION

_ _ _

FIELD WIRING

DISCONNECT TAB - 1/4" SPLICE-CLOSED END TERMINAL BLOCK OR TERMINATION POINT

1. POWER SUPPLY, 380/415V-3PH-50Hz.

2. ANY WIRE REPLACEMENT SHOULD BE OF 900C OR ITS

EQUIVALENT. USE COPPER CONDUCTOR WIRES ONLY.

3. IF PDS & HEATERS ARE FACTORY INSTALLED, PLEASE

READ BROKEN LINES AS CONTINUOUS LINES.

4. POWER MUST BE SUPPLIED TO CRANKCASE HEATER FOR

MINIMUM OF 12 HOURS PRIOR TO SYSTEM START UP. IF POWER IS OFF 6 HOURS OR MORE, CRANKCASE HEATER MUST BE ON FOR 12 HOURS BEFORE OPERATING THE SYSTEM.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN COMPRESSOR DAMAGE.

5. FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

TO BE PROVIDED BY CONSUMER WITH RATING AS RECOMMENDED BY COOLINE.

6. COMPRESSORS ARE PROVIDED WITH INTERNAL OVERLOAD.

7. IF ANY CHANGE IN DIP SWITCH SETTING IS REQUIRED,

TURN OFF POWER FIRST & SET REQUIRED SETTING.

LEGEND

NOTES

Page 27

TO HVTB

(SEE HEATER DATA TABLE)

HEATER CONNECTION DETAILS

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT180 - PT240 (Dual compressor units)

CONNECTION FOR COMPRESSOR WITH MOTOR OVERLOAD

CONNECTION FOR SCROLL COMP. WITH SSPS

HEATER DATA TABLE

CONNECTION FOR MANUEROP COMP. WITH SSPS

230V

NOTE: 1. Refer to next page for legend, notes & wiring diagram for optional items.

2. Refer to unit control box (inside panel) for exact wiring diagram.

Page 28

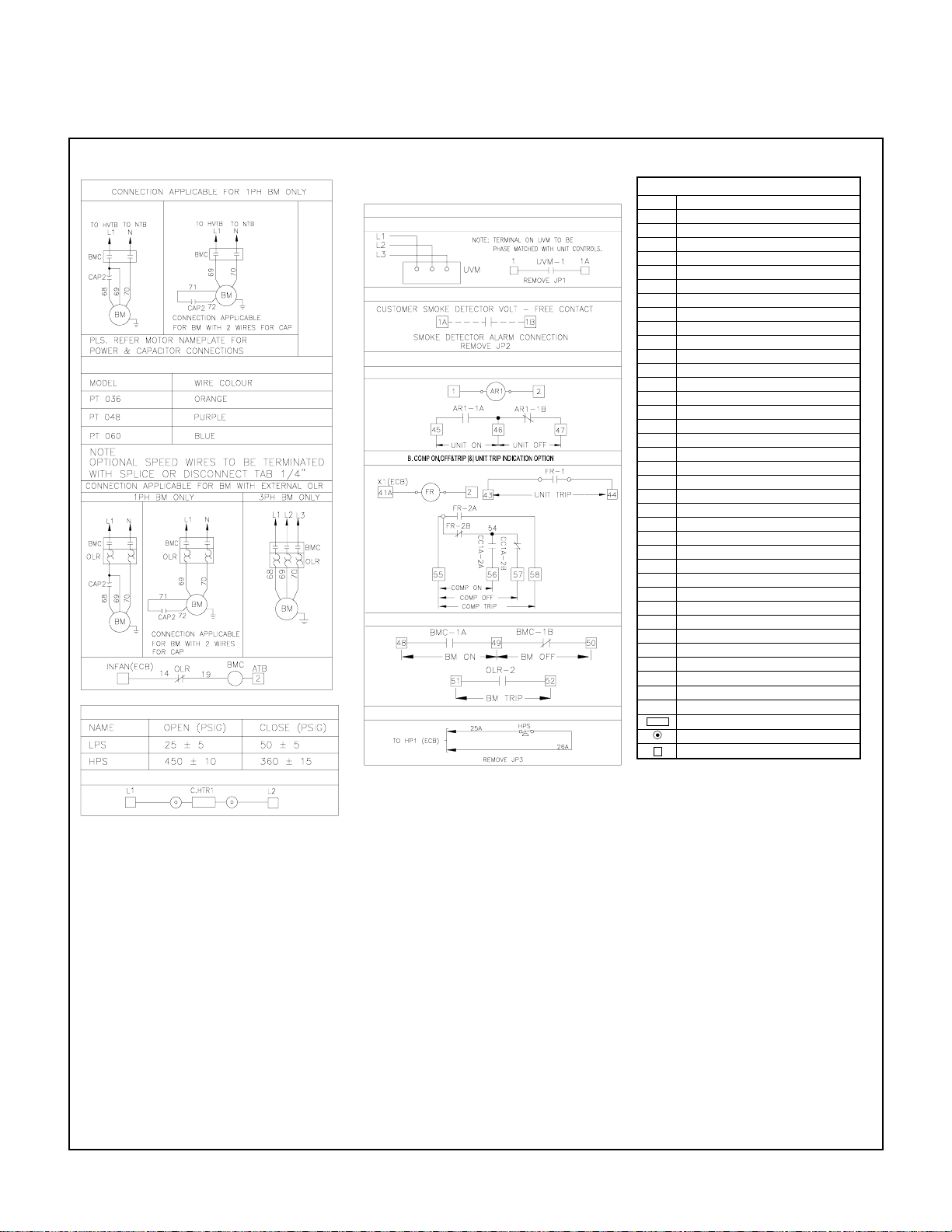

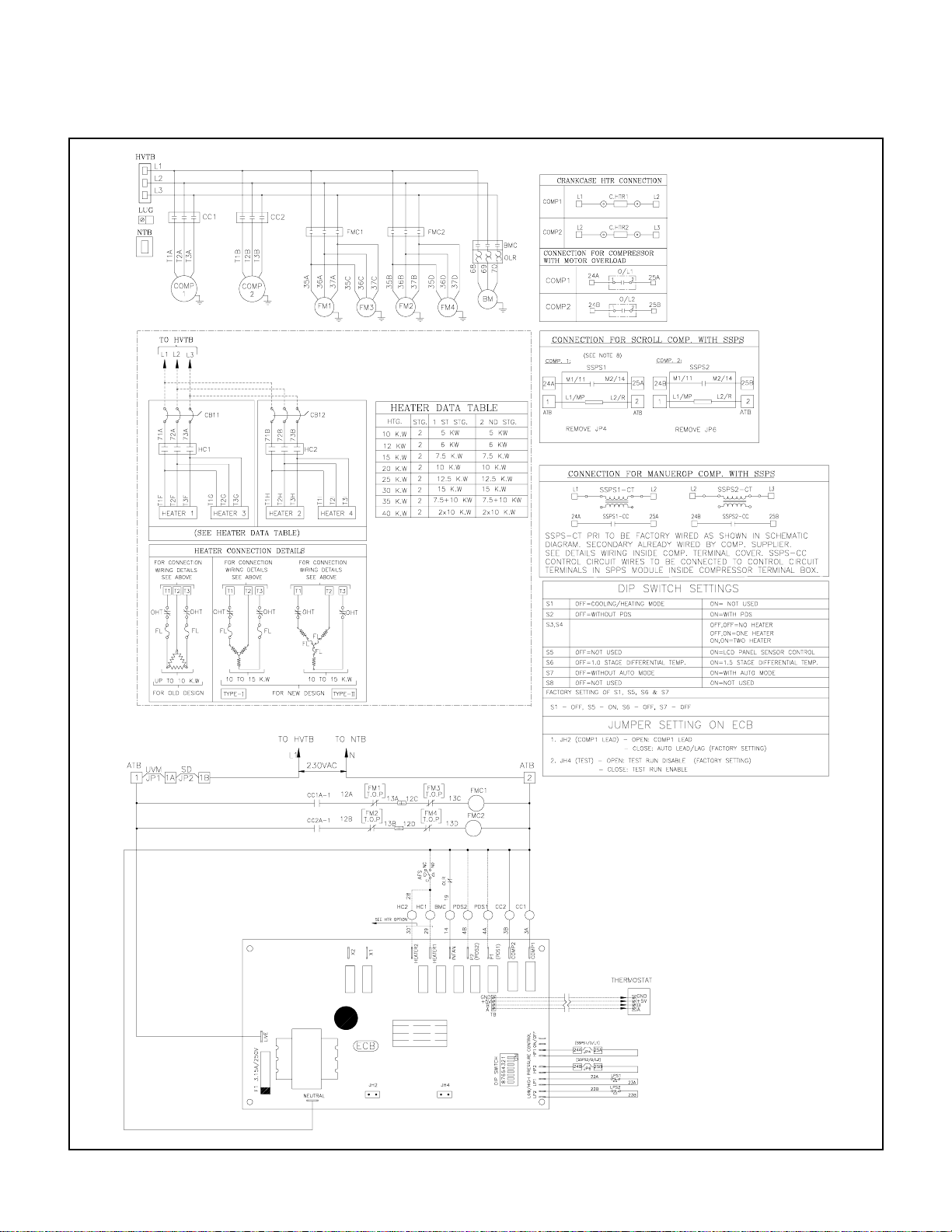

TYPICAL SCHEMATIC WIRING DIAGRAM

TO HVTB

COMP. WITH CIRCUIT BREAKER OPTION

HVTB

LUG

LOW AMBIENT OPTION

MODELS : PT180 - PT240 (Dual compressor units)

STANDARD OPTIONS

TO HVTB

1. UVM OPTION

2. SMOKE D ETECTOR OPTION

3. VOLT FREE CONTACT OPTIONS

A. UNIT ON & OFF INDICATION OPTION

C. BM ON,OFF & TRIP INDICATION OPTION

FAN MOTOR CONTROL CONNECTION

(APPLICABLE FOR FM WITH T.O.P)

A) STANDARD CONNECTION

B) WITH LOW AMBIENT OPTION

_ _ _

FIELD WIRING

DISCONNECT TAB - 1/4" SPLICE-CLOSED END TERMINAL BLOCK OR TERMINATION POINT

1. POWER SUPPLY, 380/415V-3PH-50Hz.

2. ANY WIRE REPLACEMENT SHOULD BE OF 900C OR ITS

EQUIVALENT. USE COPPER CONDUCTOR WIRES ONLY.

3. IF PDS & HEATERS ARE FACTORY INSTALLED, PLEASE

READ BROKEN LINES AS CONTINUOUS LINES.

4. POWER MUST BE SUPPLIED TO CRANKCASE HEATER FOR

MINIMUM OF 12 HOURS PRIOR TO SYSTEM START UP. IF POWER IS OFF 6 HOURS OR MORE, CRANKCASE HEATER MUST BE ON FOR 12 HOURS BEFORE OPERATING THE SYSTEM.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN COMPRESSOR DAMAGE.

5. FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

TO BE PROVIDED BY CONSUMER WITH RATING AS RECOMMENDED BY COOLINE.

6. COMPRESSORS ARE PROVIDED WITH INTERNAL OVERLOAD.

7. IF COMPRESSOR IS SUPPLIED WITH SSPS, CONNECT AS

SHOWN. PLEASE ALLOW 2-3 MINUTES FOR SSPS SWITCH TO CLOSE, BEFORE STARTING THE UNIT.

8. IF ANY CHANGE IN DIP SWITCH SETTING IS REQUIRED,

TURN OFF POWER FIRST & SET REQUIRED SETTING.

LEGEND

NOTES

Page 29

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT300 - PT360 (Dual compressor units)

NOTE: 1. Refer to next page for legend, notes & wiring diagram for optional items.

2. Refer to unit control box (inside panel) for exact wiring diagram.

Page 30

TYPICAL SCHEMATIC WIRING DIAGRAM

MODELS : PT300 - PT360 (Dual compressor units)

_ _ _

FIELD WIRING

DISCONNECT TAB - 1/4" SPLICE-CLOSED END TERMINAL BLOCK OR TERMINATION POINT

1. POWER SUPPLY, 380/415V-3PH-50Hz.

2. ANY WIRE REPLACEMENT SHOULD BE OF 900C OR ITS

EQUIVALENT. USE COPPER CONDUCTOR WIRES ONLY.

3. IF PDS & HEATERS ARE FACTORY INSTALLED, PLEASE

READ BROKEN LINES AS CONTINUOUS LINES.

4. POWER MUST BE SUPPLIED TO CRANKCASE HEATER FOR

MINIMUM OF 12 HOURS PRIOR TO SYSTEM START UP. IF POWER IS OFF 6 HOURS OR MORE, CRANKCASE HEATER MUST BE ON FOR 12 HOURS BEFORE OPERATING THE SYSTEM.

FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN COMPRESSOR DAMAGE.

5. FUSED DISCONNECT SWITCH OR CIRCUIT BREAKER

TO BE PROVIDED BY CONSUMER WITH RATING AS RECOMMENDED BY COOLINE.

6. COMPRESSORS ARE PROVIDED WITH INTERNAL OVERLOAD.

7. IF COMPRESSOR IS SUPPLIED WITH SSPS, CONNECT AS

SHOWN. PLEASE ALLOW 2-3 MINUTES FOR SSPS SWITCH TO CLOSE, BEFORE STARTING THE UNIT.

8. IF ANY CHANGE IN DIP SWITCH SETTING IS REQUIRED,

TURN OFF POWER FIRST & SET REQUIRED SETTING.

LEGEND

NOTES

Page 31

PARTS LIST

MODEL NUMBER PT036L PT048L PT060L PT075L PT090 PT100L PT120L PT180L PT215L

COMPRESSOR

FAN MOTOR

FAN MOTOR CAPACITOR

BlOWER MOTOR (STANDARD)

BLOWER WHEEL

CONDENSER FAN PROPELLER

COMPRESSOR CONTACTOR

BL0WER MOTOR CONTACTOR

AIRFLOW SWITCH

EXPANSION VALVE

DISTRIBUTOR

LOW PRESSURE SWITCH

HIGH PRESSURE SWITCH (OPTION)800-558-00 800-558-00 800-558-00 800-558-00 800-558-00 800-558-00 800-558-00 800-558-00 800-558-00

FAN GRILLE

FILTER DRIER

SIGHT GLASS (OPTION)

800-684-08 800-672-52 800-643-01 800-674-78 800-684-09 800-672-52 800-674-25

800-555-26 800-555-26 800-555-26 800-555-26 800-545-68 800-545-68 800-545-68 800-545-68 800-545-68

800-353-15 800-353-15 800-353-15 800-353-15 N.A. N.A. N.A. N.A. N.A.

800-546-94 800-546-94 800-546-95 800-544-13 800-544-16 800-544-16 800-544-17 800-544-72 800-544-72

800-707-10 800-707-10 800-707-10 800-707-46 800-707-02 800-707-02 800-707-02 800-707-02 800-707-23

800-225-02 800-225-02 800-225-02 800-225-02 800-224-23 800-224-23 800-224-23 800-224-23 800-224-23

800-095-01 800-095-01 800-095-01 800-095-01 800-095-01 800-095-01 800-095-01 800-095-01 800-736-22

800-736-27 800-736-27 800-736-27 800-095-01 800-095-01 800-095-01 800-095-01 800-098-55 800-098-55

800-005-02 800-005-02 800-005-02 800-005-02 800-005-02 800-005-02 800-005-02 800-005-02 800-005-02

800-195-16 800-195-20 800-195-22 800-181-00 800-183-01 800-181-00 800-181-00 800-182-00 800-182-00

800-194-13 800-194-13 800-194-17 800-191-01 800-191-00 800-191-00 800-191-00 800-196-00 800-194-01

800-557-00 800-557-00 800-557-00 800-557-00 800-557-00 800-557-00 800-557-00 800-557-00 800-557-00

800-625-46 800-625-46 800-625-46 800-625-46 800-625-29 800-625-29 800-625-29 800-625-74 800-625-74

800-531-08 800-531-08 800-531-08 800-531-08 800-531-08 800-531-08 800-531-08 800-531-05 800-531-05

800-201-00 800-201-00 800-201-00 800-201-00 800-201-00 800-201-00 800-200-00 800-200-00 800-200-00

800-674-67/81

800-674-38

MODEL NUMBER PT240L PT300L PT360L

COMPRESSOR

800-674-19 800-674-12 800-674-72

FAN MOTOR

BlOWER MOTOR (STANDARD)

BLOWER WHEEL

CONDENSER FAN PROPELLER

COMPRESSOR CONTACTOR

BL0WER MOTOR CONTACTOR

AIRFLOW SWITCH

EXPANSION VALVE

DISTRIBUTOR

LOW PRESSURE SWITCH

HIGH PRESSURE SWITCH (OPTION)800-558-00 800-558-00 800-558-00

FAN GRILLE

FILTER DRIER

SIGHT GLASS (OPTION)

800-545-68 800-545-68 800-545-68

800-544-73 800-544-73 800-544-74

800-707-23 800-707-23 800-707-23

800-224-23 800-225-02 800-225-02

800-736-22 800-736-22 800-736-22

800-098-55 800-098-55 800-098-57

800-005-02 800-005-02 800-005-02

800-185-00 800-186-00 800-186-00

800-194-01 800-196-10 800-191-34

800-557-00 800-557-00 800-557-00

800-625-74 800-625-46 800-625-46

800-531-05 800-531-05 800-531-01

800-200-00 800-200-00 800-200-01

OPTIONAL ITEMS:

ANTI ICE THERMOSTAT : 800-644-22 (COMMON TO ALL MODELS) RETURN AIR FILTERS Aluminum filter (1” Thick) : 800-254-10 (2 Each) for PT036 - PT060, 800-254-11 (2 Each) for PT075, 800-254-12 (2 Each) for PT090 - PT120,

Aluminum filter (2” Thick) : 800-254-16 (2 Each) for PT036 - PT060, 800-254-17 (2 Each) for PT075, 800-254-18 (2 Each) for PT090 - PT120,

800-254-13 (2 Each) for PT180, 800-254-14 (4 Each) for PT215 - PT240 & 800-254-15 (4 Each) for PT300 - PT360.

800-254-19 (2 Each) for PT180, 800-254-20 (4 Each) for PT215 - PT240 & 800-254-21 (4 Each) for PT300 - PT360.
