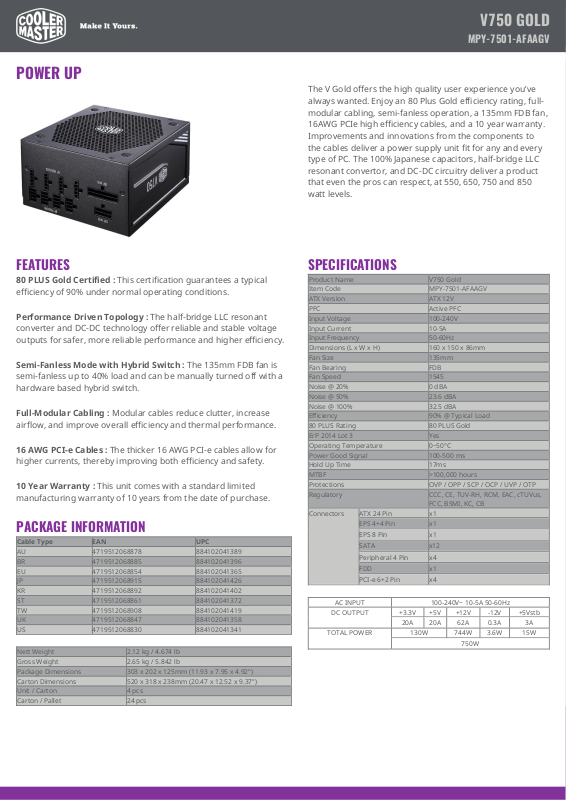

Cooler Master MPY-7501-AFAAGV User Manual
V750 GOLD
MPY-7501-AFAAGV
POWER UP
The V Gold offers the high quality user experience you’ve
always wanted. Enjoy an 80 Plus Gold efficiency rating, fullmodular cabling, semi-fanless operation, a 135mm FDB fan,
16AWG PCIe high efficiency cables, and a 10 year warranty.
Improvements and innovations from the components to
the cables deliver a power supply unit fit for any and every
type of PC. The 100% Japanese capacitors, half-bridge LLC
resonant convertor, and DC-DC circuitry deliver a product
that even the pros can respect, at 550, 650, 750 and 850
watt levels.
FEATURES
SPECIFICATIONS
80 PLUS Gold Certified : This certification guarantees a typical
efficiency of 90% under normal operating conditions.
Performance Driven Topology : The half-bridge LLC resonant
converter and DC-DC technology offer reliable and stable voltage
outputs for safer, more reliable performance and higher efficiency.
Semi-Fanless Mode with Hybrid Switch : The 135mm FDB fan is
semi-fanless up to 40% load and can be manually turned off with a
hardware based hybrid switch.
Full-Modular Cabling : Modular cables reduce clutter, increase
airflow, and improve overall efficiency and thermal performance.
16 AWG PCI-e Cables : The thicker 16 AWG PCI-e cables allow for
higher currents, thereby improving both efficiency and safety.
10 Year Warranty : This unit comes with a standard limited
manufacturing warranty of 10 years from the date of purchase.
PACKAGE INFORMATION
Cable Type
EAN
UPC
AU
4719512068878
884102041389
BR
4719512068885
884102041396
EU
4719512068854
884102041365
JP
4719512068915
884102041426
KR
4719512068892
884102041402
ST
4719512068861
884102041372
TW
4719512068908
884102041419
UK
4719512068847
884102041358
US
4719512068830
884102041341
Nett Weight
2.12 kg / 4.674 lb
Gross Weight
2.65 kg / 5.842 lb
Package Dimensions
303 x 202 x 125mm (11.93 x 7.95 x 4.92")
Carton Dimensions
520 x 318 x 238mm (20.47 x 12.52 x 9.37")
Unit / Carton
4 pcs
Carton / Pallet
24 pcs
Product Name
V750 Gold
Item Code
MPY-7501-AFAAGV
ATX Version
ATX 12V
PFC
Active PFC
Input Voltage
100-240V
Input Current
10-5A
Input Frequency
50-60Hz
Dimensions (L x W x H)
160 x 150 x 86mm
Fan Size
135mm
Fan Bearing
FDB
Fan Speed
1545
Noise @ 20%
0 dBA
Noise @ 50%
23.6 dBA
Noise @ 100%
32.5 dBA
Efficiency
90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0~50°C
Power Good Signal
100-500 ms
Hold Up Time
17ms
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / OCP / UVP / OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
x1
EPS 8 Pin
x1
SATA
x12
Peripheral 4 Pin
x4
FDD
x1
PCI-e 6+2 Pin
x4 AC INPUT
100-240V~ 10-5A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
20A
20A
62A
0.3A
3A
TOTAL POWER
130W
744W
3.6W
15W
750W
FEATURES
The FDB fan creates less friction,
making it great for low RPM operations.
This technology keeps the fan running
smoothly and efficiently for longer.
The semi-fanless mode can be manually
turned off with the built in analog
hybrid switch.
The thicker 16 AWG PCI-e cables allow
for higher currents, because they have
a higher heat tolerance, thereby
improving efficiency and safety.
