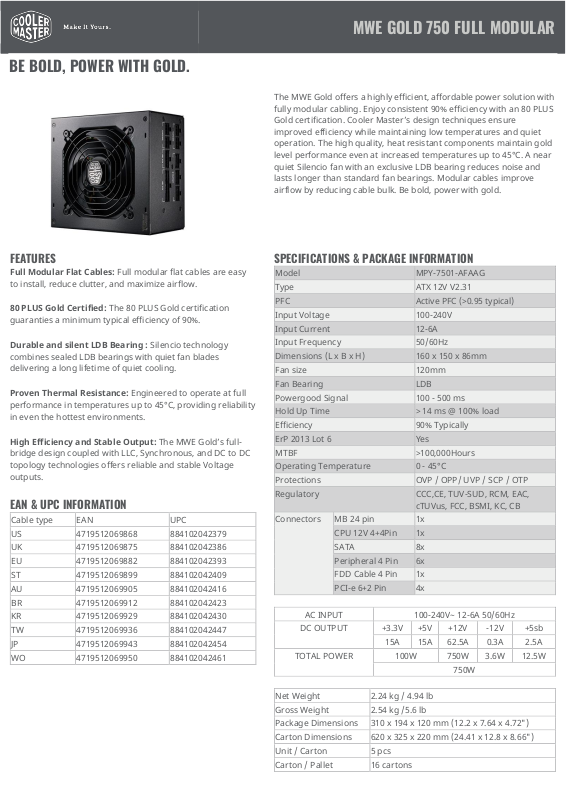

Cooler Master MPY-7501-AFAAG-EU, MPY-7501-AFAAG-UK User Manual
MWE GOLD 750 FULL MODULAR
BE BOLD, POWER WITH GOLD.
The MWE Gold offers a highly efficient, affordable power solution with
fully modular cabling. Enjoy consistent 90% efficiency with an 80 PLUS
Gold certification. Cooler Master’s design techniques ensure
improved efficiency while maintaining low temperatures and quiet
operation. The high quality, heat resistant components maintain gold
level performance even at increased temperatures up to 45°C. A near
quiet Silencio fan with an exclusive LDB bearing reduces noise and
lasts longer than standard fan bearings. Modular cables improve
airflow by reducing cable bulk. Be bold, power with gold.
FEATURES
Full Modular Flat Cables: Full modular flat cables are easy
to install, reduce clutter, and maximize airflow.
80 PLUS Gold Certified: The 80 PLUS Gold certification
guaranties a minimum typical efficiency of 90%.
Durable and silent LDB Bearing : Silencio technology
combines sealed LDB bearings with quiet fan blades
delivering a long lifetime of quiet cooling.
Proven Thermal Resistance: Engineered to operate at full
performance in temperatures up to 45°C, providing reliability
in even the hottest environments.
High Efficiency and Stable Output: The MWE Gold’s fullbridge design coupled with LLC, Synchronous, and DC to DC
topology technologies offers reliable and stable Voltage
outputs.
EAN & UPC INFORMATION
Cable type
EAN
UPC
US
4719512069868
884102042379
UK
4719512069875
884102042386
EU
4719512069882
884102042393
ST
4719512069899
884102042409
AU
4719512069905
884102042416
BR
4719512069912
884102042423
KR
4719512069929
884102042430
TW
4719512069936
884102042447
JP
4719512069943
884102042454
WO
4719512069950
884102042461
SPECIFICATIONS & PACKAGE INFORMATION
Model
MPY-7501-AFAAG
Type
ATX 12V V2.31
PFC
Active PFC (>0.95 typical)
Input Voltage
100-240V
Input Current
12-6A
Input Frequency
50/60Hz
Dimensions (L x B x H)
160 x 150 x 86mm
Fan size
120mm
Fan Bearing
LDB
Powergood Signal
100 - 500 ms
Hold Up Time
> 14 ms @ 100% load
Efficiency
90% Typically
ErP 2013 Lot 6
Yes
MTBF
>100,000Hours
Operating Temperature
0 - 45°C
Protections
OVP / OPP/ UVP / SCP / OTP
Regulatory
CCC,CE, TUV-SUD, RCM, EAC,
cTUVus, FCC, BSMI, KC, CB
Connectors
MB 24 pin
1x
CPU 12V 4+4Pin
1x
SATA
8x
Peripheral 4 Pin
6x
FDD Cable 4 Pin
1x
PCI-e 6+2 Pin
4x AC INPUT
100-240V~ 12-6A 50/60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5sb
15A
15A
62.5A
0.3A
2.5A
TOTAL POWER
100W
750W
3.6W
12.5W
750W
Net Weight
2.24 kg / 4.94 lb
Gross Weight
2.54 kg /5.6 lb
Package Dimensions
310 x 194 x 120 mm (12.2 x 7.64 x 4.72")
Carton Dimensions
620 x 325 x 220 mm (24.41 x 12.8 x 8.66")
Unit / Carton
5 pcs
Carton / Pallet
16 cartons
MWE GOLD 750 FULL MODULAR
FEATURES
The 80 PLUS Gold certification means
the MWE Gold is independently
tested with a typical efficiency of
90%.
Silencio technology combines sealed
LDB bearings with quiet fan blades
delivering a long lifetime of quiet
cooling.
The MWE Gold has a full modular
design to maximize your building
experience. Modular cables means
freedom - the freedom to choose the
exact cables needed for the build.
The MWE Gold has a full modular
design to maximize your building
experience. Modular
