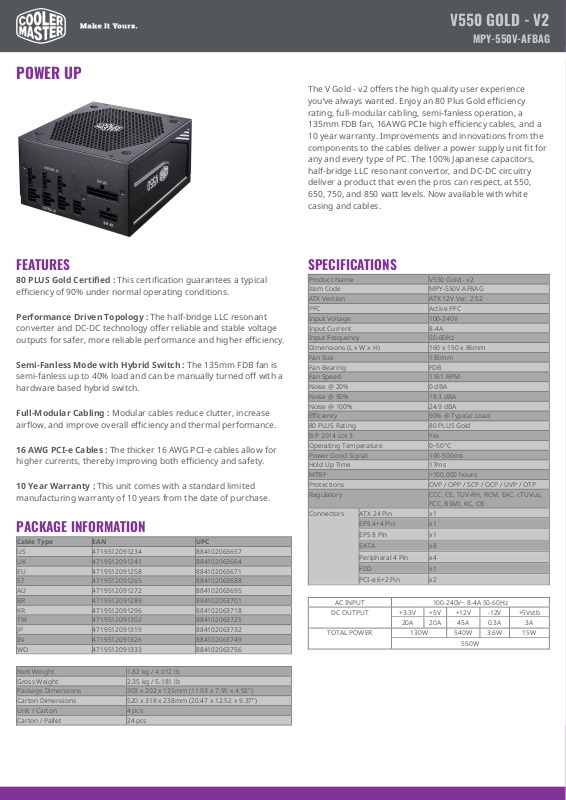

V550 GOLD - V2
MPY-550V-AFBAG
POWER UP
The V Gold - v2 offers the high quality user experience
you’ve always wanted. Enjoy an 80 Plus Gold efficiency
rating, full-modular cabling, semi-fanless operation, a
135mm FDB fan, 16AWG PCIe high efficiency cables, and a
10 year warranty. Improvements and innovations from the
components to the cables deliver a power supply unit fit for
any and every type of PC. The 100% Japanese capacitors,
half-bridge LLC resonant convertor, and DC-DC circuitry
deliver a product that even the pros can respect, at 550,
650, 750, and 850 watt levels. Now available with white
casing and cables.
FEATURES
SPECIFICATIONS
80 PLUS Gold Certified : This certification guarantees a typical
efficiency of 90% under normal operating conditions.
Performance Driven Topology : The half-bridge LLC resonant
converter and DC-DC technology offer reliable and stable voltage
outputs for safer, more reliable performance and higher efficiency.
Semi-Fanless Mode with Hybrid Switch : The 135mm FDB fan is
semi-fanless up to 40% load and can be manually turned off with a
hardware based hybrid switch.
Full-Modular Cabling : Modular cables reduce clutter, increase
airflow, and improve overall efficiency and thermal performance.
16 AWG PCI-e Cables : The thicker 16 AWG PCI-e cables allow for
higher currents, thereby improving both efficiency and safety.
10 Year Warranty : This unit comes with a standard limited
manufacturing warranty of 10 years from the date of purchase.
PACKAGE INFORMATION
Cable Type
EAN
UPC
US
4719512091234
884102063657
UK
4719512091241
884102063664
EU
4719512091258
884102063671
ST
4719512091265
884102063688
AU
4719512091272
884102063695
BR
4719512091289
884102063701
KR
4719512091296
884102063718
TW
4719512091302
884102063725
JP
4719512091319
884102063732
IN
4719512091326
884102063749
WO
4719512091333
884102063756
Nett Weight
1.82 kg / 4.012 lb
Gross Weight
2.35 kg / 5.181 lb
Package Dimensions
303 x 202 x 125mm (11.93 x 7.95 x 4.92")
Carton Dimensions
520 x 318 x 238mm (20.47 x 12.52 x 9.37")
Unit / Carton
4 pcs
Carton / Pallet
24 pcs
Product Name
V550 Gold - v2
Item Code
MPY-550V-AFBAG
ATX Version
ATX 12V Ver. 2.52
PFC
Active PFC
Input Voltage
100-240V
Input Current
8-4A
Input Frequency
50-60Hz
Dimensions (L x W x H)
160 x 150 x 86mm
Fan Size
135mm
Fan Bearing
FDB
Fan Speed
1161 RPM
Noise @ 20%
0 dBA
Noise @ 50%
18.3 dBA
Noise @ 100%
24.9 dBA
Efficiency
90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0~50°C
Power Good Signal
100-500ms
Hold Up Time
17ms
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / OCP / UVP / OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
x1
EPS 8 Pin
x1
SATA
x8
Peripheral 4 Pin
x4
FDD
x1
PCI-e 6+2 Pin
x2 AC INPUT
100-240V~ 8-4A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
20A
20A
45A
0.3A
3A
TOTAL POWER
130W
540W
3.6W
15W
550W
FEATURES
This certification guarantees a typical
efficiency of 90% under normal
operating conditions.
The half-bridge LLC resonant converter
and DC-DC technology offer reliable
and stable voltage outputs for safer,
more reliable performance and higher
efficiency.
The 135mm FDB fan is semi-fanless up
to 40% load and can be manually
turned off with a hardware based
hybrid switch.
Modular cables reduce clutter, increase
airflow, and improve overall efficiency
and thermal performance.
The thicker 16 AWG PCI-e cables allow
for higher currents, thereby improving
both efficiency and safety.
This unit comes with a standard limited
manufacturing warranty of 10 years
from the date of purchase.
