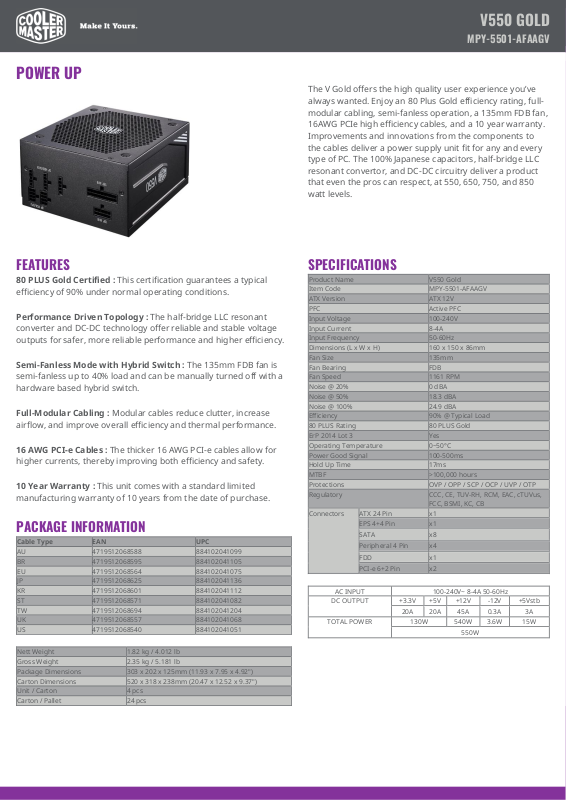

Cooler Master MPY-5501-AFAAGV User Manual
V550 GOLD
MPY-5501-AFAAGV
POWER UP
The V Gold offers the high quality user experience you’ve
always wanted. Enjoy an 80 Plus Gold efficiency rating, fullmodular cabling, semi-fanless operation, a 135mm FDB fan,
16AWG PCIe high efficiency cables, and a 10 year warranty.
Improvements and innovations from the components to
the cables deliver a power supply unit fit for any and every
type of PC. The 100% Japanese capacitors, half-bridge LLC
resonant convertor, and DC-DC circuitry deliver a product
that even the pros can respect, at 550, 650, 750, and 850
watt levels.
FEATURES
SPECIFICATIONS
80 PLUS Gold Certified : This certification guarantees a typical
efficiency of 90% under normal operating conditions.
Performance Driven Topology : The half-bridge LLC resonant
converter and DC-DC technology offer reliable and stable voltage
outputs for safer, more reliable performance and higher efficiency.
Semi-Fanless Mode with Hybrid Switch : The 135mm FDB fan is
semi-fanless up to 40% load and can be manually turned off with a
hardware based hybrid switch.
Full-Modular Cabling : Modular cables reduce clutter, increase
airflow, and improve overall efficiency and thermal performance.
16 AWG PCI-e Cables : The thicker 16 AWG PCI-e cables allow for
higher currents, thereby improving both efficiency and safety.
10 Year Warranty : This unit comes with a standard limited
manufacturing warranty of 10 years from the date of purchase.
PACKAGE INFORMATION
Cable Type
EAN
UPC
AU
4719512068588
884102041099
BR
4719512068595
884102041105
EU
4719512068564
884102041075
JP
4719512068625
884102041136
KR
4719512068601
884102041112
ST
4719512068571
884102041082
TW
4719512068694
884102041204
UK
4719512068557
884102041068
US
4719512068540
884102041051
Nett Weight
1.82 kg / 4.012 lb
Gross Weight
2.35 kg / 5.181 lb
Package Dimensions
303 x 202 x 125mm (11.93 x 7.95 x 4.92")
Carton Dimensions
520 x 318 x 238mm (20.47 x 12.52 x 9.37")
Unit / Carton
4 pcs
Carton / Pallet
24 pcs
Product Name
V550 Gold
Item Code
MPY-5501-AFAAGV
ATX Version
ATX 12V
PFC
Active PFC
Input Voltage
100-240V
Input Current
8-4A
Input Frequency
50-60Hz
Dimensions (L x W x H)
160 x 150 x 86mm
Fan Size
135mm
Fan Bearing
FDB
Fan Speed
1161 RPM
Noise @ 20%
0 dBA
Noise @ 50%
18.3 dBA
Noise @ 100%
24.9 dBA
Efficiency
90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0~50°C
Power Good Signal
100-500ms
Hold Up Time
17ms
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / OCP / UVP / OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
x1
SATA
x8
Peripheral 4 Pin
x4
FDD
x1
PCI-e 6+2 Pin
x2
AC INPUT
100-240V~ 8-4A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
20A
20A
45A
0.3A
3A
TOTAL POWER
130W
540W
3.6W
15W
550W
FEATURES
The FDB fan creates less friction,
making it great for low RPM operations.
This technology keeps the fan running
smoothly and efficiently for longer.
The semi-fanless mode can be manually
turned off with the built in analog
hybrid switch.
The thicker 16 AWG PCI-e cables allow
for higher currents, because they have
a higher heat tolerance, thereby
improving efficiency and safety.
