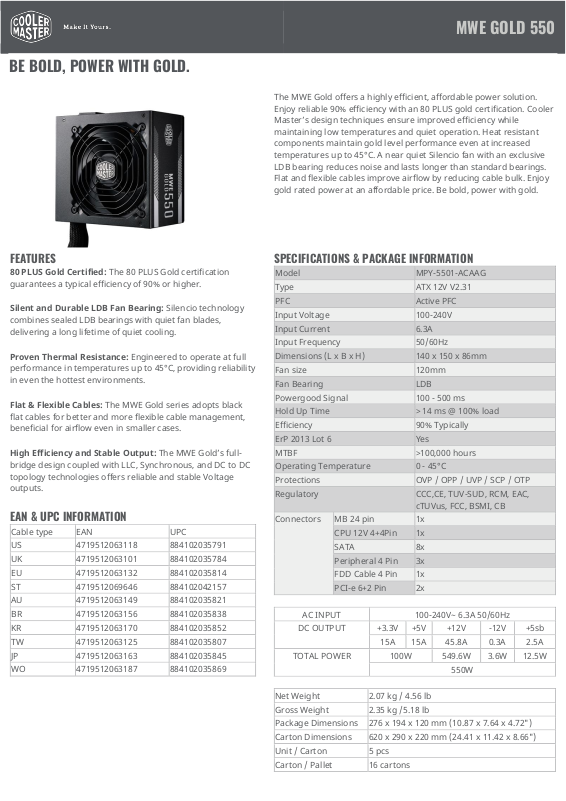

MWE GOLD 550
BE BOLD, POWER WITH GOLD.
The MWE Gold offers a highly efficient, affordable power solution.
Enjoy reliable 90% efficiency with an 80 PLUS gold certification. Cooler
Master’s design techniques ensure improved efficiency while
maintaining low temperatures and quiet operation. Heat resistant
components maintain gold level performance even at increased
temperatures up to 45°C. A near quiet Silencio fan with an exclusive
LDB bearing reduces noise and lasts longer than standard bearings.
Flat and flexible cables improve airflow by reducing cable bulk. Enjoy
gold rated power at an affordable price. Be bold, power with gold.
FEATURES
80 PLUS Gold Certified: The 80 PLUS Gold certification
guarantees a typical efficiency of 90% or higher.
Silent and Durable LDB Fan Bearing: Silencio technology
combines sealed LDB bearings with quiet fan blades,
delivering a long lifetime of quiet cooling.
Proven Thermal Resistance: Engineered to operate at full
performance in temperatures up to 45°C, providing reliability
in even the hottest environments.
Flat & Flexible Cables: The MWE Gold series adopts black
flat cables for better and more flexible cable management,
beneficial for airflow even in smaller cases.
High Efficiency and Stable Output: The MWE Gold’s fullbridge design coupled with LLC, Synchronous, and DC to DC
topology technologies offers reliable and stable Voltage
outputs.
EAN & UPC INFORMATION
Cable type
EAN
UPC
US
4719512063118
884102035791
UK
4719512063101
884102035784
EU
4719512063132
884102035814
ST
4719512069646
884102042157
AU
4719512063149
884102035821
BR
4719512063156
884102035838
KR
4719512063170
884102035852
TW
4719512063125
884102035807
JP
4719512063163
884102035845
WO
4719512063187
884102035869
SPECIFICATIONS & PACKAGE INFORMATION
Model
MPY-5501-ACAAG
Type
ATX 12V V2.31
PFC
Active PFC
Input Voltage
100-240V
Input Current
6.3A
Input Frequency
50/60Hz
Dimensions (L x B x H)
140 x 150 x 86mm
Fan size
120mm
Fan Bearing
LDB
Powergood Signal
100 - 500 ms
Hold Up Time
> 14 ms @ 100% load
Efficiency
90% Typically
ErP 2013 Lot 6
Yes
MTBF
>100,000 hours
Operating Temperature
0 - 45°C
Protections
OVP / OPP / UVP / SCP / OTP
Regulatory
CCC,CE, TUV-SUD, RCM, EAC,
cTUVus, FCC, BSMI, CB
Connectors
MB 24 pin
1x
CPU 12V 4+4Pin
1x
SATA
8x
Peripheral 4 Pin
3x
FDD Cable 4 Pin
1x
PCI-e 6+2 Pin
2x AC INPUT
100-240V~ 6.3A 50/60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5sb
15A
15A
45.8A
0.3A
2.5A
TOTAL POWER
100W
549.6W
3.6W
12.5W
550W
Net Weight
2.07 kg / 4.56 lb
Gross Weight
2.35 kg /5.18 lb
Package Dimensions
276 x 194 x 120 mm (10.87 x 7.64 x 4.72")
Carton Dimensions
620 x 290 x 220 mm (24.41 x 11.42 x 8.66")
Unit / Carton
5 pcs
Carton / Pallet
16 cartons
MWE GOLD 550
FEATURES
The 80 PLUS Gold certification means
the MWE Gold is independently
tested with a typical efficiency of
90%.
Silencio technology combines sealed
LDB bearings with quiet fan blades
delivering a long lifetime of quiet
cooling.
The MWE Gold uses flatter, more
flexible cables for better cable
management even in tight cases.
