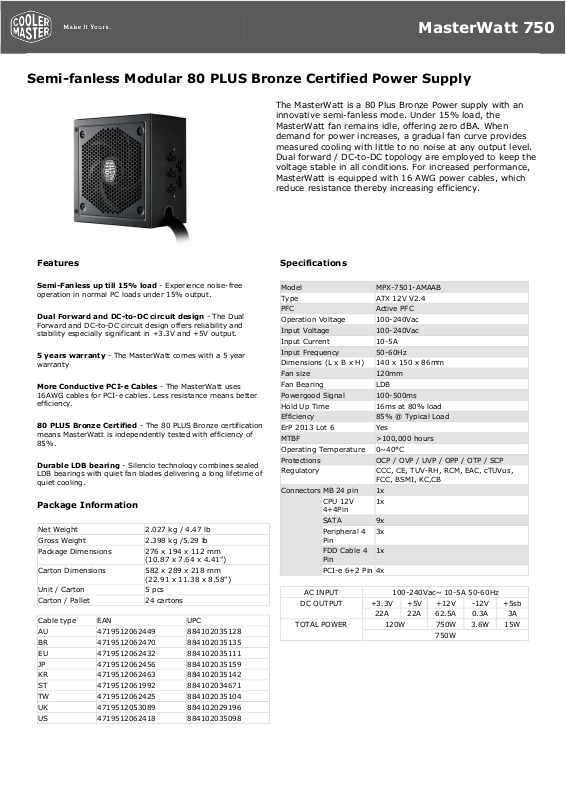

Cooler Master MPX-7501-AMAAB User Manual
MasterWatt 750
Semi-fanless Modular 80 PLUS Bronze Certified Power Supply
The MasterWatt is a 80 Plus Bronze Power supply with an
innovative semi-fanless mode. Under 15% load, the
MasterWatt fan remains idle, offering zero dBA. When
demand for power increases, a gradual fan curve provides
measured cooling with little to no noise at any output level.
Dual forward / DC-to-DC topology are employed to keep the
voltage stable in all conditions. For increased performance,
MasterWatt is equipped with 16 AWG power cables, which
reduce resistance thereby increasing efficiency.
Features
Semi-Fanless up till 15% load - Experience noise-free
operation in normal PC loads under 15% output.
Dual Forward and DC-to-DC circuit design - The Dual
Forward and DC-to-DC circuit design offers reliability and
stability especially significant in +3.3V and +5V output.
5 years warranty - The MasterWatt comes with a 5 year
warranty
More Conductive PCI-e Cables - The MasterWatt uses
16AWG cables for PCI-e cables. Less resistance means better
efficiency.
80 PLUS Bronze Certified - The 80 PLUS Bronze certification
means MasterWatt is independently tested with efficiency of
85%.
Durable LDB bearing - Silencio technology combines sealed
LDB bearings with quiet fan blades delivering a long lifetime of
quiet cooling.
Package Information
Net Weight
2.027 kg / 4.47 lb
Gross Weight
2.398 kg /5.29 lb
Package Dimensions
276 x 194 x 112 mm
(10.87 x 7.64 x 4.41")
Carton Dimensions
582 x 289 x 218 mm
(22.91 x 11.38 x 8.58")
Unit / Carton
5 pcs
Carton / Pallet
24 cartons
Cable type
EAN
UPC
AU
4719512062449
884102035128
BR
4719512062470
884102035135
EU
4719512062432
884102035111
JP
4719512062456
884102035159
KR
4719512062463
884102035142
ST
4719512061992
884102034671
TW
4719512062425
884102035104
UK
4719512053089
884102029196
US
4719512062418
884102035098
Specifications
Model
MPX-7501-AMAAB
Type
ATX 12V V2.4
PFC
Active PFC
Operation Voltage
100-240Vac
Input Voltage
100-240Vac
Input Current
10-5A
Input Frequency
50-60Hz
Dimensions (L x B x H)
140 x 150 x 86mm
Fan size
120mm
Fan Bearing
LDB
Powergood Signal
100-500ms
Hold Up Time
16ms at 80% load
Efficiency
85% @ Typical Load
ErP 2013 Lot 6
Yes
MTBF
>100,000 hours
Operating Temperature
0~40°C
Protections
OCP / OVP / UVP / OPP / OTP / SCP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC,CB
Connectors
MB 24 pin
1x
CPU 12V
4+4Pin
1x
SATA
9x
Peripheral 4
Pin
3x
FDD Cable 4
Pin
1x
PCI-e 6+2 Pin
4x AC INPUT
100-240Vac~ 10-5A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5sb
22A
22A
62.5A
0.3A
3A
TOTAL POWER
120W
750W
3.6W
15W
750W
MasterWatt 750
Experience noise-free operation in
normal PC loads under 15%
output.
DC-to-DC circuit design offers
reliability and stability especially
significant in +3.3V and +5V
output.
The 80 PLUS Bronze certification
means MasterWatt is
independently tested with
efficiency of 85%.
The MasterWatt comes with a 5
year warranty
Silencio technology combines
sealed LDB bearings with quiet fan
blades delivering a long lifetime of
quiet cooling.
16AWG cables for PCI-e cables.
Less resistance means better
efficiency.
