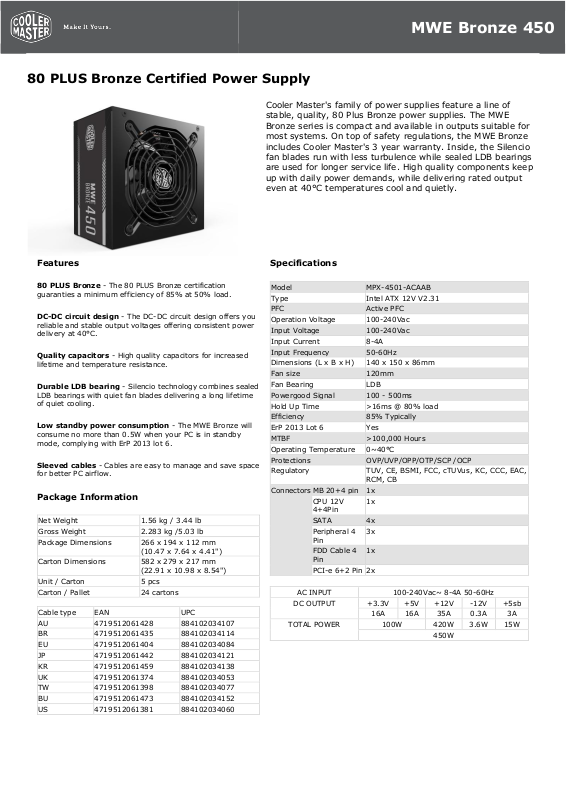

Cooler Master MPX-4501-ACAAB User Manual
MWE Bronze 450
80 PLUS Bronze Certified Power Supply
Cooler Master's family of power supplies feature a line of
stable, quality, 80 Plus Bronze power supplies. The MWE
Bronze series is compact and available in outputs suitable for
most systems. On top of safety regulations, the MWE Bronze
includes Cooler Master's 3 year warranty. Inside, the Silencio
fan blades run with less turbulence while sealed LDB bearings
are used for longer service life. High quality components keep
up with daily power demands, while delivering rated output
even at 40°C temperatures cool and quietly.
Features
80 PLUS Bronze - The 80 PLUS Bronze certification
guaranties a minimum efficiency of 85% at 50% load.
DC-DC circuit design - The DC-DC circuit design offers you
reliable and stable output voltages offering consistent power
delivery at 40°C.
Quality capacitors - High quality capacitors for increased
lifetime and temperature resistance.
Durable LDB bearing - Silencio technology combines sealed
LDB bearings with quiet fan blades delivering a long lifetime
of quiet cooling.
Low standby power consumption - The MWE Bronze will
consume no more than 0.5W when your PC is in standby
mode, complying with ErP 2013 lot 6.
Sleeved cables - Cables are easy to manage and save space
for better PC airflow.
Package Information
Net Weight
1.56 kg / 3.44 lb
Gross Weight
2.283 kg /5.03 lb
Package Dimensions
266 x 194 x 112 mm
(10.47 x 7.64 x 4.41")
Carton Dimensions
582 x 279 x 217 mm
(22.91 x 10.98 x 8.54")
Unit / Carton
5 pcs
Carton / Pallet
24 cartons
Cable type
EAN
UPC
AU
4719512061428
884102034107
BR
4719512061435
884102034114
EU
4719512061404
884102034084
JP
4719512061442
884102034121
KR
4719512061459
884102034138
UK
4719512061374
884102034053
TW
4719512061398
884102034077
BU
4719512061473
884102034152
US
4719512061381
884102034060
Specifications
Model
MPX-4501-ACAAB
Type
Intel ATX 12V V2.31
PFC
Active PFC
Operation Voltage
100-240Vac
Input Voltage
100-240Vac
Input Current
8-4A
Input Frequency
50-60Hz
Dimensions (L x B x H)
140 x 150 x 86mm
Fan size
120mm
Fan Bearing
LDB
Powergood Signal
100 - 500ms
Hold Up Time
>16ms @ 80% load
Efficiency
85% Typically
ErP 2013 Lot 6
Yes
MTBF
>100,000 Hours
Operating Temperature
0~40°C
Protections
OVP/UVP/OPP/OTP/SCP /OCP
Regulatory
TUV, CE, BSMI, FCC, cTUVus, KC, CCC, EAC,
RCM, CB
Connectors
MB 20+4 pin
1x
CPU 12V
4+4Pin
1x
SATA
4x
Peripheral 4
Pin
3x
FDD Cable 4
Pin
1x
PCI-e 6+2 Pin
2x AC INPUT
100-240Vac~ 8-4A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5sb
16A
16A
35A
0.3A
3A
TOTAL POWER
100W
420W
3.6W
15W
450W
MWE Bronze 450
The 80 PLUS Bronze certification
guaranties a minimum efficiency
of 85%
The DC-DC circuit design offers
you reliable and stable output
voltages
Silencio technology combines
sealed LDB bearings with quiet fan
blades delivering a long lifetime of
quiet cooling
The MWE Bronze will consume no
more than 0.5W when your PC is
in standby mode, complying with
ErP 2013 lot 6
High quality capacitors for
increased lifetime and
temperature resistance
Sleeved cables are easy to
manage and save space for better
PC airflow.
