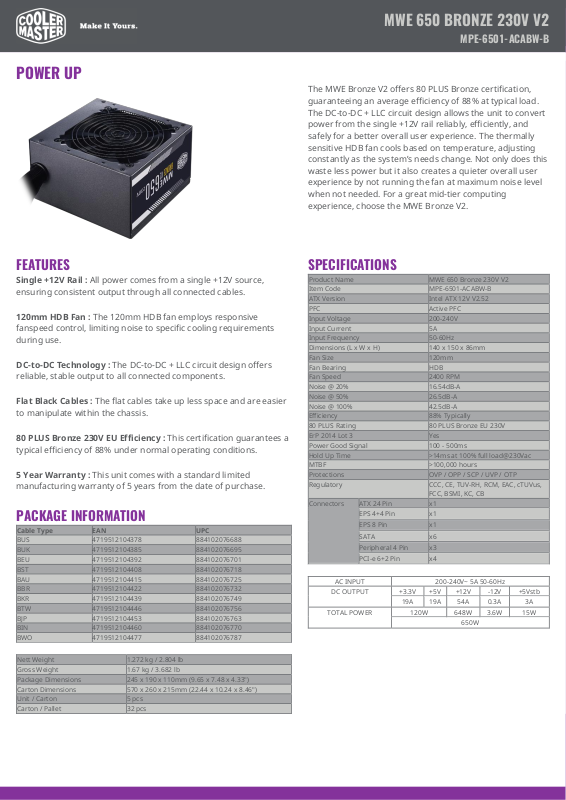

Cooler Master MPE-6501-ACABW-B User Manual

MWE 650 BRONZE 230V V2

MPE-6501-ACABW-B

POWER UP

The MWE Bronze V2 offers 80 PLUS Bronze certification, guaranteeing an average efficiency of 88% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power from the single +12V rail reliably, efficiently, and safely for a better overall user experience. The thermally sensitive HDB fan cools based on temperature, adjusting constantly as the system’s needs change. Not only does this waste less power but it also creates a quieter overall user experience by not running the fan at maximum noise level when not needed. For a great mid-tier computing experience, choose the MWE Bronze V2.

FEATURES

SPECIFICATIONS

Single +12V Rail : All power comes from a single +12V source, ensuring consistent output through all connected cables.

120mm HDB Fan : The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

DC-to-DC Technology : The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

Flat Black Cables : The flat cables take up less space and are easier to manipulate within the chassis.

80 PLUS Bronze 230V EU Efficiency : This certification guarantees a typical efficiency of 88% under normal operating conditions.

5 Year Warranty : This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

PACKAGE INFORMATION

Cable Type

EAN

UPC

BUS

4719512104378

884102076688

BUK

4719512104385

884102076695

BEU

4719512104392

884102076701

BST

4719512104408

884102076718

BAU

4719512104415

884102076725

BBR

4719512104422

884102076732

BKR

4719512104439

884102076749

BTW

4719512104446

884102076756

BJP

4719512104453

884102076763

BIN

4719512104460

884102076770

BWO

4719512104477

884102076787

Nett Weight

1.272 kg / 2.804 lb

Gross Weight

1.67 kg / 3.682 lb

Package Dimensions

245 x 190 x 110mm (9.65 x 7.48 x 4.33")

Carton Dimensions

570 x 260 x 215mm (22.44 x 10.24 x 8.46")

Unit / Carton

5 pcs

Carton / Pallet

32 pcs

Product Name

MWE 650 Bronze 230V V2

Item Code

MPE-6501-ACABW-B

ATX Version

Intel ATX 12V V2.52

PFC

Active PFC

Input Voltage

200-240V

Input Current

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

2400 RPM

Noise @ 20%

16.54dB-A

Noise @ 50%

26.5dB-A

Noise @ 100%

42.5dB-A

Efficiency

88% Typically

80 PLUS Rating

80 PLUS Bronze EU 230V

ErP 2014 Lot 3

Yes

Power Good Signal

100 - 500ms

Hold Up Time

>14ms at 100% full load@230Vac

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Connectors

ATX 24 Pin

EPS 4+4 Pin

EPS 8 Pin

SATA

Peripheral 4 Pin

PCI-e 6+2 Pin

x4 AC INPUT

200-240V~ 5A 50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5Vstb

19A

54A

0.3A

TOTAL POWER

120W

648W

3.6W

15W

650W

FEATURES

All power comes from a single +12V source, ensuring consistent output through all connected cables.

The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

This certification guarantees a typical efficiency of 88% under normal operating conditions.

The flat cables take up less space and are easier to manipulate within the chassis.

This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
