Cooler Master MPE-5501-AFAAG User Manual
MWE GOLD 550 - V2 (FULL MODULAR)
MPE-5501-AFAAG
FULL MODULAR 80 PLUS GOLD CERTIFIED ATX POWER SUPPLY
MWE Gold – V2 (Full Modular) is the next step in the
evolution of Cooler Master’s entry level 80 PLUS Gold power
offerings. The intention was not to create a new product but
to improve a current one to be even more useful to
consumers. The design changes implemented in this
iteration of the MWG Gold were based on user feedback
and demand. New things were added or changed to make
the user experience better and simpler. Together, these
design choices deliver a great entry level power supply
option complete with high efficiency, reliability, simplicity,
and a competitive price point.

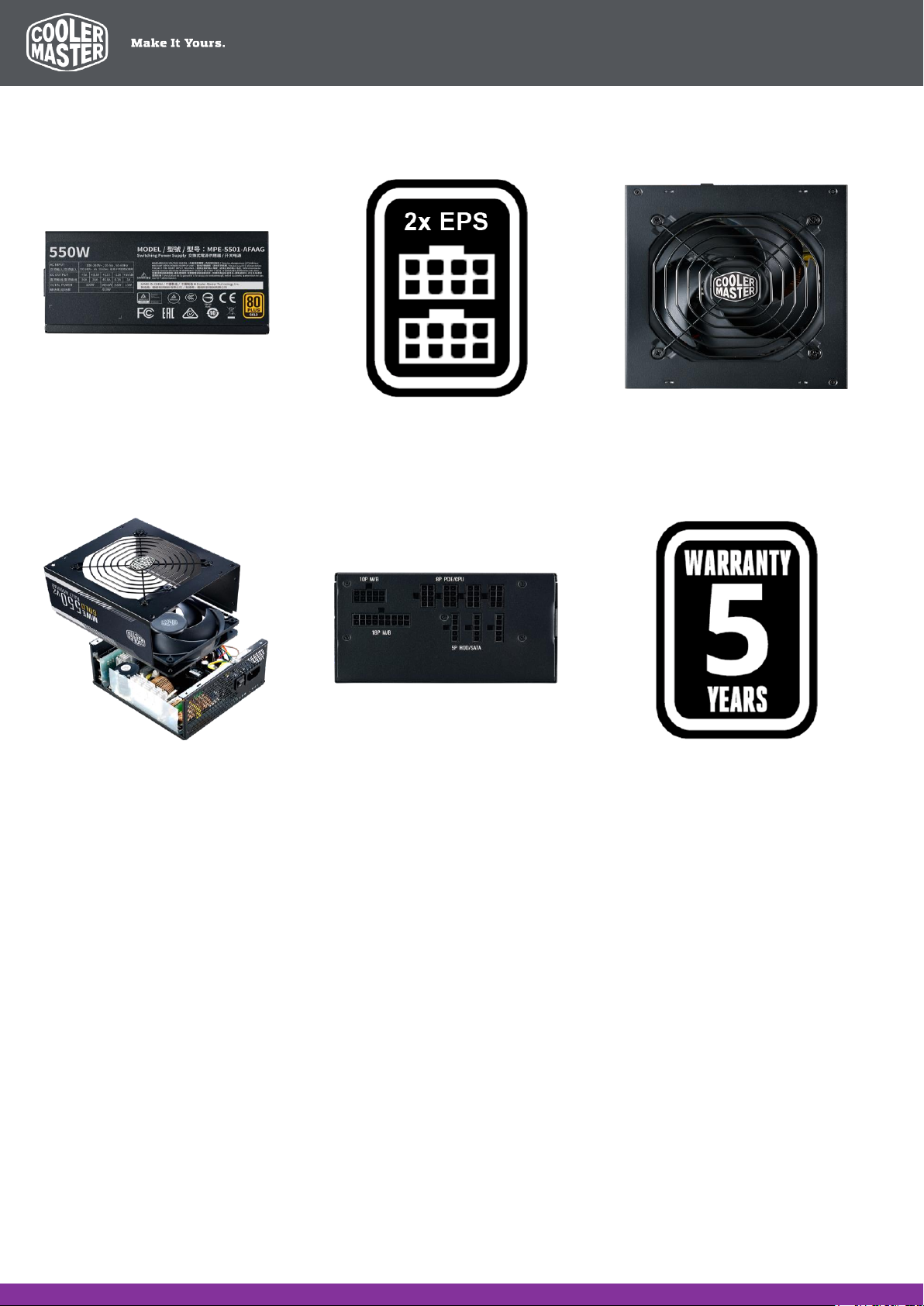

FEATURES
SPECIFICATIONS
Highly Efficient Performance : The 80 PLUS Gold certification
guarantees a minimum efficiency of 90%.
2 EPS Connectors : 2 EPS connectors included with all models for
universal current generation motherboard compatibility.
120mm HDB Fan : 120mm Hydro Dynamic Fan bearing for
improved cooling and noise reduction.
High Operating Temperature : The MWE Gold - V2 can operate
safely at up to 50 degrees.
Full Modular Cabling : MWE Gold - V2 comes with full modular flat,
black cables for increased airflow.
5 Year Warranty : All MWE Gold - V2 models come with a 5 year
factory warranty from purchase date.
PACKAGE INFORMATION
Cable Type
EAN
UPC
US
4719512105382
884102077692
U2
4719512105399
884102077708
UK
4719512105405
884102077715
EU
4719512105412
884102077722
ST
4719512105429
884102077739
AU
4719512105436
884102077746
BR
4719512105443
884102077753
KR
4719512105450
884102077760
TW
4719512105467
884102077777
JP
4719512105474
884102077784
IN
4719512105481
884102077791
Nett Weight
1.92 kg / 4.233 lb
Gross Weight
2.52 kg / 5.556 lb
Package Dimensions
310 x 194 x 120mm (12.2 x 7.64 x 4.72")
Carton Dimensions
620 x 325 x 220mm (24.41 x 12.8 x 8.66")
Unit / Carton
5 pcs
Carton / Pallet
16 pcs
Product Name
MWE Gold 550 - V2 (Full Modular)
Item Code
MPE-5501-AFAAG
ATX Version
ATX 12V
PFC
Active PFC
Input Voltage
90 - 264V
Input Current
8 - 4A
Dimensions (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
HDB
Efficiency
90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
Hold Up Time
>16ms at 100% Load
MTBF
>100,000 hours
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
x1
EPS 8 Pin
x1
SATA
x8
Peripheral 4 Pin
x4
PCI-e 6+2 Pin
x2 AC INPUT
90 - 264V~ 8 - 4A
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
20A
20A
45.8A
0.3A
3A
TOTAL POWER
120W
550W
550
CABLES
