EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
DUT INFORMATION
Brand Cooler Master Manufacturer (OEM) Gospower Series MWE Bronze Model Number MWE Bronze 550 Serial Number MPE5501ACAAB1191400003 DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 100-240 Rated Current (Arms) 8-4 Rated Frequency (Hz) 50-60 Rated Power (W) 550 Type ATX12V
Cooling
Semi-Passive Operation ✓ Cable Design Fixed cables
Cooler Master MWE Bronze 550
120mm Rifle Bearing Fan (DF1202512SELN)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 550
Amps 20 20 45.8 3 0.3 Watts 120 549.6 15 3.6
CABLES AND CONNECTORS
Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors ATX connector 20+4 pin (610mm) 1 1 18-20AWG No 4+4 pin EPS12V (630mm) 1 1 18AWG No 6+2 pin PCIe (530mm+120mm) 1 2 18AWG No SATA (520mm+120mm+120mm) 2 6 18AWG No 4-pin Molex (500mm+120mm+120mm+120mm) 1 4 18AWG No AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
PAGE 1/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
Cooler Master MWE Bronze 550
General Data
Manufacturer (OEM) Gospower PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes Inrush Protection NTC Thermistor & Relay Bridge Rectifier(s) 1x GBU1508 (800V, 15A @ 100°C) APFC MOSFETS 2x Sanrise Tech SRC60R200 (630V, 7.1A @ 125°C, 0.2Ohm) APFC Boost Diode 1x Jilin Sino Microelectronics 15F60UHF (600V, 15A @ 100°C) Hold-up Cap(s) 1x Elite (420V, 470uF, 2000h @ 85°C, GM) Main Switchers 2x Jilin Sino Microelectronics JCS18N50FH (500V, 11A @ 100°C, 0.27Ohm) APFC Controller Champion CM6500UNX Resonant Controllers Champion CU6901V
Topology
Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nce PowerNCEP40T11K (40V, 85A @ 100°C, 2.8mOhm)
5V & 3.3V
Filtering Capacitors
Supervisor IC IN1S313I-SAG Fan Model Thermal Control DF1202512SELN (120mm, 12V, 0.25A, Rifle Bearing Fan)
DC-DC Converters: 4x IPS FTD05N03NA (30V, 75A @ 100°C, 6mOhm) PWM Controllers: ANPECAPW7159C
Electrolytics: 4x Elite (2-5,000h @ 105°C, ED), 5x Elite (2,000h @ 105°C, EL), 2x CapXon (2-5,000h @ 105°C, KF), 1x CapXon (3­10,000h @ 105°C, GH) Polymers: CapXon
5VSB Circuit
Rectifier ­Standby PWM Controller On-Bright OB2365SP
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 2/9
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
Cooler Master MWE Bronze 550
RESULTS
Test Date 06-10-2019 Certification Date 06-21-2019 Cybenetics ID # 735 Temperature Range (°C /°F) 30-32 / 86-89.6 Average Efficiency 88.179 Efficiency With 10W (≤500W) or 2% (>500W) Load -115V 70.319 Average Efficiency 5VSB 77.245 Standby Power Consumption (W) -115V 0.0753202 Standby Power Consumption (W) -230V 0.1873250 Average PF 0.904 ErP Lot 3/6 Ready ✓ (EU) No 617/2013 Compliance ✓ Avg Noise Output 24.66 Efficiency Rating (ETA) Noise Rating (LAMBDA) LAMBDA-A
TEST EQUIPMENT
Chroma 63601-5 x4
Electronic Loads
AC Sources Chroma 6530, Keysight AC6804B Power Analyzers N4L PPA1530 x2 Sound Analyzer Bruel & Kjaer 2270 G4 Microphone Bruel & Kjaer Type 4955-A Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2 Tachometer UNI-T UT372 x2 Digital Multimeter Keysight U1273AX, Fluke 289 UPS CyberPower OLS3000E 3kVA x2 Transformer 3kVA x2
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
PAGE 3/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
EFFICIENCY GRAPH
Cooler Master MWE Bronze 550
INFO
This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
NOISE GRAPH
INFO
The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 4/9
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.233
1
5.135V 0.390 115.12V
0.090A 0.466
2
5.170V 0.675 115.12V
0.550A 2.838
3
5.159V 3.622 115.12V
1.000A 5.150
4
5.148V 6.517 115.12V
1.500A 7.706
5
5.136V 9.734 115.12V
DC/AC (Watts)
Efficiency PF/AC Volts
59.744%
69.037%
78.355%
79.024%
79.166%
0.224
0.043
0.203
0.305
0.373
Cooler Master MWE Bronze 550
5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.233
1
5.172V 0.504 230.29V
0.090A 0.466
2
5.171V 0.792 230.29V
0.550A 2.839
3
5.160V 3.709 230.29V
1.000A 5.150
4
5.149V 6.567 230.29V
1.500A 7.707
5
5.137V 9.744 230.29V
DC/AC (Watts)
Efficiency PF/AC Volts
0.010
46.230%
0.015
58.838%
0.070
76.544%
0.119
78.422%
0.168
79.095%
6
3.000A 15.296
5.099V 19.834 115.11V
VAMPIRE POWER -230V
77.120%
0.464
6
3.000A 15.299
78.804%
5.100V 19.414 230.29V
0.277
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 5/9
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report

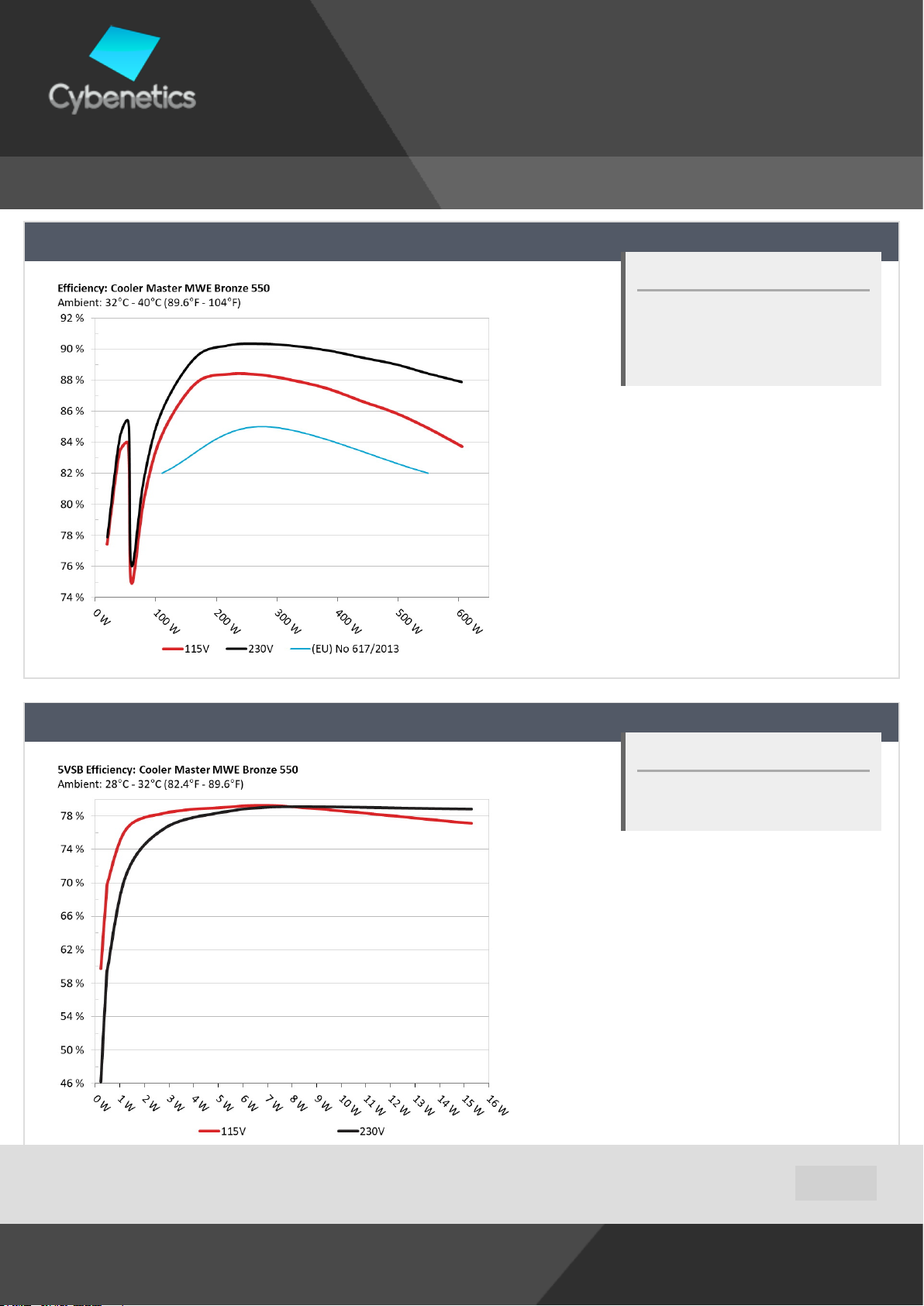

EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
Cooler Master MWE Bronze 550
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB EFFICIENCY
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
PAGE 6/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
10-110% LOAD TESTS
Test #
1
2
3
4
5
12V 5V 3.3V 5VSB
2.721A 1.998A 1.961A 0.974A 54.551
12.108V 5.009V 3.363V 5.137V 63.977 34.85°C 230.32V
6.510A 3.002A 2.951A 1.171A 109.424
12.062V 4.998V 3.354V 5.123V 127.286 41.56°C 230.33V
10.701A 3.510A 3.436A 1.370A 164.929
12.048V 4.987V 3.346V 5.111V 184.376 42.66°C 230.33V
14.853A 4.019A 3.953A 1.569A 219.740
12.020V 4.978V 3.339V 5.099V 243.513 43.51°C 230.33V
18.670A 5.036A 4.956A 1.770A 274.646
12.005V 4.966V 3.330V 5.085V 304.038 44.28°C 230.33V
DC/AC (Watts)
Cooler Master MWE Bronze 550
Fan
Efficiency
85.267% 0 0
85.967% 896 20.9
89.453% 870 18.5
90.237% 970 21.7
90.333% 1111 24.6
Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
40.47°C 0.609
35.76°C 0.796
36.44°C 0.868
36.96°C 0.909
37.29°C 0.929
PF/AC Volts
6
7
8
9
10
11
CL1
CL2
22.495A 6.058A 5.962A 1.972A 329.555
90.198% 1197 28.1
11.991V 4.954V 3.322V 5.071V 365.370 45.60°C 230.33V
26.366A 7.084A 6.974A 2.176A 384.877
89.905% 1328 30.3
11.976V 4.942V 3.313V 5.057V 428.092 47.04°C 230.33V
30.240A 8.115A 7.990A 2.380A 440.178
89.455% 1429 32.5
11.963V 4.931V 3.304V 5.043V 492.064 47.89°C 230.33V
34.499A 8.637A 8.491A 2.384A 494.701
89.032% 1475 33.1
11.948V 4.922V 3.297V 5.034V 555.643 48.81°C 230.33V
38.562A 9.164A 9.028A 2.995A 549.923
88.423% 1475 33.1
11.934V 4.912V 3.290V 5.011V 621.921 49.88°C 230.33V
43.240A 9.177A 9.045A 2.999A 605.142
87.884% 1475 33.1
11.920V 4.905V 3.284V 5.003V 688.570 51.43°C 230.33V
0.149A 14.001A 14.000A 0.000A 117.496
80.412% 1385 31.8
12.046V 4.940V 3.324V 5.125V 146.118 44.32°C 230.33V
45.845A 1.002A 1.001A 1.000A 560.804
89.224% 1473 33.1
11.941V 4.962V 3.317V 5.077V 628.537 49.84°C 230.33V
37.94°C 0.944
38.60°C 0.951
38.94°C 0.957
39.36°C 0.963
39.87°C 0.967
40.22°C 0.970
37.51°C 0.826
39.80°C 0.968
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 7/9
info@cybenetics.com
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
20-80W LOAD TESTS
Test # 12V 5V 3.3V 5VSB
1.202A 0.498A 0.474A 0.194A 19.630
1
12.087V 5.024V 3.372V 5.164V 25.201 230.30V
2.456A 0.996A 0.979A 0.388A 40.012
2
12.099V 5.019V 3.368V 5.155V 47.489 230.33V
3.654A 1.497A 1.455A 0.583A 59.521
3
12.075V 5.012V 3.364V 5.147V 78.245 230.33V
4.912A 2.000A 1.965A 0.779A 79.906
4
12.070V 5.006V 3.360V 5.139V 97.933 230.33V
RIPPLE MEASUREMENTS
DC/AC (Watts)
Cooler Master MWE Bronze 550
Efficiency
77.894% 0 <6.0
84.255% 0 <6.0
76.070% 771 18.2
81.593% 818 18.5
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
0.343
0.517
0.668
0.731
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 86.3 mV 21.7 mV 17.6 mV 17.0 mV Pass 20% Load 11.8 mV 20.6 mV 34.2 mV 19.6 mV Pass 30% Load 31.7 mV 22.7 mV 18.4 mV 19.9 mV Pass 40% Load 30.8 mV 21.2 mV 19.7 mV 19.9 mV Pass 50% Load 29.2 mV 22.7 mV 20.5 mV 21.8 mV Pass 60% Load 29.2 mV 22.4 mV 22.8 mV 24.3 mV Pass 70% Load 27.3 mV 23.9 mV 24.8 mV 24.8 mV Pass 80% Load 38.1 mV 26.8 mV 28.4 mV 25.7 mV Pass 90% Load 27.9 mV 24.6 mV 29.7 mV 27.5 mV Pass 100% Load 42.4 mV 28.3 mV 31.7 mV 30.1 mV Pass 110% Load 43.4 mV 27.8 mV 31.3 mV 30.7 mV Pass Crossload 1 20.8 mV 32.5 mV 32.9 mV 23.4 mV Pass Crossload 2 40.9 mV 26.1 mV 23.3 mV 25.8 mV Pass
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 8/9
info@cybenetics.com
EFFICIENCY AND NOISE
Top side
Power specifications label
LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 20.90 AC Loss to PWR_OK Hold Up Time (ms) 19.30 PWR_OK Inactive to DC Loss Delay (ms) 1.60
Cooler Master MWE Bronze 550
CERTIFICATIONS
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 9/9
