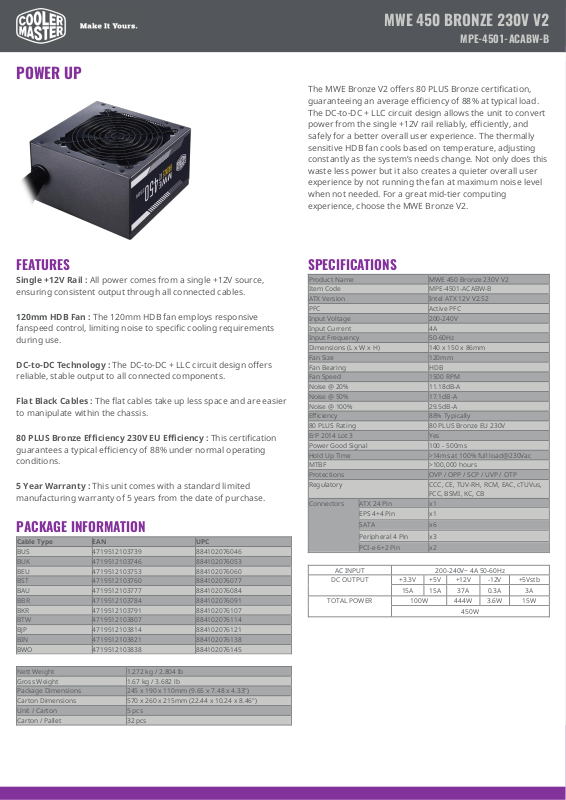

Cooler Master MPE-4501-ACABW-B User Manual

MWE 450 BRONZE 230V V2

MPE-4501-ACABW-B

POWER UP

The MWE Bronze V2 offers 80 PLUS Bronze certification, guaranteeing an average efficiency of 88% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power from the single +12V rail reliably, efficiently, and safely for a better overall user experience. The thermally sensitive HDB fan cools based on temperature, adjusting constantly as the system’s needs change. Not only does this waste less power but it also creates a quieter overall user experience by not running the fan at maximum noise level when not needed. For a great mid-tier computing experience, choose the MWE Bronze V2.

FEATURES

SPECIFICATIONS

Single +12V Rail : All power comes from a single +12V source, ensuring consistent output through all connected cables.

120mm HDB Fan : The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

DC-to-DC Technology : The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

Flat Black Cables : The flat cables take up less space and are easier to manipulate within the chassis.

80 PLUS Bronze Efficiency 230V EU Efficiency : This certification guarantees a typical efficiency of 88% under normal operating conditions.

5 Year Warranty : This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

PACKAGE INFORMATION

Cable Type

EAN

UPC

BUS

4719512103739

884102076046

BUK

4719512103746

884102076053

BEU

4719512103753

884102076060

BST

4719512103760

884102076077

BAU

4719512103777

884102076084

BBR

4719512103784

884102076091

BKR

4719512103791

884102076107

BTW

4719512103807

884102076114

BJP

4719512103814

884102076121

BIN

4719512103821

884102076138

BWO

4719512103838

884102076145

Nett Weight

1.272 kg / 2.804 lb

Gross Weight

1.67 kg / 3.682 lb

Package Dimensions

245 x 190 x 110mm (9.65 x 7.48 x 4.33")

Carton Dimensions

570 x 260 x 215mm (22.44 x 10.24 x 8.46")

Unit / Carton

5 pcs

Carton / Pallet

32 pcs

Product Name

MWE 450 Bronze 230V V2

Item Code

MPE-4501-ACABW-B

ATX Version

Intel ATX 12V V2.52

PFC

Active PFC

Input Voltage

200-240V

Input Current

Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86mm

Fan Size

120mm

Fan Bearing

HDB

Fan Speed

1500 RPM

Noise @ 20%

11.18dB-A

Noise @ 50%

17.1dB-A

Noise @ 100%

29.5dB-A

Efficiency

88% Typically

80 PLUS Rating

80 PLUS Bronze EU 230V

ErP 2014 Lot 3

Yes

Power Good Signal

100 - 500ms

Hold Up Time

>14ms at 100% full load@230Vac

MTBF

>100,000 hours

Protections

OVP / OPP / SCP / UVP / OTP

Regulatory

CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Connectors

ATX 24 Pin

EPS 4+4 Pin

SATA

Peripheral 4 Pin

PCI-e 6+2 Pin

x2 AC INPUT

200-240V~ 4A 50-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5Vstb

15A

37A

0.3A

TOTAL POWER

100W

444W

3.6W

15W

450W

FEATURES

All power comes from a single +12V source, ensuring consistent output through all connected cables.

The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

This certification guarantees a typical efficiency of 88% under normal operating conditions.

The flat cables take up less space and are easier to manipulate within the chassis.

This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
