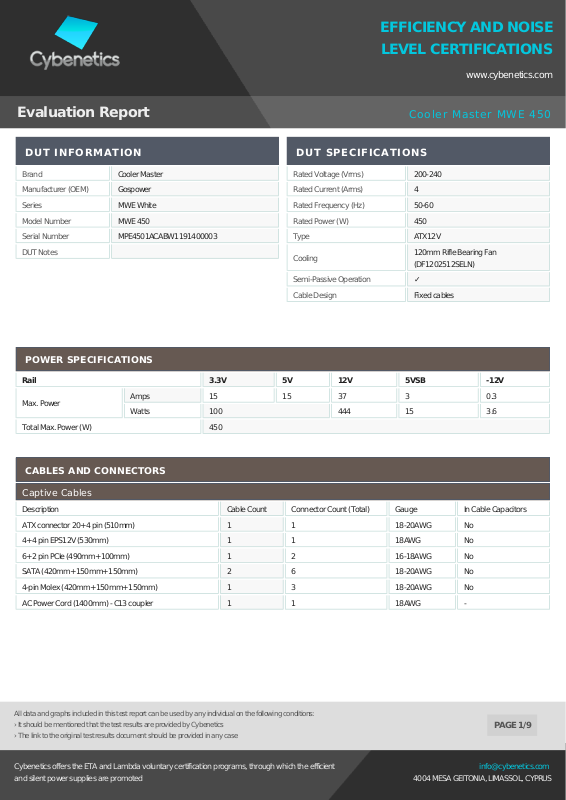

Page 1
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
DUT INFORMATION
Brand Cooler Master Manufacturer (OEM) Gospower Series MWE White Model Number MWE 450 Serial Number MPE4501ACABW1191400003 DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 200-240 Rated Current (Arms) 4 Rated Frequency (Hz) 50-60 Rated Power (W) 450 Type ATX12V
Cooling
Semi-Passive Operation ✓ Cable Design Fixed cables
Cooler Master MWE 450
120mm Rifle Bearing Fan (DF1202512SELN)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 450
Amps 15 15 37 3 0.3 Watts 100 444 15 3.6
CABLES AND CONNECTORS
Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors ATX connector 20+4 pin (510mm) 1 1 18-20AWG No 4+4 pin EPS12V (530mm) 1 1 18AWG No 6+2 pin PCIe (490mm+100mm) 1 2 16-18AWG No SATA (420mm+150mm+150mm) 2 6 18-20AWG No 4-pin Molex (420mm+150mm+150mm) 1 3 18-20AWG No AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
PAGE 1/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
[email protected]
Page 2
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
General Data
Manufacturer (OEM) Gospower PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes Inrush Protection NTC Thermistor Bridge Rectifier(s) 1xDiode Incorporated GBU608 (800V, 6A @ 100°C) APFC MOSFETS 1x JILIN SINO-MICROELECTRONICS JCS13N50FC (500V, 8A @ 100°C, 0.49Ohm) APFC Boost Diode 1x JILIN SINO-MICROELECTRONICS 10F60UHF (600V, 10A @ 100°C) Hold-up Cap(s) 1x Elite (420V, 220uF, 2000h @ 85°C, GM) Main Switchers 2x JILIN SINO-MICROELECTRONICS JCS13N50FC (500V, 8A @ 100°C, 0.49Ohm) APFC Controller Champion CM6500UNX Resonant Controllers Champion CU6901V
Topology
Secondary Side
+12V MOSFETS 2x Nce PowerNCE4080 (40V, 56A @ 100°C, 6.5mOhm)
5V & 3.3V
Filtering Capacitors
Supervisor IC IN1S313I-SAG Fan Model Thermal Control DF1202512SELN (120mm, 12V, 0.25A, Rifle Bearing Fan)
Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
DC-DC Converters: 4x IPS FTD05N03NA (30V, 75A @ 100°C, 6mOhm) PWM Controllers: ANPECAPW7159C
Electrolytics: 8x Elite (2-5,000h @ 105°C, ED), 4x Elite (2,000h @ 105°C, EL), 2x CapXon (2-5,000h @ 105°C, KF), 1x CapXon (3­10,000h @ 105°C, GH) Polymers: CapXon
Cooler Master MWE 450
5VSB Circuit
Rectifier ­Standby PWM Controller On-Bright OB2365SP
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 2/9
[email protected]
Page 3
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
Cooler Master MWE 450
RESULTS
Test Date 05-15-2019 Certification Date 06-11-2019 Lab ID # 696 Temperature Range (°C /°F) 30-32 / 86-89.6 Average Efficiency 86.182 Efficiency With 10W (≤500W) or 2% (>500W) Load -115V 0.000 Average Efficiency 5VSB 77.124 Standby Power Consumption (W) -115V 0.0000000 Standby Power Consumption (W) -230V 0.1818430 Average PF 0.913 ErP Lot 3/6 Ready ✓ (EU) No 617/2013 Compliance ✓ Avg Noise Output 32.25 Efficiency Rating (ETA) ETA-S Noise Rating (LAMBDA) LAMBDA-S++
TEST EQUIPMENT
Chroma 6314A x2
Electronic Loads
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B Power Analyzers N4L PPA1530 x2, N4L PPA5530 Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A Voltmeter Keithley 2015 THD 6.5 Digit Sound Analyzer Bruel & Kjaer 2250-L G4 Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189 Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
63123A x6 63102A 63101A
Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
PAGE 3/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
[email protected]
Page 4
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
EFFICIENCY GRAPH
Cooler Master MWE 450
INFO
This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
NOISE GRAPH
INFO
The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 4/9
[email protected]
Page 5
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
Cooler Master MWE 450
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC) 5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.233
1
5.183V 0.495 230.29V
0.090A 0.467
2
5.181V 0.785 230.29V
0.550A 2.843
3
5.168V 3.702 230.29V
1.000A 5.155
4
5.154V 6.559 230.29V
1.500A 7.710
5
5.139V 9.729 230.29V
DC/AC (Watts)
Efficiency PF/AC Volts
47.071%
59.490%
76.796%
78.594%
79.248%
0.010
0.015
0.070
0.118
0.165
VAMPIRE POWER -230V
6
3.000A 15.279
78.644%
5.093V 19.428 230.28V
0.266
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 5/9
[email protected]
Page 6
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
Cooler Master MWE 450
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB EFFICIENCY
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
PAGE 6/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
[email protected]
Page 7
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
10-110% LOAD TESTS
Test #
1
2
3
4
5
12V 5V 3.3V 5VSB
1.911A 2.004A 1.954A 0.973A 44.801
12.146V 4.985V 3.376V 5.142V 53.692 35.25°C 230.28V
4.800A 3.019A 2.942A 1.170A 89.290
12.165V 4.969V 3.364V 5.128V 104.693 43.53°C 230.28V
8.109A 3.529A 3.427A 1.369A 134.419
12.137V 4.958V 3.356V 5.115V 154.158 44.34°C 230.29V
11.422A 4.043A 3.943A 1.569A 179.663
12.122V 4.947V 3.348V 5.101V 204.750 45.15°C 230.30V
14.412A 5.067A 4.942A 1.770A 224.975
12.106V 4.934V 3.339V 5.086V 256.768 46.23°C 230.31V
DC/AC (Watts)
Fan
Efficiency
83.441% 0 <6.0
85.287% 1114 24.6
87.196% 1257 28.8
87.747% 1401 31.9
87.618% 1539 33.8
Speed (RPM)
PSU Noise (dB[A])
Cooler Master MWE 450
Temps (In/Out)
42.23°C 0.617
35.91°C 0.811
36.46°C 0.883
36.88°C 0.919
37.27°C 0.939
PF/AC Volts
6
7
8
9
10
11
CL1
CL2
17.342A 6.096A 5.946A 1.973A 269.503
87.372% 1535 33.8
12.092V 4.921V 3.330V 5.071V 308.455 47.58°C 230.32V
20.346A 7.133A 6.954A 2.177A 314.827
86.835% 1534 33.8
12.077V 4.908V 3.321V 5.055V 362.559 48.49°C 230.32V
23.362A 8.175A 7.969A 2.382A 360.159
86.107% 1536 33.8
12.060V 4.894V 3.313V 5.039V 418.271 49.63°C 230.33V
26.778A 8.701A 8.469A 2.387A 405.074
85.233% 1533 33.7
12.046V 4.885V 3.306V 5.029V 475.257 50.86°C 230.33V
29.940A 9.234A 9.006A 3.000A 449.891
84.100% 1530 33.7
12.030V 4.874V 3.298V 5.001V 534.947 51.56°C 230.37V
33.703A 9.245A 9.021A 3.005A 494.684
83.302% 1533 33.7
12.016V 4.868V 3.292V 4.994V 593.844 52.63°C 230.34V
0.143A 12.001A 12.001A 0.000A 100.697
81.507% 1529 33.7
12.144V 4.909V 3.337V 5.137V 123.544 46.04°C 230.40V
37.017A 1.003A 0.999A 1.000A 458.816
84.806% 1535 33.8
12.034V 4.932V 3.325V 5.085V 541.019 51.37°C 230.34V
37.75°C 0.951
38.10°C 0.959
38.75°C 0.965
39.38°C 0.969
39.74°C 0.973
40.27°C 0.976
37.12°C 0.847
39.56°C 0.973
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 7/9
[email protected]
Page 8
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
20-80W LOAD TESTS
Test # 12V 5V 3.3V 5VSB
1.188A 0.500A 0.472A 0.193A 19.508
1
12.131V 5.000V 3.384V 5.173V 24.797 230.30V
2.441A 1.002A 0.974A 0.387A 39.941
2
12.146V 4.993V 3.379V 5.163V 47.710 230.33V
3.625A 1.504A 1.450A 0.582A 59.396
3
12.139V 4.987V 3.375V 5.153V 69.439 230.34V
4.884A 2.008A 1.956A 0.778A 79.812
4
12.125V 4.980V 3.371V 5.143V 92.251 230.28V
RIPPLE MEASUREMENTS
DC/AC (Watts)
Cooler Master MWE 450
Efficiency
78.671% 0 <6.0
83.716% 0 <6.0
85.537% 0 <6.0
86.516% 0 <6.0
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
0.368
0.577
0.698
0.778
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 65.9 mV 23.0 mV 15.6 mV 14.0 mV Pass 20% Load 53.0 mV 20.3 mV 17.3 mV 13.2 mV Pass 30% Load 46.3 mV 21.0 mV 17.1 mV 13.1 mV Pass 40% Load 45.1 mV 20.9 mV 17.2 mV 13.2 mV Pass 50% Load 44.1 mV 20.9 mV 18.9 mV 13.9 mV Pass 60% Load 48.8 mV 21.3 mV 20.4 mV 14.9 mV Pass 70% Load 45.8 mV 23.8 mV 21.4 mV 14.9 mV Pass 80% Load 42.5 mV 22.1 mV 25.0 mV 16.7 mV Pass 90% Load 42.4 mV 22.0 mV 25.2 mV 17.2 mV Pass 100% Load 51.4 mV 24.0 mV 27.4 mV 20.9 mV Pass 110% Load 52.9 mV 24.7 mV 28.4 mV 21.3 mV Pass Crossload 1 52.1 mV 22.7 mV 30.8 mV 14.4 mV Pass Crossload 2 49.1 mV 21.7 mV 18.1 mV 17.0 mV Pass
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 8/9
[email protected]
Page 9
EFFICIENCY AND NOISE
Top side
Power specifications label
LEVEL CERTIFICATIONS
www.cybenetics.com
Evaluation Report
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 11.0 AC Loss to PWR_OK Hold Up Time (ms) 13.2 PWR_OK Inactive to DC Loss Delay (ms) -2.2
Cooler Master MWE 450
CERTIFICATIONS
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 9/9
[email protected]
