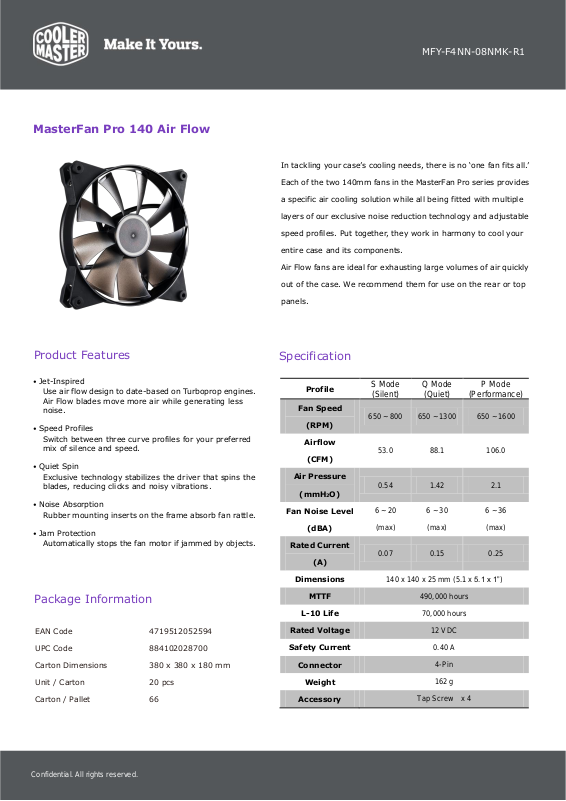

Cooler Master MFY-F4NN-08NMK-R1 Technical data

MasterFan Pro 140 Air Flow

MFY-F4NN-08NMK-R1

Product Features

Profile

S Mode

(Silent)

Q Mode

(Quiet)

P Mode

(Performance)

Fan Speed

(RPM)

650 ~ 800

650 ~ 1300

650 ~ 1600

Airflow

(CFM)

53.0

88.1

106.0

Air Pressure

(mmH2O)

0.54

1.42

2.1

Fan Noise Level

(dBA)

6 ~ 20

(max)

6 ~ 30

(max)

6 ~ 36

(max)

Rated Current

(A)

0.07

0.15

0.25

Dimensions

140 x 140 x 25 mm (5.1 x 5.1 x 1”)

MTTF

490,000 hours

L-10 Life

70,000 hours

Rated Voltage

12 VDC

Safety Current

0.40 A

Connector

4-Pin

Weight

162 g

Accessory

Tap Screw x 4

EAN Code

4719512052594

4719512052570

4719512052563

4719512052587

UPC Code

884102028700

884102028687

884102028670

884102028694

Carton Dimensions

380 x 380 x 180 mm

280 x 290 x 210 mm

Unit / Carton

20 pcs

Carton / Pallet

Package Information

In tackling your case’s cooling needs, there is no ‘one fan fits all.’

Each of the two 140mm fans in the MasterFan Pro series provides

a specific air cooling solution while all being fitted with multiple

layers of our exclusive noise reduction technology and adjustable

speed profiles. Put together, they work in harmony to cool your

entire case and its components.

Air Flow fans are ideal for exhausting large volumes of air quickly

out of the case. We recommend them for use on the rear or top

panels.

․Jet-Inspired

Use air flow design to date-based on Turboprop engines. Air Flow blades move more air while generating less noise.

․Speed Profiles

Switch between three curve profiles for your preferred mix of silence and speed.

․Quiet Spin

Exclusive technology stabilizes the driver that spins the blades, reducing clicks and noisy vibrations.

․Noise Absorption

Rubber mounting inserts on the frame absorb fan rattle.

․Jam Protection

Automatically stops the fan motor if jammed by objects.

Specification
