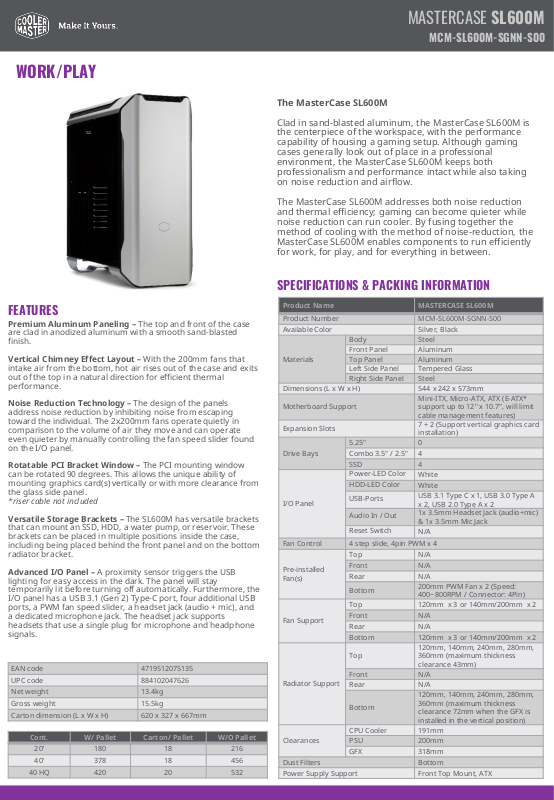

Cooler Master MCM-SL600M-SGNN-S00 User Manual
WORK/PLAY
MASTERCASE SL600M
MCM-SL600M-SGNN-S00
The MasterCase SL600M
Clad in sand-blasted aluminum, the MasterCase SL600M is
the centerpiece of the workspace, with the performance
capability of housing a gaming setup. Although gaming
cases generally look out of place in a professional
environment, the MasterCase SL600M keeps both
professionalism and performance intact while also taking
on noise reduction and airflow.
The MasterCase SL600M addresses both noise reduction
and thermal efficiency; gaming can become quieter while
noise reduction can run cooler. By fusing together the
method of cooling with the method of noise-reduction, the
MasterCase SL600M enables components to run efficiently
for work, for play, and for everything in between.
SPECIFICATIONS & PACKING INFORMATION
FEATURES
Premium Aluminum Paneling – The top and front of the case
are clad in anodized aluminum with a smooth sand-blasted
finish.
Vertical Chimney Effect Layout – With the 200mm fans that
intake air from the bottom, hot air rises out of the case and exits
out of the top in a natural direction for efficient thermal
performance.
Noise Reduction Technology – The design of the panels
address noise reduction by inhibiting noise from escaping
toward the individual. The 2x200mm fans operate quietly in
comparison to the volume of air they move and can operate
even quieter by manually controlling the fan speed slider found
on the I/O panel.
Rotatable PCI Bracket Window – The PCI mounting window
can be rotated 90 degrees. This allows the unique ability of
mounting graphics card(s) vertically or with more clearance from
the glass side panel.
*riser cable not included
Versatile Storage Brackets – The SL600M has versatile brackets
that can mount an SSD, HDD, a water pump, or reservoir. These
brackets can be placed in multiple positions inside the case,
including being placed behind the front panel and on the bottom
radiator bracket.
Advanced I/O Panel – A proximity sensor triggers the USB
lighting for easy access in the dark. The panel will stay
temporarily lit before turning off automatically. Furthermore, the
I/O panel has a USB 3.1 (Gen 2) Type-C port, four additional USB
ports, a PWM fan speed slider, a headset jack (audio + mic), and
a dedicated microphone jack. The headset jack supports
headsets that use a single plug for microphone and headphone
signals.
EAN code 4719512075135
UPC code 884102047626
Net weight 13.4kg
Gross weight 15.5kg
Carton dimension (L x W x H) 620 x 327 x 667mm
Cont. W/ Pallet Carton/ Pallet W/O Pallet
20’ 180 18 216
40’ 378 18 456
40 HQ 420 20 532
Product Name MASTERCASE SL600M
Product Number MCM-SL600M-SGNN-S00
Available Color Silver, Black
Materials
Dimensions (L x W x H) 544 x 242 x 573mm
Motherboard Support
Expansion Slots
Drive Bays
I/O Panel
Fan Control 4 step slide, 4pin PWM x 4
Pre-installed
Fan(s)
Fan Support
Radiator Support
Clearances
Dust Filters Bottom
Power Supply Support Front Top Mount, ATX
Body Steel
Front Panel Aluminum
Top Panel Aluminum
Left Side Panel Tempered Glass
Right Side Panel Steel
Mini-ITX, Micro-ATX, ATX (E-ATX*
support up to 12" x 10.7", will limit
cable management features)
7 + 2 (Support vertical graphics card
5.25" 0
Combo 3.5" / 2.5" 4
SSD 4
Power-LED Color
HDD-LED Color
USB-Ports
Audio In / Out
Reset Switch
Top N/A
Front N/A
Rear N/A
Bottom
Top 120mm x 3 or 140mm/200mm x 2
Front N/A
Rear N/A
Bottom 120mm x 3 or 140mm/200mm x 2
Top
Front N/A
Rear N/A
Bottom
CPU Cooler 191mm
PSU 200mm
GFX 318mm
installation)
White
White
USB 3.1 Type C x 1, USB 3.0 Type A
x 2, USB 2.0 Type A x 2
1x 3.5mm Headset Jack (audio+mic)
& 1x 3.5mm Mic Jack
N/A
200mm PWM Fan x 2 (Speed:
400~800RPM / Connector: 4Pin)
120mm, 140mm, 240mm, 280mm,
360mm (maximum thickness
clearance 43mm)
120mm, 140mm, 240mm, 280mm,
360mm (maximum thickness
clearance 72mm when the GFX is
installed in the vertical position)
FEATURES
Vertical Chimney Effect Layout
Rotatable PCI Bracket Window
Advanced I/O Panel
Versatile Storage Brackets
