Page 1
Page 2
Page 3
1 950960 Condenser
2 643295 Overload
3 855199 Bend, Return (11)
4 49599 Strainer, Tube
5 484230 Tube, Outlet (Includes Illus. 4)
6 950961 Tube, Restrictor (Length 40.0")
7 997884 Blade, Fan
8 595085 Setscrew, 5/16-24 x 1/4
9 876034 Clip, Balancing
10 949498 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 643296 Gasket, Cover
13 950243 Evaporator
14 643297 Cover, Terminal
15 643298 Spring, Overload
16 996773 Anticipator, Temperature
17 475577 Clip, Anticipator
18 950323 Base
19 855930 Clamp, Restrictor Tube
20 484136 Harness, Wiring
21 950253 Dampener, Split
22 646499 Grommet (3)
23 949990 Sleeve (3)
24 858121 Locknut (3)
25 643296 Gasket, Terminal Cover
26 949996 Overload
27 949997 Spring, Overload
28 949999 Cover, Terminal
29 950005 Retainer, Terminal Cover
30 643299 Retainer, Cover
31 950814 Tube, 90~ Connect
32 947364 Tube, Flow Divider
39 485320 Compressor Assembly
40 646122 Fan, Blade Evaporator
41 852451 Clamp, Wiring
42 949975 Plate, Mounting Compressor
43 488480 Screw,8x1/2
488481 Screw (Repair)
44 643179 Spring, Mounting
46 993191 Seal, Base (R.S.)
Page 4

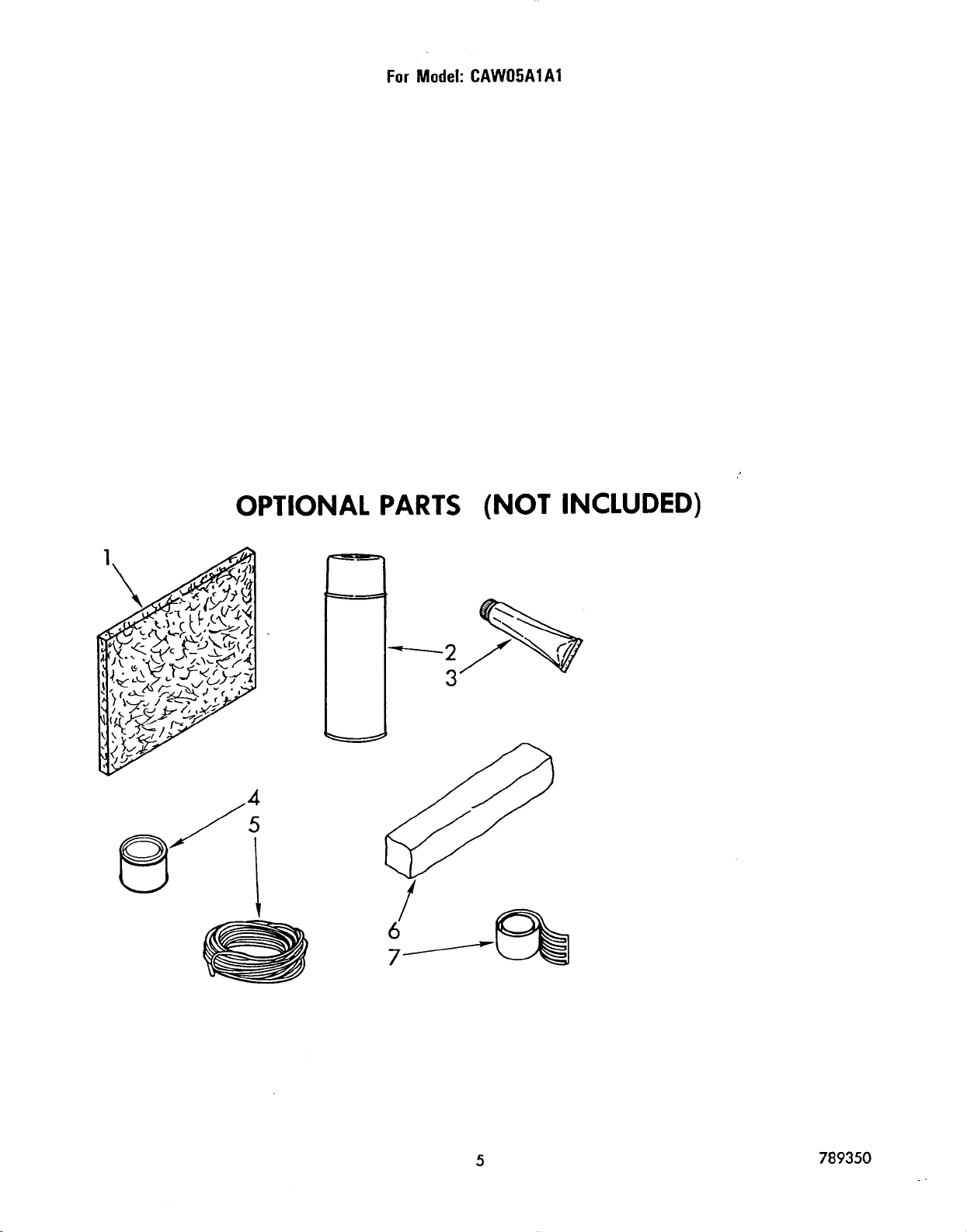

Page 5
1 484310 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl.Oz.
5 99243 Oil, Turbine 8 Fl.Oz.
6 Valve, Access
876620 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978939 3/4" Tube O.D.
7 978865 Seal, Ring Acess Valve (20 Pack)
Page 6

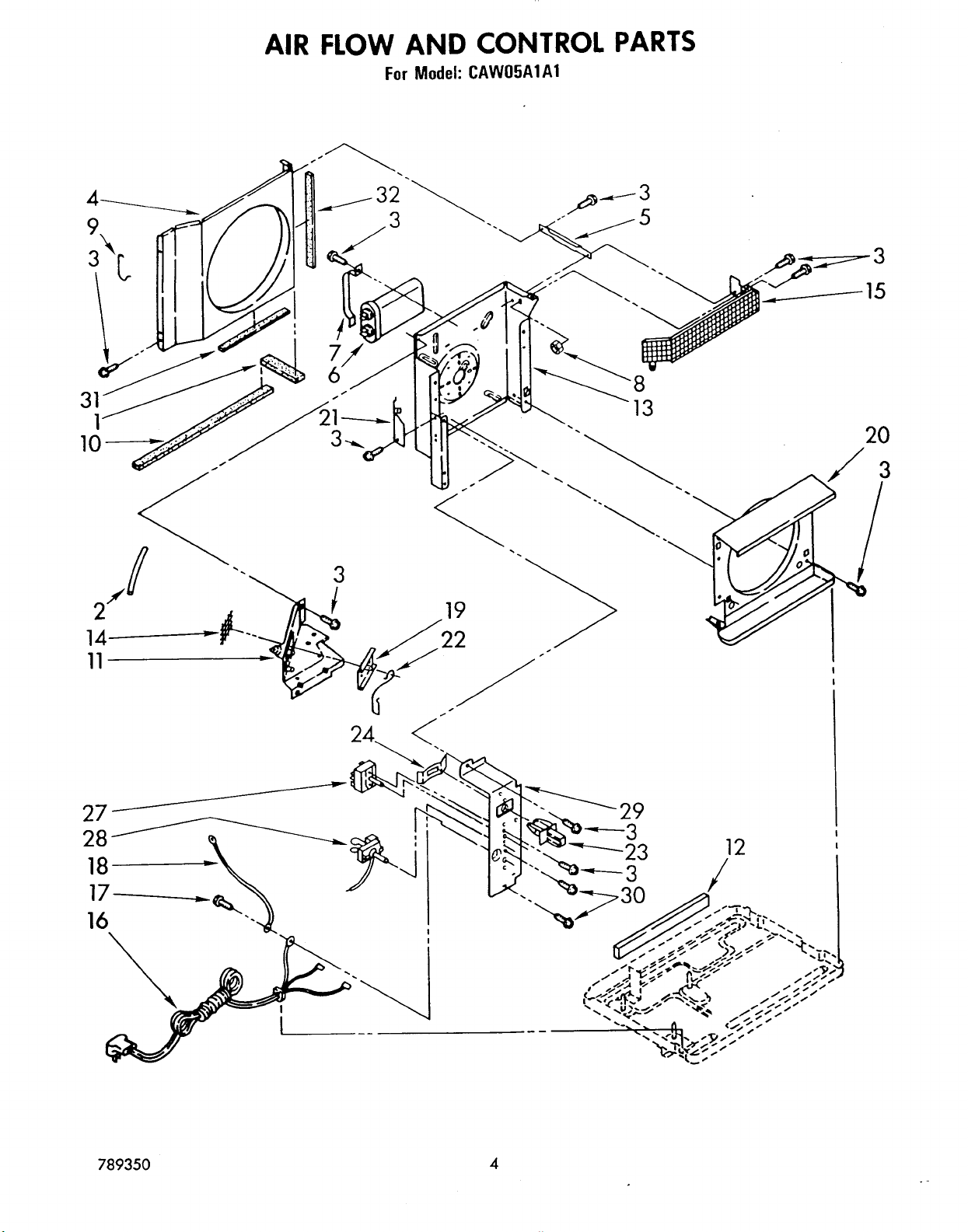

Page 7
1 646870 Seal, Condensate
2 859934 Sealer, Tube
3 488480 Screw,8x1/2
488481 Screw (Repair)
4 646297 Shroud, Condenser
5 649879 Support, Unit
6 950198 Capacitor, Running
7 856105 Bracket, Capacitor
8 486288 Nut, Speed #8A
9 477442 Clip, Shroud
10 859931 Seal, Strip
11 646130 Extension, Dividing Wall (Requires Insulation Part No. 469938)
12 854841 Seal, Strip
13 859822 Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14 856929 Screen, Door
15 996685 Guard, Evaporator Impeller
16 647216 Cord, Appliance
17 487871 Screw, ST 8-32 x 3/8
18 856094 Wire, Ground
19 646134 Door, Exhaust
20 646123 Shroud, Evaporator
21 859890 Plate, Wall
22 950255 Arm, Door
23 953066 Actuator, Door
24 853565 Spring, Retainer
27 950283 Switch, Rotary
28 950403 Control, Temperature
29 993398 Panel, Control
30 488734 Screw, 6-32 x .175
31 852063 Seal, Condensate
32 857923 Seal, Condenser (R.S.)
Page 8
Page 9
1 Insulation, Cabinet
855438 Top
854937 Rigth Side
854938 Left Side
2 813684 Adhesive, Spray 24 Oz.
3 279368 Adhesive, Tube 2 Oz.
4 485426 Paint, Touch-Up Starlite Gray 1/2 Pint (Lacquer) Wire, 25'
Roll
5 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242285 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
6 99344 Sealer, Permagum 1 Lb. Bar
7 212643 Sealer, Permagum 4-1' Strips
Page 10

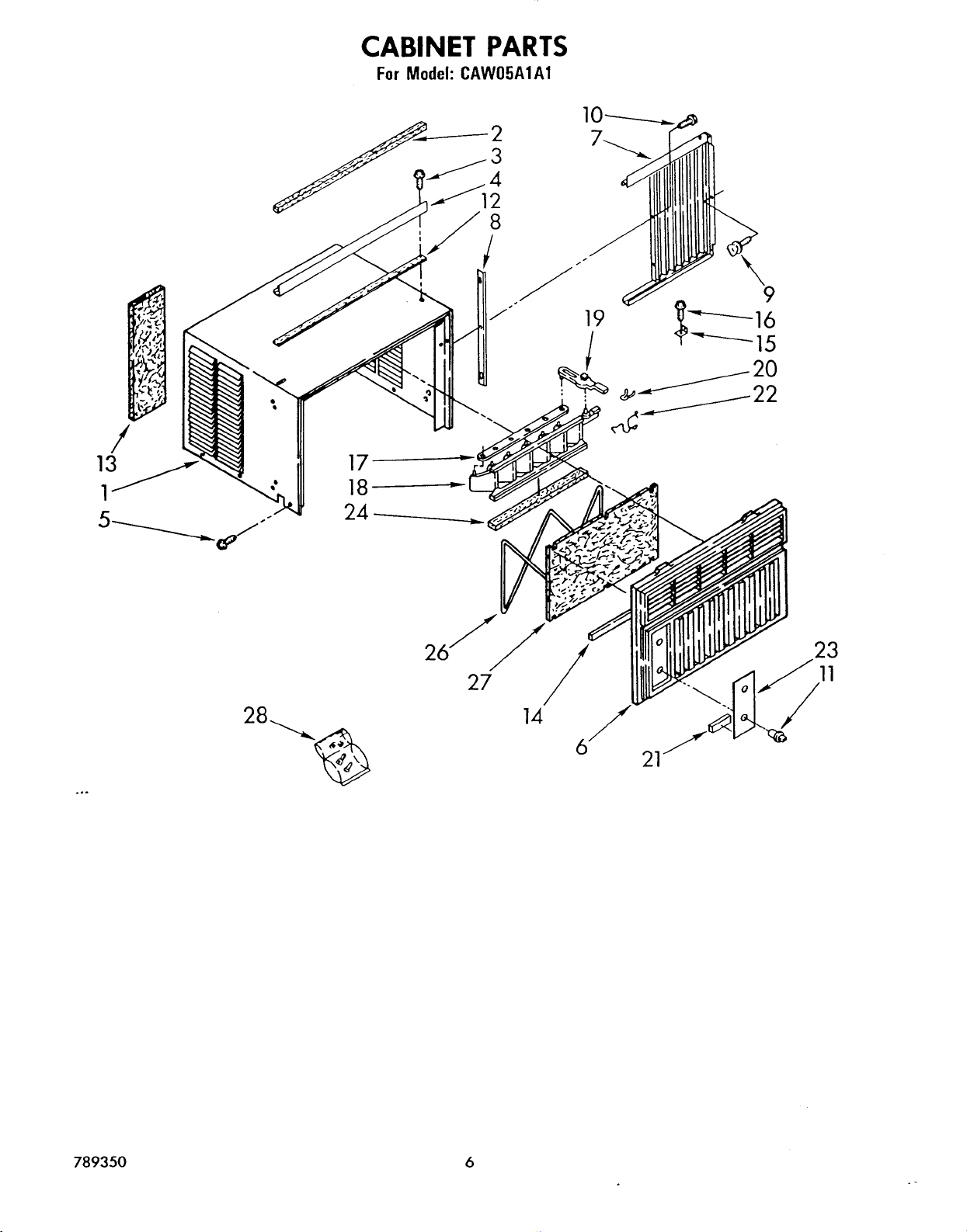

Page 11
1 857903 Cabinet
2 469877 Gasket, Meeting Rail
3 488720 Screw, 10 x 1/2 (3)
4 993849 Channel, Top
5 488875 Screw, ST 8-32 x 3/8 (6)
6 953020 Front, Cabinet Assembly
7 646158 Housing, Curtain (L.S.)
646154 Housing, Curtain (R.S.)
8 646160 Retainer, Curtain (2)
9 475581 Thumbscrew (2)
10 488730 Screw, 8 x 7/16 (6)
11 953054 Knob, Control (2)
12 856990 Seal, Strip
13 857777 Seal, Rear Cabinet Flange
14 949090 Seal, Cabinet Front
15 644228 Bracket, Window
16 488255 Screw,8x3/4
17 645684 Link, Louver (2)
18 645605 Louver, Vertical
19 645683 Handle, Louver (2)
20 641484 Spring, Detent (1)
21 646318 Spacer, Plate
22 949634 Clip, Front (2)
23 953000 Plate, Escutcheon
24 855238 Seal, Vertical Louver
26 646963 Retainer, Filter
27 852344 Filter, Air
28 476180 Bag, Accessory
Following Parts Not Illustrated
LITERATURE PARTS
LIT950515 Sheet, Service Tech
LIT953076 Guide, Use And Care
LIT953079 Guide, Energy
LIT789350 List, Repair Parts
