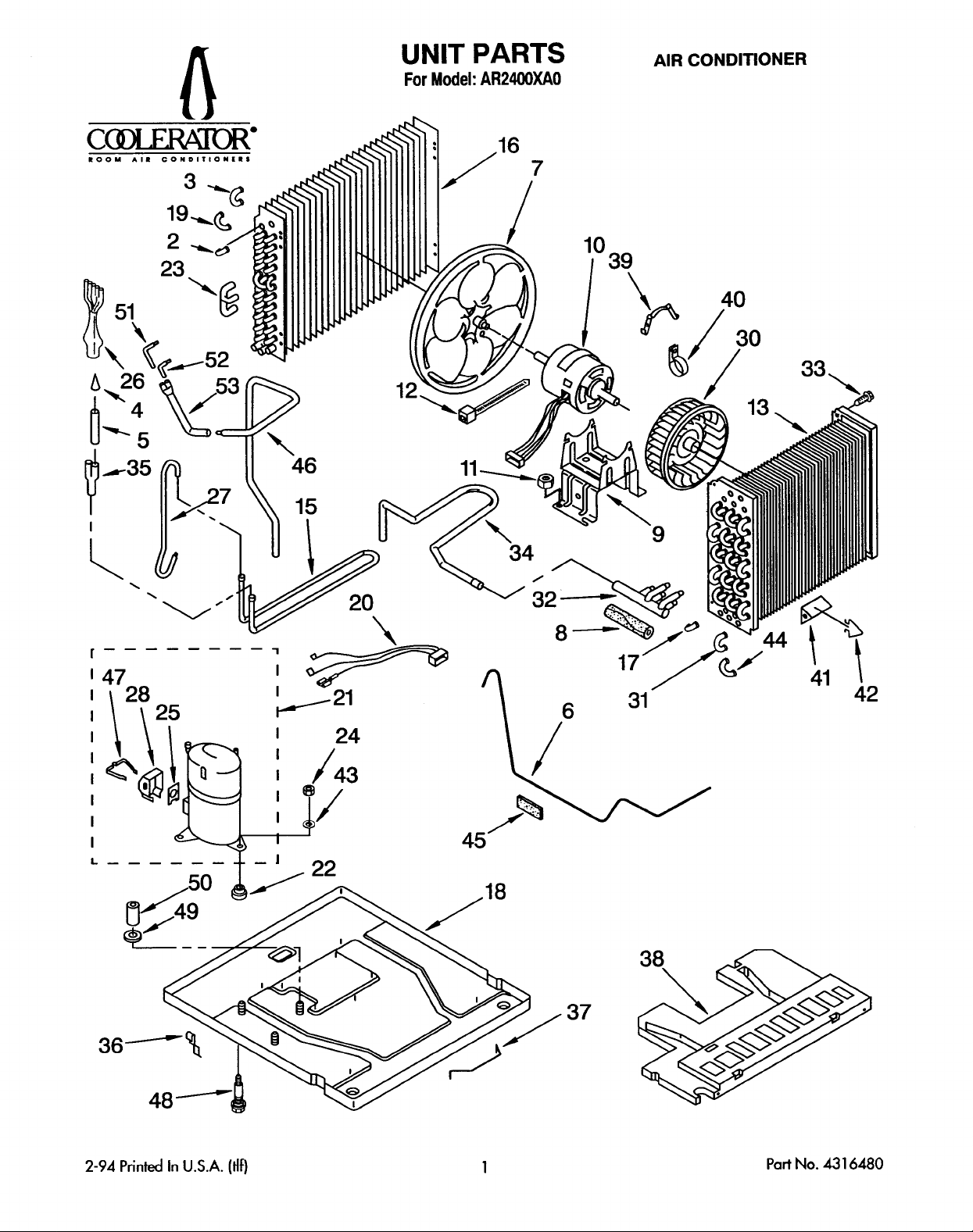

2 708532 Bend, Return Condenser (30)
3 708531 Bend, Return Condenser (2)
4 49599 Strainer, Tube
5 1163768 Tube, Outlet (Includes Illus. 4)
6 1165955 Tube, Restrictor (5)
7 1158665 Blade, Fan (Condenser)
8 1161240 Seal, Suction Tube
9 1160672 Bracket, Fan Motor
10 1164160 Motor, Fan
11 1160408 Nut
12 602851 Tie, Cable
13 1164507 Evaporator
15 1161247 Wet, Loop
16 1160100 Condenser
17 854624 Bend, Return Evaporator (10)
18 1162105 Base
19 1156329 Return Bend Condenser (1)
20 1164482 Harness, Wiring
21 1165913 Compressor
22 1162080 Grommet (3)
23 1158685 Return Bend 3-Way Condenser (1)
24 858121 Locknut (3)
25 Gasket, Terminal Cover
1161082 Production
26 1163760 Distributor
27 1161277 Tube, Wet Loop Connect
28 Cover, Terminal
1161076 Production
30 1162528 Wheel, Blower (Evaporator)
31 855199 Return Bend Evaporator (7)
32 1164563 Manifold, Suction
33 1157158 Screw #8-3/8
34 1165917 Tube, Suction
35 947364 Tube, Flow Divider
36 471088 Clamp (2)
37 647971 Handle, Base
38 1160656 Pan, Drain
39 49633 Clip, Motor (2)
40 1163775 Clamp, Wiring
41 484238 Anticipator
42 642080 Clip, Anticipator
43 1160880 Washer (3)
44 855644 Bend, Return Evaporator (10)
45 1163759 Seal, Restrictor Tube
46 1164476 Tube, Discharge
47 1161083 Retainer, Terminal Cover
48 1158668 Bolt, Compressor
49 1160654 Spacer, Grommet
50 1160655 Ext. Shoulder
51 1161217 Tube, Feeder
52 1161216 Tube, Feeder
53 1164479 Tube, Discharge Assembly (Includes 51, 52)
LITERATURE PARTS
LIT1164939 Manual, Owners
LIT1165606 Tech Sheet
LIT1161093 Wiring Diagram
Page 3
REFRIGERANT CHARGE 58.5 OZ.
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to FIlmcard 19.1.
Page 4
Page 5

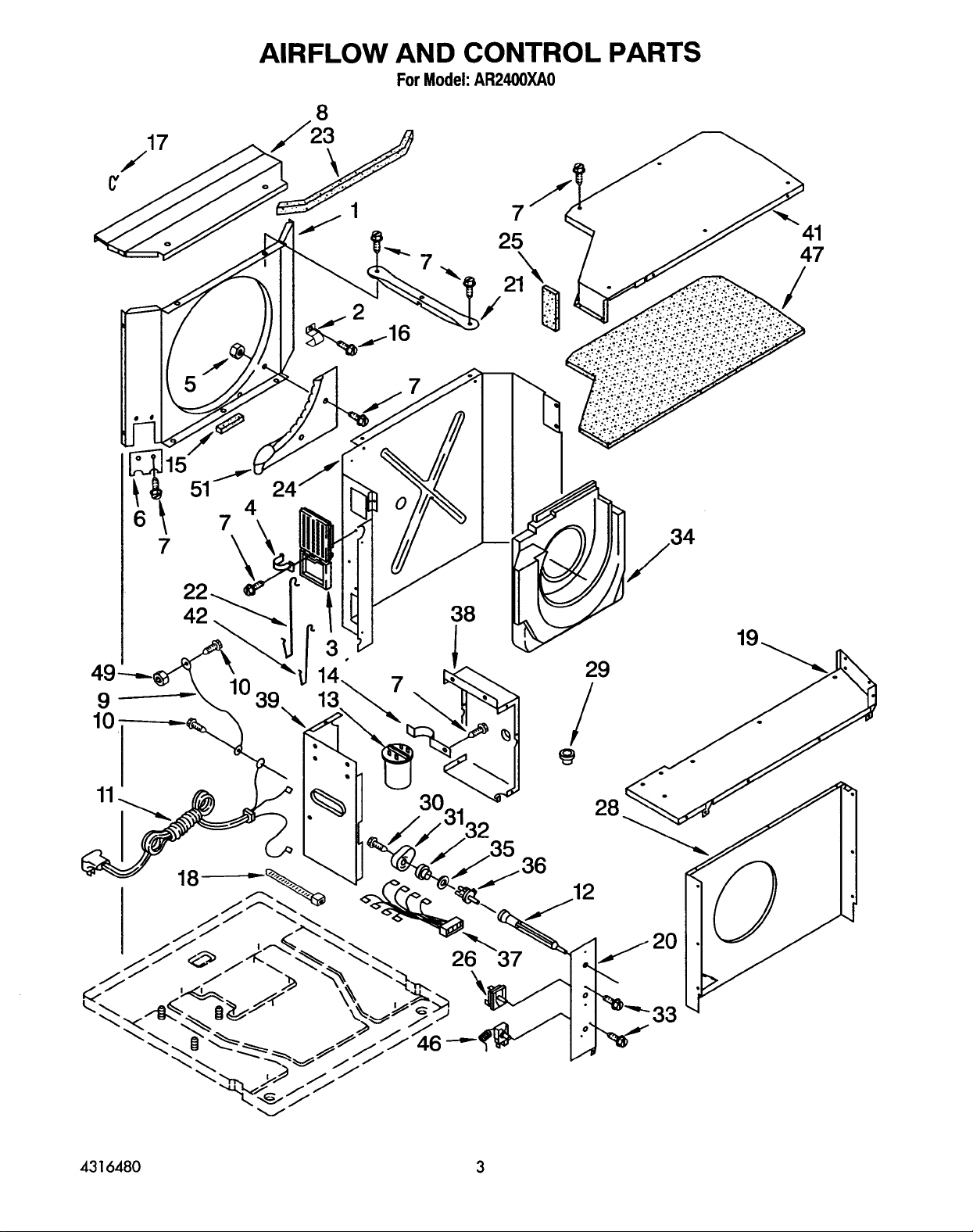

1 1161244 Shroud, Condenser
2 1161248 Clip, Wet Loop
3 1160652 Door, Air (2)
4 1160653 Spring, Door (2)
5 1160408 Nut
6 1161249 Clip, Nylon
7 1157158 Screw #8-3/8
8 1157407 Top, Condenser
9 856094 Wire, Ground
10 489092 Screw,8x3/8
11 1161279 Cord, Appliance
12 1161504 Control, Shaft
13 1165942 Capacitor
14 1160674 Bracket, Capacitor
15 1163332 Seal, Condenstate Cup
16 488624 Screw, 8-3/8 SG
17 1164511 Clip, Shroud (2)
18 1159130 Cable, Tie
19 1160709 Evap. Shroud Top
20 1165611 Panel, Control
21 1160708 Support, Unit (2)
22 1162063 Wire, Control Fresh, Air
23 1158732 Seal, Shroud
24 1164483 Dividing Wall
25 1162616 Seal, Anti-Rub
26 1157650 Switch Rotary
28 1160666 Shroud Assembly, Evaporator
29 997285 Cup, Condensate Drain
30 489092 Screw 7-18 x 5/8
31 647882 Cam, Exhaust
32 647879 Bushing, Shaft
33 488734 Screw, 6-32 x .175 (2)
34 1160657 Housing, Air
35 1161313 Washer
36 993262 Shaft, Control Exhaust
37 1165936 Harness, Wiring - Control Box
38 1161704 Control Box (R.S.)
39 1160683 Control Box (L.S.)
41 1160710 Cover, Top
42 1161333 Wire, Control Exhaust
46 1160325 Control, Temperature
47 1160671 Insul. Top Cover
49 486529 Nut, Hex 8-32
51 1160684 Cup, Condensate
Page 6
Page 7

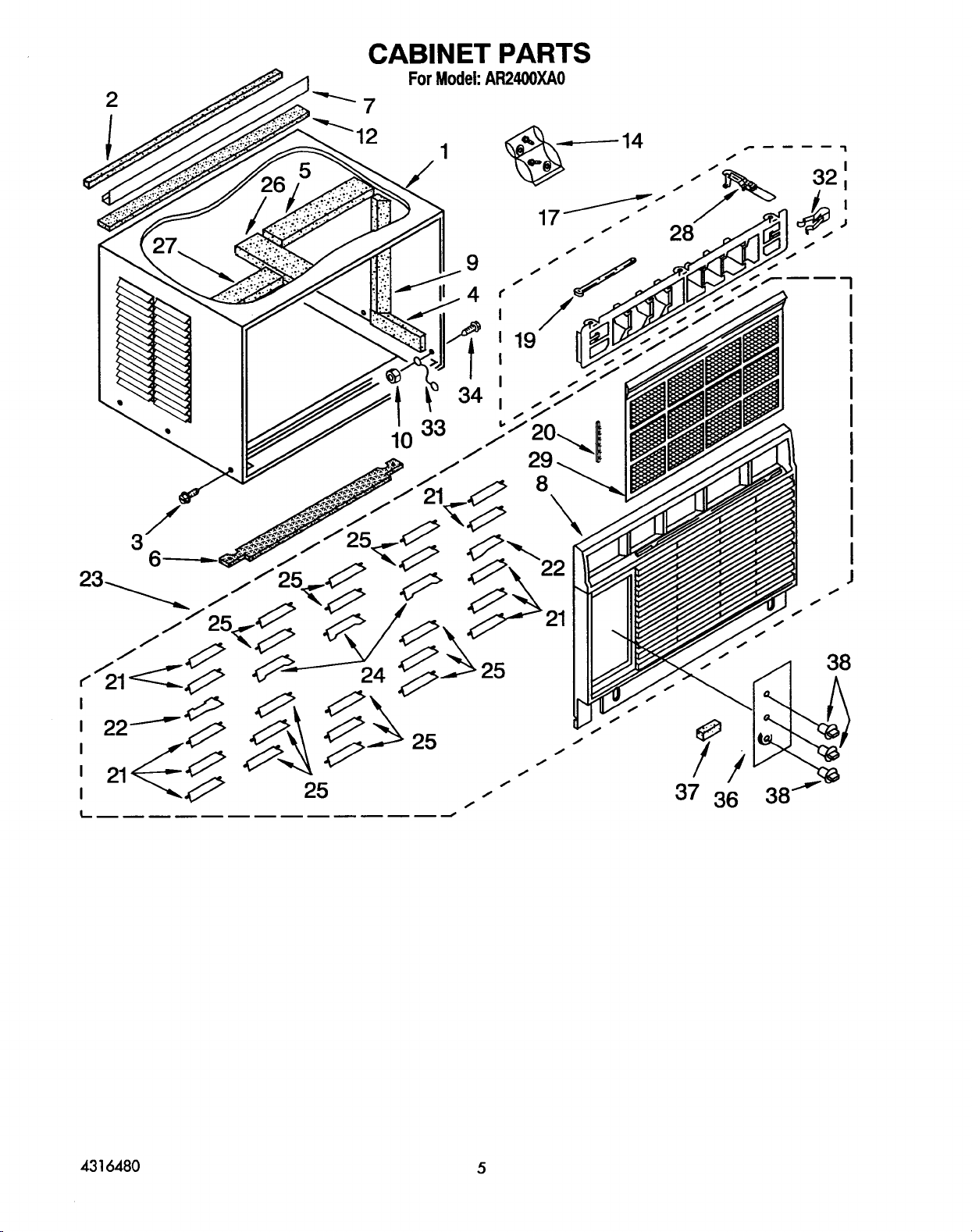

1 1161335 Cabinet (Includes Insulation)
2 469877 Gasket, Meeting Rail
3 1157158 Screw, 8 x 3/8 (3)
4 1160818 Insulation Cabinet Side (2)
5 1162100 Cab. Insulation
6 1160768 Seal
7 644271 Angle, Top Mounting
8 1165012 Cabinet Front
9 1162099 Insulation Cabinet Side (2)
10 486529 Nut, Hex 8-32
12 1163784 Seal, Top Mounting Angle
14 1158746 Bag, Accessory
17 1162079 Vertical, Louver
19 1162077 Link, Verticle Louver (2)
20 1164167 Link, Horizontal Louver (5)
21 1165014 Horzontal Louver (10)
22 1165013 Horzontal Louver W/ Handle (2)
23 1165008 Front, Complete
24 1165015 Horzontal Louver W/ Handles (3)
25 1165016 Horzontal, Louver (15)
26 1162101 Cab. Insulation
27 1162102 Cab. Insulation
28 1162078 Louver, Actuator
29 1165018 Filter
32 641484 Spring, Detent
33 857022 Wire, Ground
34 488234 Screw, 8-32 x 1/4
36 1164930 Plate, Escutcheon
37 470036 Spacer, Escuthchon
38 1165603 Knobs, (3)
Page 8
Page 9

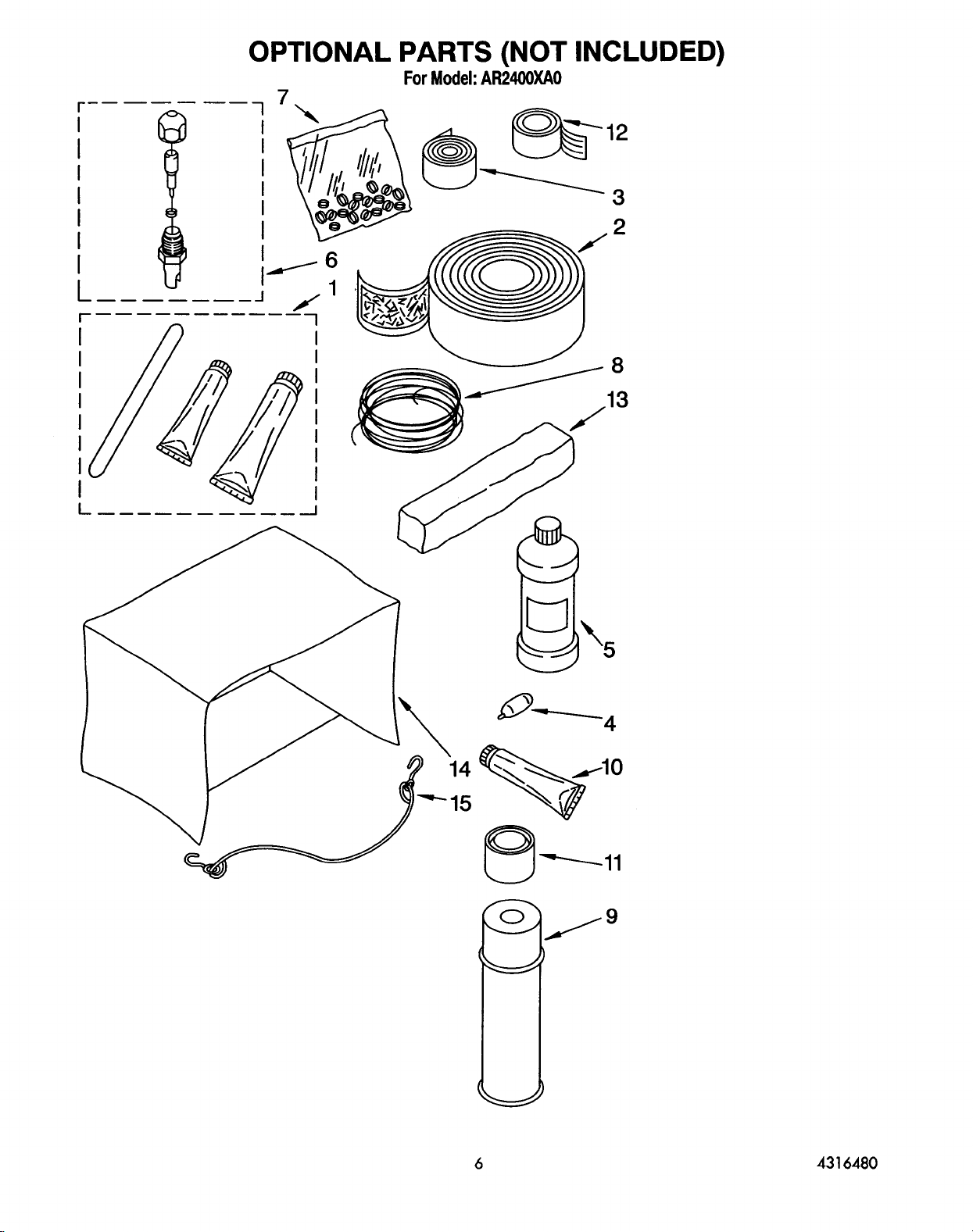

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Oz.
5 99243 Oil, Turbine 8 Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28"x19"x31"
484067 19"x12"x14"
484069 27"x19"x6 to 27"
484184 22"x15"x3 to 18"
15 813610 Retainer, Cord (Winter Cover)
Page 10
Page 11

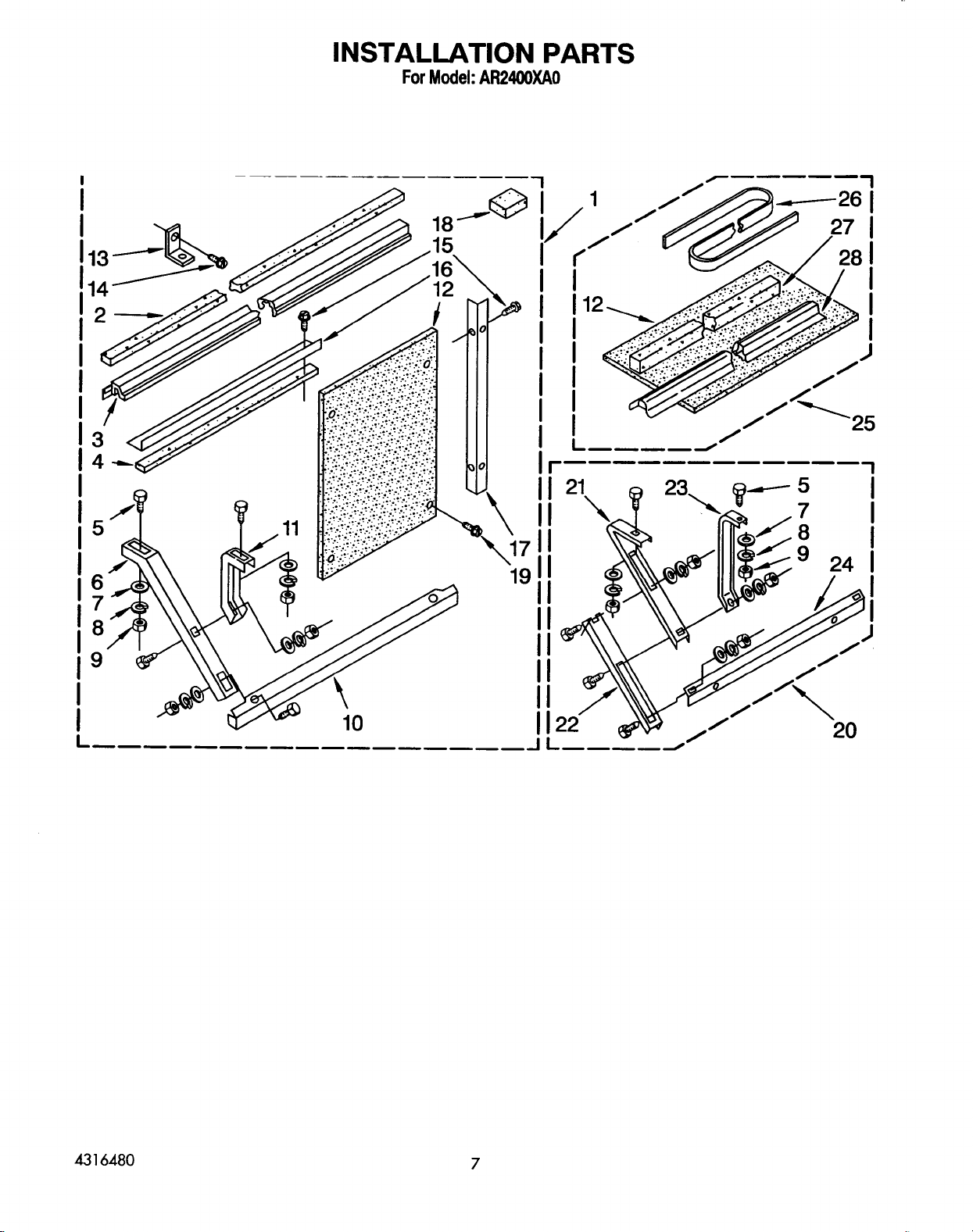

1 1163842 Kit, Standard Installation
2 469877 Seal
3 644288 Gasket, Sash
4 855265 Strip, Seal
5 488750 Bolt, 1/4 x 3/4 (6)
6 649945 Support, Cabinet (2)
7 488808 Washer (6)
8 486009 Lockwasher (6)
9 486035 Nut, Hex (6)
10 649947 Bracket, Support
11 649946 Support, Retainer (2)
12 644303 Board, Filler
13 644228 Bracket
14 487371 Screw, 10 x 3/4
15 488720 Screw, 10 x 1/2
16 644271 Angle (Top)
17 644272 Angle (2)
18 995274 Spacer, Block (4)
19 488017 Screw,8x3/8
20 485679 Kit, Outside Support
21 644283 Support, Cabinet (2)
22 644284 Extension, Support (2)
23 644285 Retainer, Cabinet (2)
24 644281 Bracket, Support
25 485856 Kit, Wide Window
26 856979 Strip, Seal
27 470800 Seal, Meeting Rail
28 485457 Gasket, Sash (54")
Following Parts Not Illustrated
LITERATURE PARTS
LIT998618 Instructions, Installation (Standard and Wide Widow Kits)
LIT485707 Instructions, Installation (Outside Support Kit)
