Page 1
Page 2
Page 3

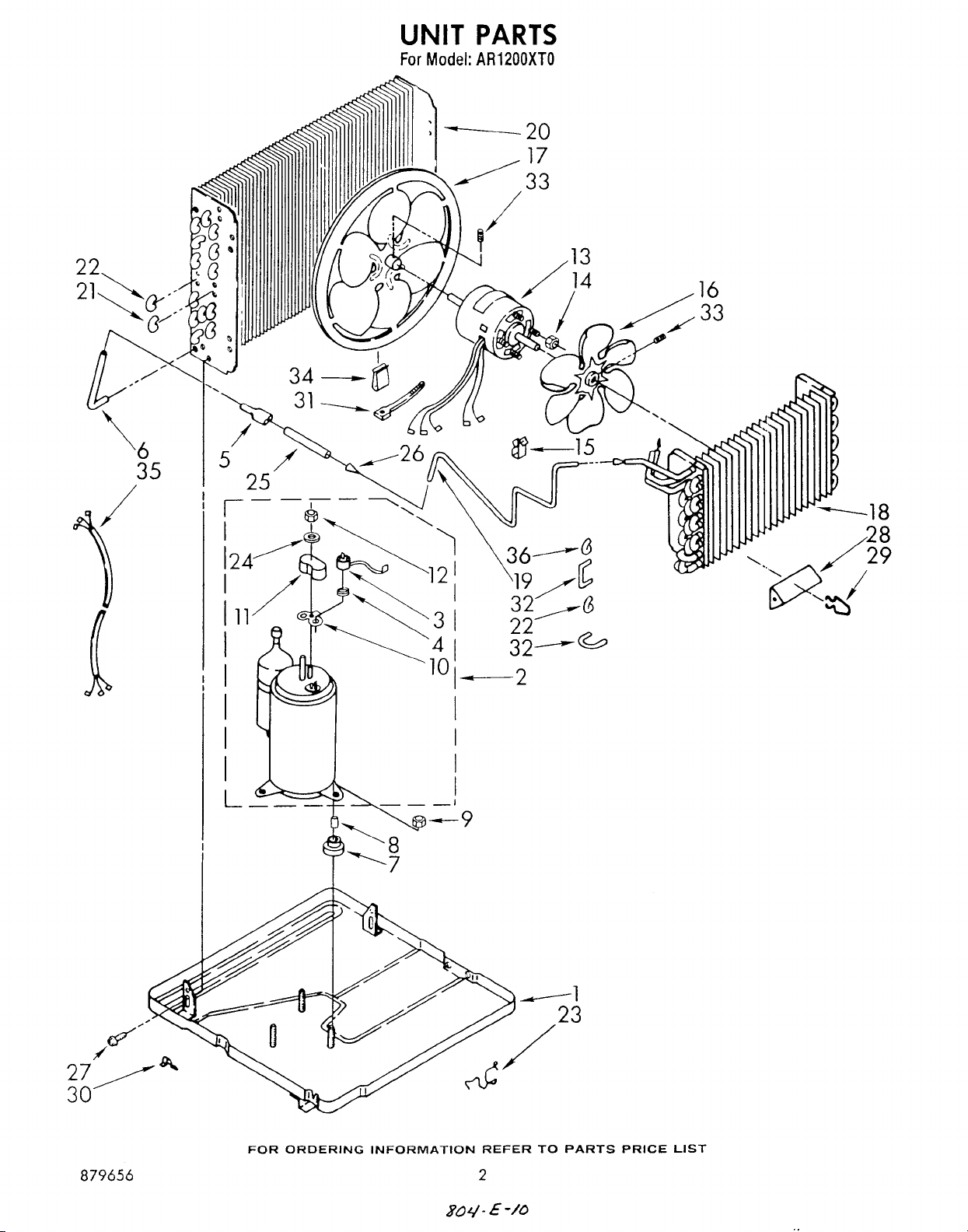

1 950019 Base
2 819117 Compressor
3 813517 Overload
4 950032 Spring, Overload
5 947364 Tube, Flow Divider
6 1155580 Tube, 90~ Connect
7 950021 Grommet, Compressor Mounting (3)
8 950020 Sleeve, Compressor Mounting (3)
9 858121 Nut, Lock (3)
10 950035 Gasket, Terminal Cover
11 950036 Cover, Terminal
12 950027 Nut, Cover
13 947852 Motor, Fan
14 488130 Nut, Hex Keps 8-32 (4)
15 852451 Clamp, Cable
16 947533 Blade, Fan (Evaporator)
17 997904 Blade, Fan (Condenser)
18 947893 Evaporator
19 1155702 Tube, Restrictor (2) (Length 38.0")
20 1155550 Condenser
21 708532 Bend, Return Condenser (4)
22 708531 Bend, Return Condenser (16)
23 949634 Clip, Mtg. (2) (Base To Front)
24 950037 Washer
25 484230 Tube, Outlet (Includes No.26)
26 49599 Strainer, Tube
27 488480 Screw, SM #8 x 1/2A (7)
488481 Screw (Repair) #10 x 3/8A
28 996773 Anticipator, Temperature
29 475577 Clip, Temperature Anticipator
30 642684 Clamp, Tube
31 612805 Tie, Cable (8)
32 951646 Tube, Riser (2)
33 595085 Screw, Set 5/16-28 X 1/4
34 876034 Clip, Fan Balancing
35 484136 Harness, Wiring
36 Order No. 18
Following Parts Not Illustrated
LITERATURE PARTS
LIT1155834 Sheet, Tech And Wiring Diagram
LIT1156762 Guide, Energy
LIT1156767 Guide, Operating
LIT1155974 Instructions, Installation
LIT879656 List, Repair Parts
Page 4
Page 5

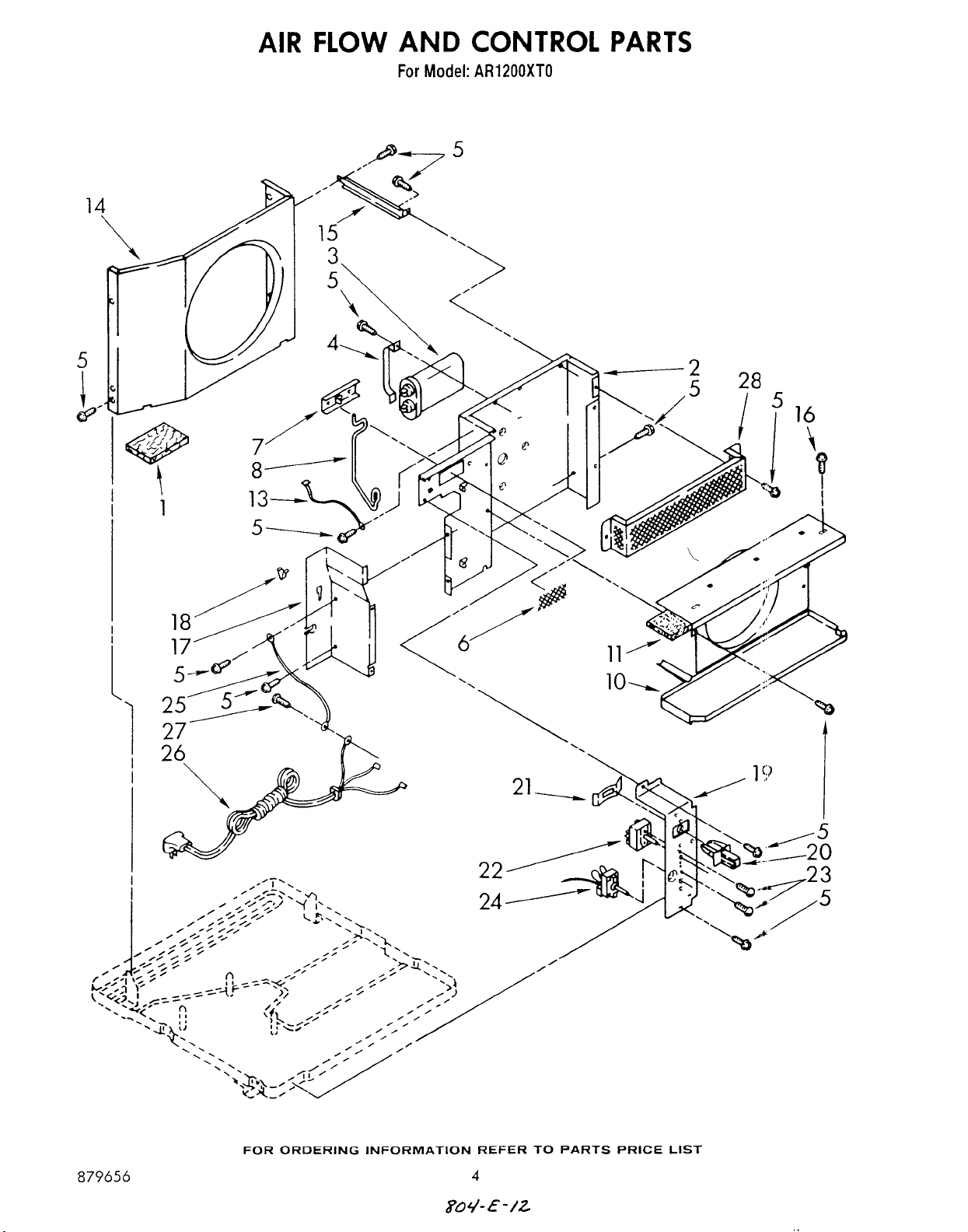

1 859600 Seal, Condenser Bottom
2 1156321 Wall, Dividing
3 952384 Capacitor, Running
4 856105 Bracket, Running Capacitor
5 488480 Screw, SM #8 x 1/2A
488481 Screw (Repair) #10 x 3/8
6 856929 Screen, Exhaust Door
7 644206 Door, Exhaust
8 856042 Arm, Exhaust Door
10 948219 Shroud, Evaporator (Includes No.11)
11 948220 Insulation, Evaporator Cover
13 998010 Wire, Capacitor Ground
14 856037 Shroud, Condenser
15 1155100 Support, Unit (2)
16 487910 Screw, Sems SM #8 x 1/2A (2)
17 994560 Extension, Dividing Wall
18 644401 Retainer, Clip
19 996966 Panel, Control
20 953066 Actuator, Exhaust Door
21 858765 Retainer, Dent Spring
22 950283 Switch, Rotary
23 488734 Screw, Machine 6-32 x .175 (4)
24 949431 Control, Temperature
25 856094 Wire, Ground
26 646306 Cable, Appliance
27 487871 Screw, ST 8-32 x 3/8
28 856912 Guard, Evaporator Impeller
Page 6
Page 7

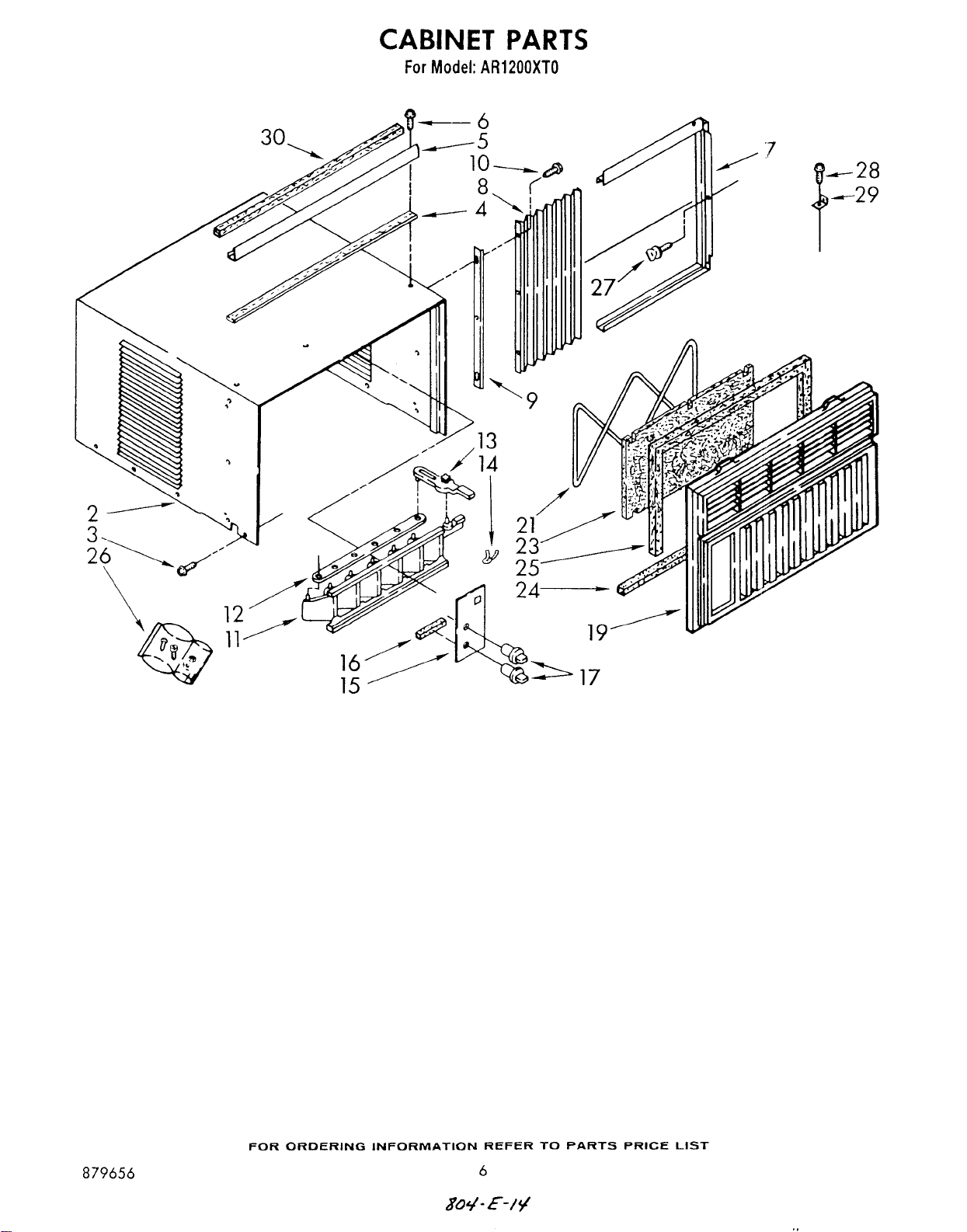

2 856686 Cabinet
3 488875 Screw, ST 8-32 x 3/8 (8)
4 856989 Seal, Strip
5 993786 Channel, Top Mounting
6 488720 Screw, SM #10 x 1/2AB (3)
7 855572 Housing, Curtain R.S.
855573 Housing, Curtain L.S.
8 947160 Curtain (2)
9 644224 Retainer, Curtain (2)
10 488730 Screw, SM #8 x 7/16A (6)
11 641481 Louver, Vertical
12 641482 Link, Vertical Louver
13 645887 Handle, Vertical Louver
14 641484 Spring, Dent
15 953001 Plate, Escutcheon
16 470036 Spacer, Escutcheon Plate (2)
17 953054 Knob, Control (2)
19 953019 Front, Cabinet
21 646963 Retainer, Filter
23 855246 Filter
24 852923 Seal, Cabinet Front
25 645883 Seal, Strip (Top & Sides)
26 476180 Bag, Accessory
27 475581 Screw, Thumb
28 488255 Screw, Round Head Wood #8 x 3/4 (1)
29 644228 Bracket, Window Lock
30 469877 Seal, Meeting Rail
Page 8
Page 9

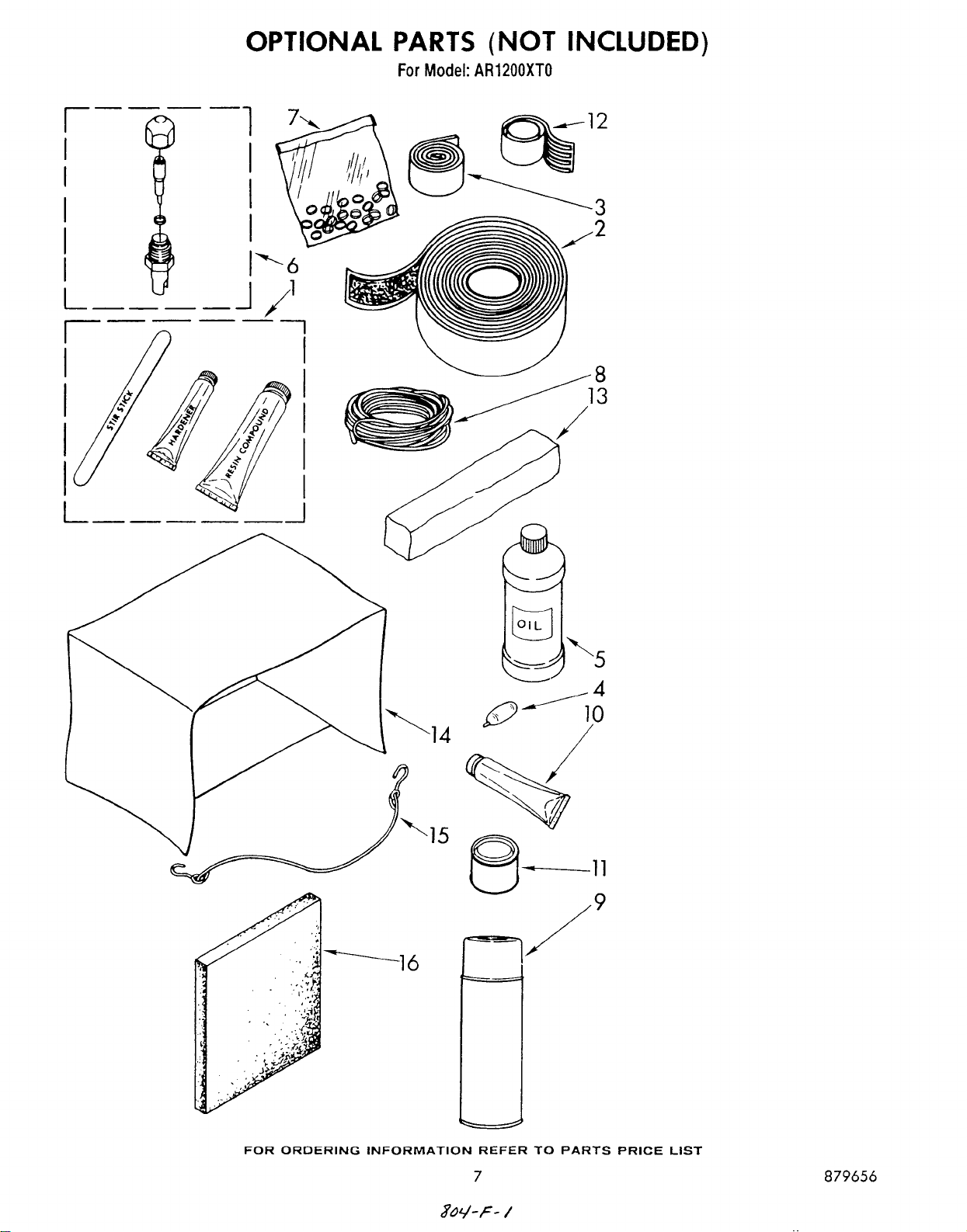

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No, Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20 Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer)
12 212432 Sealer, Permagum4-1'Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 484184 Cover, Winter
15 813610 Retainer, Cord (Winter Cover)
16 Insulation, Cabinet
855438 Top
854937 Right Side
854938 Left Side
Page 10
Page 11

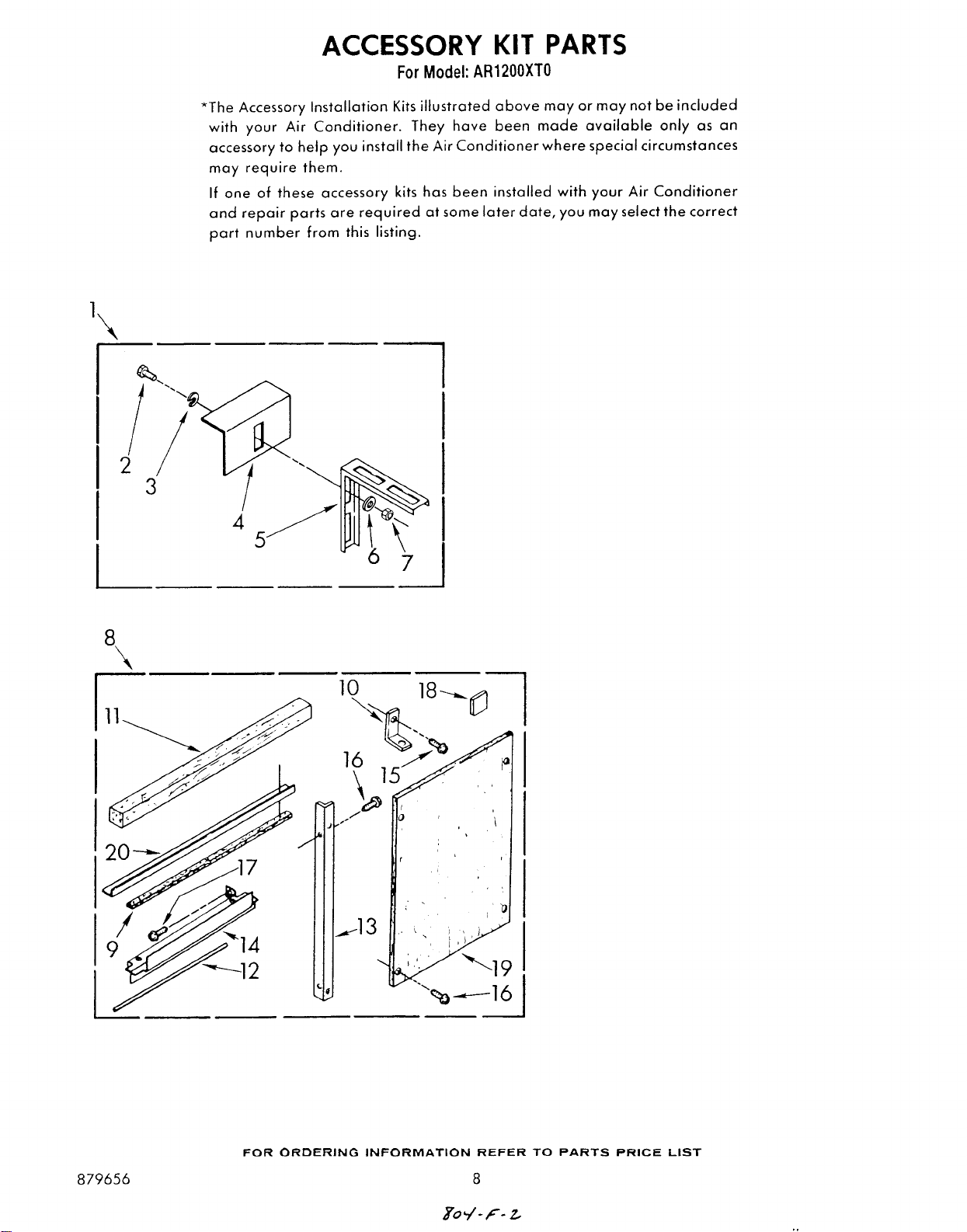

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
8 1155851 Kit, Economy Installation
9 855266 Seal, Strip
10 644228 Bracket, Window Lock
11 469877 Seal, Meeting Rail
12 212643 Sealer, Permagum
13 646233 Angle, Side Mounting (2)
14 Bracket, Top Mounting
645562 Right Side
645563 Left Side
15 488255 Screw, Wood #8 x 3/4 (6)
16 488481 Screw, S.M. #10 x 3/8 (6)
17 488017 Screw, S.M. #8 x 3/8 (6)
18 995274 Spacer, Filler Board (2)
19 646237 Board, Filler (2)
20 646232 Channel, Top
Following Parts Not Illustrated
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
LIT1155124 Instructions, Installation (Economy Mounting Kit)
