Page 1
Page 2

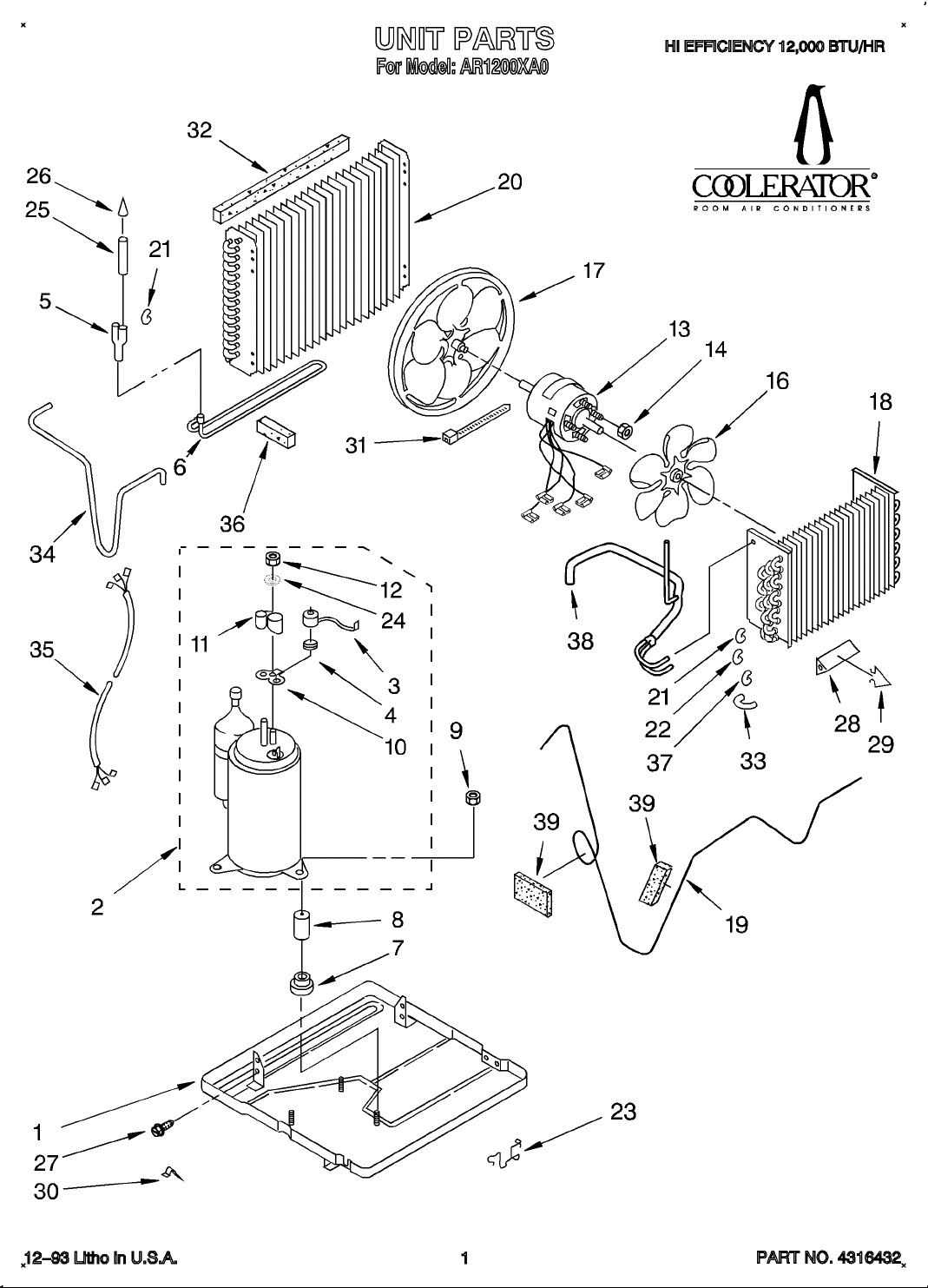

1 950019 Base
2 1163573 Compressor
3 Overload
1155700 Production
4 950032 Spring, Overload
5 947364 Tube, Flow Divider
6 1160032 Tube, Condenser Extension
7 950021 Grommet, Compressor Mounting (3)
8 950020 Sleeve, Compressor Mounting (3)
9 858121 Nut, Lock (3)
10 950035 Gasket, Terminal Cover
11 950036 Cover, Terminal
12 950027 Nut
13 947852 Motor, Fan
14 488130 Nut, Hex Keps 8-32 (4)
16 1160946 Blade, Fan (Evaporator)
17 1161594 Blade, Fan (Condenser)
18 1156743 Evaporator
19 1156455 Tube, Restrictor (2)
20 1164709 Condenser
21 708532 Bend, Return Condenser (13) Evaporator (2)
22 708531 Bend, Return Evaporator (12)
23 949634 Clip, Mtg. (2) (Base To Front)
24 950037 Washer
25 950825 Tube, Outlet
26 49599 Strainer, Tube
27 488480 Screw, SM #8 x 1/2A (7)
488481 Screw (Repair) #10 x 3/8A
28 996773 Anticipator, Temperature
29 475577 Clip, Temperature Anticipator
30 642684 Clamp, Tube
31 857547 Tie, Cable
32 948090 Seal, Condenser Top
33 1158407 Bend, Return (2)
34 1165484 Tube, Discharge
35 484136 Harness, Wiring
36 859600 Seal, Condenser Bottom
37 1156533 Bend Return (2)
38 1163983 Tube, Suction
39 1162616 Seal, Anti-Rub
Following Parts Not Illustrated
LITERATURE PARTS
LIT1165239 Sheet, Tech
LIT1165234 Wiring Diagram
LIT1156767 Guide, Operation
LIT1155974 Instruction, Installtion
REFRIGERANT CHARGE
21 OZ.
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 3
Page 4

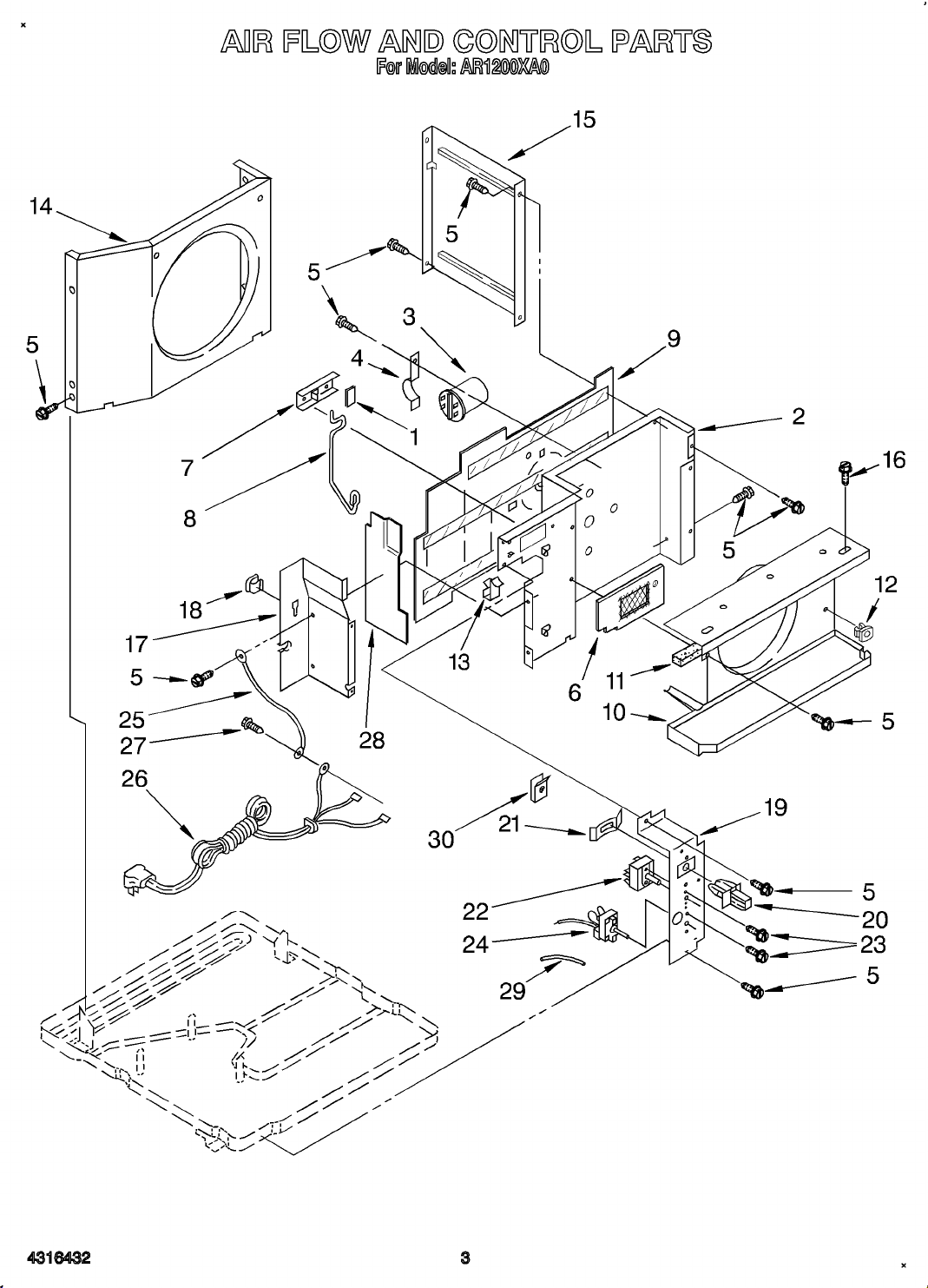

1 1159175 Spacer
2 1165182 Wall, Dividing
3 1162594 Capacitor, Running
4 1162954 Bracket, Running Capacitor
5 488480 Screw, SM #8 x 1/2A
488481 Screw (Repair) #10 x 3/8
6 1162926 Screen, Insulation Asy.
7 644206 Door, Exhaust
8 856042 Arm, Exhaust Door
9 1163432 Insulation, Dividing, Wall
10 948219 Shroud, Evaporator (Includes No.11)
11 948220 Insulation, Evaporator Cover
12 487808 Fastener, Snap
13 852451 Clamp, Cable
14 856037 Shroud, Condenser
15 1156536 Support, Unit (2)
16 487910 Screw, Sems SM #8 x 1/2A (2)
17 994560 Extension, Dividing Wall
18 644401 Clip, Retainer
19 996966 Panel, Control
20 953066 Actuator, Exhaust Door
21 858765 Retainer, Detent Spring
22 1165243 Switch, Rotary
23 488734 Screw, Machine 6-32 x .175 (4)
24 949431 Control, Temperature
25 856094 Wire, Ground
26 1165241 Cable, Appliance
27 487871 Screw, ST 8-32 x 3/8
28 1163514 Insulation, Dividing Wall Ext.
29 475841 Insulator, Sleeve Temp. Control
30 1162627 Clip, Exhaust Door Linkage
Page 5
Page 6

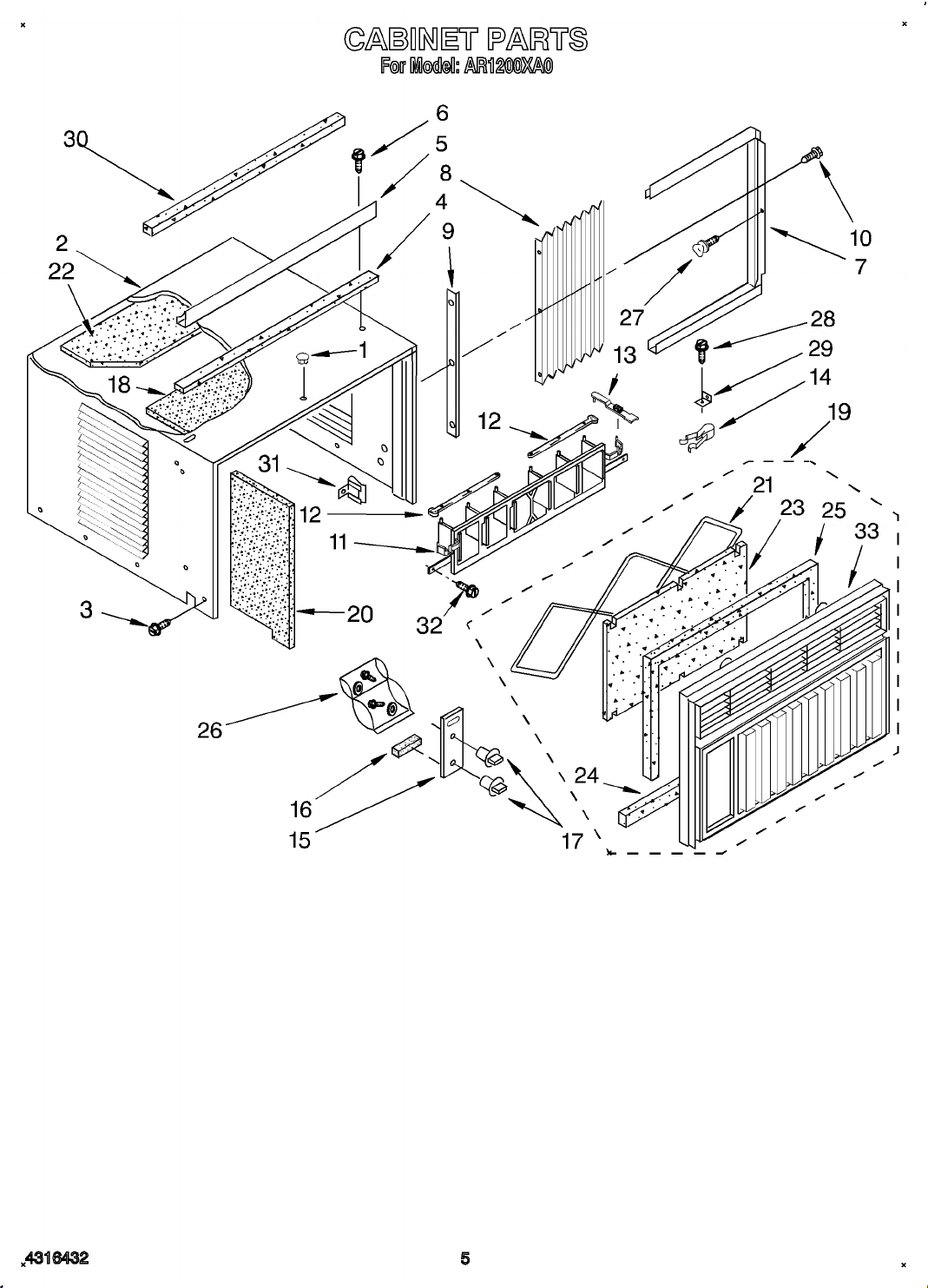

1 1157126 Plug, Hole
2 1163513 Cabinet
3 1157158 Screw, 8-3/8 SG
4 856989 Seal, Strip
5 993786 Channel, Top Mounting
6 488720 Screw, #10 x 1/2 (3)
7 1164155 Housing, Curtain R.S. (Includes #8)
1164154 Housing, Curtain L.S. (Includes #8)
8 947160 Curtain (2)
9 644224 Retainer, Curtain (2)
10 1161561 Screw, 3/8 SG
11 1159980 Louver, Vertical
12 855158 Link, Vertical Louver (2)
13 1161636 Handle, Vertical Louver (2)
14 644006 Spring, Detent (2)
15 1165451 Plate, Escutcheon
16 470036 Spacer, Escutcheon Plate (2)
17 1165603 Knob, Control (2)
18 1163429 Insul/Cabinet Top
19 1165516 Front, Complete
20 Insul/Cabinet
1163430 (Right, Side)
1163431 (Left, Side)
21 646963 Retainer, Filter
22 1158501 Insul/Cabinet
23 855246 Filter
24 852923 Seal, Cabinet Front
25 645883 Seal, Strip (Top & Sides)
26 476180 Bag, Accessory
27 475581 Screw, Thumb
28 488255 Screw, Wood #8 x 3/4 (1)
29 644228 Bracket, Window Lock
30 469877 Seal, Meeting Rail
31 1158294 Clip, Louver (2)
32 1159222 Screw
33 1165517 Front
Page 7
Page 8

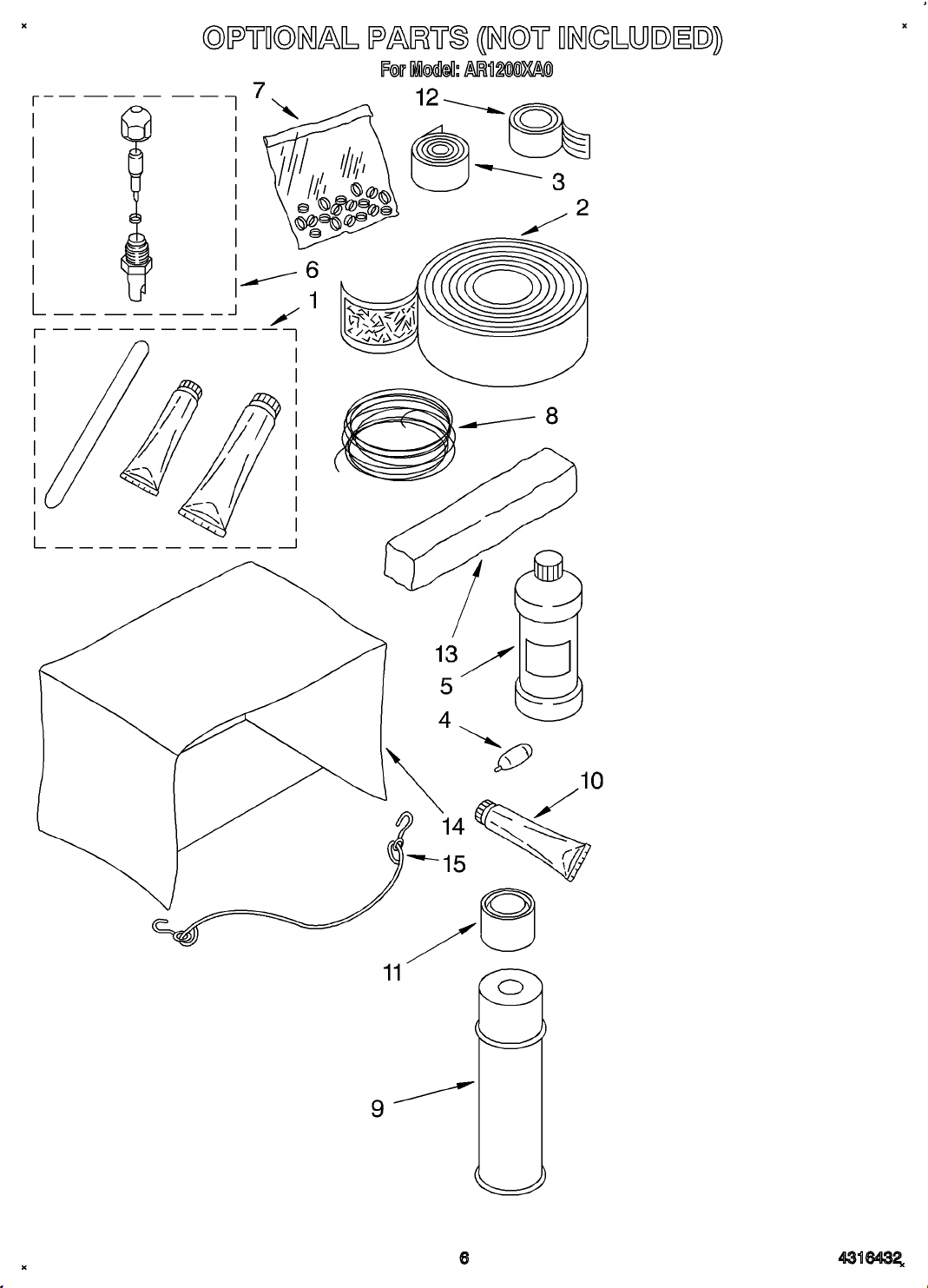

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No, Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20 Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer)
12 212432 Sealer, Permagum 4 - 1' Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 484184 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19 x 6 to 27"
484184 22 x 15 x 3 to 18"
15 813610 Retainer, Cord (Winter Cover)
