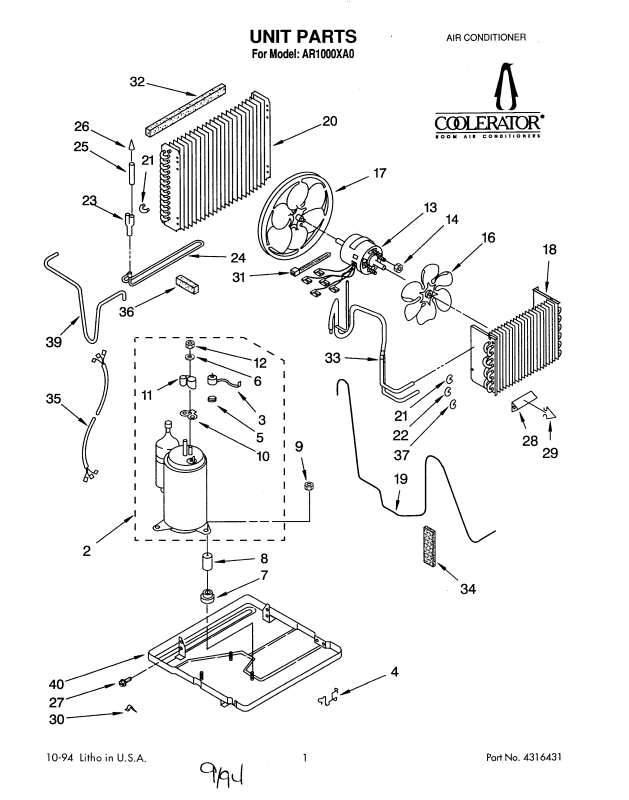

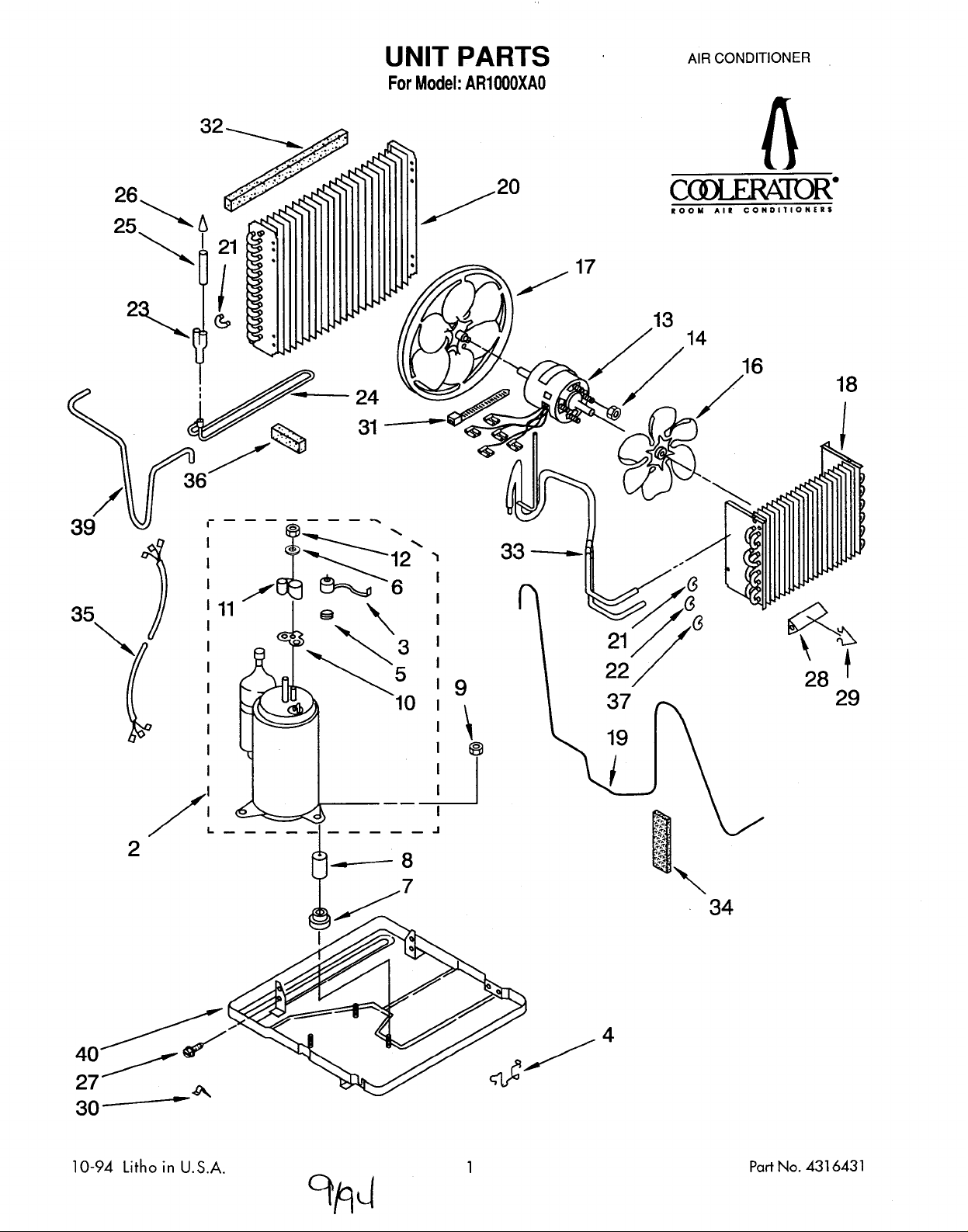

2 1163572 Compressor
3 951865 Overload
4 949634 Clip, Cabinet Front Mtg (2)
5 950032 Spring, Overload
6 950037 Gasket, Nut
7 950021 Grommet, Compressor Mounting (3)
8 950020 Sleeve, Compressor Mounting (3)
9 858121 Nut, Lock (3)
10 950035 Gasket, Terminal Cover
11 950036 Cover, Terminal
12 950027 Nut, Hex
13 1164696 Motor, Fan
14 488130 Nut, Hex Keps 8-32 (4)
16 1161594 Blade, Fan (Evaporator)
17 1160946 Blade, Fan (Condenser)
18 1164692 Evaporator
19 1164700 Tube, Restrictor
20 1160065 Condenser
21 708531 Bend, Return Evaporator (6) Condenser (13)
22 708532 Bend, Return Evaporator (1)
23 947364 Tube, Flow Divider
24 1160032 Tube, Extension
25 951437 Tube, Outlet (Includes No. 26)
26 49599 Strainer, Tube
27 488480 Screw, SM #8 x 1/2A (7)
28 996773 Anticipator, Temperature
29 475577 Clip, Temperature Anticipator
30 642684 Clamp, Tube
31 857547 Tie, Cable
32 948090 Seal, Condenser Top
33 1164706 Tube, Suction
34 1162616 Seal, Anti-Rub
35 484136 Harness, Wiring
36 859600 Seal, Condenser Bottom
37 1158407 Bend, Return (1)
39 1161574 Tube, Discharge
40 950019 Base
LITERATURE PARTS
LIT1155974 Installation Instructions
LIT1165237 Tech Sheet
LIT1165234 Wiring Diagram
LIT1156767 Operation Guide
REFRIGERANT CHARGE 19.25 OZ.
Production Compressor Requires Production Electrical Components. Service
Compressor Requires Service Electrical Components. For Further Information,
Refer to Filmcard 19.1.
Page 3
Page 4

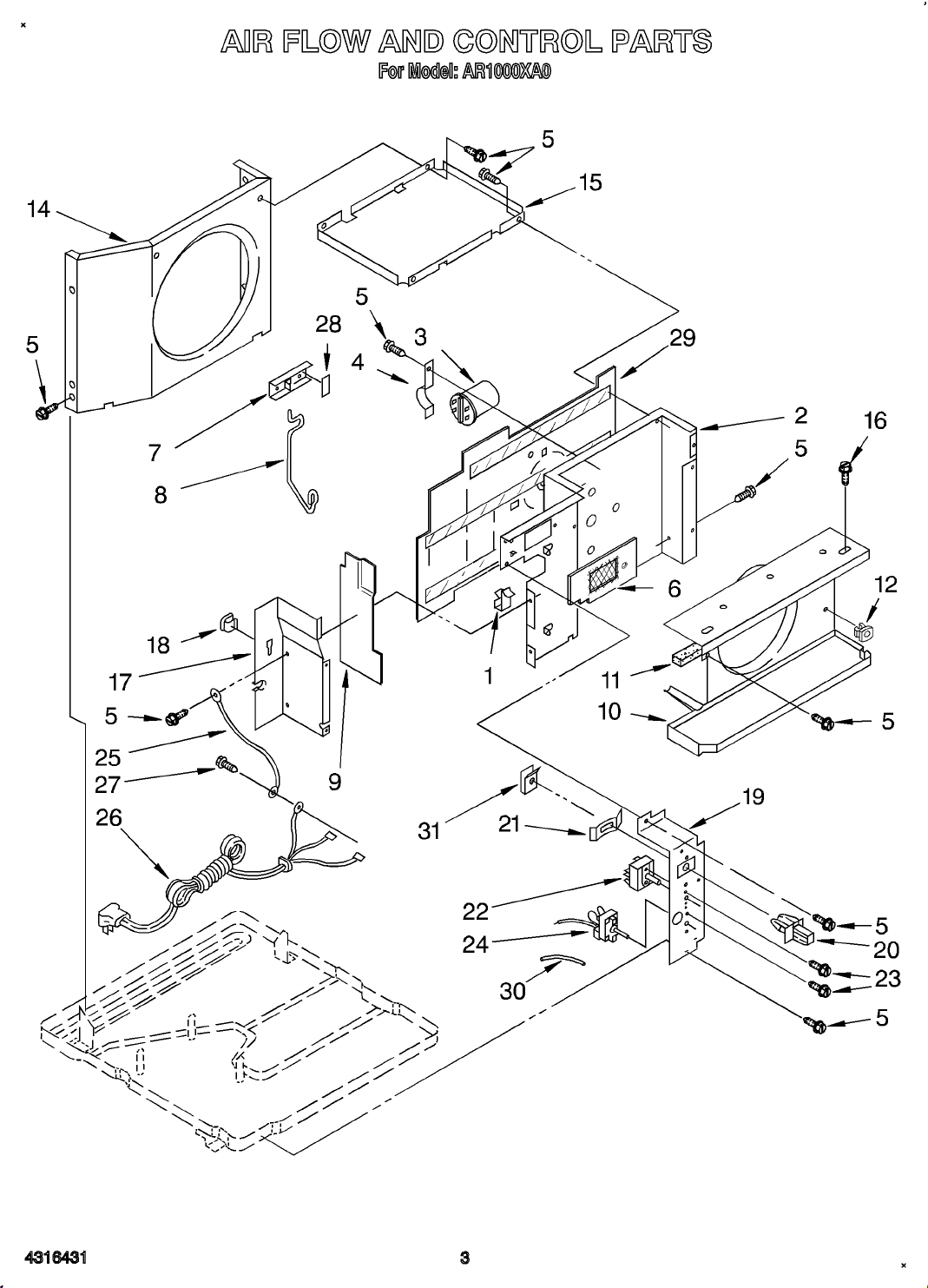

1 852451 Clamp, Cable
2 1165182 Wall, Dividing
3 1162594 Capacitor, Running
4 1162954 Bracket, Running Capacitor
5 488480 Screw, S.M.#8 x 1/2
6 1162926 Screen/Insulation Asy.
7 644206 Door, Exhaust
8 856042 Arm, Exhaust Door
9 1163514 Insulation, Dividing Wall Ext.
10 948219 Shroud, Evaporator (Includes No.11)
11 948220 Insulation, Evaporator Cover
12 487808 Fastener, Snap
14 856037 Shroud, Condenser
15 1156536 Support, Unit (2)
16 487910 Screw, S.M.#8 x 1/2 (2)
17 994561 Extension, Dividing Wall
18 644401 Retainer, Clip
19 996966 Panel, Control
20 953066 Actuator, Door
21 858765 Spring, Detent
22 1165243 Switch, Rotary
23 488734 Screw, Machine 6-32 x .175 (4)
24 949431 Control, Temperature
25 856094 Wire, Ground
26 1165241 Cable, Appliance
27 487871 Screw, ST 8-32 x 3/8
28 1159175 Spacer
29 1163432 Insulation, Dividing Wall
30 475841 Insulator, Sleeve
31 1162627 Clip, Exhaust Door Linkage
Page 5
Page 6

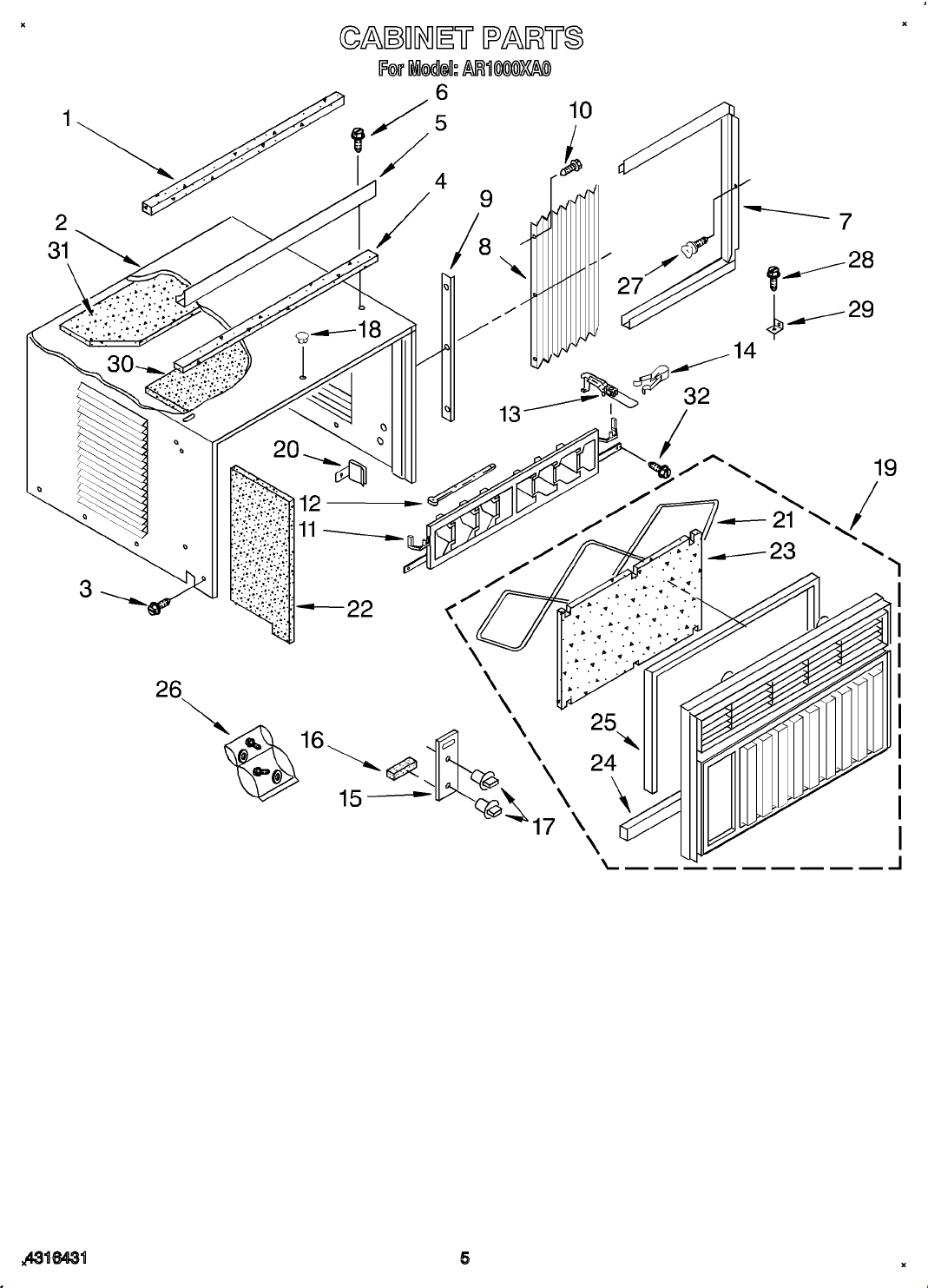

1 469877 Seal, Meeting Rail
2 1163513 Cabinet
3 1157158 Screw, ST #8 x 3/8 (8)
4 856989 Seal, Strip
5 993786 Channel, Top Mounting
6 488720 Screw, SM #10 x 1/2AB (3)
7 1164155 Housing, Curtain R.S.(Includes #8)
1164154 Housing, Curtain L.S. (Includes #8)
8 947160 Curtain (2)
9 644224 Retainer, Curtain (2)
10 1161561 Screw, 3/8 SG
11 1159980 Louver, Vertical
12 855158 Link, Vertical Louver (2)
13 1161636 Handle, Vertical Louver (2)
14 644006 Spring, Detent (2)
15 1165451 Plate, Escutcheon
16 470036 Spacer, Escutcheon Plate (2)
17 1165774 Knob, Control (2)
18 1157126 Cover, Hole
19 1165516 Front, Cabinet
20 1158294 Clip, Vertical Louver (2)
21 646963 Retainer, Filter
22 Insulation,
1163430 (Right Side)
1163431 (Left Side)
23 855246 Filter, Air
24 852923 Seal, Cabinet Front
25 645883 Seal, Strip (Top & Sides)
26 476180 Bag, Accessory
27 475581 Screw, Thumb (2)
28 488255 Screw, Round Head Wood #8 x 3/4 (1)
29 644228 Bracket, Window Lock
30 1163429 Insul. Cabinet Top
31 1158501 Insul. Cabinet
32 1159222 Screw
Page 7
Page 8

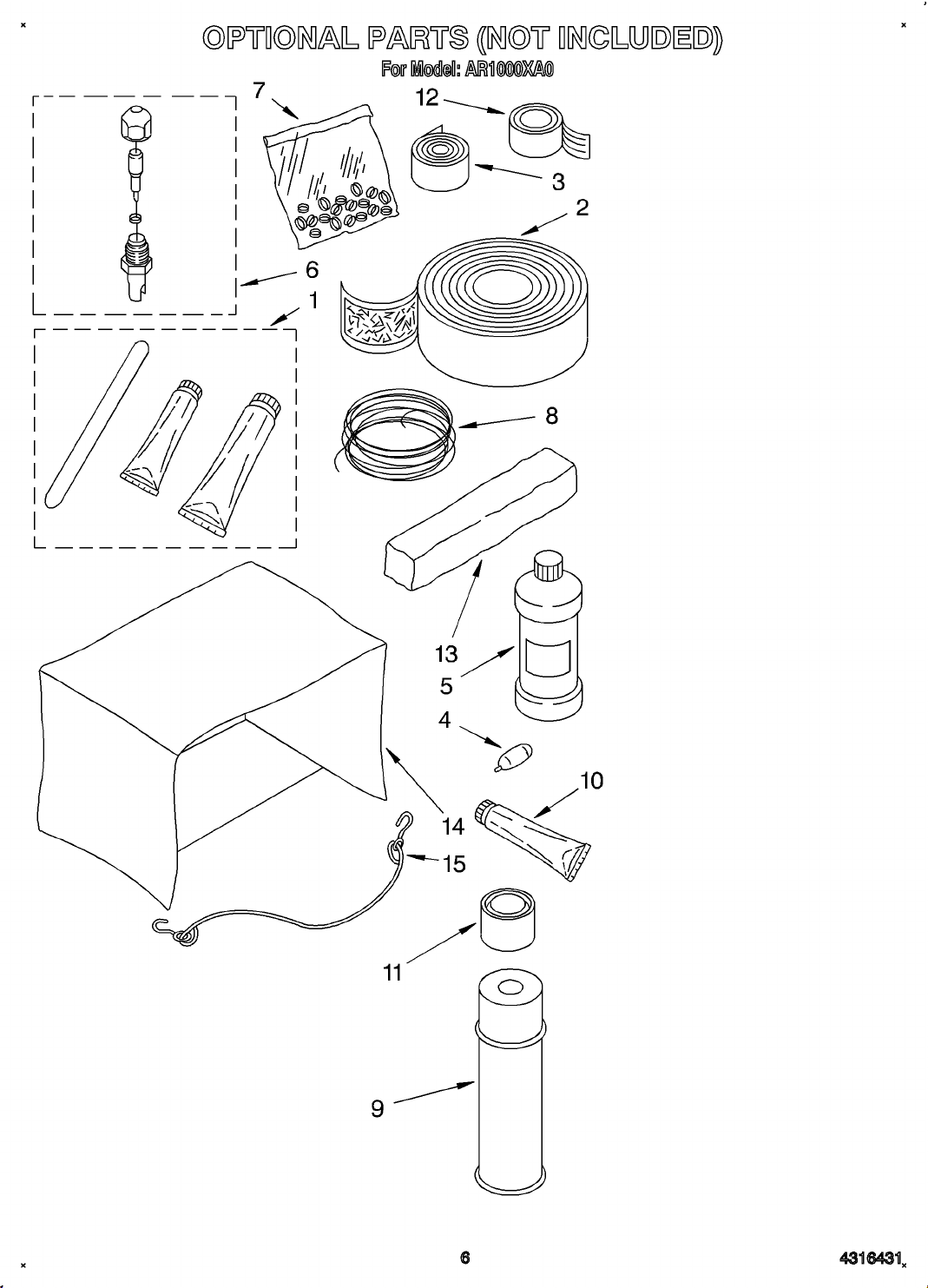

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25'Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesvive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19 x 6 to 27"
484184 22 x 15 x 3 to 18"
15 813610 Retainer, Cord (Winter Cover)
