Page 1
Page 2
Page 3

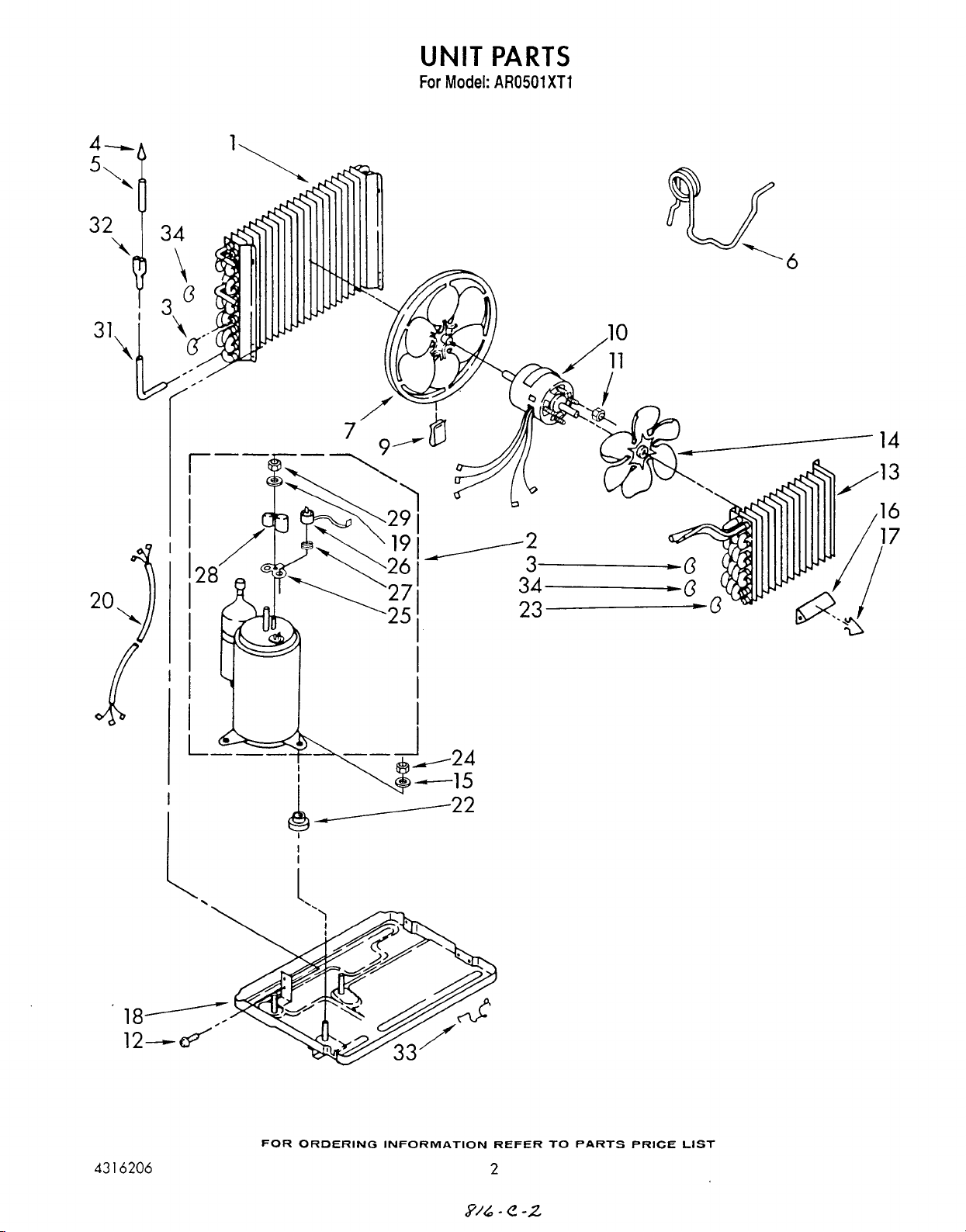

1 1155940 Condenser
2 4210324 Compressor
3 708532 Bend, Return Condenser (4) Evaporator (7)
4 49599 Strainer
5 484230 Tube & Strainer (Includes Illus. 4)
6 1157813 Tube, Restrictor
7 1155859 Blade, Fan
9 485334 Clip, Balancing
10 1156828 Motor, Fan
11 488130 Nut, Hex 8-32 (4)
12 488480 Screw,8x1/2
13 1157726 Evaporator
14 1156923 Blade, Fan
15 489108 Washer (3)
16 996773 Anticipator, Temperature
17 475577 Clip, Anticipator
18 950013 Base
19 950037 Washer
20 484136 Harness, Wiring
22 950212 Grommet (3)
23 1156533 Bend, Return
24 858122 Locknut (3)
25 950035 Gasket, Terminal Cover
26 1156601 Overload
27 950032 Spring, Overload
28 950213 Cover, Terminal
29 950027 Nut
31 1155519 Tube, 90~ Connect
32 947364 Tube, Flow Divider
33 949634 Clip, Front Mtg. (2)
34 708531 Bend, Return Condenser (13) Evaporator(3)
Following Parts Not Illustrated
LITERATURE PARTS
Literature Parts
LIT1157886 Sheet, Tech And Wiring Diagram
LIT1155974 Instructions, Installation
LIT1156767 Guide, Operation
LIT1156881 Guide, Energy
LIT4216206 List, Repair Parts
Page 4
Page 5

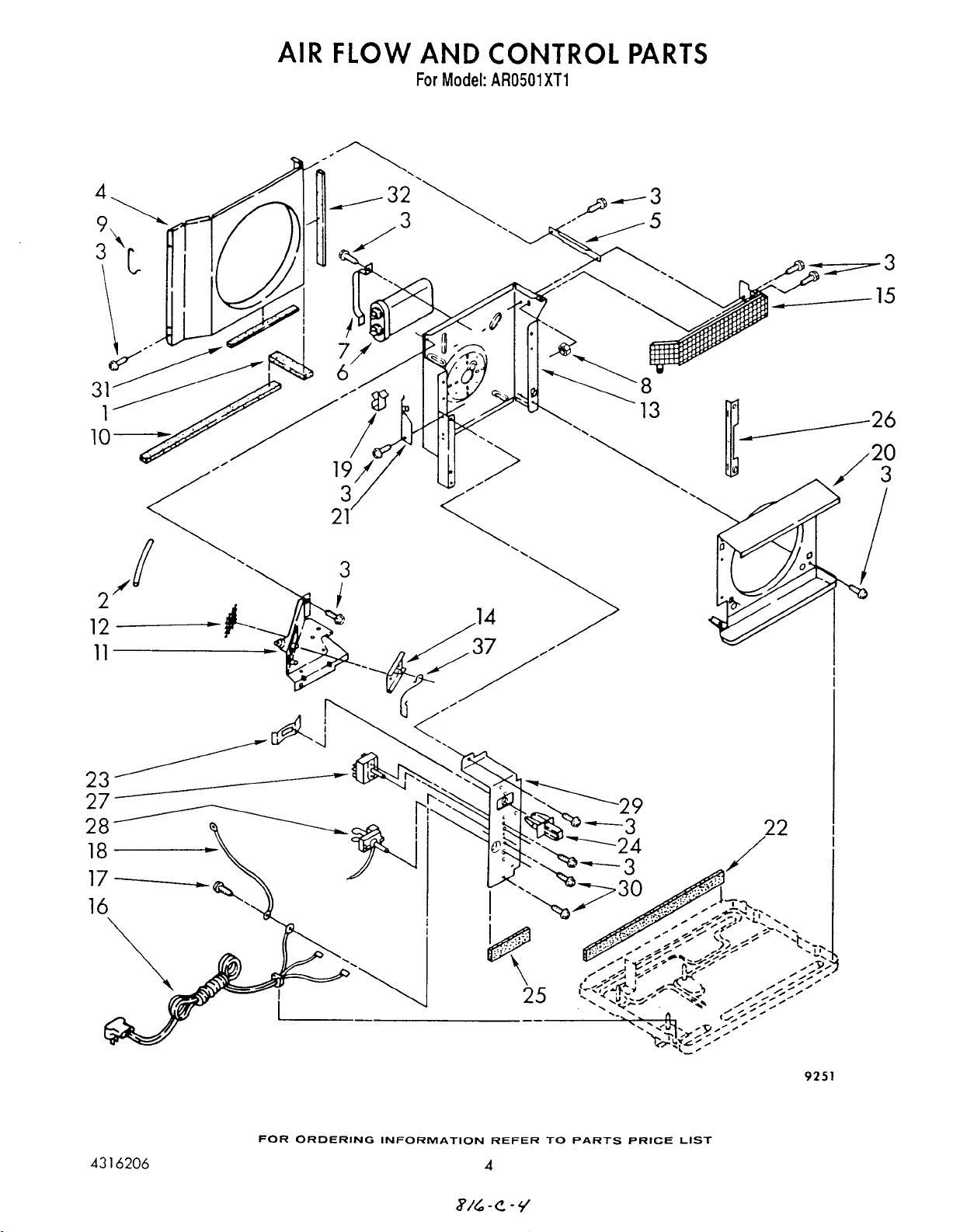

1 646870 Seal, Condensate
2 859934 Sealer, Tube
3 488480 Screw,8x1/2
488481 Screw (Repair)
4 646297 Shroud, Condenser
5 649879 Support, Unit
6 952739 Capacitor, Running
7 856105 Bracket, Capacitor
8 486288 Nut, Speed #8A
9 994686 Clip, Shroud
10 852063 Seal, Strip
11 646130 Extension, Dividing Wall
12 856929 Screen, Exhaust Door
13 859822 Wall, Dividing
14 646134 Door, Exhaust
15 996685 Guard, Evaporator Impeller
16 647216 Cord, Appliance
17 487871 Screw, 8-32 x 3/8
18 856094 Wire, Ground
19 852451 Clamp, Cable
20 996748 Shroud, Evaporator
21 859890 Plate, Dividing Wall
22 854841 Seal, Base, Flange
23 858765 Retainer, Detent Spring
24 953066 Actuator, Exhaust Door
25 857774 Seal, Control Panel
26 855502 Bracket, Mtg.
27 950283 Switch, Rotary
28 949411 Control, Temperature
29 993398 Panel, Control
30 488734 Screw, 6-32 x .175
31 859931 Seal, Condenser
32 857923 Seal, Condenser (R.S.)
37 950255 Arm, Exhaust Door
Page 6
Page 7

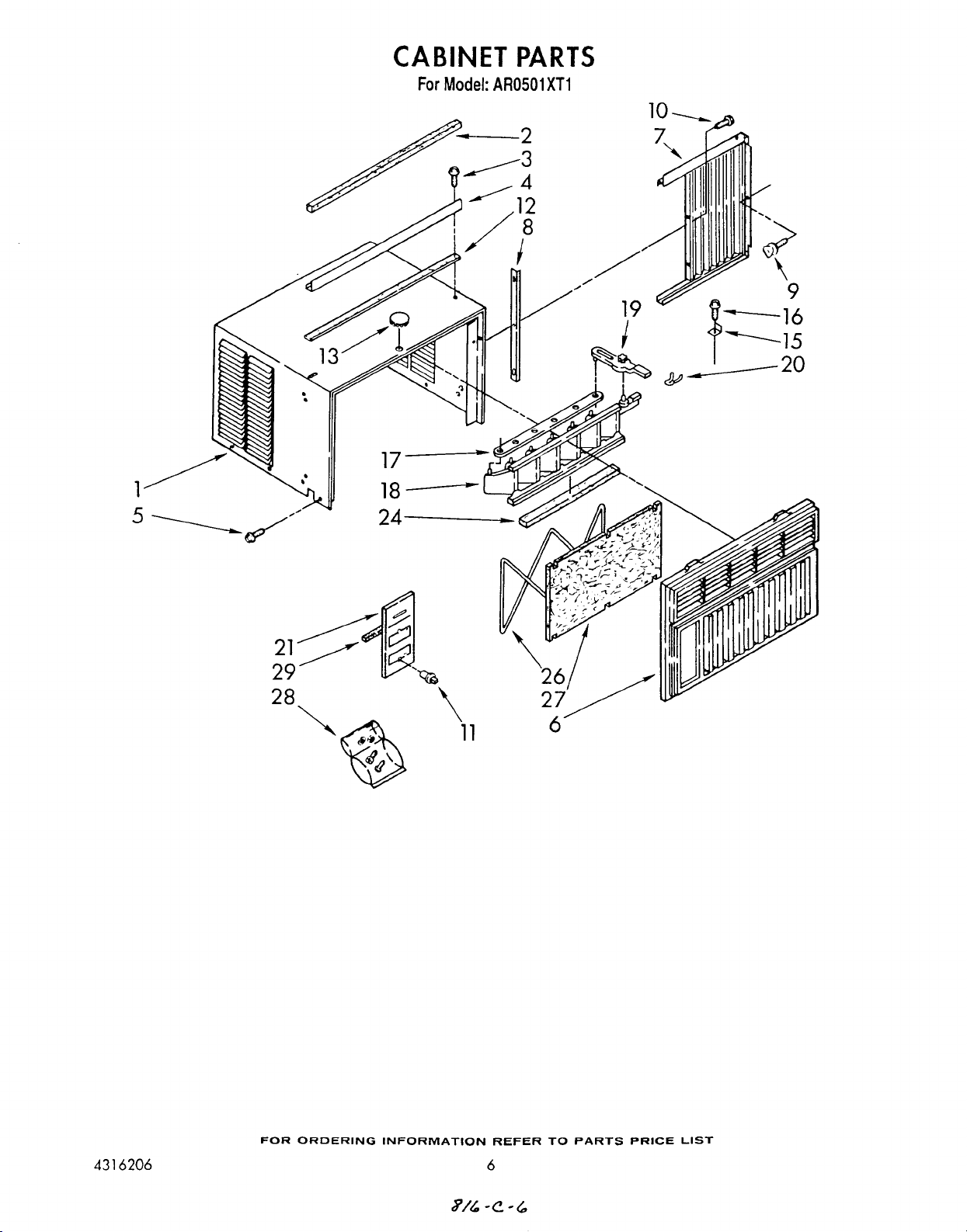

1 1157276 Cabinet
2 469877 Gasket, Meeting Rail
3 488720 Screw, 10 x 1/2 (3)
4 993849 Channel, Top
5 488875 Screw, ST 8-32 x 3/8 (6)
6 953020 Front, Cabinet
7 646158 Housing, Curtain (L.S.)
646154 Housing, Curtain (R.S.)
8 646160 Retainer, Curtain (2)
9 475581 Thumbscrew (2)
10 488730 Screw, 8 x 7/16 (6)
11 953054 Knob, Control (2)
12 856990 Seal, Strip
13 1157126 Plug, Hole
15 644228 Bracket, Window
16 488255 Screw,8x3/4
17 645684 Link, Louver (2)
18 1157284 Louver, Vertical
19 645683 Handle, Louver (2)
20 641484 Spring, Detent (1)
21 1157119 Plate, Escutcheon
24 855238 Seal, Vertical Louver
26 646963 Retainer, Filter
27 852344 Filter
28 476180 Bag, Accessory
29 646318 Spacer, Escutcheon Plate (2)
Page 8
Page 9

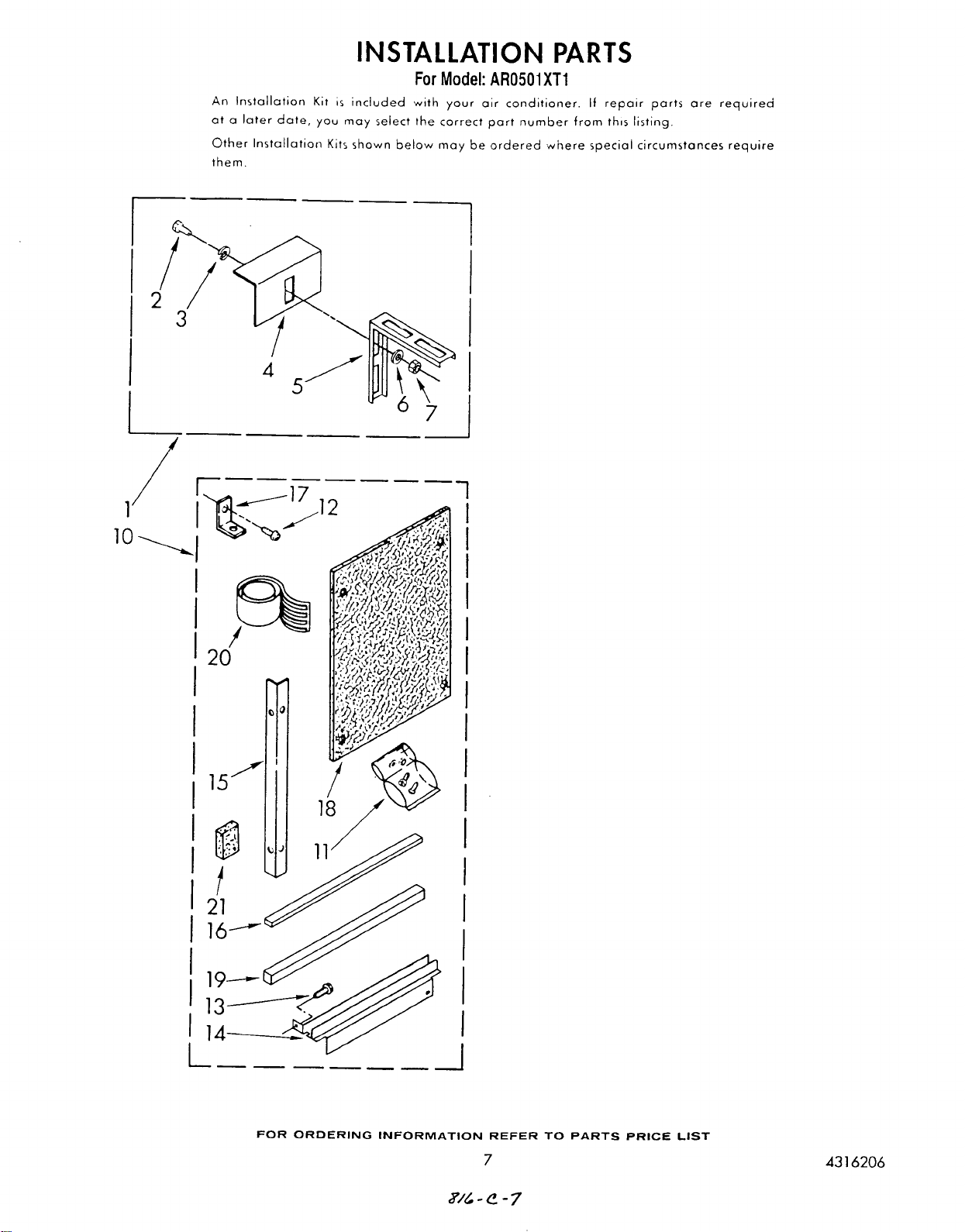

1 485678 Kit, Outside Sill (For Additional Support)
2 488750 Bolt, 1/4-20 x 3/4 (6)
3 488808 Washer, Flat (6)
4 645515 Bracket, Sill (2)
5 485466 Bracket, Rail (2)
6 486009 Washer, Lock (6)
7 486035 Nut, 1/4-20 (6)
10 994818 Kit, Window Installation
11 858358 Bag, Accessory
12 488255 Screw, Wood #8 X 3/8 (3)
13 488017 Screw, S.M. #8 X 3/8 (8)
14 Bracket, Mounting
645562 Right Side
645563 Left Side
15 646988 Angle, Side (2)
16 856979 Seal, Strip
17 644228 Bracket, Window, Lock
18 648854 Board, Filler (2)
19 469877 Seal, Meeting Rail
20 470168 Sealer, Gum
21 995274 Spacer, Block
Following Parts Not Illustrated
LITERATURE PARTS
LIT485706 Instructions, Installation (Outside Sill Kit)
Page 10
Page 11

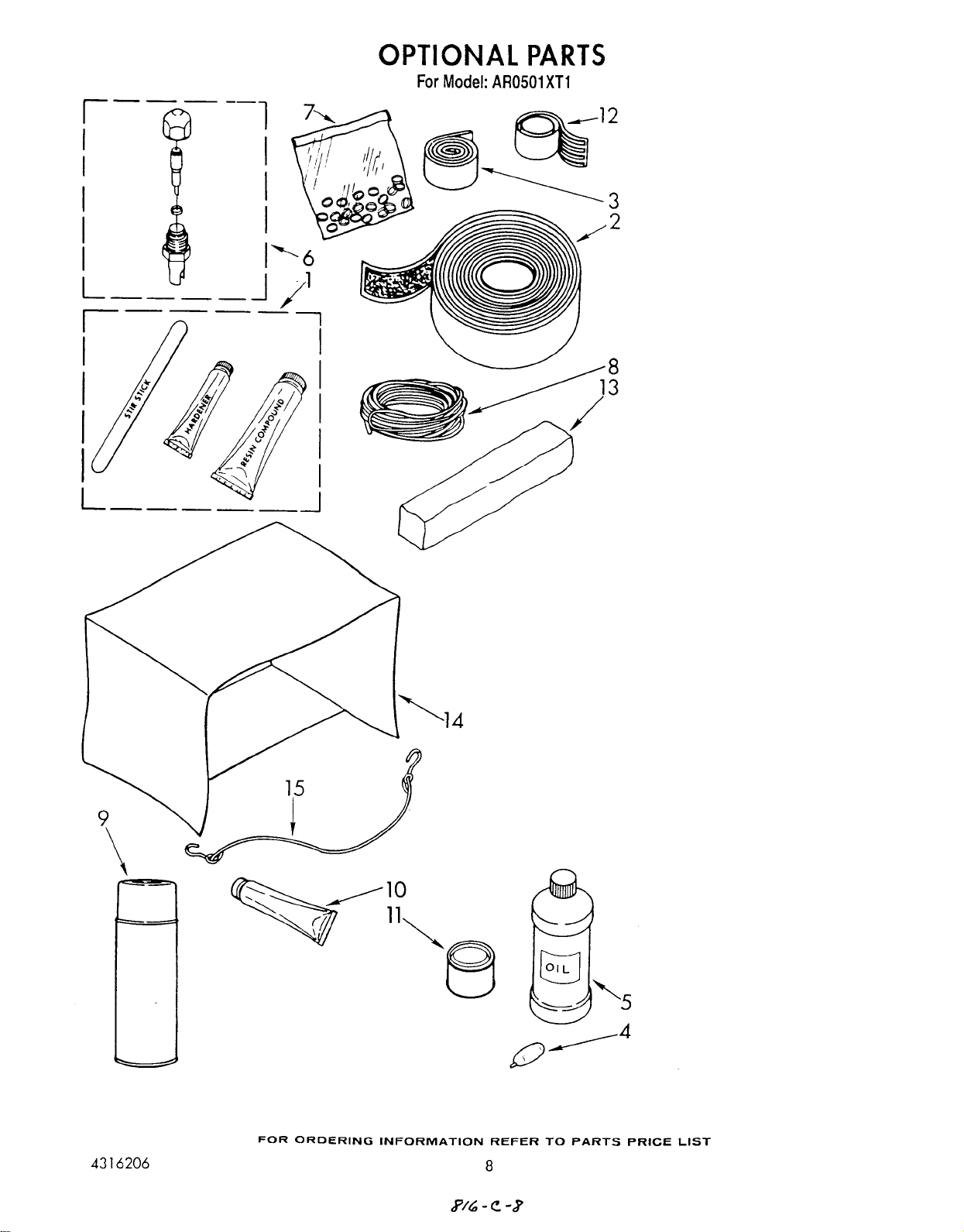

1 799833 Epoxy, Tube (Aluminum Repair)
2 505168 Tape, No Drip 30'
3 479502 Tape, Vinyl 36'
4 10943 Oil, Turbine 1 Fl. Oz.
5 99243 Oil, Turbine 8 Fl. Oz.
6 Valve, Access
876764 3/16" Tube O.D.
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
7 978865 Seal, Ring Access Valve (20-Pack)
8 Wire, 25' Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 813684 Adhesive, Insulation (24 Oz. Spray)
10 279368 Adhesvive, Insulation (2 Oz. Tube)
11 485426 Paint, Touch-up Starlight Gray 1/2 Pint (Lacquer)
12 212643 Sealer, Permagum 4-1" Strips
13 99344 Sealer, Permagum 1 Lb. Bar
14 Cover, Winter
484066 28 x 19 x 31"
484067 19 x 12 x 14"
484069 27 x 19x6to27"
484184 22 x 15x3to18"
15 813610 Retainer, Cord (Winter Cover)
