Coolaroo CLR1372 Installation & Assembly

GAZEBO

5

1

A

G

A

R

A

E

Y

15

YEAR

I

N

S

T

I

BUTTERFLY

R

C

B

W

A

A

F

R

R

A

N

T

Y

N

O

I

T

A

D

U

A

R

V

G

D

E

ASSEMBLY GUIDE

2.9m/9

'6"

4m/13'4m/13'

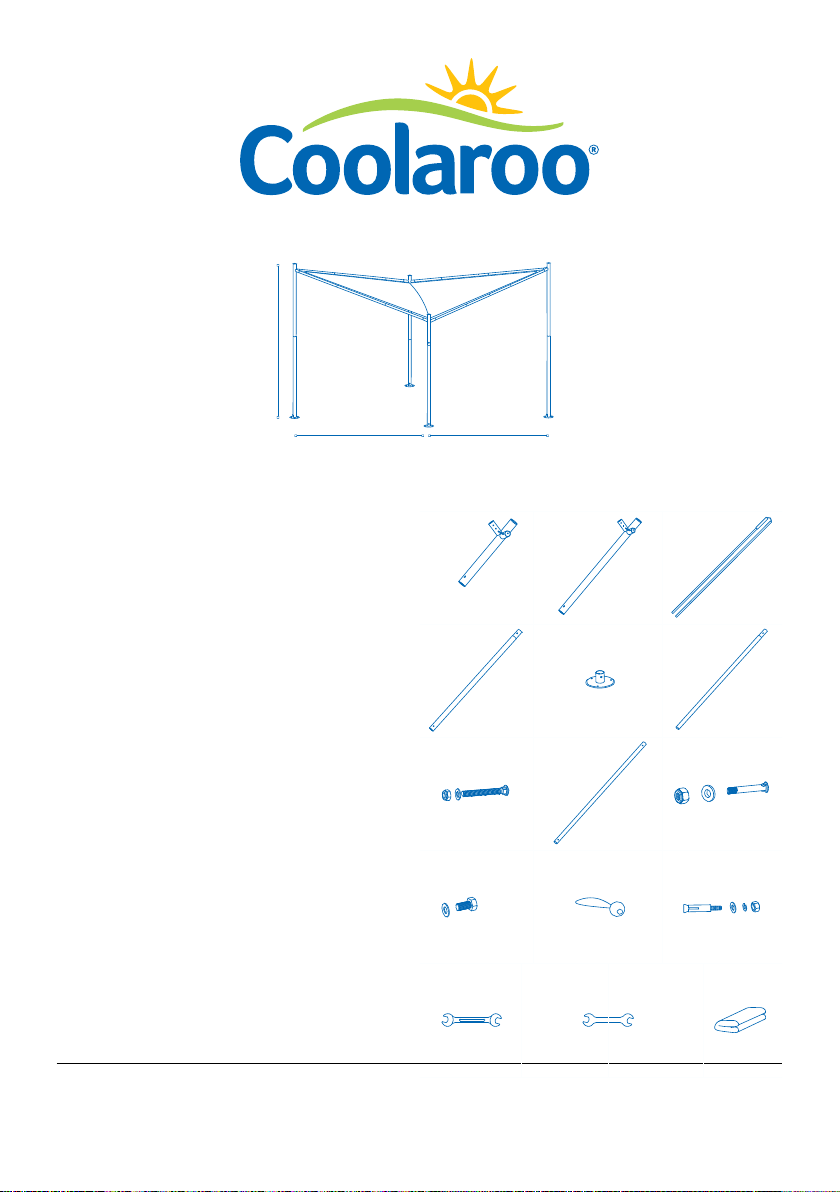

STEP 1

Take all parts out of the box and ensure they
are all present.

a) & b) Upper corner poles x 2

c) Cover poles x 4

d) Lower leg poles x 4

e) Feet x 4

f) Common pole x 8

g) Common bolts x 16

h) Center pole x 4

i) Leg bolts with plastic caps x 4

j) Lower leg pole bolts with plastic caps x 8

k) Elastic bobbles x 36

l) Feet bolts x 12

m) Wrench 1 (for lower leg pole bolts)

n) Wrench 2 (for upper corner pole bolts)

o) Canopy

BUTTERFLY

a

d

g

j

m

b

e

h

k

n

c

f

i

l

o

ASSEMBLY GUIDE

b

f

f

h

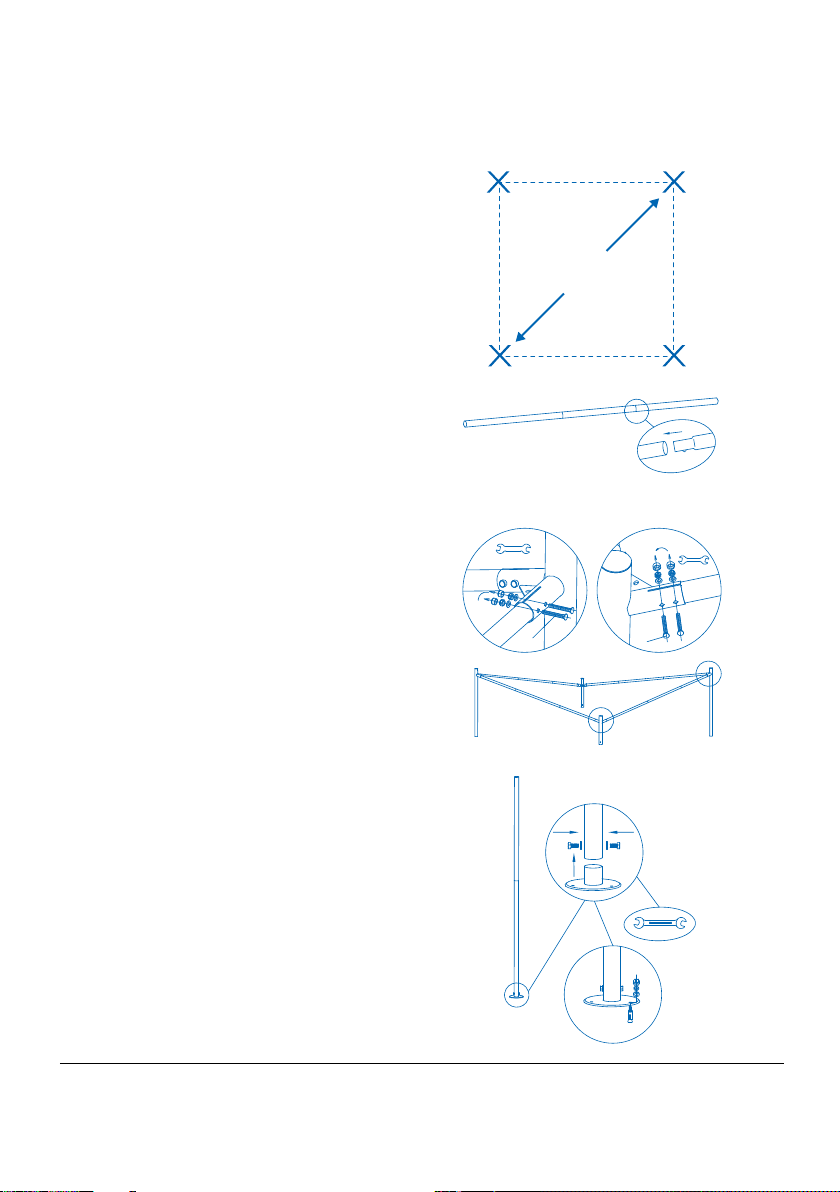

STEP 2

Measure a 13 x 13  in the position you want

the gazebo. Mark the four corners with chalk or

tape, ensuring the distance between diagonally

opposite corners are equal, to ensure it is square.

Diagonal distance should be 18.5 .

Place pole feet on these markings with even

spacing between poles to provide a sound

structure.

STEP 3

Connect the common poles (f) using

center poles (h) as shown.

18.5 

f

n

f

h

b

a

f

n

f

STEP 4

Connect the common poles (f) into upper

corner poles (a) and (b) as shown.

Using the wrench 2 (n) provided secure with

common bolts (g).

STEP 5

Attach the feet (e) into lower leg poles (d)

using bolts ( j) and wrench 1 (m).

f

g

f

h

f

f f

h

f

j

d

g

f

h

f

h

f

a

d

e

m

l

STEP 6

bb

a a

d

m

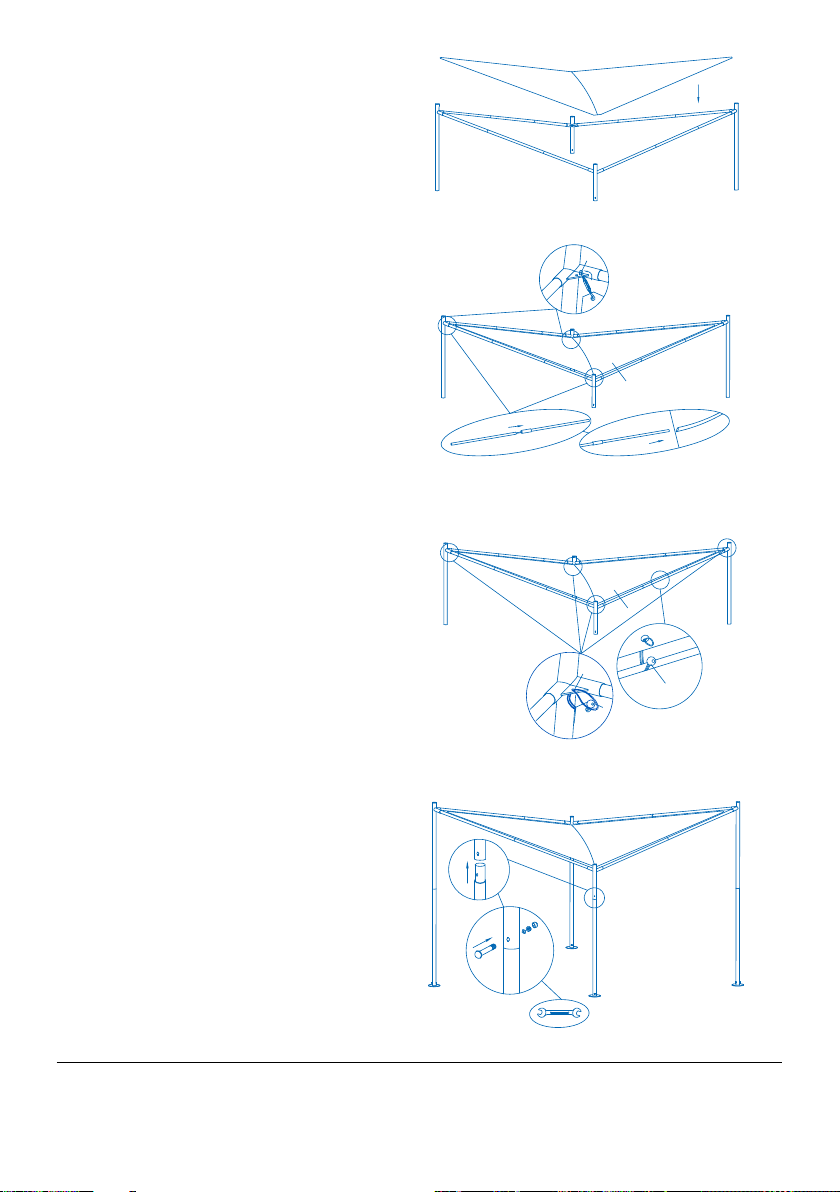

Unfold the canopy (o) within the assembled

upper frame, ensuring the underside of the

canopy (with stitching and label) is facing

downwards.

p

a

a

STEP 7

Insert the four cover poles (c) along the

edges of the canopy.

STEP 8

Secure the edges of canopy to frame with

elastic bobbles (k), attaching the corners

of the canopy last, by threading the elastic

through the corner hole of the metal frame

and looping through the eyelet of the

canopy corner.

For ease attachment, attach 3 bobbles on

each side and continue around the gazebo

in a uniform fashion attaching 2 at a time

until all bobbles are attached.

STEP 9

Li the assembled upper section of the

gazebo and insert the lower leg poles (d)

into the upper corner poles (a) and (b).

Secure the connection with bolts and

plastic caps (i).

o

p

p

p

c

c

o

k

k

o

b

d

b

STEP 10

Once erect, ensure the Buttery gazebo

is rmly secured to a stable surface, you

can use feet bolts (l) if desired.

d

i

d

d

T H A N K Y O U

FOR PURCHASING A

COOLAROO PRODUCT

Exposure to ultraviolet (UV) radiation from the sun is the

major cause of skin cancer. In some countries the UV radiation

is strong enough to cause sunburn in just 11 minutes on a

ne summers day. To prevent sun damage we recommend

following these Sun Smart steps: slip on clothing, slop on

sunscreen, slap on a hat, slide on sunglasses and seek shade.

CARE & MAINTENANCE

When not in use for long periods of time dismantle the gazebo,

and store in a dry place. If the canopy is wet, allow to dry naturally

opened up before storing.

If necessary, clean the fabric with a hose.

Components subject to turning and sliding can be treated

with a non-staining lubricant spray (silicon-based).

Attention: The schematics in this manual are for assembly and operation

illustration only. They may dier from the gazebos actual appearance.

The best under the sun

Coolaroo is the leader in shade fabric technology.

Our extensive range of attractive shade solutions

is carefully manufactured to protect your home,

garden and family from the harsh sun.

coolaroousa.com

WARNING

When assembling and using this product, safety precautions should always be followed to reduce the risk of
personal injury and damage to e quipment. Please read all instructions before assembly and use.

At least two or more people are recommended for safe assembly.

Keep all children and pets away from assembly area.

Check all nuts and bolts for tightness before and during usage.

Non permanent structure. Do not use in extreme weather conditions including heavy rain or high winds.

Do not leave the gazebo unattended.

Do not place the product near an open ame; or to o close to any heat source.

For help with produc t assembly
or for any other questions
you may have, contact our
Customer Service Department.

450540

Australia Toll Free: 1800 331 521
New Zealand Toll Free: 0800 555 171
United States Ph: [phone]
Middle East Ph: [phone]
China Ph: + 86 574 5626 8888

Gale Pa cic USA, Inc.
PO Box 162 625
Altamonte Springs, FL 32716-2625,USA
