Page 1

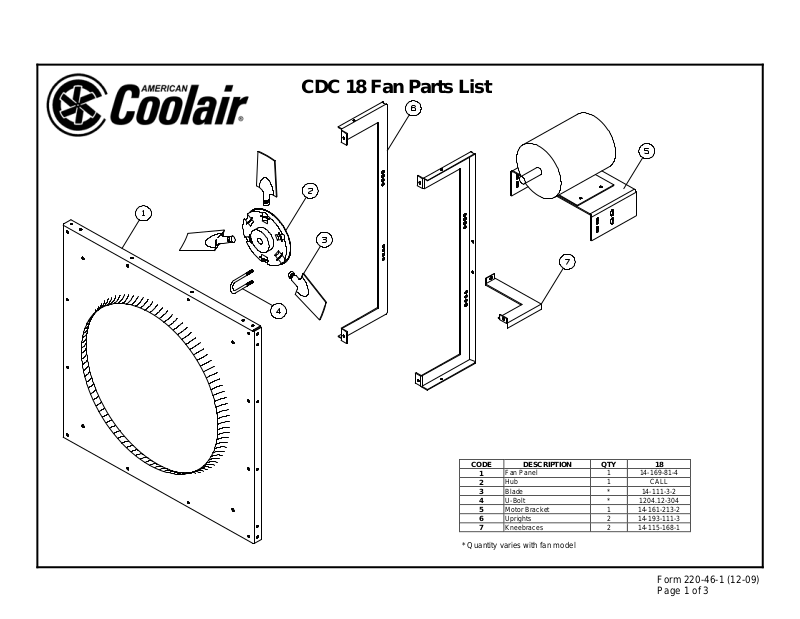

CDC 18 Fan Parts List
CODE DESCRIPTION QTY 18
* Quantity varies with fan model
Fan Panel 1 14-169-81-4
1
Hub 1 CALL
2
Blade * 14-111-3-2
3
U-Bolt * 1204.12-304
4
Motor Brack et 1 14-161-213-2
5
Uprights 2 14-193-111-3
6
Kneebraces 2 14-115-168-1
7
Form 220-46-1 (12-09)
Page 1 of 3
Page 2
CDC 24-36 Fan Parts List
CODE DESCRIPTION QTY
Fan Panel Assembly 1 51-42-21-24 51-42-21-30 51-42-21-36
1
Hub 1 CALL CALL CALL CALL
2
Blade * 14-111-3-3 14-111-3-5 14-111-3-7 14-211-6-9
3
U-Bolt * 1204.12-304 1204.12-304 ———
4A
Blade Clamp * ——— ——— 14-122-7-1
4B
Motor Bracket 1 14-161-30-1 14-161-31-1
5
6A
Motor Safety Brace 1
6B
Hub Bushing 1 ——— CALL CALL
7
24 30 36 (680, 870 and 1160 RPM Models Only) 36 (1750 RPM Models Only)
56-145T 182T-215T 56-145T 182T-215T 56-145T 182T-215T 56-145T 182T-215T
——— 14-101-25-1 ——— 14-101-25-1 ——— ———
——— ——— ——— ——— ——— 14-101-26-1 ——— 14-101-26-1
* Quantity varies with fan model
Form 220-46-1 (12-09)
Page 2 of 3
Page 3

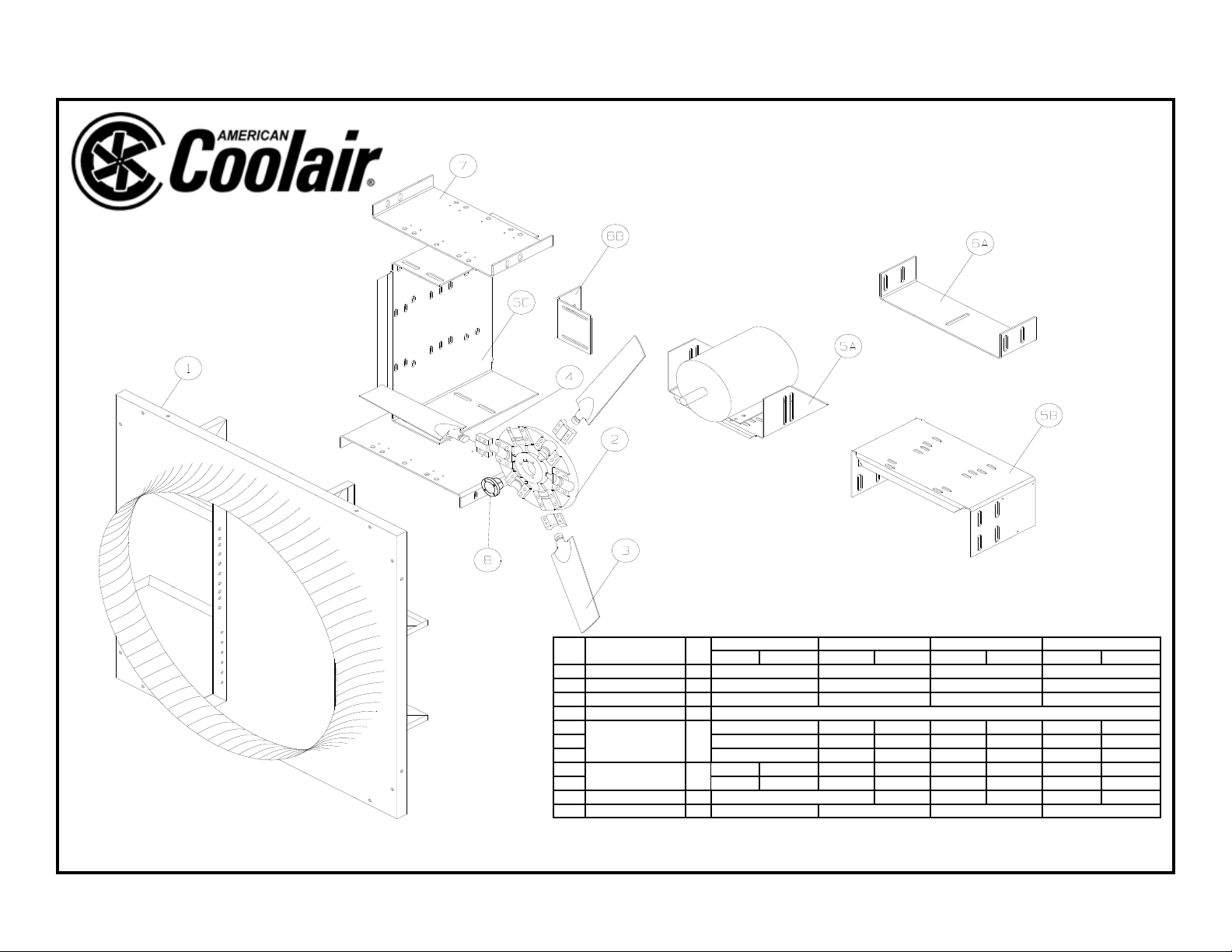

CDC 42-60 Fan Parts List
CODE DESCRIPTION QTY
Fan Panel Assembly 1 51-42-21-42 51-42-25-48 51-42-25-54 51-42-25-60
1
2
3
4
5A
5B
5C
6A
6B
7
8
Hub 1 CALL CALL CALL CALL
Blade * CALL CALL CALL
Blade Clamp * 14-122-7-1
Motor Bracket 1
Motor Safety Brace 1
Motor Bracket Adaptor 2 ——— 14-101-5-1 ——— 14-101-5-1 ——— 14-101-5-1
Hub Bushing 1 CALL CALL CALL CALL
42 48 54 60
56-145T 182T-215T 182T-215T 254T-256T 213T-215T 254T-256T 213T-215T 254T-256T
14-161-31-1 ——— ——— ——— ——— ——— ———
——— 14-161-32-1 ——— 14-161-32-1 ——— 14-161-32-1 ———
——— ——— 14-161-34-1 ——— 14-161-34-1 ——— 14-161-34-1
——— 14-101-26-1 14-101-26-1 ——— 14-101-26-1 ——— 14-101-26-1 ———
——— ——— 14-101-20- 1 ——— 14-101-20-1
——— ——— 14-101-20-1
* Quantity varies with fan model
Form 220-46-1 (12-09)
Page 3 of 3
