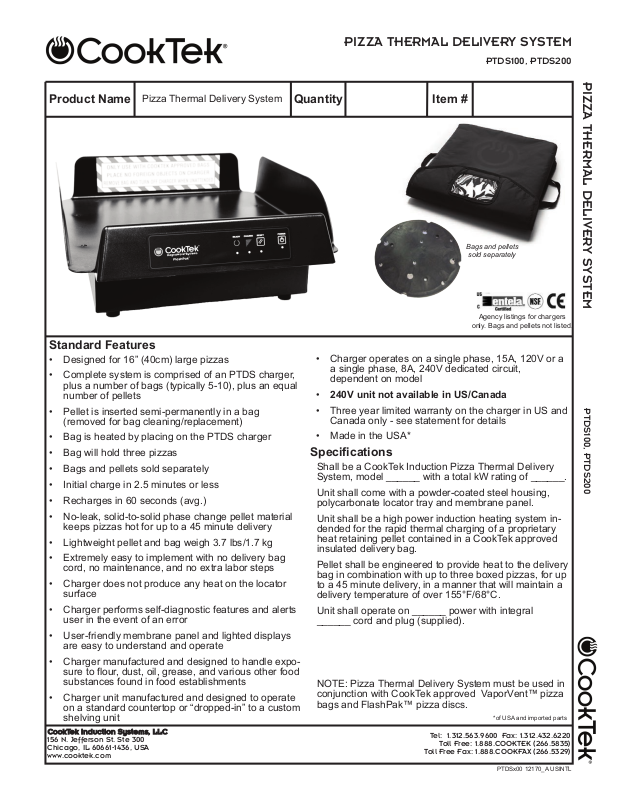

Cooktek PTDS100 User Manual
PIZZA THERMAL DELIVERY SYSTEM
PTDS100, PTDS200
PIZZA THERMAL DELIVERY SYSTEM
Product Name Quantity
Pizza Thermal Delivery System
Standard Features
• Designed for 16” (40cm) large pizzas
• Complete system is comprised of an PTDS charger,
plus a number of bags (typically 5-10), plus an equal
number of pellets
• Pellet is inserted semi-permanently in a bag
(removed for bag cleaning/replacement)
• Bag is heated by placing on the PTDS charger
• Bag will hold three pizzas
• Bags and pellets sold separately
• Initial charge in 2.5 minutes or less
• Recharges in 60 seconds (avg.)
• No-leak, solid-to-solid phase change pellet material
keeps pizzas hot for up to a 45 minute delivery
• Lightweight pellet and bag weigh 3.7 lbs/1.7 kg
• Extremely easy to implement with no delivery bag
cord, no maintenance, and no extra labor steps
• Charger does not produce any heat on the locator
surface
• Charger performs self-diagnostic features and alerts
user in the event of an error
• User-friendly membrane panel and lighted displays
are easy to understand and operate
• Charger manufactured and designed to handle exposure to flour, dust, oil, grease, and various other food
substances found in food establishments
• Charger unit manufactured and designed to operate
on a standard countertop or “dropped-in” to a custom
shelving unit
CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
• Charger operates on a single phase, 15A, 120V or a
a single phase, 8A, 240V dedicated circuit,
dependent on model
• 240V unit not available in US/Canada
• Three year limited warranty on the charger in US and
Canada only - see statement for details
• Made in the USA*
Specifications
Shall be a CookTek Induction Pizza Thermal Delivery
System, model ______ with a total kW rating of ______.
Unit shall come with a powder-coated steel housing,
polycarbonate locator tray and membrane panel.
Unit shall be a high power induction heating system indended for the rapid thermal charging of a proprietary
heat retaining pellet contained in a CookTek approved
insulated delivery bag.
Pellet shall be engineered to provide heat to the delivery
bag in combination with up to three boxed pizzas, for up
to a 45 minute delivery, in a manner that will maintain a
delivery temperature of over 155°F/68°C.
Unit shall operate on ______ power with integral
______ cord and plug (supplied).
NOTE: Pizza Thermal Delivery System must be used in
conjunction with CookTek approved VaporVent™ pizza
bags and FlashPak™ pizza discs.
Item #
Bags and pellets
sold separately
Agency listings for chargers
only. Bags and pellets not listed.
PTDS100, PTDS200
*of USA and imported parts
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
PTDSx00 12170_A USINTL
PIZZA THERMAL DELIVERY SYSTEM
PIZZA THERMAL DELIVERY SYSTEM
PTDS100, PTDS200
Dimensions
inches mm
A 20.19 512
B 15.50 393
C 21.63 549
D 8.55 217
E 4.55 115
• Dedicated circuit required
• Requires maximum (do not exceed) ambient temperature of 50˚C/122˚F
• Cooling clearance: 2” (55mm) for front and rear, 6” (152mm) below when mounted in custom
shelving unit
PTDS100, PTDS200
Agency listings for chargers
only. Bags and pellets not listed.
Specifications
Model Number PTDS100 PTDS200
Power Requirements 100-120VAC, 1Ph 208-240VAC, 1Ph
Power Consumption 600-1800W 600-1800W
Voltage 100-120VAC, 50/60 Hz 208-240VAC, 50/60 Hz
Amperage 15A (max) 8A (max)
Base Dimensions (in) 15.5” x 15.5” x 4.55” 15.5” x 15.5” x 4.55”
Base Dimensions (mm) 393 x 393 x 115 393 x 393 x 115
Dimensions w/bag locator (in) 21.63” x 20.19” x 8.55” 21.63” x 20.19” x 8.55”
Dimensions w/bag locator (mm) 549 x 512 x 217 549 x 512 x 217
Weight 19 lbs / 8.6 kg 19 lbs / 8.6 kg
Packaged Weight 23.3 lbs / 10.6 kg 23.3 lbs / 10.6 kg
Packaged Dimensions (in) 24” x 23” x 13” 24” x 23” x 13”
Packaged Dimensions (mm) 609 x 584 x 330 609 x 584 x 330
Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m
Plug Type NEMA 5-15P Country Specific
Warranty 36 months limited parts and labor (charger only) contact distributor for warranty details
Note: Ambient air should not exceed 50˚C/122˚F. Dedicated circuit required. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek
continually improves its products and reserves the right to change or improve specifications without notice.
CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
PTDSx00 12170_A USINTL
