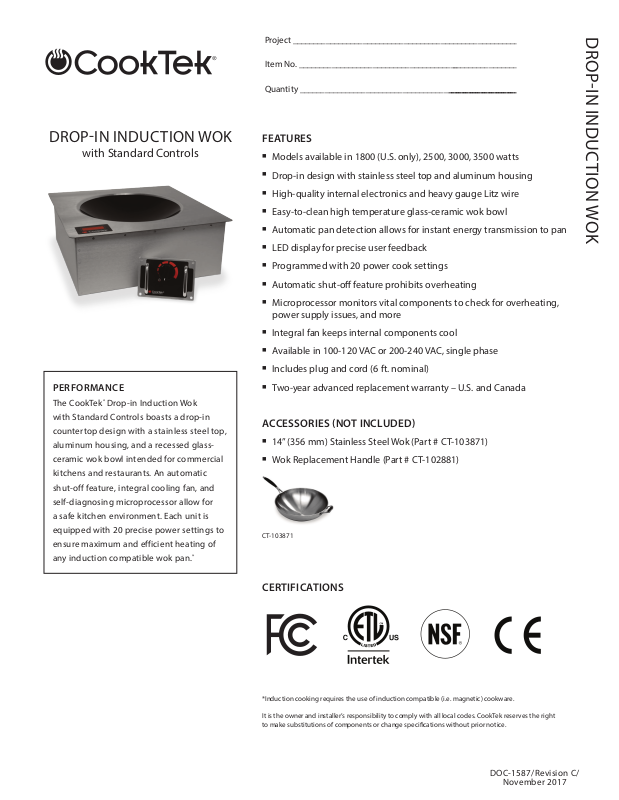

CookTek MWDG3500 Specifications
Proj ect _______________________________________________________
Item No. ______________________________________________________
Q u a n t i t y _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _______________________________________
DROPIN INDUCTION WOK
DROPIN INDUCTION WOK
with Standard Controls
PERFORMANCE
The CookTek® Drop-in Induction Wok
with Standard Controls boasts a drop-in
countertop design with a stainless steel top,
aluminum housing, and a recessed glass-
ceramic wok bowl intended for commercial
kitchens and restaurants. An automatic
shut-off feature, integral cooling fan, and
self-diagnosing microprocessor allow for
a safe kitchen environment. Each unit is
equipped with 20 precise power settings to
ensure maximum and efficient heating of
any induction compatible wok pan.
*
FEATURES
n
Models available in 1800 (U.S. only), 2500, 3000, 3500 watts
n
Drop-in design with stainless steel top and aluminum housing
n
High-quality internal electronics and heavy gauge Litz wire
n
Easy-to-clean high temperature glass-ceramic wok bowl
n
Automatic pan detection allows for instant energy transmission to pan
n
LED display for precise user feedback
n
Programmed with 20 power cook settings
n
Automatic shut-o feature prohibits overheating
n
Microprocessor monitors vital components to check for overheating,
power supply issues, and more
n
Integral fan keeps internal components cool
n
Available in 100-120 VAC or 200-240 VAC, single phase
n
Includes plug and cord (6 ft. nominal)
n
Two-year advanced replacement warranty – U.S. and Canada
ACCESSORIES (NOT INCLUDED)
n
14” (356 mm) Stainless Steel Wok (Part # CT-103871)
n
Wok Replacement Handle (Part # CT-102881)
CT-103871
CERTIFICATIONS
*Induction cooking requires the use of induction compatible (i.e. magnetic) cookware.
It is the owner and installer’s responsibility to comply with all local codes. CookTek reserves the right
to make substitutions of components or change specications without prior notice.
DOC-1587/Revision C/
November 2017
DROPIN INDUCTION WOK
DIMENSIONS
Full Unit Height 6.15” 156 mm
Full Unit Width 16.5” 419 mm
Housing Width 15.38” 391 mm
Full Unit Depth 16.5” 419 mm
Housing Depth 15.38” 391 mm
Bowl Width 11.34” ø 288 mm ø
Bowl Vertical Depth 2.66” 68 mm
Cutout Width 15.75” 400 (mm)
Cutout Height 15.75” 400 (mm)
Weight 22 lb. 9.98 kg
CLEARANCE
Front 2” 51 mm
Sides 2” 51 mm
Rear 2” 51 mm
Below 6” 152 mm
3
/min.)
*
103 cm
COOLING REQUIREMENTS AND SPECIFICATIONS
Max Ambient Temperature 122°F 50°C
Min. Ventilation Requirements 16 in
INTERNAL COOLING FAN DISPLACEMENT
100120 V Models 50 CFM (1.5m
200-240 V Models 70 CFM (2.0m3/min)
2
SHIPPING INFORMATION
Packaged Height 13” 330 mm
Packaged Width 23” 584 mm
Packaged Depth 24” 610 mm
Packaged Weight 23 lb. 10.4 kg
Item Class 250 NMFC #26710
NEMA 5-15P
NEMA 6-20P
AS/NZS 3112:2000,
10A, 250V
AS/NZS 3112:2000,
15A, 250V
ELECTRICAL SPECIFICATIONS SINGLE PHASE
UNITED STATES/CANADA
MWDG1800 605301 100-120 V, 50/60 Hz, 15 A, 100-1800 W NEMA 5-15P
MWDG2500 605401 200-240 V, 50/60 Hz, 12 A, 100-2500 W NEMA 6-20P
MWDG3000 605501 200-240 V, 50/60 Hz, 14 A, 100-3000 W NEMA 6-20P
MWDG3500 605601 200-240 V, 50/60 Hz, 15 A, 100-3500 W NEMA 6-20P
UK AND SAUDI ARABIA
MWDG2500 605402 200-240 V, 50/60 Hz, 12 A, 100-2500 W BS1363
MWDG3000 605502 200-240 V, 50/60 Hz, 14 A, 100-3000 W BS1363
MWDG3500 605602 200-240 V, 50/60 Hz, 15 A, 100-3500 W IEC 309, 16A, 3-pin
INTERNATIONAL
MWDG2500 605403 200-240 V, 50/60 Hz, 12 A, 100-2500 W CEE 7/7 Schuko
MWDG3000 605503 200-240 V, 50/60 Hz, 14 A, 100-3000 W CEE 7/7 Schuko
MWDG3500 605603 200-240 V, 50/60 Hz, 15 A, 100-3500 W IEC 309, 16A, 3-pin
AUSTRALIA
MWDG2500 605404 200-240 V, 50/60 Hz, 12 A, 100-2500 W
2
MWDG3000 605504 200-240 V, 50/60 Hz, 14 A, 100-3000 W
MWDG3500 605604 200-240 V, 50/60 Hz, 15 A, 100-3500 W
SOUTH AFRICA
MWDG2500 605407 200-240 V, 50/60 Hz, 12 A, 100-2500 W BS 546, 16A, 250V
MWDG3000 605507 200-240 V, 50/60 Hz, 14 A, 100-3000 W BS 546, 16A, 250V
MWDG3500 605607 200-240 V, 50/60 Hz, 15 A, 100-3500 W BS 546, 16A, 250V
ISRAEL
MWDG2500 605408 200-240 V, 50/60 Hz, 12 A, 100-2500 W SI 32, 16A, 250V
MWDG3000 605508 200-240 V, 50/60 Hz, 14 A, 100-3000 W SI 32, 16A, 250V
MWDG3500 605608 200-240 V, 50/60 Hz, 15 A, 100-3500 W SI 32, 16A, 250V
AS/NZS 3112:2000,
10A, 250V
AS/NZS 3112:2000,
15A, 250V
AS/NZS 3112:2000,
15A, 250V
* Adequate cabinet ventilation should be provided for all drop-in
models to prevent overheating of unit
Dedicated circuit required for each installation
BS1363
IEC 309, 16A, 3-pin CEE 7/7 Schuko
SI 32, 16A, 250V
BS 546, 16A, 250V
2801 Trade Center Drive / Carrollton, Texas 75007 USA
Global Operations
US: 800.90TURBO (800.908.8726) / International: +1 214.379.6000
Fax: +1 214.379.6073 / www.cooktek.com
© 2017 CookTek®
