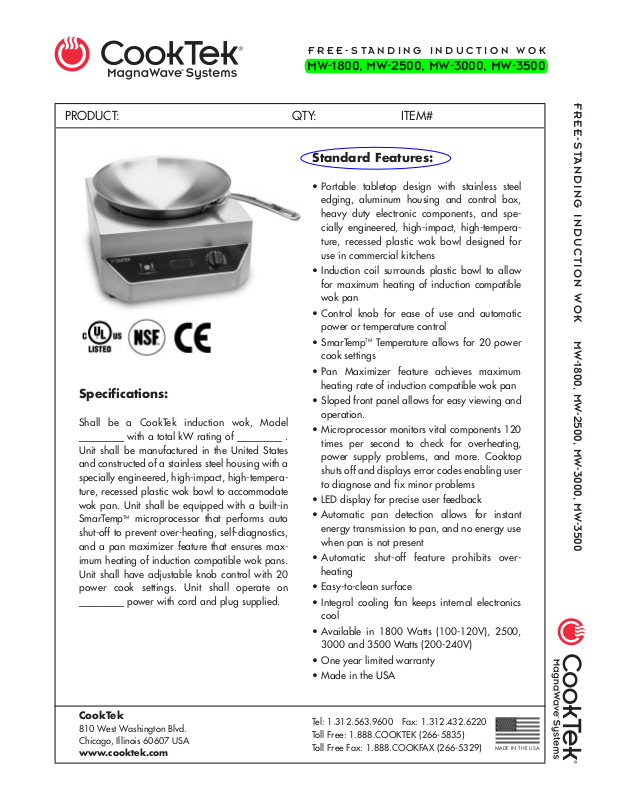

FREE-STANDING INDUCTION WOK
MW-1800, MW-2500, MW-3000, MW-3500
PRODUCT: QTY: ITEM#
Specifications:
Shall be a CookTek induction wok, Model
_________ with a total kW rating of _________ .
Unit shall be manufactured in the United States
and constructed of a stainless steel housing with a
specially engineered, high-impact, high-temperature, recessed plastic wok bowl to accommodate
wok pan. Unit shall be equipped with a built-in
SmarTemp
TM
microprocessor that performs auto
shut-off to prevent over-heating, self-diagnostics,
and a pan maximizer feature that ensures maximum heating of induction compatible wok pans.
Unit shall have adjustable knob control with 20
power cook settings. Unit shall operate on
_________ power with cord and plug supplied.
CookTek
810 West Washington Blvd.
Chicago, Illinois 60607 USA
www.cooktek.com
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266-5835)
Toll Free Fax: 1.888.COOKFAX (266-5329)
Standard Features:
• Portable tabletop design with stainless steel
edging, aluminum housing and control box,
heavy duty electronic components, and specially engineered, high-impact, high-temperature, recessed plastic wok bowl designed for
use in commercial kitchens
• Induction coil surrounds plastic bowl to allow
for maximum heating of induction compatible
wok pan
• Control knob for ease of use and automatic
power or temperature control
• SmarTemp
TM
Temperature allows for 20 power
cook settings
• Pan Maximizer feature achieves maximum
heating rate of induction compatible wok pan
•Sloped front panel allows for easy viewing and
operation.
•Microprocessor monitors vital components 120
times per second to check for overheating,
power supply problems, and more. Cooktop
shuts off and displays error codes enabling user
to diagnose and fix minor problems
•LED display for precise user feedback
• Automatic pan detection allows for instant
energy transmission to pan, and no energy use
when pan is not present
• Automatic shut-off feature prohibits overheating
• Easy-to-clean surface
• Integral cooling fan keeps internal electronics
cool
•Available in 1800 Watts (100-120V), 2500,
3000 and 3500 Watts (200-240V)
• One year limited warranty
• Made in the USA
TM
FREE-STANDING INDUCTION WOK MW-1800, MW-2500, MW-3000, MW-3500
MADE IN THE USA
TM
TM
FREE-STANDING INDUCTION WOK MW-1800, MW-2500, MW-3000, MW-3500
CookTek
810 West Washington Blvd.
Chicago, Illinois 60607 USA
www.cooktek.com
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266-5835)
Toll Free Fax: 1.888.COOKFAX (266-5329)
SPECIFICATIONS:
MW-1800 MW-2500 MW-3000 MW-3500
Power requirements 100-120V, 1PH 200-240V, 1PH 200-240V, 1PH 200-240V, 1PH
Power consumption 1800 Watts 2500 Watts 3000 Watts 3500 Watts
BTU comparison 16,000 BTU 22,000 BTU 26,000 BTU 31,000 BTU
Voltage 100-120V, 50/60Hz 200-240V 50/60Hz 200-240V 50/60Hz 200-240V 50/60Hz
Amperage 15 amps (at max. setting) 11 amps (at max. setting) 13 amps (at max. setting) 15 amps (at max setting)
Power range 100-1800W 100-2500W 100-3000W 100 - 3500W
Temperature range 85 - 500F 85 - 500F 85 - 500F 85 - 500F
30 - 260C 30 - 260C 30 - 260C 30 - 260C
Surface dimensions (inches) 17.25L x 14.75W x 6.09H 17.25L x 14.75W x 6.09H 17.25L x 14.75W x 6.09H 17.25L x 14.75W x 6.09H
(cm) 43.82L x 37.47W x 15.47H 43.82L x 37.47W x 15.47H 43.82L x 37.47W x 15.47H 43.82L x 37.47W x 15.47H
Weight 19.1 lbs/ 8.7 kg 18.2 lbs/ 8.3kg 18.2 lbs/ 8.3kg 19.1 lbs/ 8.7 kg
Packaged weight 22.0 lbs./10.0 kg 21 lbs/ 9.5 kg 21 lbs/ 9.5 kg 22.0 lbs./10.0 kg
Packaging (inches) 24.0L x 18.0W x 10.0H 19.0L x 19.0W x 14.5H 19.0L x 19.0W x 14.5H 24.0L x 18.0W x 10.0H
dimensions (cm) 60.96L x 45.72W x 25.40H 48.3L x 48.3W x 36.8H 48.3L x 48.3W x 36.8H 60.96L x 45.72W x 25.40H
North American Cord 6 Ft., NEMA 5-15P 6 Ft., NEMA 6-20P 6 Ft., NEMA 6-20P 6 Ft., NEMA 6-20P
length & plug*
Warranty One year limited warranty One year limited warranty One year limited warranty One year limited warranty
Cooling clearance 2” (5.1cm) for front, sides 2” (5.1 cm) for front, sides 2” (5.1 cm) for front, sides 2” (5.1cm) for front, sides
and rear and rear and rear and rear
*IEC Connector for 200V and higher units. International cord length = 2.5m (8.2ft).
14.75
6.09
17.25
.20
14.75
17.25
6.87
.78
POWER
CORD
FREE-STANDING INDUCTION WOK
MW-1800, MW-2500, MW-3000, MW-3500
Note: Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. It’s CookTek’s policy to continually improve its products, and we reserve the right to
change or improve our specifications without notification.
