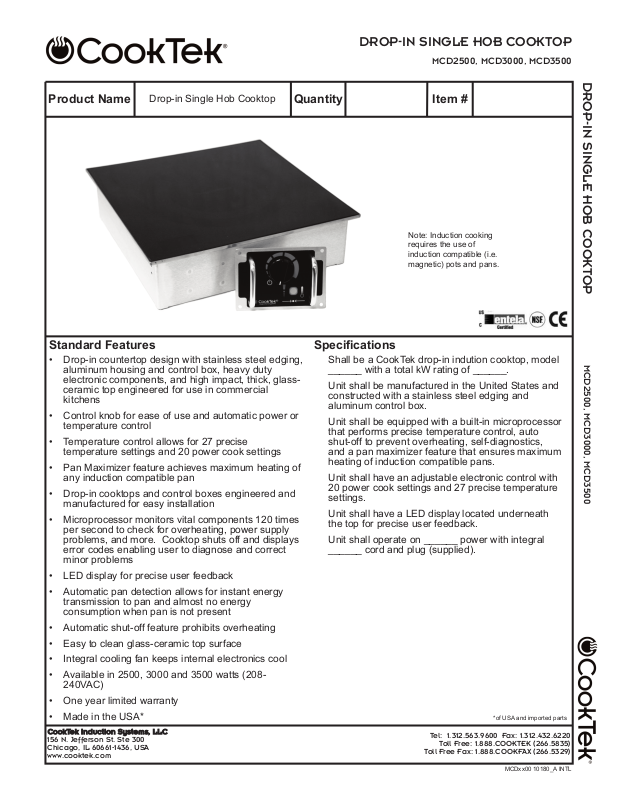

Cooktek MCD-2500 User Manual

DROP-IN SINGLE HOB COOKTOP
MCD2500, MCD3000, MCD3500
DROP-IN SINGLE HOB COOKTOP
Product Name Quantity
Standard Features
Drop-in countertop design with stainless steel edging, aluminum housing and control box, heavy duty electronic components, and high impact, thick, glass­ceramic top engineered for use in commercial kitchens
Control knob for ease of use and automatic power or temperature control
Temperature control allows for 27 precise temperature settings and 20 power cook settings
Pan Maximizer feature achieves maximum heating of any induction compatible pan
Drop-in cooktops and control boxes engineered and manufactured for easy installation
Microprocessor monitors vital components 120 times per second to check for overheating, power supply problems, and more. Cooktop shuts off and displays error codes enabling user to diagnose and correct
Drop-in Single Hob Cooktop
Specifications
Shall be a CookTek drop-in indution cooktop, model ______ with a total kW rating of ______.
Unit shall be manufactured in the United States and constructed with a stainless steel edging and aluminum control box.
Unit shall be equipped with a built-in microprocessor that performs precise temperature control, auto shut-off to prevent overheating, self-diagnostics, and a pan maximizer feature that ensures maximum heating of induction compatible pans.
Unit shall have an adjustable electronic control with 20 power cook settings and 27 precise temperature settings.
Unit shall have a LED display located underneath the top for precise user feedback.
Unit shall operate on ______ power with integral ______ cord and plug (supplied).
minor problems
LED display for precise user feedback
Automatic pan detection allows for instant energy transmission to pan and almost no energy consumption when pan is not present
Automatic shut-off feature prohibits overheating
Easy to clean glass-ceramic top surface
Integral cooling fan keeps internal electronics cool
Available in 2500, 3000 and 3500 watts (208­240VAC)
One year limited warranty
Made in the USA*
CookTek Induction Systems, LLC 156 N. Jefferson St. Ste 300 Chicago, IL 60661-1436, USA www.cooktek.com
Item #
Note: Induction cooking requires the use of induction compatible (i.e. magnetic) pots and pans.
MCD2500, MCD3000, MCD3500
*of USA and imported parts
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
MCDxx00 10180_A INTL
DROP-IN SINGLE HOB COOKTOP
DROP-IN SINGLE HOB COOKTOP
Dimensions
inches mm
A 13.75 349
B 12.75 323
C 3.70 93
D 13.125 333
E 4.12 104
F 3.75 95
G 3.00 76
H 5.25 133
J 0.50 12
K 0.25 6
L 2.75 69
M 1.44 36
MCD2500, MCD3000, MCD3500
Dedicated circuit required
Requires 70 CFM (2.0m
flow with adequate enclosure venting and maximum (do not exceed) ambient air temperature of 50˚C/122˚F
3
/min) free air
Cooling clearance: 2” (55mm) for front,
sides, and rear, 6” (152mm) below
MCD2500, MCD3000, MCD3500
Model Number MCD2500 MCD3000 MCD3500
Power Requirements 208-240VAC, 1 Ph 208-240VAC, 1 Ph 208-240VAC, 1 Ph
Power Consumption 2500W (max rating) 3000W (max rating) 3500W (max rating)
BTU Comparison 22,000 BTU 26,000 BTU 31,000 BTU
Voltage 208-240VAC, 50/60 Hz 208-240VAC, 50/60 Hz 208-240VAC, 50/60 Hz
Amperage 11A (max) 13A (max) 17A (max)
Power Range 100-2500W 100-3000W 100-3500W
Temperature Range 85-500°F / 30-260°C 85-500°F / 30-260°C 85-500°F / 30-260°C
Dimensions (in) 13.75” x 13.75” x 3.7” 13.75” x 13.75” x 3.7” 13.75” x 13.75” x 3.7”
Dimensions (mm) 349 x 349 x 93 349 x 349 x 93 349 x 349 x 93
Cutout Dimensions (in) 13.125” x 13.125” 13.125” x 13.125” 13.125” x 13.125”
Cutout Dimensions (mm) 333 x 333 333 x 333 333 x 333
Weight 15 lbs / 6.8 kg 15 lbs / 6.8 kg 15 lbs / 6.8 kg
Packaged Weight 18 lbs / 8.2 kg 18 lbs / 8.2 kg 18 lbs / 8.2 kg
Packaged Dimensions (in) 20” x 20” x 9” 20” x 20” x 9” 20” x 20” x 9”
Packaged Dimensions (mm) 508 x 508 x 229 508 x 508 x 229 508 x 508 x 229
Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m 6 ft / 1.8 m
Plug Type Country Specific Country Specific Country Specific
Remote Control Box Cord Length 42” / 1.07 m 42” / 1.07 m 42” / 1.07 m
Warranty 12 months limited parts and labor
Note: Ambient air should not exceed 50˚C/122˚F. Dedicated circuit required. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek continually improves its products and reserves the right to change or improve specifications without notice.
