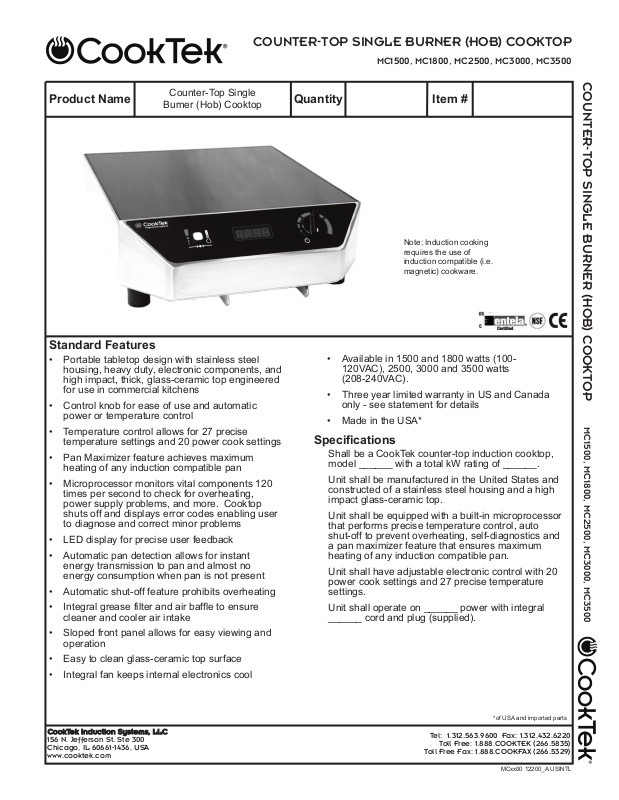

Cooktek MC1500 User Manual

COUNTER-TOP SINGLE BURNER (HOB) COOKTOP

Product Name Quantity

Counter-Top Single

Burner (Hob) Cooktop

MC1500, MC1800, MC2500, MC3000, MC3500

COUNTER-TOP SINGLE BURNER (HOB) COOKTOP

Item #

Note: Induction cooking
requires the use of
induction compatible (i.e.
magnetic) cookware.

Standard Features

• Portable tabletop design with stainless steel
housing, heavy duty, electronic components, and
high impact, thick, glass-ceramic top engineered
for use in commercial kitchens

• Control knob for ease of use and automatic
power or temperature control

• Temperature control allows for 27 precise
temperature settings and 20 power cook settings

• Pan Maximizer feature achieves maximum
heating of any induction compatible pan

• Microprocessor monitors vital components 120
times per second to check for overheating,
power supply problems, and more. Cooktop
shuts off and displays error codes enabling user
to diagnose and correct minor problems

• LED display for precise user feedback

• Automatic pan detection allows for instant
energy transmission to pan and almost no
energy consumption when pan is not present

• Automatic shut-off feature prohibits overheating

• Integral grease filter and air baffle to ensure
cleaner and cooler air intake

• Sloped front panel allows for easy viewing and
operation

• Easy to clean glass-ceramic top surface

• Integral fan keeps internal electronics cool

• Available in 1500 and 1800 watts (100­120VAC), 2500, 3000 and 3500 watts
(208-240VAC).

• Three year limited warranty in US and Canada
only - see statement for details

• Made in the USA*

Specifications

Shall be a CookTek counter-top induction cooktop,
model ______ with a total kW rating of ______.

Unit shall be manufactured in the United States and
constructed of a stainless steel housing and a high
impact glass-ceramic top.

Unit shall be equipped with a built-in microprocessor
that performs precise temperature control, auto
shut-off to prevent overheating, self-diagnostics and
a pan maximizer feature that ensures maximum
heating of any induction compatible pan.

Unit shall have adjustable electronic control with 20
power cook settings and 27 precise temperature
settings.

Unit shall operate on ______ power with integral
______ cord and plug (supplied).

MC1500, MC1800, MC2500, MC3000, MC3500

CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com

*of USA and imported parts

Tel: [phone] Fax: [phone]

Toll Free: 1.888.COOKTEK (266.5835)

Toll Free Fax: 1.888.COOKFAX (266.5329)

MCxx00 12200_A USINTL

COUNTER-TOP SINGLE BURNER (HOB) COOKTOP

COUNTER-TOP SINGLE BURNER (HOB) COOKTOP

MC1500, MC1800, MC2500, MC3000, MC3500

Dimensions

inches mm

A 16.31 414

B 13.81 350

C 3.73 94

D 4.98 126

• Dedicated circuit required

• Requires maximum (do not exceed)

ambient temperature of 50˚C/122˚F

• Cooling clearance: 2” (55mm) from

combustable materials

Specifications

Model Number MC1500 MC1800 MC2500 MC3000 MC3500

MC1500, MC1800, MC2500, MC3000, MC3500

Power Requirements 100-120VAC, 1 Ph 100-120VAC, 1 Ph 208-240VAC, 1 Ph 208-240VAC, 1 Ph 208-240VAC, 1 Ph

Power Consumption 1500W (max rating) 1800W (max rating) 2500W (max rating) 3000W (max rating) 3500W (max rating)

BTU Comparison 13,000 BTU 16,000 BTU 22,000 BTU 26,000 BTU 31,000 BTU

Voltage 100-120VAC, 50/60 Hz 100-120VAC, 50/60 Hz 208-240VAC, 50/60 Hz 208-240VAC, 50/60 Hz 208-240VAC, 50/60 Hz

Amperage 12.5A (max) 15A (max) 11A (max) 13A (max) 15A (max)

Power Range 100-1500W 100-1800W 100-2500W 100-3000W 100-3500W

Temperature Range 85-500°F / 30-260°C 85-500°F / 30-260°C 85-500°F / 30-260°C 85-500°F / 30-260°C 85-500°F / 30-260°C

Dimensions (in) 16.31” x 13.81” x 4.98” 16.31” x 13.81” x 4.98” 16.31” x 13.81” x 4.98” 16.31” x 13.81” x 4.98” 16.31” x 13.81” x 4.98”

Dimensions (mm) 414 x 350 x 126 414 x 350 x 126 414 x 350 x 126 414 x 350 x 126 414 x 350 x 126

Weight 19 lbs / 8.6 kg 19 lbs / 8.6 kg 19 lbs / 8.6 kg 19 lbs / 8.6 kg 19 lbs / 8.6 kg

Packaged Weight 24 lbs / 10.4 kg 24 lbs / 10.4 kg 24 lbs / 10.4 kg 24 lbs / 10.4 kg 24 lbs / 10.4 kg

Packaged Dims. (in) 20.75” x 18.75” x 9” 20.75” x 18.75” x 9” 20.75” x 18.75” x 9” 20.75” x 18.75” x 9” 20.75” x 18.75” x 9”

Packaged Dims. (mm) 527 x 476 x 229 527 x 476 x 229 527 x 476 x 229 527 x 476 x 229 527 x 476 x 229

Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m 6 ft / 1.8 m 6 ft / 1.8 m 6 ft / 1.8 m

Plug Type NEMA 5-15P NEMA 5-15P NEMA 6-20Pin US/Canada, country specific elsewhere

Warranty 36 months limited parts and labor in US and Canada only - see statement for details

Note: Ambient air should not exceed 50˚C/122˚F. Dedicated circuit required. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek
continually improves its products and reserves the right to change or improve specifications without notice.
