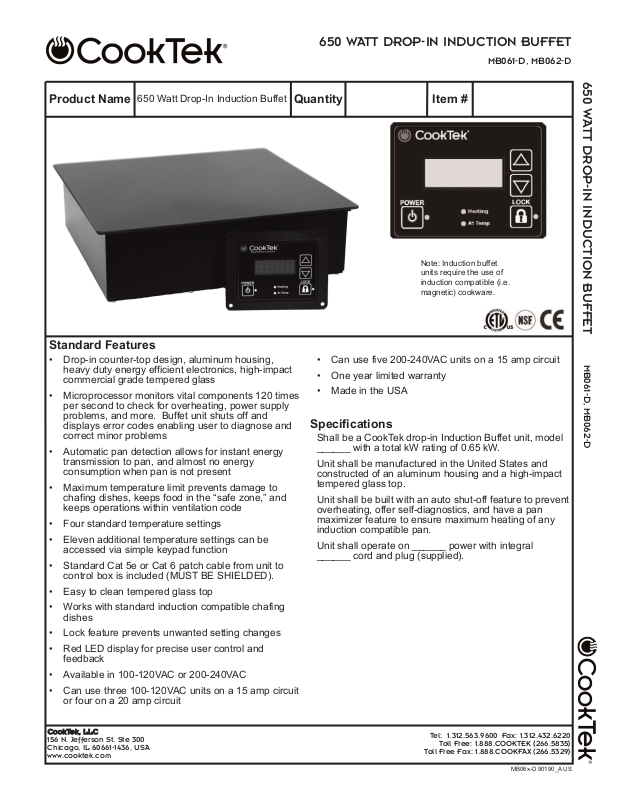

Cooktek MB061-D User Manual
650 WATT DROP-IN INDUCTION BUFFET
MB061-D, MB062-D
650 WATT DROP-IN INDUCTION BUFFET
Product Name Quantity
650 Watt Drop-In Induction Buffet
Standard Features
• Drop-in counter-top design, aluminum housing,
heavy duty energy efficient electronics, high-impact
commercial grade tempered glass
• Microprocessor monitors vital components 120 times
per second to check for overheating, power supply
problems, and more. Buffet unit shuts off and
displays error codes enabling user to diagnose and
correct minor problems
• Automatic pan detection allows for instant energy
transmission to pan, and almost no energy
consumption when pan is not present
• Maximum temperature limit prevents damage to
chafing dishes, keeps food in the “safe zone,” and
keeps operations within ventilation code
• Four standard temperature settings
• Eleven additional temperature settings can be
accessed via simple keypad function
• Standard Cat 5e or Cat 6 patch cable from unit to
control box is included (MUST BE SHIELDED).
• Easy to clean tempered glass top
• Works with standard induction compatible chafing
dishes
• Lock feature prevents unwanted setting changes
• Red LED display for precise user control and
feedback
• Available in 100-120VAC or 200-240VAC
• Can use three 100-120VAC units on a 15 amp circuit
or four on a 20 amp circuit
• Can use five 200-240VAC units on a 15 amp circuit
• One year limited warranty
• Made in the USA
Specifications
Shall be a CookTek drop-in Induction Buffet unit, model
______ with a total kW rating of 0.65 kW.
Unit shall be manufactured in the United States and
constructed of an aluminum housing and a high-impact
tempered glass top.
Unit shall be built with an auto shut-off feature to prevent
overheating, offer self-diagnostics, and have a pan
maximizer feature to ensure maximum heating of any
induction compatible pan.
Unit shall operate on ______ power with integral
______ cord and plug (supplied).
Item #
Note: Induction buffet
units require the use of
induction compatible (i.e.
magnetic) cookware.
MB061-D, MB062-D
CookTek, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
MB06x-D 90190_A US
650W DROP-IN INDUCTION BUFFET
• Cooling clearance: 2” (55mm) for front, sides, and rear,
6” (152mm) below
• Requires 6 in
(203mm) of top of cabinet, within 24” (610mm) of each
unit - venting can be slots or holes as desired
2
(3870mm2) of free air space within 8”
650W DROP-IN INDUCTION BUFFET
MB061-D, MB062-D
Dimensions
inches mm
A 14.30 363
B 15.00 381
C 14.10 358
D 3.75 95
E 0.60 15
F 0.22 5
G 3.50 88
H 4.00 101
J 3.90 99
K 3.40 86
L 5.00 127
Specifications
MB061-D, MB062-D
Model Number MB061-D MB062-D
Power Requirements 100-120VAC, 1Ph 200-240VAC, 1Ph
Power Consumption 650W (max) 650W (max)
Voltage 100-120VAC, 50/60 Hz 200-240VAC, 50/60 Hz
Amperage 5A (max) 2.7A (max)
Power Range 100-650W 100-650W
Preset Temperatures 150, 160, 175, 190°F / 65, 70, 80, 90°C 150, 160, 175, 190°F / 65, 70, 80, 90°C
Additional Temperature Settings
Dimensions (in) 15” x 15” x 3.75” 15” x 15” x 3.75”
Dimensions (mm) 381 x 381 x 95 381 x 381 x 95
Cutout Dimensions (in) 14.3” x 14.3” 14.3” x 14.3”
Cutout Dimensions (mm) 363 x 363 363 x 363
Weight 13 lbs / 5.9 kg 13 lbs / 5.9 kg
Packaged Weight 17 lbs / 7.7 kg 17 lbs / 7.7 kg
Packaged Dimensions (in) 20” x 20” x10” 20” x 20” x10”
Packaged Dimensions (mm) 508 x 508 x 254 508 x 508 x 254
Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m
Plug Type NEMA 5-15P NEMA 6-20P
Remote Control Box Cord Length 6 ft / 1.8 m 6 ft / 1.8 m
Warranty 12 months limited parts and labor 12 months limited parts and labor
Note: Ambient air should not exceed 50˚C/122˚F. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek continually improves its products
and reserves the right to change or improve specifications without notice.
CookTek, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
80, 165, 170, 180, 185, 200, 210, 220, 230, 240, 250°F
/ 30, 40, 50, 60, 75, 85, 95, 100, 105, 110, 120°C
80, 165, 170, 180, 185, 200, 210, 220, 230, 240, 250°F
/ 30, 40, 50, 60, 75, 85, 95, 100, 105, 110, 120°C
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
MB06x-D 90190_A US
