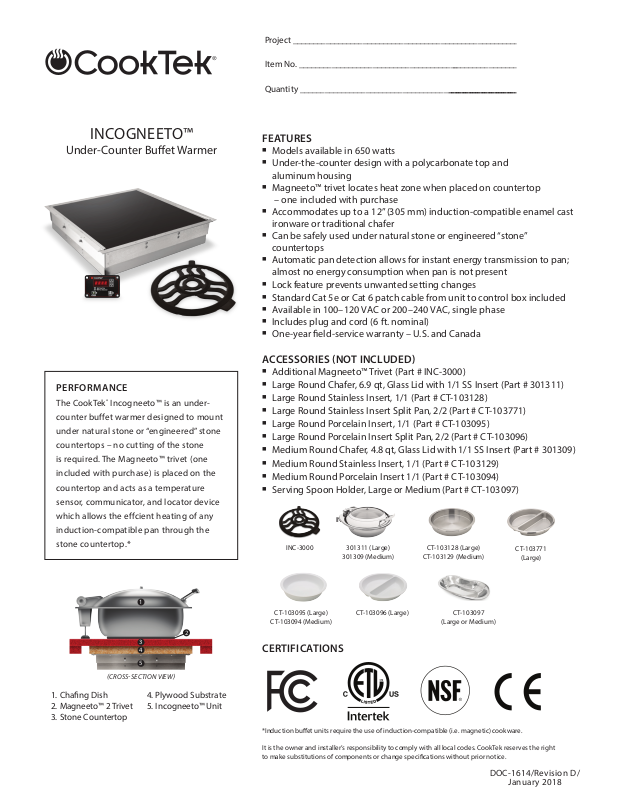

CookTek B652U2 Specifications
Proj ect _______________________________________________________
Item No. ______________________________________________________
Q u a n t i t y _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _______________________________________
INCOGNEETO™
Under-Counter Buet Warmer
PERFORMANCE
The CookTek® Incogneeto™ is an under-
counter buffet warmer designed to mount
under natural stone or “engineered” stone
countertops – no cutting of the stone
is required. The Magneeto™ trivet (one
included with purchase) is placed on the
countertop and acts as a temperature
sensor, communicator, and locator device
which allows the effcient heating of any
induction-compatible pan through the
stone countertop.*
FEATURES
n
Models available in 650 watts
n
Under-the-counter design with a polycarbonate top and
aluminum housing
n
Magneeto™ trivet locates heat zone when placed on countertop
– one included with purchase
n
Accommodates up to a 12” (305 mm) induction-compatible enamel cast
ironware or traditional chafer
n
Can be safely used under natural stone or engineered “stone”
countertops
n
Automatic pan detection allows for instant energy transmission to pan;
almost no energy consumption when pan is not present
n
Lock feature prevents unwanted setting changes
n
Standard Cat 5e or Cat 6 patch cable from unit to control box included
n
Available in 100–120 VAC or 200–240 VAC, single phase
n
Includes plug and cord (6 ft. nominal)
n
One-year eld-service warranty – U.S. and Canada
ACCESSORIES (NOT INCLUDED)
n
Additional Magneeto™ Trivet (Part # INC-3000)
n
Large Round Chafer, 6.9 qt, Glass Lid with 1/1 SS Insert (Part # 301311)
n
Large Round Stainless Insert, 1/1 (Part # CT-103128)
n
Large Round Stainless Insert Split Pan, 2/2 (Part # CT-103771)
n
Large Round Porcelain Insert, 1/1 (Part # CT-103095)
n
Large Round Porcelain Insert Split Pan, 2/2 (Part # CT-103096)
n
Medium Round Chafer, 4.8 qt, Glass Lid with 1/1 SS Insert (Part # 301309)
n
Medium Round Stainless Insert, 1/1 (Part # CT-103129)
n
Medium Round Porcelain Insert 1/1 (Part # CT-103094)
n
Serving Spoon Holder, Large or Medium (Part # CT-103097)
INC-3000
INC-3000
301311 (Large)
301309 (Medium)
CT-103128 (Large)
CT-103129 (Medium)
CT-103771
(Large)
(CROSS-SECTION VIEW)
1. Chang Dish
2. Magneeto™ 2 Trivet
3. Stone Countertop
1
3
4
5
2
4. Plywood Substrate
5. Incogneeto™ Unit
CT-103095 (Large)
CT-103094 (Medium)
CT-103096 (Large)
CT-103097
(Large or Medium)
CERTIFICATIONS
*Induction buet units require the use of induction-compatible (i.e. magnetic) cookware.
It is the owner and installer’s responsibility to comply with all local codes. CookTek reserves the right
to make substitutions of components or change specications without prior notice.
DOC-1614/Revision D/
January 2018
INCOGNEETO™
2.90”
(74 mm)
DIMENSIONS
Unit Height 4.5” 114 mm
Unit Width 17.5” 445 mm
Unit Depth 17.5” 445 mm
Interior Surface Width 15.5” 394 mm
Interior Surface Depth 15.25” 387 mm
Weight 15 lb. 6.8 kg
Max Ambient Temperature 122°F 50°C
CLEARANCE
Front 2” 51 mm
Sides 2” 51 mm
Below* 6” 152 mm
COOLING REQUIREMENTS AND SPECIFICATIONS
Min. Ventilation Requirements 16 in
Internal Cooling Fan Displacement 70 CFM (2.0m3/min)
2
*
103 cm
SHIPPING INFORMATION
Packaged Height 10” 254 mm
Packaged Width 21” 533 mm
Packaged Depth 21” 533 mm
Packaged Weight 18 lb. 8 kg
Item Class 250 NMFC #26710
* See document CT-104648 for complete Incogneeto™ installation instructions.
3.26”
(83 mm)
2.25”
(57 mm)
1.91”
(49 mm)
3.81”
(97 mm)
2.46”
(62 mm)
ELECTRICAL SPECIFICATIONS SINGLE PHASE
MODEL B651-U2
UNITED STATES/
CANADA
MODEL B652-U2
UNITED STATES/
CANADA
UK/SAUDI
ARABIA
INTERNATIONAL 660903 200–240 V, 50/60 Hz, 4 A, 100–650 W
AUSTRALIA 660904 200–240 V, 50/60 Hz, 4 A, 100–650 W
SOUTH AFRICA 660907 200–240 V, 50/60 Hz, 4 A, 100–650 W BS 546, 16A, 250V
2
ISRAEL 660908 200–240 V, 50/60 Hz, 4 A, 100–650 W SI 32, 16A, 250V
660801 100–120 V, 50/60 Hz, 6 A, 100–650 W NEMA 5-15P
660901 200–240 V, 50/60 Hz, 4 A, 100–650 W NEMA 6-20P
660902 200–240 V, 50/60 Hz, 4 A, 100–650 W BS1363, 13A, 230V
CEE 7/7 Schuko,
16A, 250V
AS/NZ 3112:2000,
10A, 250V
Dedicated circuit required for each installation.
NEMA 5-15P
NEMA 6-20P
AS/NZS 3112:2000,
10A, 250V
BS 546, 16A, 250V
BS1363, 13A, 230V
CEE 7/7 Schuko,
16A, 250V
SI 32, 16A, 250V
2801 Trade Center Drive / Carrollton, Texas 75007 USA
US: 800.90TURBO (800.908.8726) / International: +1 214.379.6000
Fax: +1 214.379.6073 / www.cooktek.com
Global Operations
© 2018 CookTek®
