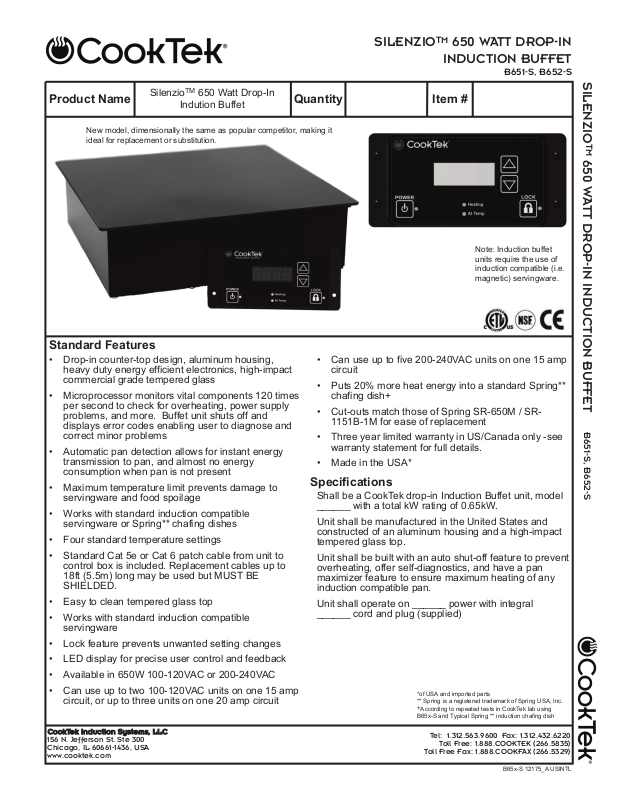

Cooktek B651-S User Manual
TM
Product Name Quantity
New model, dimensionally the same as popular competitor, making it
ideal for replacement or substitution.
Silenzio
650 Watt Drop-In
Indution Buffet
SILENZIOTM650 WATT DROP-IN
INDUCTION BUFFET
B651-S, B652-S
Item #
Note: Induction buffet
units require the use of
induction compatible (i.e.
magnetic) servingware.
SILENZIO
TM
650 WATT DROP-IN INDUCTION BUFFET
Standard Features
• Drop-in counter-top design, aluminum housing,
heavy duty energy efficient electronics, high-impact
commercial grade tempered glass
• Microprocessor monitors vital components 120 times
per second to check for overheating, power supply
problems, and more. Buffet unit shuts off and
displays error codes enabling user to diagnose and
correct minor problems
• Automatic pan detection allows for instant energy
transmission to pan, and almost no energy
consumption when pan is not present
• Maximum temperature limit prevents damage to
servingware and food spoilage
• Works with standard induction compatible
servingware or Spring** chafing dishes
• Four standard temperature settings
• Standard Cat 5e or Cat 6 patch cable from unit to
control box is included. Replacement cables up to
18ft (5.5m) long may be used but MUST BE
SHIELDED.
• Easy to clean tempered glass top
• Works with standard induction compatible
servingware
• Lock feature prevents unwanted setting changes
• LED display for precise user control and feedback
• Available in 650W 100-120VAC or 200-240VAC
• Can use up to two 100-120VAC units on one 15 amp
circuit, or up to three units on one 20 amp circuit
CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
• Can use up to five 200-240VAC units on one 15 amp
circuit
• Puts 20% more heat energy into a standard Spring**
chafing dish+
• Cut-outs match those of Spring SR-650M / SR1151B-1M for ease of replacement
• Three year limited warranty in US/Canada only -see
warranty statement for full details.
• Made in the USA*
Specifications
Shall be a CookTek drop-in Induction Buffet unit, model
______ with a total kW rating of 0.65kW.
Unit shall be manufactured in the United States and
constructed of an aluminum housing and a high-impact
tempered glass top.
Unit shall be built with an auto shut-off feature to prevent
overheating, offer self-diagnostics, and have a pan
maximizer feature to ensure maximum heating of any
induction compatible pan.
Unit shall operate on ______ power with integral
______ cord and plug (supplied)
*of USA and imported parts
** Spring is a registered trademark of Spring USA, Inc.
+
According to repeated tests in CookTek lab using
B65x-S and Typical Spring ** induction chafing dish
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free: 1.888.COOKTEK (266.5835)
Toll Free Fax: 1.888.COOKFAX (266.5329)
B65x-S 12175_A USINTL
B651-S, B652-S
SILENZIO
TM
650 WATT DROP-IN INDUCTION BUFFET
• Cooling clearance: 2” (55mm) from combustable materials, 6” (152mm) below
• The maximum (do not exceed) ambient temperature is 50˚C/122˚F.
SILENZIOTM650 WATT DROP-IN
INDUCTION BUFFET
B651-S, B652-S
Dimensions
inches mm
A 12.70 323
B 11.83 300
C 12.50 318
D 13.38 339
E 12.63 320
F 3.82 96
G 0.97 24
H 0.28 7
J 6.47 164
K 5.86 149
L 3.07 77
M 1.57 40
N 2.67 68
P 4.96 125
Specifications
Model Number
Power Requirements
Power Consumption
B651-S, B652-S
Voltage 100-120VAC, 50/60 Hz
Amperage
Power Range
Preset Temperatures
Dimensions (in)
Dimensions (mm)
Cutout Dimensions (in)
Cutout Dimensions (mm)
Weight
Packaged Weight 20 lbs / 9 kg
Packaged Dimensions (in) 17” x 17” x 9”
Packaged Dimensions (mm)
Power Cord Length
Plug Type
Remote Control Box Cord Length
Warranty
Note: Ambient air should not exceed 50˚C/122˚F. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek continually improves its products
and reserves the right to change or improve specifications without notice.
CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com
150, 160, 170, 180°F / 65, 70, 75, 80°C
36 months limited parts and labor in US/Canada only - see statement for details
B651-S
100-120VAC, 1Ph
650W (max)
5.4A (max)
100-650W
13.38” x 12.63” x 3.82”
340 x 321 x 97
12.50” x 11.63”
317.50 x 295.40
15 lbs / 6.8 kg
432 x 432 x 229
6 ft / 1.8 m
NEMA 5-15P
6 ft / 1.8 m
150, 160, 170, 180°F / 65, 70, 75, 80°C
NEMA 6-20Pin US/Canada - country specific
Tel: 1.312.563.9600 Fax: 1.312.432.6220
Toll Free Fax: 1.888.COOKFAX (266.5329)
B652-S
200-240VAC, 1Ph
650W (max)
200-240VAC, 50/60 Hz
2.7A (max)
100-650W
13.38” x 12.63” x 3.82”
340 x 321 x 97
12.50” x 11.63”
317.50 x 295.40
15 lbs / 6.8 kg
20 lbs / 9 kg
17” x 17” x 9”
432 x 432 x 229
6 ft / 1.8 m
elsewhere
6 ft / 1.8 m
Toll Free: 1.888.COOKTEK (266.5835)
B65x-S 12175_A USINTL
