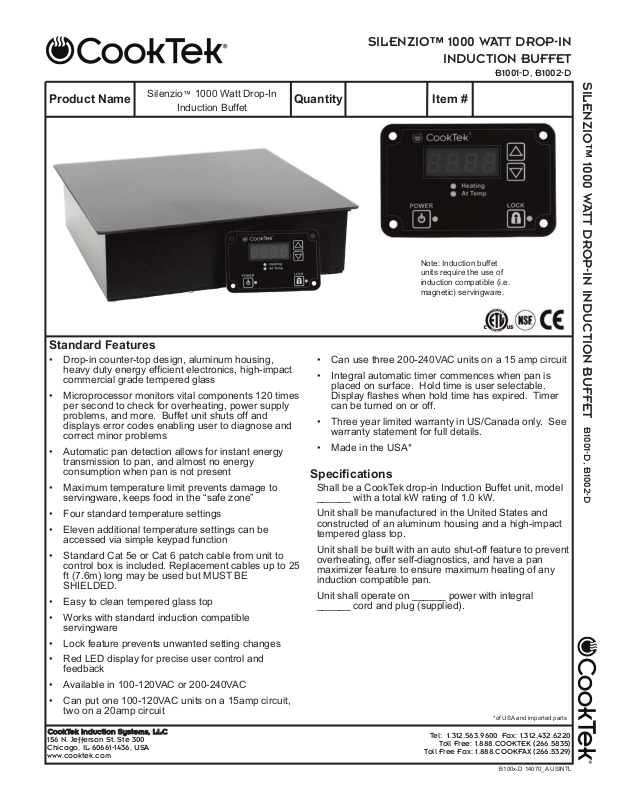

Cooktek B1001-D User Manual

Product Name Quantity

Silenzio

™ 1000 Watt Drop-In

Induction Buffet

SILENZIO™ 1000 WATT DROP-IN

INDUCTION BUFFET

B1001-D, B1002-D

Item #

Note: Induction buffet
units require the use of
induction compatible (i.e.
magnetic) servingware.

SILENZIO™ 1000 WATT DROP-IN INDUCTION BUFFET

Standard Features

• Drop-in counter-top design, aluminum housing,
heavy duty energy efficient electronics, high-impact
commercial grade tempered glass

• Microprocessor monitors vital components 120 times
per second to check for overheating, power supply
problems, and more. Buffet unit shuts off and
displays error codes enabling user to diagnose and
correct minor problems

• Automatic pan detection allows for instant energy
transmission to pan, and almost no energy
consumption when pan is not present

• Maximum temperature limit prevents damage to
servingware, keeps food in the “safe zone”

• Four standard temperature settings

• Eleven additional temperature settings can be
accessed via simple keypad function

• Standard Cat 5e or Cat 6 patch cable from unit to
control box is included. Replacement cables up to 25
ft (7.6m) long may be used but MUST BE
SHIELDED.

• Easy to clean tempered glass top

• Works with standard induction compatible
servingware

• Lock feature prevents unwanted setting changes

• Red LED display for precise user control and
feedback

• Available in 100-120VAC or 200-240VAC

• Can put one 100-120VAC units on a 15amp circuit,
two on a 20amp circuit

CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com

• Can use three 200-240VAC units on a 15 amp circuit

• Integral automatic timer commences when pan is
placed on surface.  Hold time is user selectable.
Display flashes when hold time has expired. Timer
can be turned on or off.

• Three year limited warranty in US/Canada only. See
warranty statement for full details.

• Made in the USA*

Specifications

Shall be a CookTek drop-in Induction Buffet unit, model
______ with a total kW rating of 1.0 kW.

Unit shall be manufactured in the United States and
constructed of an aluminum housing and a high-impact
tempered glass top.

Unit shall be built with an auto shut-off feature to prevent
overheating, offer self-diagnostics, and have a pan
maximizer feature to ensure maximum heating of any
induction compatible pan.

Unit shall operate on ______ power with integral
______ cord and plug (supplied).

*of USA and imported parts

Tel: [phone] Fax: [phone]

Toll Free: 1.888.COOKTEK (266.5835)

Toll Free Fax: 1.888.COOKFAX (266.5329)

B100x-D 14070_A USINTL

B1001-D, B1002-D

SILENZIO™ 1000W DROP-IN INDUCTION BUFFET

• Cooling clearance: 2” (55mm) from

combustable materials, 6” (152mm) below

• The maximum (do not exceed) ambient

temperature is 50˚C/122˚F.

SILENZIO™ 1000W DROP-IN

INDUCTION BUFFET

B1001-D, B1002-D

Dimensions

inches mm
A 14.30 363
B 15.00 381
C 14.10 358
D 3.75 95
E 1.02 26
F 0.22 5
G 2.90 74
H 2.18 55

J 3.81 97
K 3.26 83
L 2.46 62
M 1.91 49

Specifications

Model Number B1001-D B1002-D

Power Requirements 100-120VAC, 1Ph 200-240VAC, 1Ph

Power Consumption 1000W (max) 1000W (max)

Voltage 100-120VAC, 50/60 Hz 200-240VAC, 50/60 Hz

B1001-D, B1002-D

Amperage 8.5A (max) 4.2A (max)

Power Range 100-1000W 100-1000W

Preset Temperatures 150, 160, 175, 190°F / 65, 70, 80, 90°C 150, 160, 175, 190°F / 65, 70, 80, 90°C

Additional Temperature Settings

Dimensions (in) 15” x 15” x 3.75” 15” x 15” x 3.75”

Dimensions (mm) 381 x 381 x 95 381 x 381 x 95

Cutout Dimensions (in) 14.3” x 14.3” 14.3” x 14.3”

Cutout Dimensions (mm) 363 x 363 363 x 363

Weight 13 lbs / 5.9 kg 13 lbs / 5.9 kg

Packaged Weight 17 lbs / 7.7 kg 17 lbs / 7.7 kg

Packaged Dimensions (in) 20” x 20” x10” 20” x 20” x10”

Packaged Dimensions (mm) 508 x 508 x 254 508 x 508 x 254

Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m

Plug Type NEMA 5-15P

Remote Control Box Cord Length 6 ft / 1.8 m 6 ft / 1.8 m

Warranty 36 months limited parts and labor in US/Canada only - see statement for details

Note: Ambient air should not exceed 50˚C/122˚F. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek continually improves its products
and reserves the right to change or improve specifications without notice.

CookTek Induction Systems, LLC
156 N. Jefferson St. Ste 300
Chicago, IL 60661-1436, USA
www.cooktek.com

80, 165, 170, 180, 185, 200, 210, 220, 230, 240, 250°F

/ 30, 40, 50, 60, 75, 85, 95, 100, 105, 110, 120°C

80, 165, 170, 180, 185, 200, 210, 220, 230, 240, 250°F

/ 30, 40, 50, 60, 75, 85, 95, 100, 105, 110, 120°C

NEMA 6-20Pin US/Canada - country specific

elsewhere

Tel: [phone] Fax: [phone]

Toll Free: 1.888.COOKTEK (266.5835)

Toll Free Fax: 1.888.COOKFAX (266.5329)

B100x-D 14070_A USINTL
