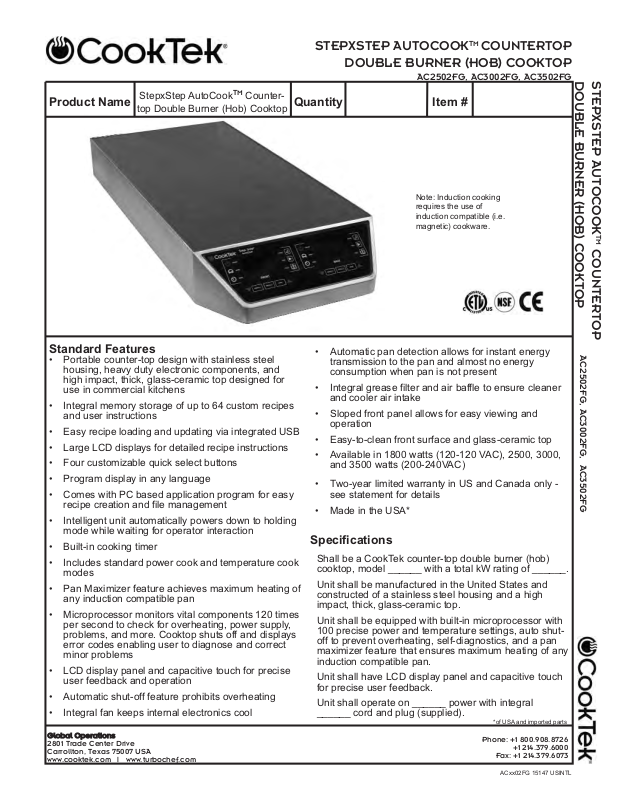

Cooktek AC2502FG User Manual
STEPXSTEP AUTOCOOK
TM
COUNTERTOP
DOUBLE BURNER (HOB) COOKTOP
AC2502FG, AC3002FG, AC3502FG
STEPXSTEP AUTOCOOK
DOUBLE BURNER (HOB) COOKTOP
Product Name Quantity
Standard Features
• Portable counter-top design with stainless steel
housing, heavy duty electronic components, and
high impact, thick, glass-ceramic top designed for
use in commercial kitchens
• Integral memory storage of up to 64 custom recipes
and user instructions
• Easy recipe loading and updating via integrated USB
• Large LCD displays for detailed recipe instructions
• Four customizable quick select buttons
• Program display in any language
• Comes with PC based application program for easy
recipe creation and file management
StepxStep AutoCookTMCounter-
top Double Burner (Hob) Cooktop
• Automatic pan detection allows for instant energy
transmission to the pan and almost no energy
consumption when pan is not present
• Integral grease filter and air baffle to ensure cleaner
and cooler air intake
• Sloped front panel allows for easy viewing and
operation
• Easy-to-clean front surface and glass-ceramic top
• Available in 1800 watts (120-120 VAC), 2500, 3000,
and 3500 watts (200-240VAC)
• Two-year limited warranty in US and Canada only see statement for details
• Made in the USA*
• Intelligent unit automatically powers down to holding
mode while waiting for operator interaction
• Built-in cooking timer
• Includes standard power cook and temperature cook
modes
• Pan Maximizer feature achieves maximum heating of
any induction compatible pan
• Microprocessor monitors vital components 120 times
per second to check for overheating, power supply,
problems, and more. Cooktop shuts off and displays
error codes enabling user to diagnose and correct
minor problems
• LCD display panel and capacitive touch for precise
user feedback and operation
• Automatic shut-off feature prohibits overheating
• Integral fan keeps internal electronics cool
Global Operations
2801 Trade Center Drive
Carrollton, Texas 75007 USA
www.cooktek.com | www.turbochef.com
Specifications
Shall be a CookTek counter-top double burner (hob)
cooktop, model ______ with a total kW rating of ______.
Unit shall be manufactured in the United States and
constructed of a stainless steel housing and a high
impact, thick, glass-ceramic top.
Unit shall be equipped with built-in microprocessor with
100 precise power and temperature settings, auto shutoff to prevent overheating, self-diagnostics, and a pan
maximizer feature that ensures maximum heating of any
induction compatible pan.
Unit shall have LCD display panel and capacitive touch
for precise user feedback.
Unit shall operate on ______ power with integral
______ cord and plug (supplied).
Item #
Note: Induction cooking
requires the use of
induction compatible (i.e.
magnetic) cookware.
*of USA and imported parts
Phone: +1 800.908.8726
+1 214.379.6000
Fax: +1 214.379.6073
ACxx02FG 15147 USINTL
TM
COUNTERTOP
AC2502FG, AC3002FG, AC3502FG
STEPXSTEP AUTOCOOK
DOUBLE BURNER (HOB) COOKTOP
STEPXSTEP AUTOCOOK
TM
COUNTERTOP
DOUBLE BURNER (HOB) COOKTOP
AC2502FG, AC3002FG, AC3502FG
• Dedicated circuit required
• Requires maximum (do not exceed) ambient temperature of 50˚C/122˚F
• Cooling clearance: 2” (55mm) from combustable materials
TM
COUNTERTOP
Dimensions
inches mm
A 30.42 772
B 13.85 351
C 4.98 126
AC2502FG, AC3002FG, AC3502FG
Specifications
Model Number AC2502FG AC3002FG AC3502FG
Power Requirements 200-240VAC, 1Ph 200-240VAC, 1Ph 200-240VAC, 1Ph
Power Consumption 5000W (max, 2x2500W) 6000W (max, 2x3000W) 7000W (max, 2.3500W)
BTU Comparison 2 x 22,000 BTU 2 x 26,000 BTU 2 x 31,000 BTU
Voltage 200-240VAC, 50/60 Hz 200-240VAC, 50/60 Hz 200-240VAC, 50/60 Hz
Amperage 22A (max) 26A (max) 32A (max)
Power Range 100-2500W per burner (hob) 100-3000W per burner (hob) 100-3500W per burner (hob)
Temperature Range 85-500°F / 30-260°C 85-500°F / 30-260°C 85-500°F / 30-260°C
Dimensions (in) 30.42” x 13.85” x 4.98” 30.42” x 13.85” x 4.98” 30.42” x 13.85” x 4.98”
Dimensions (mm) 772 x 351 x 126 772 x 351 x 126 772 x 351 x 126
Weight 31.2 lbs / 14.2 kg 31.2 lbs / 14.2 kg 31.2 lbs / 14.2 kg
Packaged Weight 45 lbs / 20.4 kg 45 lbs / 20.4 kg 45 lbs / 20.4 kg
Packaged Dimensions (in) 36” x 18” x 12” 36” x 18” x 12” 36” x 18” x 12”
Packaged Dimensions (mm) 914 x 457 x 305 914 x 457 x 305 914 x 457 x 305
Power Cord Length 6 ft / 1.8 m 6 ft / 1.8 m 6 ft / 1.8 m
Plug Type NEMA 6-30Pin US/Canada, country specific elsewhere NEMA 6-50P
Warranty 36 months limited parts and labor in US and Canada only - see statement for details
Note: Ambient air should not exceed 50˚C/122˚F. Dedicated circuit required. Many local codes exist, and it is the Owner and Installer’s responsibility to comply with those codes. CookTek
continually improves its products and reserves the right to change or improve specifications without notice.
Global Operations
2801 Trade Center Drive
Carrollton, Texas 75007 USA
www.cooktek.com | www.turbochef.com
24-month limited parts and labor in U.S./Canada - see statement for details
Phone: +1 800.908.8726
+1 214.379.6000
Fax: +1 214.379.6073
ACxx02FG 15147 USINTL
