Built-in electric oven
CLMFBK60
Barcode: 5052931668977
CLMFBK60-C&L-IM-EN-V01
Warning! Read the instructions before using the appliance.

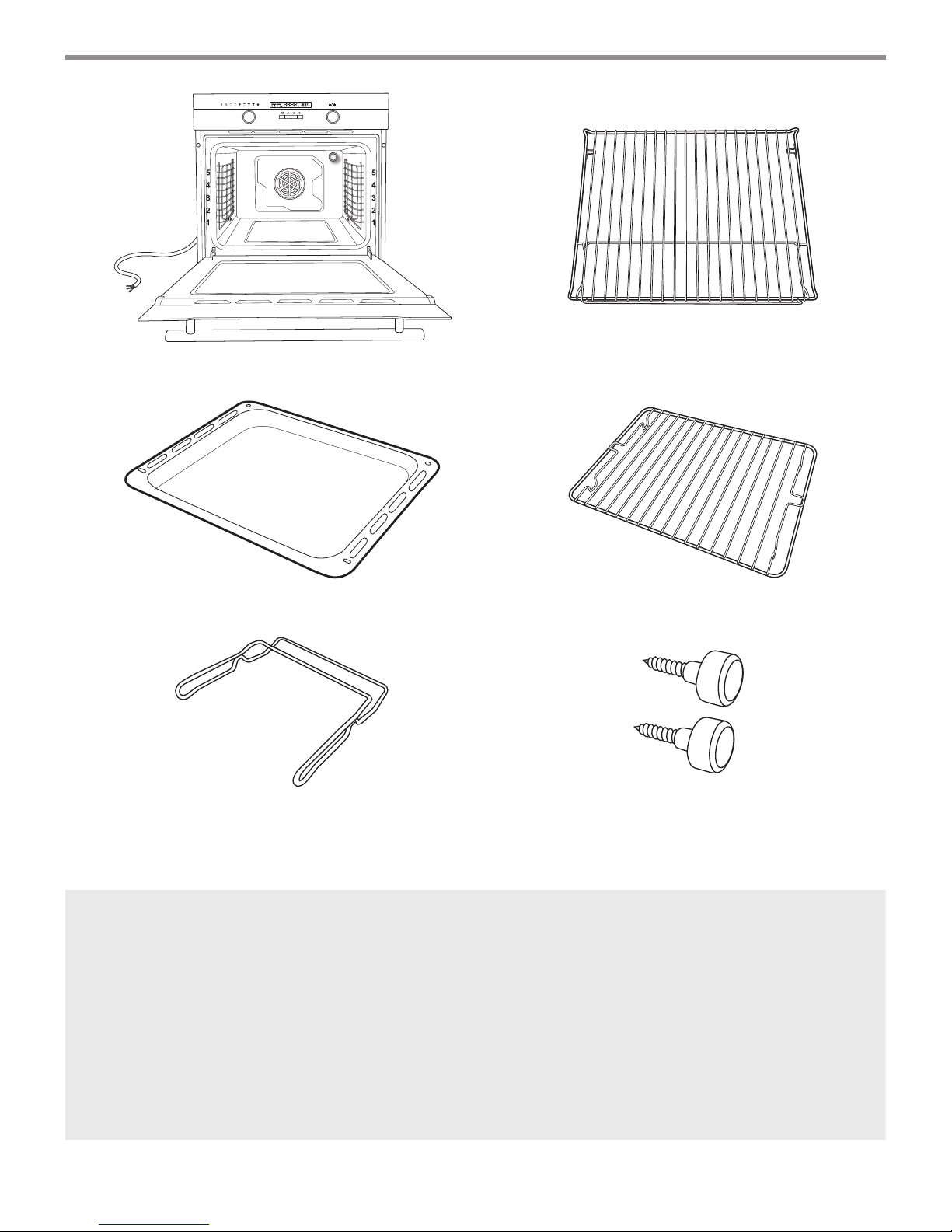

Scope of delivery
[A] x 1 [B] x 1
[C] x 1 [D] x 1
[E] x 1 [F] x 2
[A] Main unit with side rails [D] Grill trivet to place on pan for
supporting food being cooked
[B] Oven shelf [E] Handle for removing hot grill and
pans, thus avoiding direct contact
[C] Metal pan (grill pan) suitable for cooking
and also useful for collecting fats from
foods placed on the grill
[F] Screws
Built-in electric oven CLMFBK60
3
Getting started…
04
Safety 04
Your product 10
Before you start 12
In more detail…
13
Operation 13
Care and maintenance 23
Troubleshooting 27
Recycling and disposal 28
Technical and legal information 29
Guarantee 30
CE declaration of conformity 32
Installation
33
Let's
get started...
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
EN
4
Getting started...
Built-in electric oven CLMFBK60
EN
Safety
These instructions are for your safety. Please
read through them thoroughly prior to installation
and retain them for future reference.
All installation work must be carried
out by a competent person or qualied
electrician.
This appliance must be installed correctly
by a qualied person, strictly following
the manufacturer’s instructions.
This appliance complies with all current
European safety legislation, however, the
manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Do not allow the electric cables to touch the hot
parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Please dispose of the packing material carefully.
5
Getting started...
Built-in electric oven CLMFBK60
EN
Safety
Do not install the appliance outdoors in a damp
place or in an area which may be prone to water
leaks such as under or near a sink unit. In the
event of a water leak allow the machine to dry
naturally.
Do not use ammable sprays in close vicinity to
the appliance.
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Regularly check the power cord for damage.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a
danger or injury.
The appliance is not intended to be operated by
means of external timer or separated remotecontrol system.
6
Getting started...
Built-in electric oven CLMFBK60
EN
The appliance is for domestic use only.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Danger of burns! During use the appliance
becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
Warning! Accessible parts may become hot
during use. Children should be kept away.
Warning! If the door or door seals are damaged,
the oven must not be operated until it has been
repaired by a competent person.
Do not lean on the door or place any objects on
the door of the appliance. This can damage the
door hinges.
Warning! Ensure that the appliance is switched
off before replacing the lamp to avoid the
possibility of electric shock.
The oven must be installed in accordance with
installation instructions and all dimensions must
be followed.
Before connecting the appliance to the power
supply, check that the power supply voltage and
current rating corresponds with the power supply
details shown on the appliance rating label.
Safety
7
Getting started...
Built-in electric oven CLMFBK60
EN
Safety
Never use a damaged appliance! Disconnect
the appliance from the electrical outlet and
contact your retailer if it is damaged.
Danger of electric shock! Do not attempt
to repair the appliance yourself. In case of
malfunction, repairs are to be conducted by
qualied personnel only.
To avoid damaging the cord, do not squeeze,
bend or chafe it on sharp edges. Keep it away
from hot surfaces and open ames as well.
Lay out the cord in such a way that no
unintentional pulling or tripping over it is possible.
Keep the appliance and its cord out of reach of
children.
Do not operate the appliance with wet hands or
while standing on a wet oor.
Always turn the appliance off before
disconnecting it from the main power supply.
Disconnect the oven from the power supply
when not in use and before cleaning.
This appliance is classied as protection
class I and must be connected to a protective
ground (Earth).
8
Getting started...
Built-in electric oven CLMFBK60
EN
Means for full disconnection must be
incorporated in the xed wiring in accordance
with the wiring rules. To achieve this install an
appropriate circuit breaker (CB) and residual
current device (RCD). It should be installed in
an easily reachable place so that in case of
emergency the appliance can be disconnected
from power immediately.
The xed wiring must be protected against heat
surfaces.
Do not hang any objects to the handle of the
oven door.
Do not cover the bottom of the oven with
aluminium foil or other objects. Caution: Risk of
re and damage to the enamel in the oven!
Do not allow aluminium foil, plastic, paper or
fabric contact with heating elements.
Never leave the appliance unattended during
use, especially when cooking with ammable
substances (e.g., hot oil, fat, etc.).
Do not store or never use harsh chemicals,
sprays, ammable or non-food in or near the
oven. Oven is designed specically for heating or
cooking food. The use of corrosive chemicals in
heating or cleaning will damage the unit and may
cause injury.
Safety
9
Getting started...
Built-in electric oven CLMFBK60
EN
Should any food inside the oven catch re,
keep the door closed. Switch the oven off and
disconnect the power supply.
Always exercise caution when opening the door.
Move to side, open the door slowly to vent the
hot air and/or steam. Make sure your face is
away from the opening and make sure there are
no children or pets near the oven.
Only use utensils that are suitable for use in this
type of oven.
The oven should be cleaned regularly and any
food deposits removed.
Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass.
They can scratch the surface, which may result
in shattering of the glass.
A steam cleaner is not to be used.
The appliance and its accessible parts become
hot during use. Care should be taken to avoid
touching heating elements.
Children less than 8 years of age shall be kept
away unless continuously supervised.
Safety
10
Getting started...
Built-in electric oven CLMFBK60
EN
Your product
Note!
• This diagram may be slightly different from the layout of the
appliance.
• Shelf levels are numbered from the bottom up. Levels 4 and 5 are
used mainly for the grill function. Please refer to the cooking guides
provided throughout this manual to determine appropriate shelf
levels for your dishes.
9
4
6
7
8
1
3
5
10
2

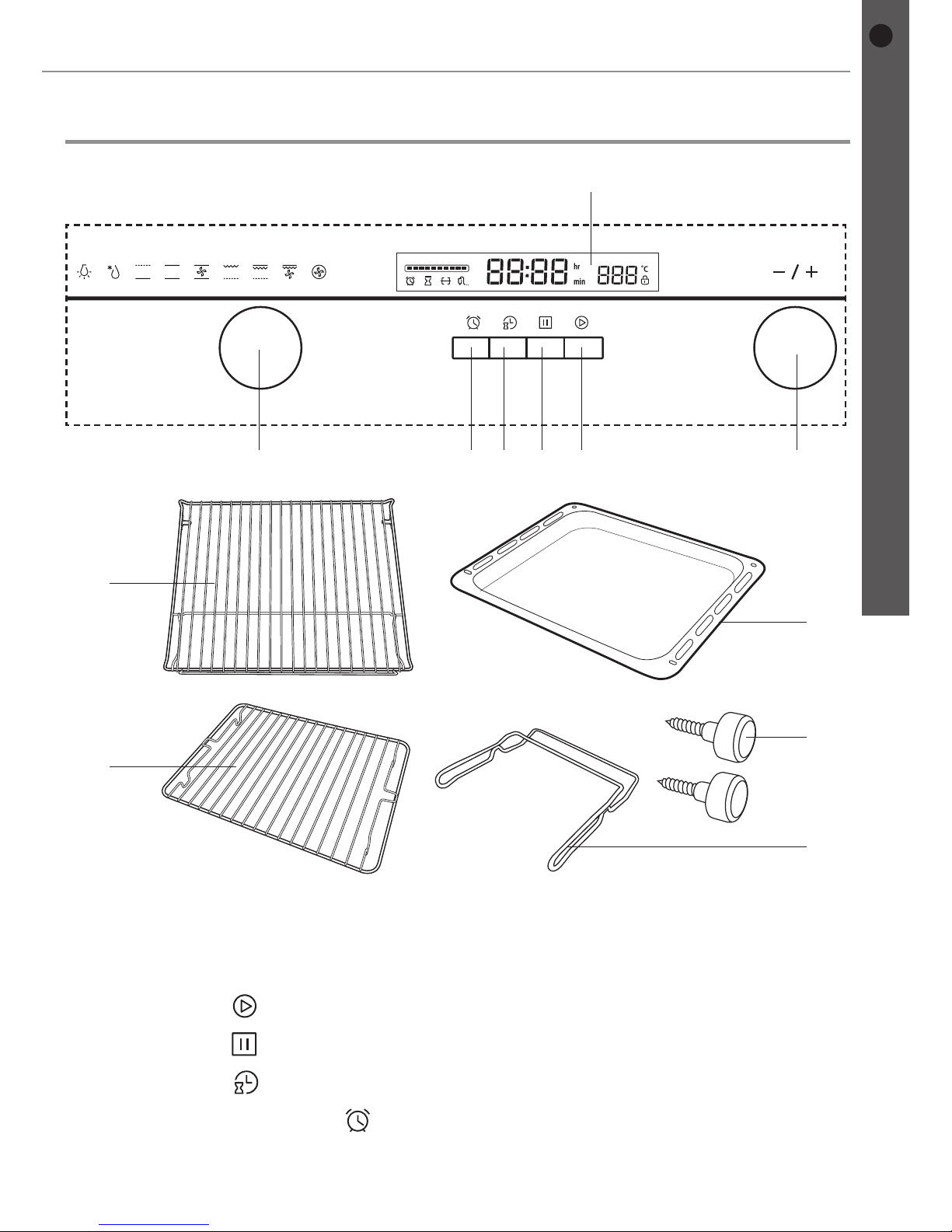

1 Control panel 6 Door
2 Fixing holes (2x) 7 Handle
3 Oven lamp 8 Power cable
4 Shelf level markings 9 Side rails
5 Fan 10 Handles for carrying the oven
Your product
11
Getting started...
Built-in electric oven CLMFBK60
EN
Your product
17 13
11
12141516
21
18
19
22
20
11 Display 17 K1 control
12 K2 control (- / +) 18 Grill pan
13
Start button
19 Screws
14
Stop button
20 Grill pan handle
15
Time button
21 Grill trivet
16
Reminder setting button
22 Oven shelf
Your product
12
Getting started...
Built-in electric oven CLMFBK60
EN
You will need (not supplied)
We advise when installing
this appliance two people
are recommended.
Installation guide
located at the end of
the guidebook
33
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that you
read the safety instructions carefully to avoid misuse and hazards. Please
keep this instruction booklet for future reference and pass it on to any future
owners. After unpacking the appliance please check that it is not damaged. If
in doubt, do not use the appliance but contact Customer Services on
0344 800 1128 (UK), 0144 75261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
If you want to buy spare parts, refer to the web-site shown on the label applied
on the door of this oven.
If you sell the appliance, give it away, or leave it behind when you move house,
make sure you also pass on this manual so that the new owner can become
familiar with the appliance and its safety warnings.
Before you start
13
In more detail...
EN
Built-in electric oven CLMFBK60
Introduction
Note!
• This multifunction oven combines the advantages of traditional
convection ovens with those of the more modern fan assisted
models in a single appliance.
• It is an extremely versatile appliance that allows you to choose easily
and safely between different cooking modes.
Note!
Before using the oven for the rst time we recommend that the oven
be switched on and set to its highest temperature. Keep the oven door
closed and leave the appliance on for 1.5 hours with nothing in it. Ensure
adequate ventilation during this process by opening doors and windows
in the room. Any odours created during this operation are due to the
evaporation of substances used to protect the appliance during storage
prior to installation.
Note!
Place the grill pan provided on the bottom shelf of the oven when
cooking fatty foods to prevent grease droplets forming on the base of
the oven. Never place anything on the bottom of the oven when it is
in operation. This could cause damage to the enamel. Always place
your cookware (dishes, aluminium foil, etc.) exclusively on the shelves
provided.
Initial cleaning
Warning!
• Clean the oven thoroughly before using it for the rst time.
• Do not use sharp or abrasive cleaning materials. These could
damage the oven surface.
1. Open the door.
2. Clean all oven accessories with warm water or washing up liquid and polish dry
with a soft clean cloth.
3. Clean the oven interior with a soft clean cloth.
4. Wipe the front of the appliance with a damp cloth.
5. Let the oven and all accessories dry well.
Operation
14
In more detail...
EN
Built-in electric oven CLMFBK60
Control elements
Controls K1 control K2 control Start
button
Stop
button
Time
button
Reminder
setting
button
How to
use
• Press to let the
control pop up.
• Press again to
withdraw it.
Press
to start
cooking.
Press to
resume
cooking
when
cooking
is
paused
already.
Press
once to
pause
cooking.
Press
twice to
cancel
cooking.
Press to
set the time
and the
cooking
reservation.
Press to
set the
alarm
reminder.
Rotate to
select the
desired
operation
modes.
Rotate
to select
the temperature
between
50 °C and
250 °C.
Rotate to
select the
cooking
time during
reservation
setting.
Rotate
to select
the hour/
minute
digits.
Setting the clock
Once the appliance is connected to the power source, the display shows . The
clock is now available for setting in 24-hour format.
1. Press to enter clock setting mode. The hour digits start to ash on the display.
2. Rotate the K2 control to select the hour digits (0-23).
3. Press to conrm. The minute digits start to ash.
4. Rotate the K2 control to select the minute digits (0-59).
5. Press to conrm.
6. The clock is now set and the timer enters standby with the time digits appearing
on the display.
Note!
• After connected to the power source, if clock is not set, the display
shows .
• When the oven is disconnected from the power source, the time
settings cannot be saved and need to be re-set.
• In order to use a timer function, the clock has to be set rst.
Operation
15
In more detail...
EN
Built-in electric oven CLMFBK60
Product functions
• This oven provides a wide range of settings and functions to choose from, as
described in the following table.
• Use the K1 control to select one of the available operating modes. The
corresponding icon illuminates.

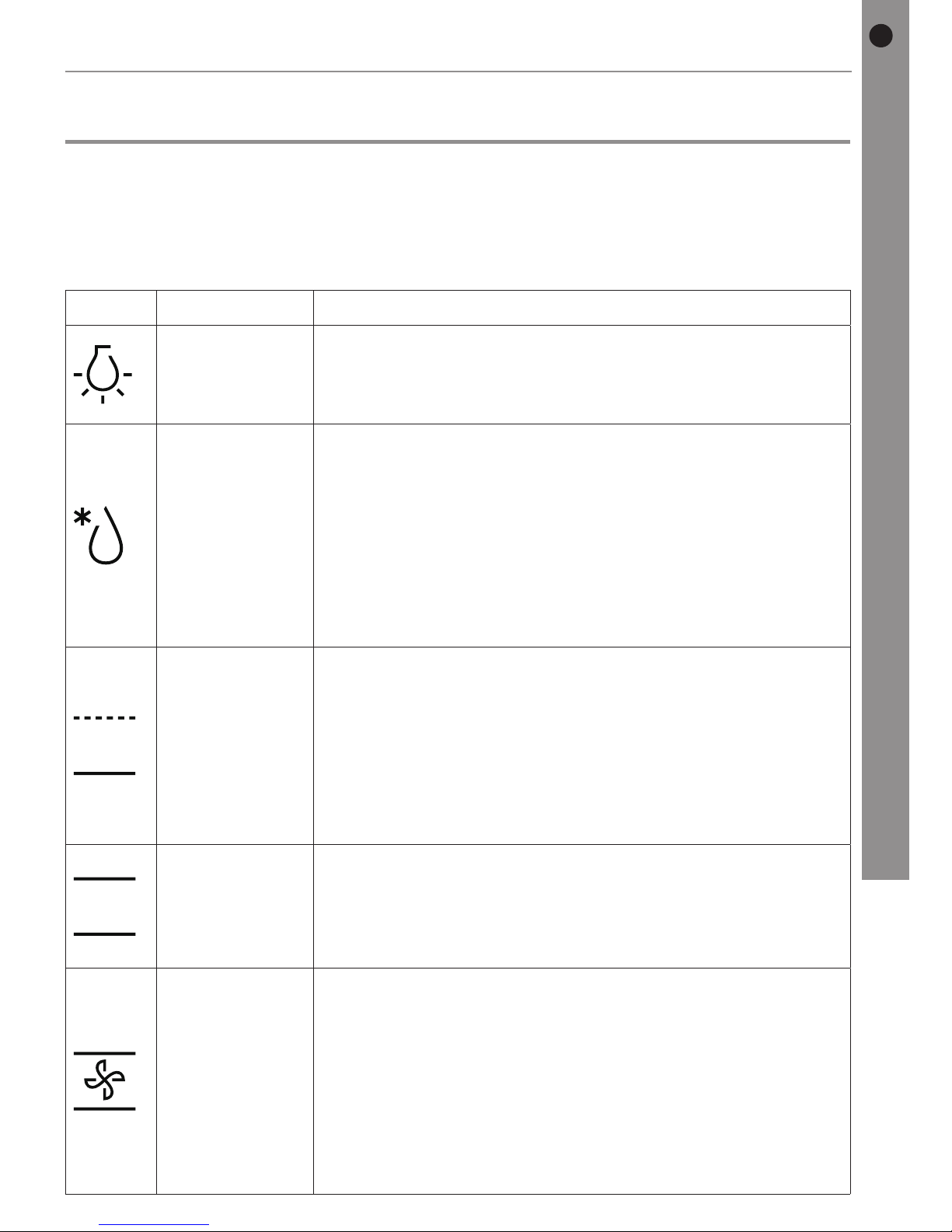

Icon Function Description
Oven lamp
With the lamp, the user can observe the cooking process
without opening the door.
The oven lamp will illuminate for all cooking functions.
Defrost
The circulation of air at room temperature enables
quicker thawing of frozen food, without the use of
any heat. It is a gentle but quick way to speed up the
defrosting time and thawing of ready-made dishes and
cream lled products, etc. Thawing times vary depending
on the quantity and type of food to be defrosted.
The advantage of defrosting at room temperature is that
it does not alter the taste and appearance of the food.
Bottom heat
A concealed element at the bottom of the oven provides
a more concentrative heat to the base of food without
browning. This is ideal for slow cooking dishes such as
casseroles, stews, pastries and pizzas where a crispy
base is desired.
The temperature can be set within the range of
60-120 °C. The default temperature is 60 °C.
Conventional
cooking
The top and bottom work together to provide
convectional cooking.
The temperature can be set within the range of
50-250 °C. The default temperature is 220 °C.
Convention
with fan
Combination of the fan and both heating elements
provides more even heat penetration,saving up to
30-40 % of energy. Dishes are lightly browned on the
outside and still moist on the inside. Note: This function
is suitable for grilling or roasting big pieces of meat at a
higher temperature.
The temperature can be set within the range of
50-250 °C. The default temperature is 220 °C.
Operation
16
In more detail...
EN
Built-in electric oven CLMFBK60
Icon Function Description
Radiant grilling
The inner heating grill element switches on and off to
maintain temperature.
The temperature can be set within the range of
180-240 °C. The default temperature is 210 °C.
Double grill
The inner heating element and the top heating element
are both working.
To use the grill ensure that your food is located in the
centre of the oven cavity and adjust the height of the
grill pan to control the browning. It is advised to use the
top shelf for small items and the lower shelves for larger
items.
The temperature can be set within the range of
180-240 °C. The default temperature is 210 °C.
Double grill
with fan
The inner heating element and the top heating element
are both working together with fan.
This mode is recommend for quick browning on the
outside but keeping the juices in. Ideal for chops and
burgers.
The temperature can be set within the range of
180-240 °C. The default temperature is 210 °C.
Convection
An heating element around the convection fan provides
an additional source of heat for convection style cooking.
In convection mode the fan automatically comes on to
improve air circulation within the oven and creates an
even heat for cooking.
This mode is suitable for cakes and pastry and to roast
joints when you want it well cooked on the outside and
tender in the middle. The oven does not need any preheating when using this mode.
The temperature can be set within the range of
50-240 °C. The default temperature is 180 °C.
Operation
17
In more detail...
EN
Built-in electric oven CLMFBK60
Practical cooking advice
• The oven offers a wide range of alternatives which allow you to cook any type of
food in the best possible way. With time you will learn to make the best use of this
versatile cooking appliance and the following directions are only a guideline which
may be varied according to your own personal experience.
• Read the information of the food packaging for the cooking temperatures and
times. Once familiar with the performance of the appliance, the temperatures and
times may be varied to adapt them to your personal tastes.
• Check that frozen food is completely thawed before cooking, unless indicated
otherwise.
Note!
The information given in the following charts is intended only as a guide.
Select the lowest temperature quoted and check the food at the end of
the shortest duration quoted.
Note!
If pre-heating is required, we recommend a duration of 5 - 15 minutes
before food should be introduced to the oven. Please remember the
pre-heating time is in addition to the time required to thoroughly cook the
product.
Conventional cooking
Food Temperature
setting (ºC)
Recommended
shelf position
from the bottom
Cooking time in
minutes
Small cakes 175 - 185 4 16 - 19
Sponge cake 180 - 185 2 20 - 25
Pizza 205 - 210 3 18 - 23
Apple yeast cake 185 - 195 4 25 - 50
Operation
18
In more detail...
EN
Built-in electric oven CLMFBK60
CONVECTION
Food Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking time in
minutes
Small cakes
(single-deck)
165 - 170 2
20 - 23
Sponge cake 160 - 165 2 30 - 40
Pizza 170 - 175 3 19 - 25
Apple yeast cake
(single-deck)
170 - 175 2 60 - 70
Small cakes
(double-deck)
165 - 170 2 (deep tray) 20 - 23
4 (shallow tray)
Apple yeast cake
(double-deck)
170 - 175 2 (deep tray) 65 - 75
4 (shallow tray)
RADIANT GRILLING
Food to be
grilled
Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking time in
minutes
Toast 240 3 4 - 5
Beef steak 240 2 15 + (6 - 8)
Operation
19
In more detail...
EN
Built-in electric oven CLMFBK60
DOUBLE GRILL
Food to be
grilled
Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking time in
minutes
Beef steak 240 4 15 + (6 - 8)
DOUBLE GRILL WITH FAN
Food to be
grilled
Temperature
setting (ºC)
Recommended
Shelf position
from the bottom
Cooking time in
minutes
Chicken 180 - 195 2 55 - 65 (Turn after:
35 min)
Goose 180 - 195 2 75 - 88 (Turn after:
35 min)
Roasted joint of
pork
180 - 195 1
135 - 150
Operation
20
In more detail...
EN
Built-in electric oven CLMFBK60
Switching on/off
1. Rotate the K1 control to select the desired cooking function. The corresponding
icon illuminates.
2. Press the K2 control to adjust temperature. Then press to start.
3. If steps 2 is ignored, just press to start cooking. The default cooking time is
9 hours while the default temperature is appearing on the display.
4. Rotate the K1 control to adjust the cooking time when cooking begins. Press
to conrm. If not pressed within 3 seconds, the oven will continue cooking with
the previous cooking time.
Time range Time increment
0 - 30 min. 1 min.
30 min. - 9 hours 5 min.
5. Rotate the K2 control to adjust the cooking temperature when cooking begins.
Press to conrm. If not pressed within 3 seconds, the oven will continue
cooking with the previous cooking temperature.
Functions Temperature increment
Grill function 30 °C
Other functions 5 °C
6. At the cooking completion, the oven beeps 5 seconds and enters standby.
Note!
• Once the cooking function has been set and is not pressed within
5 minutes, the oven will show the current time or return to standby.
This indicates the set cooking function is invalid.
• When a control/button is pressed effectively, there will be a beep. If
not, there will be no beep response.
The following shows how to reduce total environmental impact (e.g. energy use) of
the cooking process.
• Try not to open or close the oven door frequently during cooking.
• Keep the oven door clear so that you can look in during cooking easily.
• If possible, defrost frozen food in a way which does not need any power
consumption.
• It takes less time to cook food which has large surface area to volume ratio.
Operation
21
In more detail...
EN
Built-in electric oven CLMFBK60
Setting an alarm reminder
You have the possibility to set a timer to remind you to turn on the oven. You can also
use this function as a kitchen timer to set a time frame for other tasks not necessarily
related to this oven. The timer can be set in a time range between a minimum of
1 minute, and a maximum of 9 hours and 59 minutes.
Note! This function can only be activated when the oven is in standby and not in
operation.
1. Press to enter reminder setting mode. The hour digits start to ash on the
display.
2. Rotate the K2 control to select the hour digits (0-9).
3. Press to conrm. The minute digits start to ash.
4. Rotate the K2 control to select the minute digits (0-59).
5. Press to conrm. The alarm reminder is thus activated and starts countdown.
6. When the set time is expired, the oven beeps 10 seconds. Press any button to
stop alarming.
Note! During reminder setting, press once to cancel the it. After the reminder has
been set, press twice to cancel it.
Reserving automatic start time
This function is used to set the automatic start time of the oven. Before using this
function, ensure to:
• Place the food into the oven.
• Set the clock.
1. Press to enter reservation setting mode. The hour digits start to ash.
2. Rotate the K2 control to select the hour digits (0-23).
3. Press to conrm. The minute digits start to ash.
4. Rotate the K2 control to select the minute digits (0-59).
5. Rotate the K1 control to select cooking function.
6. Press to activate cooking time/temperature setting. Rotate the K1 control to
adjust the cooking time, then K2 control to adjust the cooking temperature.
7. Press to conrm the settings. The current time and the reservation icon
keep illuminating on the display.
8. Press to check the reservation time if needed.
9. When the reservation time is expired, the oven beeps once and starts
automatically. The reservation icon goes off.
Operation
22
In more detail...
EN
Built-in electric oven CLMFBK60
Note!
• The defrost function cannot be reserved.
• The alarm reminder function is invalid in reservation state.
• In the reservation mode, press once to check the reservation
time and temperature, but the reservation is paused. Press again
to stop the reservation and return to the clock mode, or press to
return to the reservation mode.
Inquiring function
Mode Description
Working mode
If the clock is already set, press to check the current time.
if the alarm reminder is already set, press to check the time of
alarm reminder.
Alarm reminder
mode
If the clock is already set, press to check the current time.
Clock display
mode
if the reservation is already set, press to check the time of
reservation.
Child lock function
1. Enabling the child lock: In waiting or working state, press and hold and
for 3 seconds. The appliance gives out a long beep, indicating the child lock
function is set. The child lock icon keeps illuminating on the display.
2. Disabling the child lock: In locked state, press and hold and for
3 seconds. The appliance gives out a long beep, indicating the child lock function
is disabled. The child lock icon disappears from the display.
Energy saving function
• In waiting state and reminding state, press and hold for 3 seconds. The display
goes off, indicating the oven enters energy saving mode.
• If no operation within 10 minutes under waiting state, the display goes off,
indicating the oven enters energy saving mode.
• Quitting the energy saving: Press any key or rotate any control.
Operation
23
In more detail...
EN
Built-in electric oven CLMFBK60
Care and maintenance
Warning!
Always switch off the electricity
supply before performing
maintenance work. In the event
of a fault, contact customer
services.
FUSE
OFF
Caution!
Do not use hot water, diluent, petrol, alcohol, kerosene, washing powder,
cleanser, alkaline detergent, acid, chemical cloth, etc. for cleaning so as
not to damage the enamel coating and plastic. The appliance must not
be cleaned directly with water as this could cause rusting or render the
insulation less efcient.
• The enamelled and stainless steel parts of the appliance should be wiped clean
using a damp cloth using the minimum possible amount of soap and lukewarm
water. Do not use abrasive powders or corrosive substances which could ruin the
surfaces. Remember stainless steel could tarnish and restoring these surfaces
can be difcult. Specialist stainless steel cleaners are available from major
supermarkets. After cleaning, these surfaces should be wiped with a clean cloth
and lukewarm water to remove any traces of detergent.
Warning!
Do not use excessive amounts of water when cleaning the product.
• If the oven is in use for an extended length of time, condensation may form. Once
the oven has cooled, remove the condensation using a dry cloth.
• The inside of the oven should ideally be cleaned when the oven is still warm using
a damp cloth and the minimum possible amount of soap and hot water. After
cleaning the soap should be removed using a clean damp cloth and hot water.
Dry the interior of the oven with a soft dry cloth after cleaning.
• Do not use abrasive powders, cleaners, sponges or acids (lime scale remover) to
clean the interior as these can damage the enamel. If the interior is very difcult
to clean use a specialist oven cleaner. Follow closely the instructions provided on
the packaging.
Care and maintenance
24
In more detail...
EN
Built-in electric oven CLMFBK60
Care and maintenance
Warning!
Never use a steam cleaner to clean the inside of the oven.
For easier cleaning of the oven interior, the side rails can be removed.
1. Remove all pans and grills from inside the oven to easily access the side rails.
2. Loosen the screws xing the side rails.
3. After thorough cleaning, dry the oven and the side rails well.
4. Attach the side rails to the oven walls and x with the screws.
Care and maintenance
25
In more detail...
EN
Built-in electric oven CLMFBK60
How to keep your oven in good condition
Before cleaning your oven, or performing maintenance, disconnect it from the power
supply.
To extend the life of your oven, it must be cleaned frequently, keeping in mind that
• The enamelled or stainless steel parts should be washed with lukewarm water
without using any abrasive powders or corrosive substances which could ruin
them. Stainless steel could get stained. If these stains are difcult to remove, use
special products available on the market. After cleaning, it is advisable to rinse
thoroughly and dry.
• The inside of the oven should preferably be cleaned immediately after use, when
it is still warm, with hot water and soap. The soap should be rinsed away and the
interior dried thoroughly. Avoid using abrasive detergents (for example cleaning
powders, etc.) and abrasive sponges for dishes or acids (such as lime scale
remover, etc.) as these could damage the enamel. If the grease spots and dirt are
particularly tough to remove, use a special product for oven cleaning, following
the instructions provided on the packet.
• Never use a steam cleaner for cleaning inside of oven.
• If you use your oven for an extended period of time, condensation may form. Dry
it using a soft cloth.
• There is a rubber seal surrounding the oven opening which guarantees its perfect
functioning. Check the condition of this seal on a regular basis. If necessary,
clean it and avoid using abrasive products or objects to do so. Should it
become damaged, please contact your nearest After-Sales Service Centre. We
recommend you avoid using the oven until it has been repaired.
• Never put aluminium foil at the bottom of the oven, as the build up of heat could
compromise cooking and even damage the enamel.
• Clean the glass door using non-abrasive products or sponges and dry it with a
soft cloth.
Information for dismantling
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should not
be disposed of with household waste. Check with your Local Authority or retainer for
recycling advice.
Care and maintenance
26
In more detail...
EN
Built-in electric oven CLMFBK60
Replacing the oven light bulb
Warning!
Always disconnect the appliance from
the electricity supply before performing
maintenance work.
Important!
The bulb in the oven lamp is a special bulb and has high temperature
resistance. Replace only with a bulb of the same type.
Warning!
During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven. Wait until all parts have
cooled down.

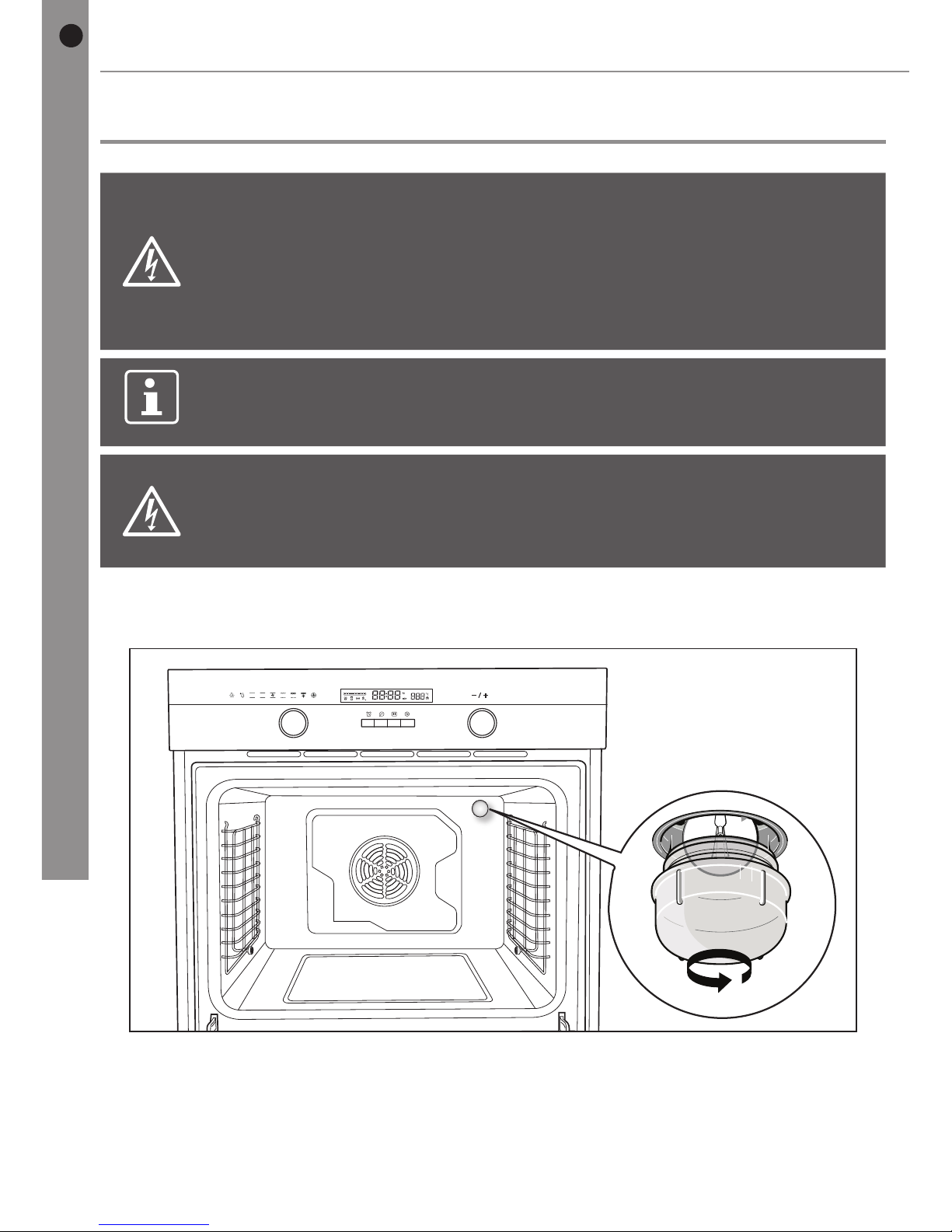

• Remove all pans and grills from inside the oven to easily access the bulb.
• The oven lamp is situated at the rear of the oven cavity.
• Unscrew the glass cover.
• Unplug the old light bulb. Dispose of it safely and ecologically.
• Insert a new bulb of the same type (G9 halogen lamp, T 300 °C, 220-240 V~,
25 W) in place. Make sure it is correctly inserted.
• Screw the glass cover back into place.
Care and maintenance
27
In more detail...
EN
Built-in electric oven CLMFBK60
Troubleshooting
FAQ Solution
What should I do if the
oven does not heat up?
Check to see if one of the following actions resolves
the issue:
• The oven may not be switched on. Switch on the
oven. Make sure that the buttons you press emit
an operation sound, otherwise you may not have
pressed correctly.
• Check to see if the required settings have been
applied.
• A household fuse may have blown or a circuit
breaker may have tripped.
• Replace the fuses or reset the circuit. If this
happens repeatedly, call the Service Centre.
What should I do if, even
though the oven function
and temperature have
been set, the oven does
not heat up?
There may be problems with the internal electrical
components. Call the Service Centre.
What should I do if I
cannot change the set
temperature?
Make sure to have used the temperature control
correctly ( Control elements).
What should I do if I
cannot change the timer
settings?
Make sure to have used the time buttons correctly
( Control elements).
What should I do if the
time display is changed to
?
There was a power failure. Set the time again
( Setting the clock).
What should I do if the
oven light does not
illuminate?
The oven light is faulty. Replace the oven light bulb
( Replacing the oven light bulb).
The grill does not heat up
properly?
The grill power is set too low. Turn the temperature
control to a higher temperature.
Care and maintenance
28
In more detail...
EN
Built-in electric oven CLMFBK60
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice.
The symbol on the product or its packaging indicates that this product
cannot be treated as normal household waste. This product must be
handed over to an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help to avoid possible
negative consequences for the environment and public health, which could occur
if this product is not handled correctly. To receive more detailed information about
recycling this product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Recycling and disposal
29
In more detail...
EN
Built-in electric oven CLMFBK60
Technical data
Technical information
Power supply : 220 - 240 V~, 50/60 Hz
Output power : Max. 2700 W
Legal information
The manufacturer declines all liability for damage caused to persons and objects due
to incorrect or improper installation of the appliance.
Technical parameters (www.diy.com)
Item Symbol Value Unit
Declared
Model identication CLMFBK60
Type of oven Built-in electric oven
Mass of the appliance M 31 kg
Number of cavities 1
Heat source per cavity (electricity
or gas)
Electricity
Volume per cavity V 70 L
Energy consumption (electricity)
required to heat a standardised
load in a cavity of an electric
heated oven during a cycle in
conventional mode per cavity
(electric nal energy)
EC
electric cavity
0.99 kWh/cycle
Energy consumption required
to heat a standardised load in a
cavity of an electric heated oven
during a cycle in fan-forced mode
per cavity (electric nal energy)
EC
electric cavity
0.89 kWh/cycle
Energy Efciency Index per
cavity
EEI
cavity
106.0
The measurement and calculation method of the above table was done in accordance
with commission regulation (EU) No 65/2014 & 66/2014.
Technical and legal information
30
In more detail...
EN
Built-in electric oven CLMFBK60
Guarantee
This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed by the
engineer approved by GAA then we reserve the right, at our discretion, to exchange
the defective product with a replacement appliance at GAA’s sole cost. If the same
product is no longer available an alternative will be offered with the same functions as
the faulty item.
After an appliance has been repaired or replaced any remaining balance of the GAA
guarantee will be valid and any further call outs during this prescribed period will be
covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair the
appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but is
not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish your
legal rights.
Guarantee
31
In more detail...
EN
Built-in electric oven CLMFBK60
Guarantee
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to store,
assemble, install, use or care of the products in accordance with the manufacturer’s
instructions - GAA will not accept responsibility under this guarantee if a product is
damaged or becomes defective due to, misuse, neglect, wilful or accidental damage
or act of god.
Normal wear and tear.
Consumable items such as carbon lters and bulbs.
Claims arising from non-domestic use or commercial environment.
Any gas appliance not tted by a gas safe qualied installer.
If no fault is found then GAA reserves the right to charge for the call out at the going
rate.
In the course of the service work carried out it may be necessary to remove the built
in appliance from its tted position. If the appliance is glued, grouted or tiled in such
a manner that it cannot be removed, it is the responsibility of the customer/installer to
remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAA Ltd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland Republic of Ireland (Eire)
Phone: 0344 800 1128* Phone: 014475261
Email: uksupport@apelson.co.uk
Web: www.spareszone.co.uk
*Local call rates apply.
Guarantee
32
In more detail...
EN
Built-in electric oven CLMFBK60
CE declaration of conformity
Built-in oven
David Sala
CLMFBK60
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
MACHINE APPLICATION:
TYPE :
EC DIRECTIVES APPLIED:
APPLIED HARMONIZED
STANDARDS:
Technical Manager
We hereby certify that the mentioned accessory complies with the essential requirements of the
European Directives applicable, including their modifications and the corresponding transpositions
from the national law.
EN 60335-2-6；EN 60335-1；EN 62233
EN 55014-1；EN 55014-2；EN61000-3-2；EN61000-3-3
Comply with the European Directives 2014/35/EU: LVD and
the 2014/30/EU: EMC
MANUFACTURER: CATA
ADDRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
This appliance respects laws of the suppression of radio-interference.
As the manufacturer has a policy of continuous product improvement, it reserves
the right to adapt and carry out any modication considered necessary without prior
warning.
B&Q plc,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
CE declaration of conformity
33
01
Warning! Danger of electric shock!
The power supply to the appliance must
be cut off before the appliance is installed
completely.
Only a qualied person in compliance with the instructions provided can install the
appliance. The manufacturer declines all responsibility for improper installation, which
may harm persons and animals and damage property.
Installation of Built-in Ovens
For correct installation, this product can be tted under the work surface in a built under
housing unit or in a tall oven housing unit.
Caution!
The panels of the adjacent cabinets must be made of heat-resistant
material. In particular the adhesive that bonds the plastic laminate to
the furniture must be able to withstand temperatures of not less than
120 °C to avoid delamination. The appliance must be housed in
heat-resistant cabinets.
Installation
575 mm
595 mm
595 mm
560 mm
21 mm
565 mm
min.
580
mm
600 mm
45 mm
34
02
Figure above shows the air circulation requirements including a slot that should be cut
into the plinth if tted.
It is essential when installing your oven there is adequate air circulation around the
appliance to ensure the correct operation of the appliance. Inadequate air circulation will
greatly impair the performance of the appliance and can affect adjacent cabinets due
to the rise in temperature. The panels of the kitchen unit that are next to the oven must
be made of a heat resistant material. Ensure that the glues of units that are made of
veneered wood can withstand temperatures of at least 120 ºC. Remove the back of the
kitchen unit to ensure an adequate current of air circulates around the oven.
min. 2 mm
min. 45 mm at rear
min. 200 mm
min. 10 mm
10 mm
Upper vent
Ensuring sufcient ventilation
35
Electrical connection
All installation work must be carried out by a competent person or
qualied electrician.
Before connecting the mains supply, ensure that the mains voltage
corresponds to the voltage on the rating plate on the appliance.
Warning!
This appliance must be earthed.
Mains Supply could be connected to the Mains Voltage by Direct Connection.
USE A 13 AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Warning!
Make sure the fused spur outlet is located in an accessible position.
Direct Connection
• If the appliance is being connected directly to the mains, an omnipolar circuit-breaker
must be installed with a minimum opening of 3 mm between contacts.
• If the cable is damaged or to be replaced, the operation must be carried out by a
qualied electrician with dedicated tools to avoid any accidents.
• The installer must ensure that the correct electrical connection has been made and
that it complies with wiring diagram.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.
36
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E. Regulations
and local electricity company regulations. For your own safety a qualied electrician or
contractor who is on the roll of the National Inspection Council for Electrical Installation
Contracting (NICEIC) should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to the
voltage on the rating plate on the appliance.
Warning!
This appliance must be earthed.
The appliance is supplied with a 3-core mains cable and must be connected to the
electricity supply via a double pole switch having a 3 mm minimum contact gap on each
connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 13 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
Green and Yellow = - Earth
The connection point must be placed in a position adjacent to the appliance so as to be
readily accessible for an engineer in the event of a breakdown.
Disconnect the appliance from the mains supply before carrying out any kind of
maintenance or cleaning.
37
03
Connect to mains power supply ensuring the cable is not bent.
Lift the oven into housing unit using the 2 handles at the sides of the appliance. Do not lift
it with the door handle, otherwise, the glass door might shatter.
Caution!
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualied persons in order to avoid a hazard.
04
Once the oven has been lifted into place inside the housing unit, use the 2 holes located
within the sides of the metal casing of the oven to secure it. Secure with the 2 screws [F].
[F] x 2
Handling and xing the oven
38
05
Adjusting the shelf position
• To minimize the risk of burns when handling hot pans, grills or oven dishes, always
ensure to place pan and grill correctly between the side rails.
Caution!
When placing the grill trivet or pan, slowly slide onto the side rails and
ensure it rests evenly and stably on the side rails.
• For better cooking, other tools, e.g. a rotisserie (not provided), can be used. The
rotisserie works in combination with the grill element to heat the food equally.
EN
B&Q plc,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
Loading...
