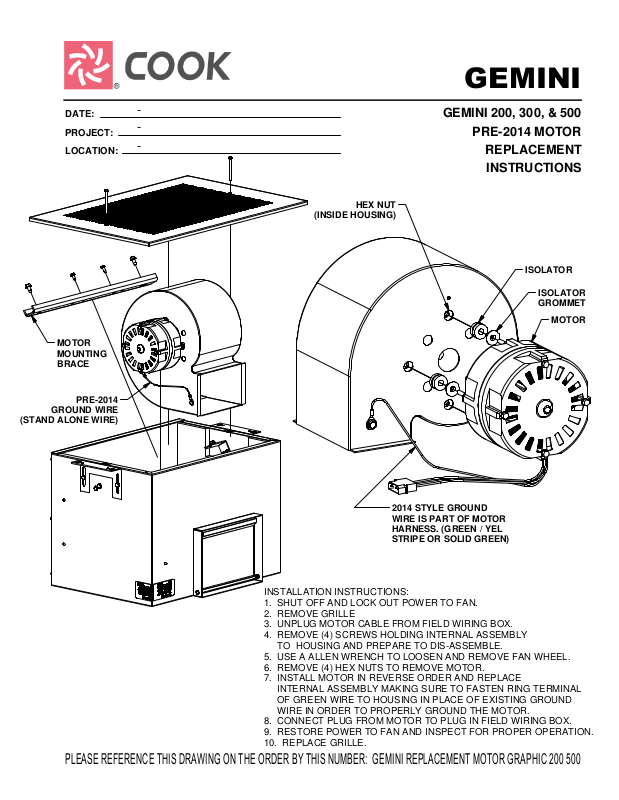

COOK GEMINI 200, 300, 500 User Manual

GEMINI

DATE:

PROJECT:

LOCATION:

MOTOR
MOUNTING
BRACE

PRE-2014

GROUND WIRE

(STAND ALONE WIRE)

-

-

-

GEMINI 200, 300, & 500

PRE-2014 MOTOR

REPLACEMENT

INSTRUCTIONS

HEX NUT

(INSIDE HOUSING)

ISOLATOR

ISOLATOR
GROMMET

MOTOR

2014 STYLE GROUND
WIRE IS PART OF MOTOR
HARNESS. (GREEN / YEL
STRIPE OR SOLID GREEN)

INSTALLATION INSTRUCTIONS:

1. SHUT OFF AND LOCK OUT POWER TO FAN.

2. REMOVE GRILLE

3. UNPLUG MOTOR CABLE FROM FIELD WIRING BOX.

4. REMOVE (4) SCREWS HOLDING INTERNAL ASSEMBLY
TO HOUSING AND PREPARE TO DIS-ASSEMBLE.

5. USE A ALLEN WRENCH TO LOOSEN AND REMOVE FAN WHEEL.

6. REMOVE (4) HEX NUTS TO REMOVE MOTOR.

7. INSTALL MOTOR IN REVERSE ORDER AND REPLACE
INTERNAL ASSEMBLY MAKING SURE TO FASTEN RING TERMINAL
OF GREEN WIRE TO HOUSING IN PLACE OF EXISTING GROUND
WIRE IN ORDER TO PROPERLY GROUND THE MOTOR.

8. CONNECT PLUG FROM MOTOR TO PLUG IN FIELD WIRING BOX.

9. RESTORE POWER TO FAN AND INSPECT FOR PROPER OPERATION.

10. REPLACE GRILLE.

PLEASE REFERENCE THIS DRAWING ON THE ORDER BY THIS NUMBER: GEMINI REPLACEMENT MOTOR GRAPHIC 200 500
