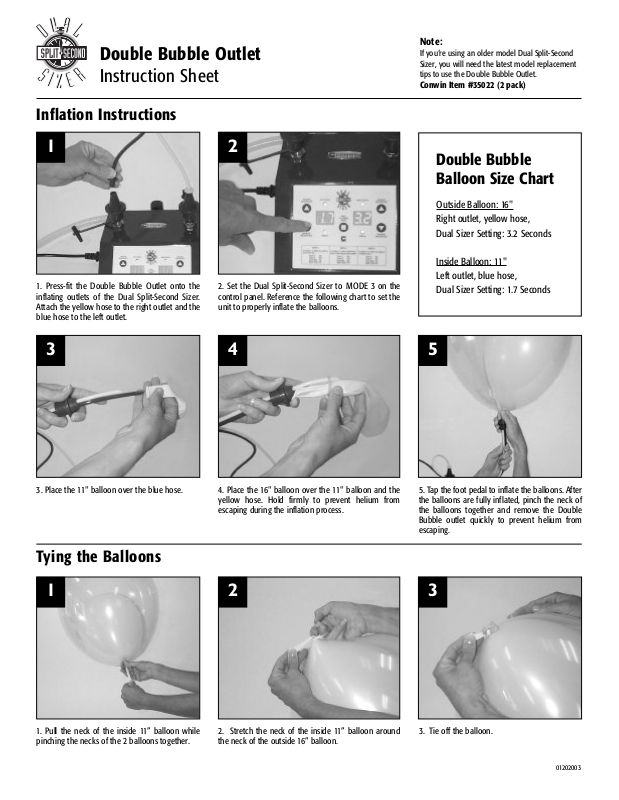

Double Bubble Outlet
Instruction Sheet
Inflation Instructions
1 2
1. Press-fit the Double Bubble Outlet onto the
inflating outlets of the Dual Split-Second Sizer.
Attach the yellow hose to the right outlet and the
blue hose to the left outlet.
2. Set the Dual Split-Second Sizer to MODE 3 on the
control panel. Reference the following chart to set the
unit to properly inflate the balloons.
Note:
If you’re using an older model Dual Split-Second
Sizer, you will need the latest model replacement
tips to use the Double Bubble Outlet.
Conwin Item #35022 (2 pack)
Double Bubble
Balloon Size Chart
Outside Balloon: 16"
Right outlet, yellow hose,
Dual Sizer Setting: 3.2 Seconds
Inside Balloon: 11"
Left outlet, blue hose,
Dual Sizer Setting: 1.7 Seconds
3 4 5
3. Place the 11" balloon over the blue hose. 4. Place the 16" balloon over the 11" balloon and the
yellow hose. Hold firmly to prevent helium from
escaping during the inflation process.
Tying the Balloons
1 2 3
5. Tap the foot pedal to inflate the balloons. After
the balloons are fully inflated, pinch the neck of
the balloons together and remove the Double
Bubble outlet quickly to prevent helium from
escaping.
1. Pull the neck of the inside 11” balloon while
pinching the necks of the 2 balloons together.
2. Stretch the neck of the inside 11” balloon around
the neck of the outside 16” balloon.
3. Tie off the balloon.
01202003
