Installationshandbuch
1
Installationshandbuch
CC-6601-A
Stand: Januar 2012 Convision Systems GmbH
www.convision.com
IP Network Camera
1
The examples of access/controls are as follows:
To record Event in FTP server installed in remote place.
To search / delete / down-load / replay the recorded video.
To support PoE (optional) for easy and convenient installation.
Notice : IP camera’s appearance, function and specification may be changed without
prior notification.
2
IMPORTANT NOTES for Safety Precaution
. Please be sure to read the following with carefulness, before installing the product,
Make sure to turn off the power before installing camera
Do not install under the direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified in the
specification.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the product. It may cause a failure or electric shock on the
components.
To prevent from overheating, make sure to keep the distance at least 10cm from the
ventilation hole.
Check for proper voltage before connecting the power.
3
Table of Content
1 Introduction ........................................................................................................... 4
1.1 About User Manual ........................................................................................ 4
1.2 Feature ........................................................................................................ 4
1.3 Product and Accessories ................................................................................ 5
1.4 Part Names and Functions ............................................................................. 6
1.4.1 Front view of camera ..................................................................... 6
1.4.2 Rear view of camera ...................................................................... 6
1.4.3 Sensor Port ......................................................................................... 7
1.4.4 Alarm Port .......................................................................................... 7
2 Installation ............................................................................................................. 8
2.1 Connecting Network (LAN) ............................................................................. 8
2.2 Connecting Audio .......................................................................................... 8
2.3 Connecting Serial Ports .................................................................................. 8
2.4 Connecting Sensor and Alarm ........................................................................ 8
2.5 Connecting Power ......................................................................................... 8
2.6 Check if It Works .......................................................................................... 8
3 Specifications ......................................................................................................... 9
4
1 Introduction
1.1 About User Manual
This User Manual provides the key features, package information, descriptions of physical
interfaces and installations of IP network camera
1.2 Feature
The is an IP network camera that transmits high quality of video and audio data in a
real time through the IP based intranet or internet. It uses Progressive Digital Image Sensor
and the latest H.264 compression technology to reduce bandwidth significantly while
offering excellent video images.
Video
- Compression : Dual stream of H.264 and MJPEG
- Various resolutions : CIF, Half-D1, D1
- Wide range of video transmission rate: 32kbps ~ 4Mbps
- Various transmission mode: CBR(Constant bit Rate), VBR(Variable Bit Rate)
- Motion detection
Audio
- Multi-transmission mode: Uni-direction (CC-6601-A -> Client PC or Decoder, Client
PC or Decoder -> CC-6601-A), Bi-
direction
Network
- Static IP and Dynamic IP(DHCP,)
- One to one and one to many connection
- Multicasting
- Automatic transmit rate control according to network condition
Serial Data
- One serial ports (RS-485)
- Data pass-through mode: Serial data communication between CC-6601-A – Decoder
Sensor and Alarm
- Connections to external sensor and alarm devices
- Event Alarm
User Interface
- System status display utilizing OSD(On Screen Display)
- System configuration using Internet Explorer
5
Reliability
- Reliable embedded system
- System recovery utilizing dual watch-dog functions
1.3 Product and Accessories
CC-6601-A IP network camera CD (Cymanager S/W & Manuals)
Manual (Instruction Guide) Mount & Screw LAN Cable (Cross)

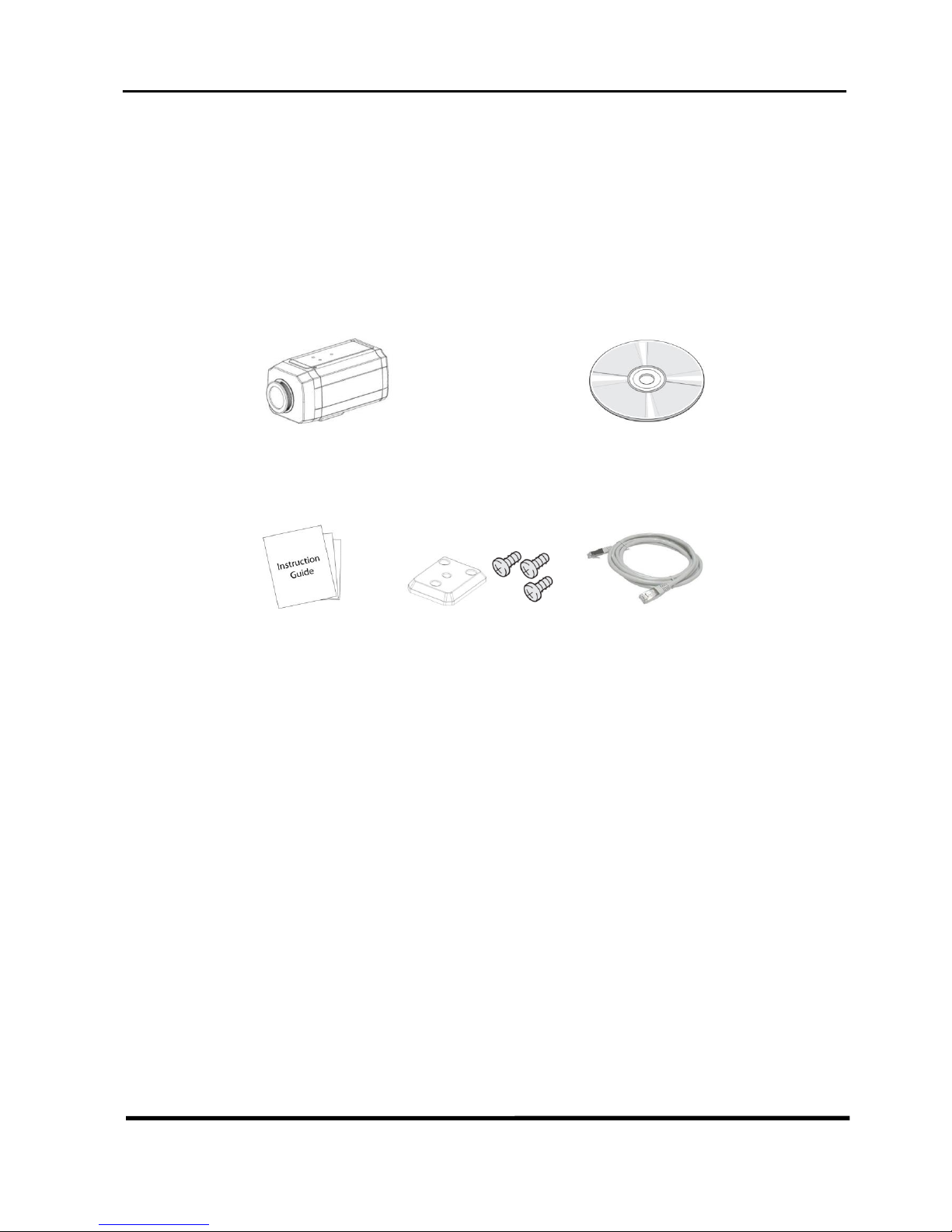

<Picture 1> Product and Accessories
6
1.4 Part Names and Functions

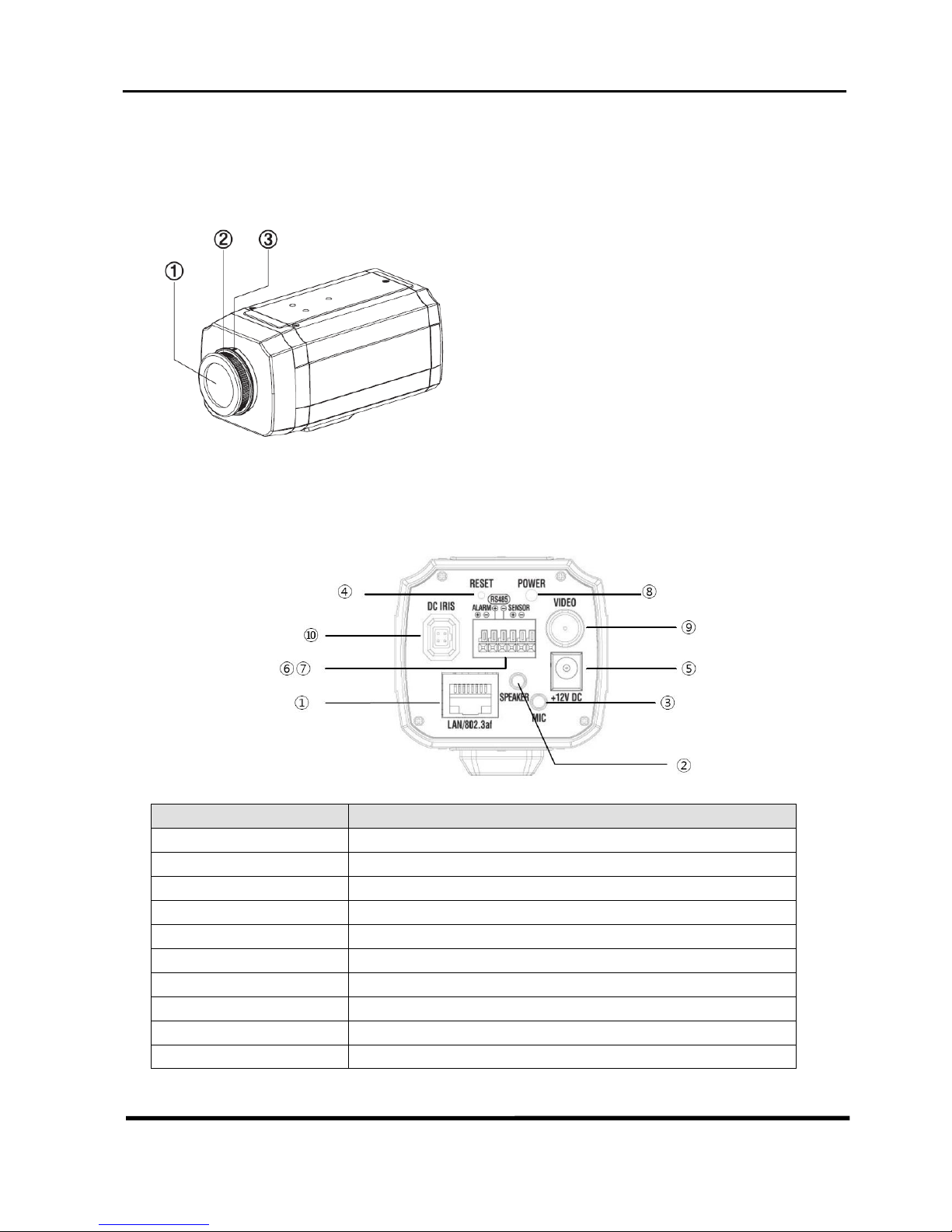

1.4.1 Front view of CC-6601-A
1.4.2 Rear view of CC-6601-A
Connector
Function
1. LAN
LAN Port / 802.3af PoE (Power over Ethernet) - optional
2. SPEAKER
Audio output
3. MIC
Audio input
4. RESET BUTTON
Reset button for network reset
5. POWER IN
DC 12V power input
6. SENSOR/ALARM
Sensor input / Relay output
7. RS-485
Serial port, Support RS-485 protocol
8. POWER DISPLAY
Power LED
9. VIDEO
Video output
10. DC IRIS
Auto iris lens
① Lens protection cap
② CS-Mount lens adaptor
③ Back Focus clamp screw
7
1.4.3 Sensor Port
Terminal Type
* Voltage Rating: 150VAC
* Current Rating: 2A
Sensor Signal Input Type
* NO Contact Signals

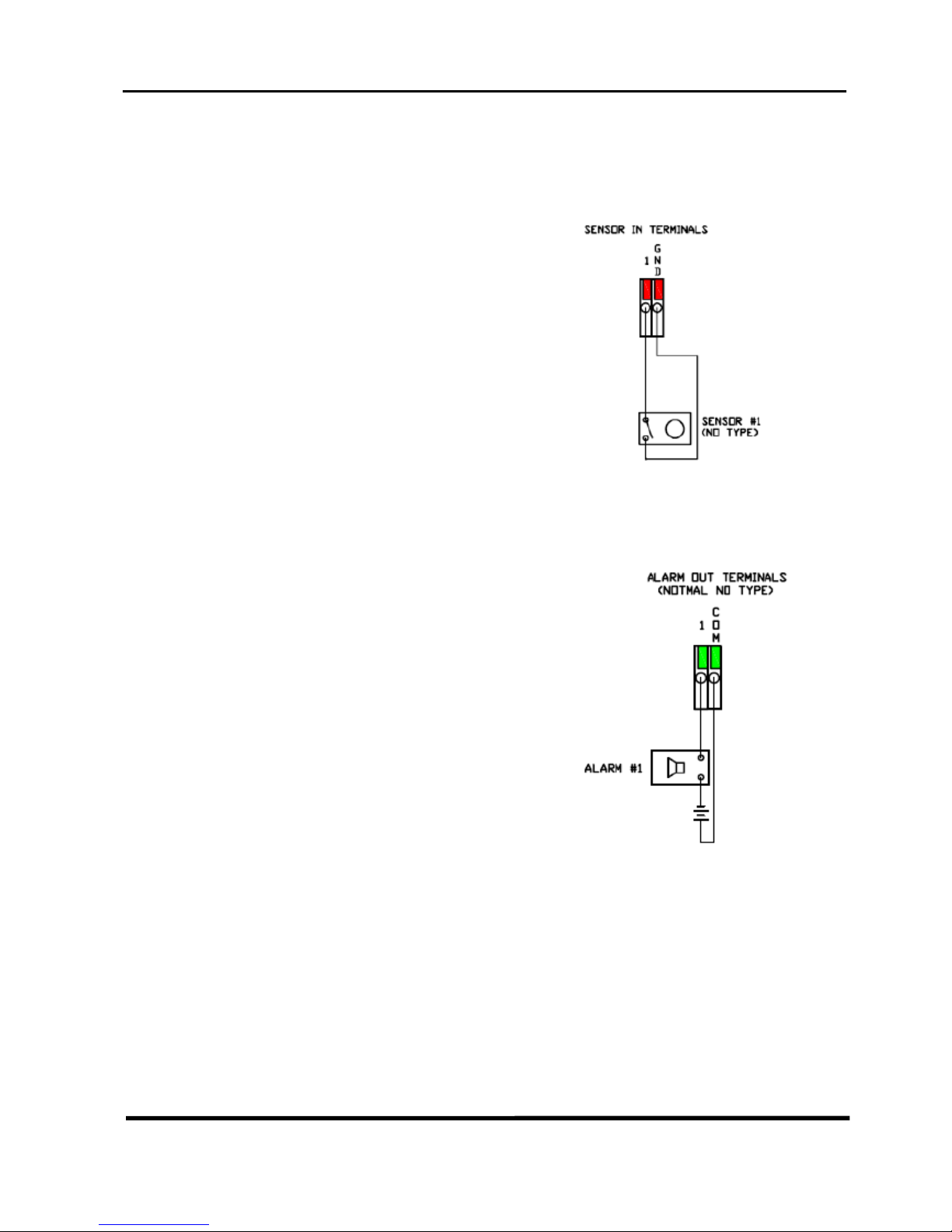

Connection to External Device
1.4.4 Alarm Port
Terminal Type
* Voltage Rating: 150VAC
* Current Rating: 2A
Relay Type
* Contact Rating: 0.5A 125VAC/1A 30VDC
* Switching Power: Max 30W 62.5VA
* Switching Voltage: Max 125VAC/60VDC
Alarm Signal Output Type
* NO Contact Signals
Connection to External Device
8
2 Installation
2.1 Connecting Network (LAN)
Connect LAN and there is a Video output to check video quality.
2.2 Connecting Audio
Audio is bi-directional in any configuration. If necessary, it can be configured to be in
transmit-only, receive -only or bi-directional mode.
- Connect audio input and output ports to audio devices accordingly.
- Audio signal is in line level, therefore, microphone or speaker with amplification function
should be used.
2.3 Connecting Serial Ports
The serial port(RS-485) in CC-6601-A can be connected to external equipment such as PTZ
receiver etc. Then, PC client can send PTZ commands to the external equipment via serial
port. When a decoder system instead of PC client is connected to CC-6601-A, the serial port
of CC-6601-A and that of the decoder system works in pass-through mode. That is, data at
one port are delivered to the other port, vice versa.
2.4 Connecting Sensor and Alarm
Connect sensor and alarm devices to corresponding terminals accordingly.
2.5 Connecting Power
After confirming the power source, connect power adaptor and connect the 12VDC
connector to the system. Soon the system will boot up to an operating mode.
2.6 Check if It Works
As soon as the power is supplied to the system, it will boot and, after about 30 seconds, the
system will be ready for operation.
9
3 Specifications
ITEM
Specifications
Image Sensor
1/3" SONY Super HAD II Vertical Double Scan Color CCD
Effective Pixels
NTSC : 976(H) x 494(V), PAL : 976(H) x 582(V)
Shutter Speed
AUTO / MANUAL(1/60, 1/50 ~ 1/120,000sec)
WDR
Off / On / Adjustable Strength
Dynamic Range
54dB(Max)
Horizontal Resolutions
650TVL Effective(Color), 800TVL Effective(B/W)
Min. Illumination
0.3Lux (Color), 0.03Lux(B/W)
Day & Night
Auto / Color / B/W
Sense-up
Auto / Off (Selectable x2 ~ x512)
Privacy Masking
8 Zones
AGC
Low / High / Off
Digital Zoom
ON(x16) / OFF
DNR
On / Off
S/N Ratio
More than 50dB(AGC Off, Weight ON)
Video Output
Composite video output 75Ω
OSD
Built-in
Operating Humidity
30% ~ 90% RH
Operating Temp.
-10˚C to 50˚
Weight
500g
10
ITEM
Specifications
Video
Output
1 Composite (1 Vpp 75 Ohm, BNC)
Compression
H.264/H.264, H.264/MJPEG
Resolutions
NTSC : 720x480, 720x240, 352x480, 352x240
PAL : 720x576, 720x288, 352x576, 352x288
Frame Rate
NTSC : Max 30fps(Range : 0.2~30fps)
PAL : Max 25fps(Range : 0.2~25fps)
Bandwidth
Configuration between 32kbps and 8Mbps
AUDIO
Input / Output
1 MIC in / 1 SPK out
Standards
G.711u / AAC
Data Rate
G.711(64kbps), AAC(64kbps, 128kbps)
NETWORK
Interface
Ethernet 10/100 Base-T
Connector
RJ-45
Protocols
TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP, FTP
I/O INTERFACE
RS-485
1 port
Sensor/Relay
1 port / 1port
POWER
Supply Voltage
12V DC +/- 10%
Consumption
Max.650mA
MANAGEMENT S/W
Web
1CH web viewer via IE
PC Client S/W
Cymanager : 36CH live monitoring & recording
