Convision CC-5501-E User Manual

Manual CC 5501-E

1

Manual

CC-5501-E

Date: August 2011 Convision Systems GmbH

Manual CC 5501-E

2

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

 Do NOT use power sources other than those specified.
 Do NOT expose this appliance to rain or moisture.

This Installation should be made by a qualified service person and should confirm to all local codes.

Manual CC 5501-E

3

 Warning

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Stop using your camera when you find it malfunctioning.

If the camera emits smoke or is unusually hot for a long period, a fire may be caused.

Do not install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in a fire or other hazards.

Manual CC 5501-E

4

Contents

NOTICE 5

Important Safeguard 5
Precautions 5

Features 6
Components and Accessories 7
Overview 7

Front View 7

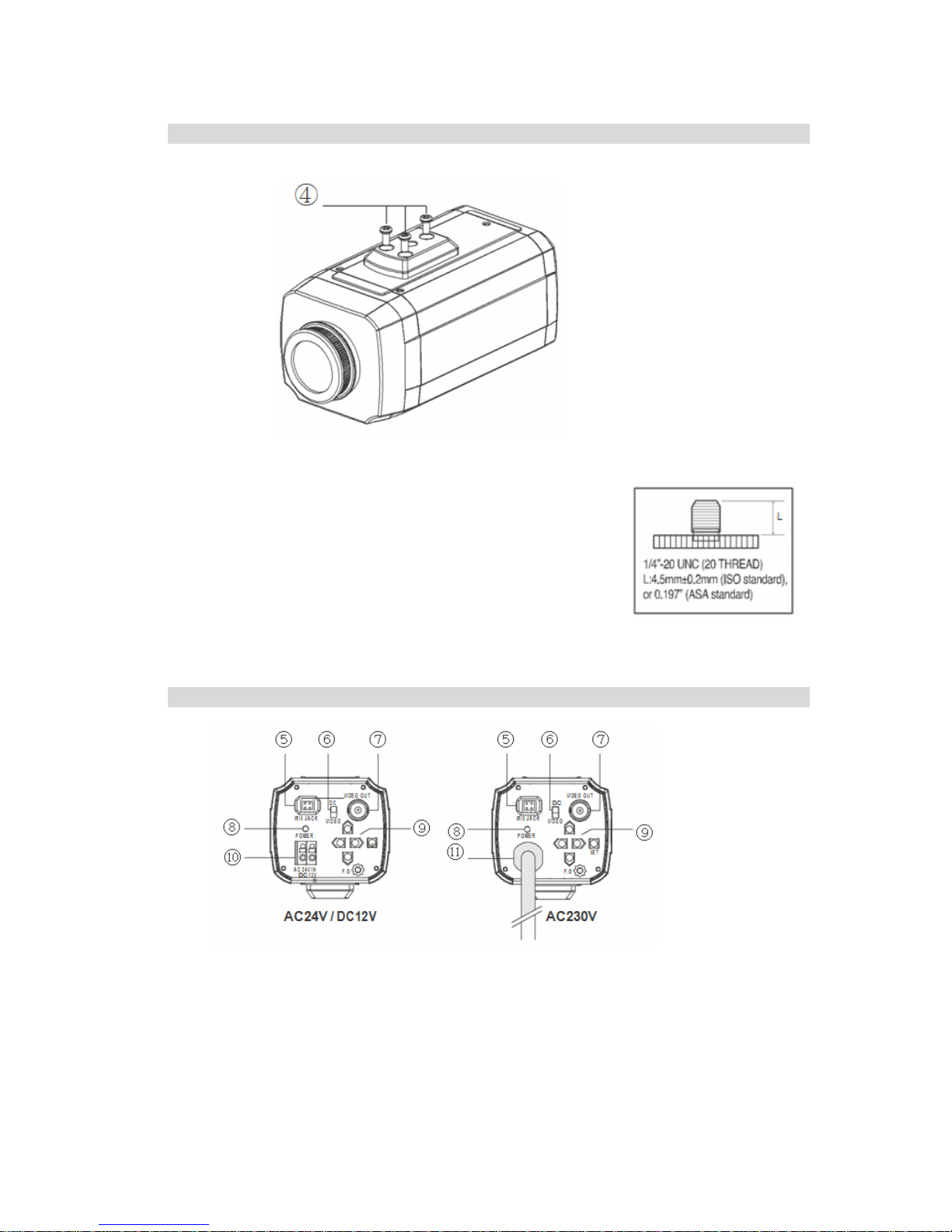

Top View 8
Rear View 8
Lens 9

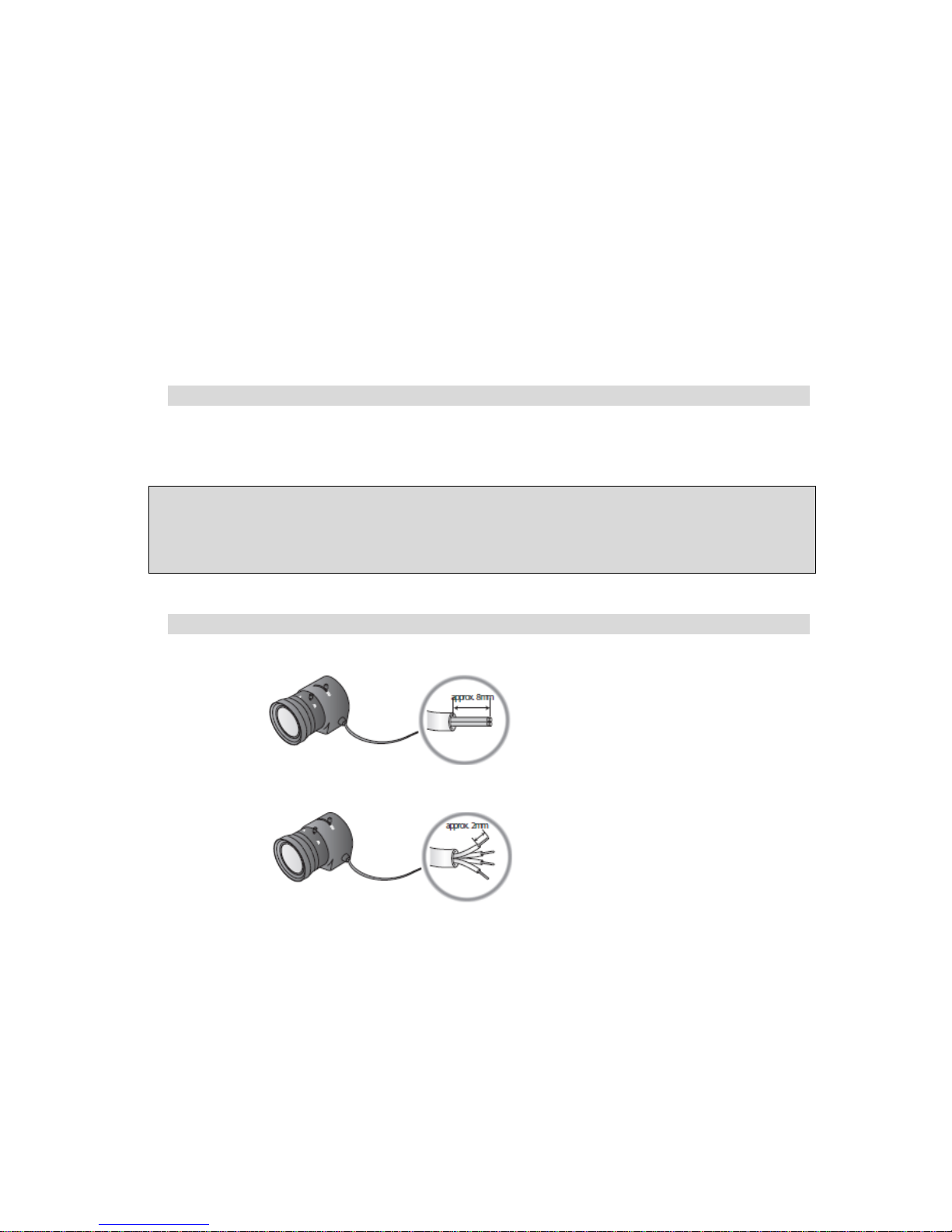

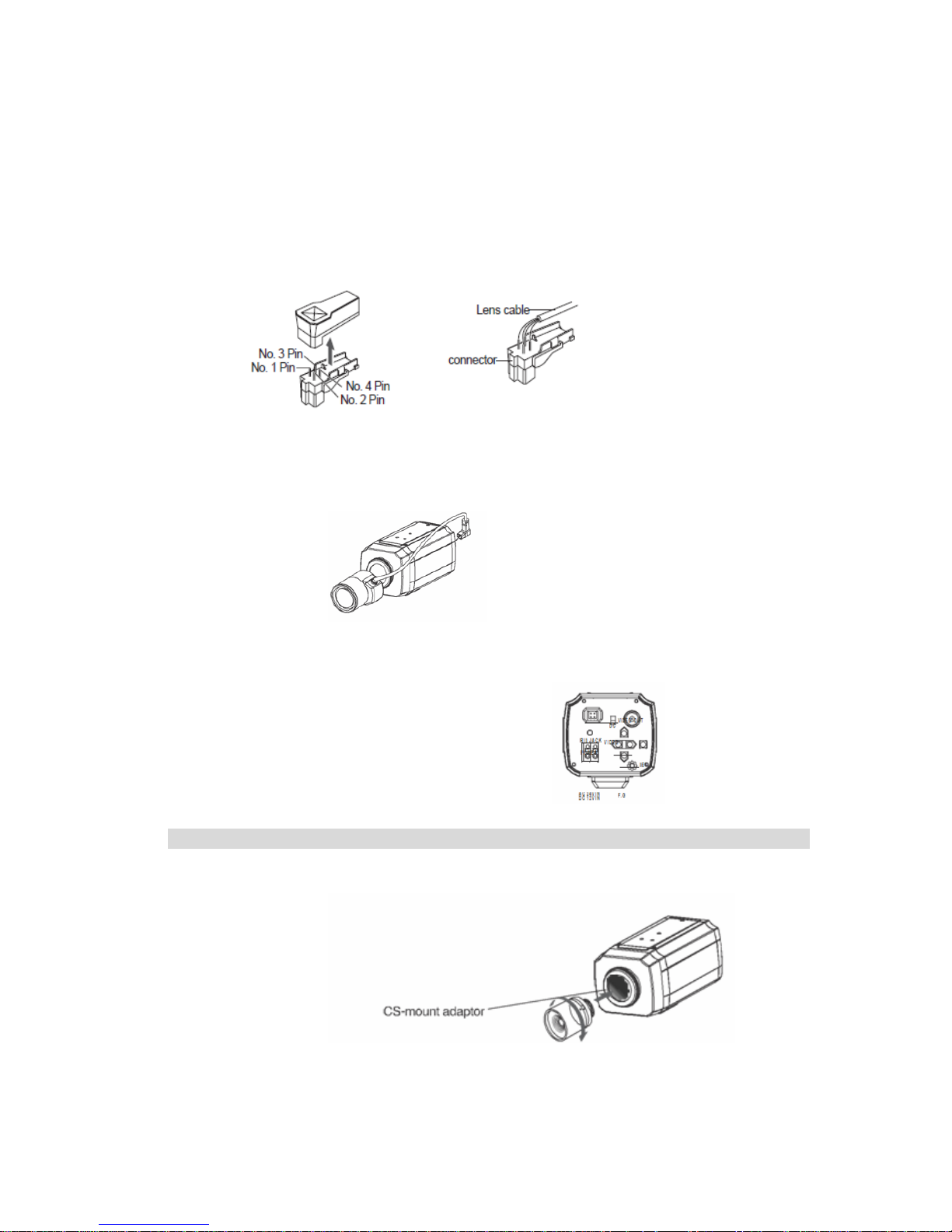

Using an Auto Iris Lens 9

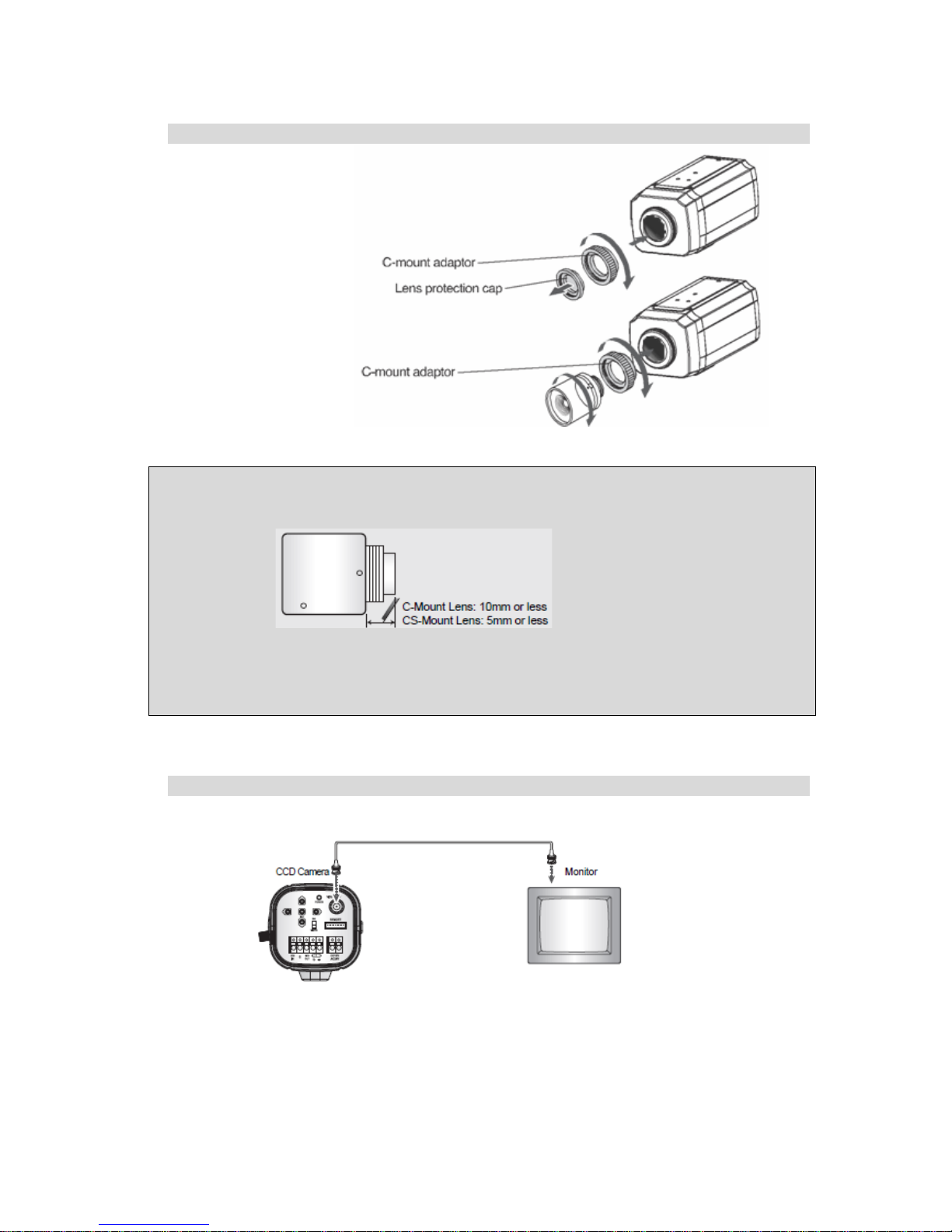

When using a CS mount Lens 10
When using a C mount Lens 11
Connecting to a Monitor 11

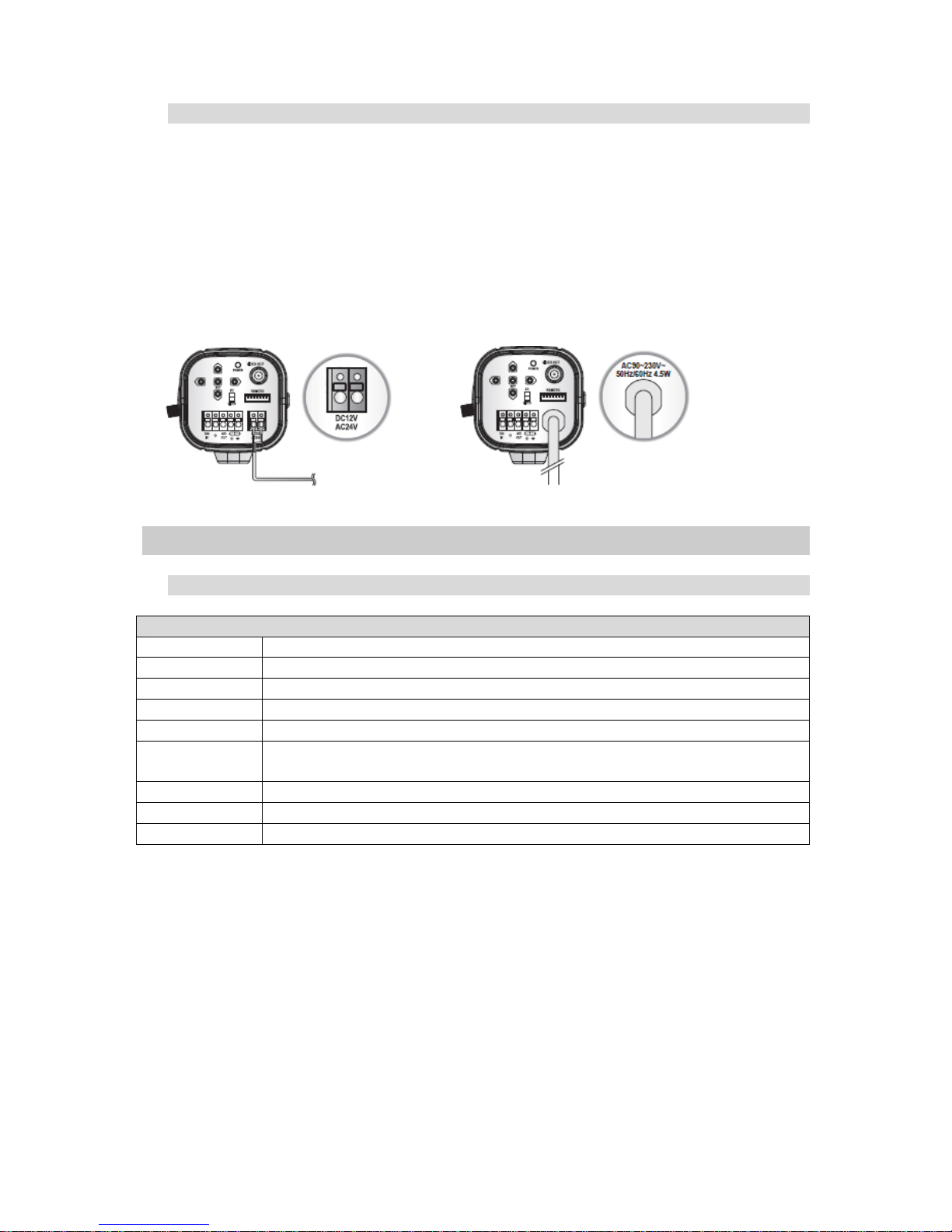

Connecting to Power 12

Camera Operation 12

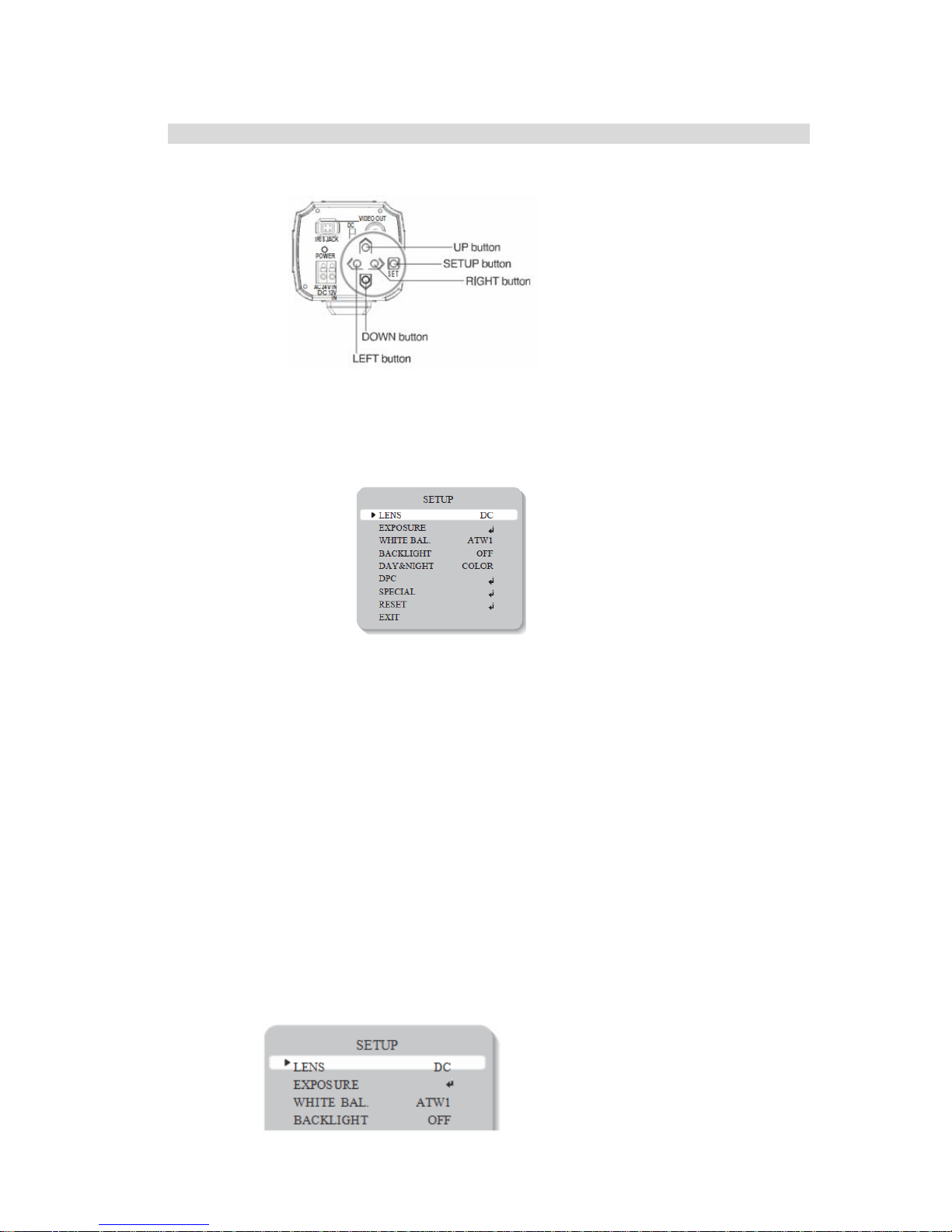

Menu 12
Settings 13
Lens (selection) 13

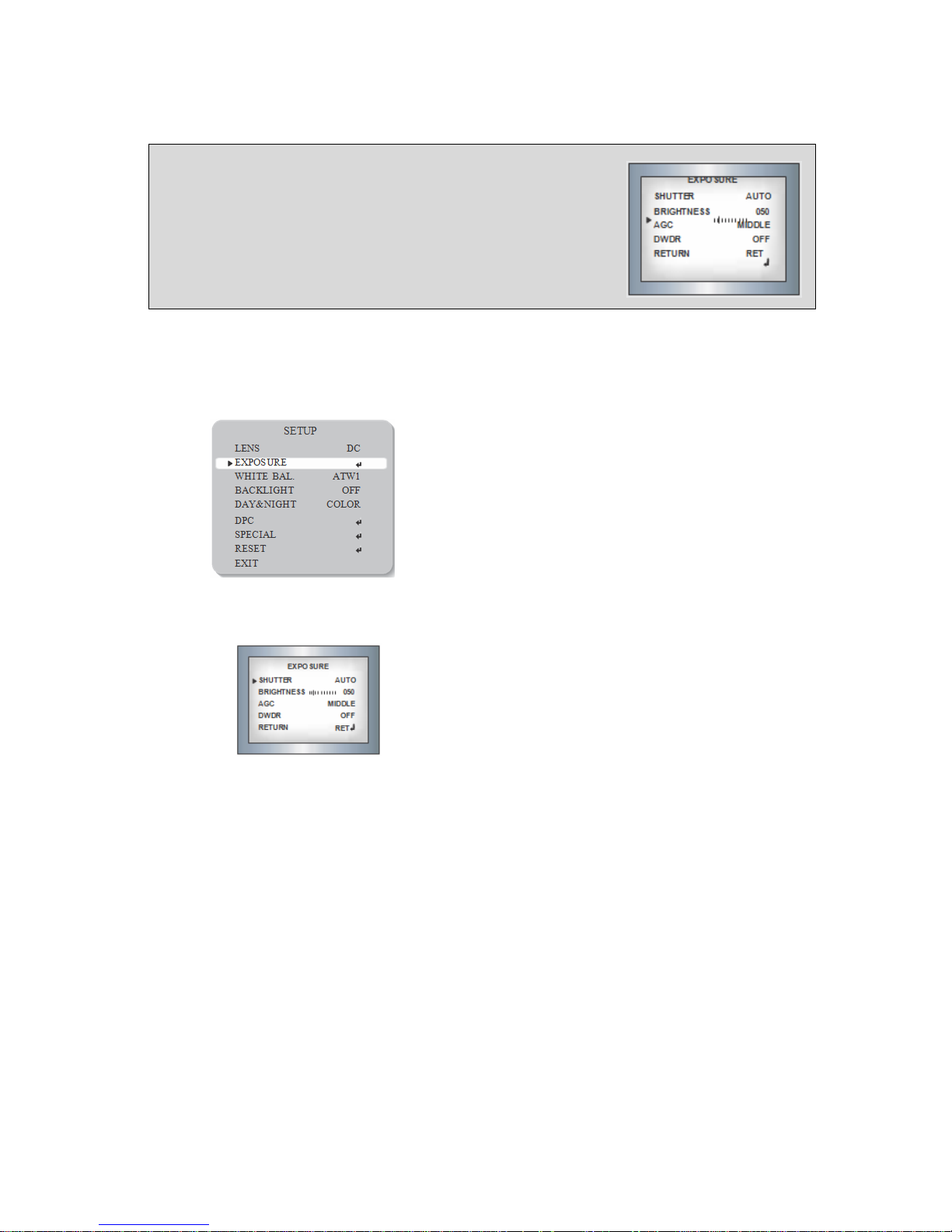

Exposure 14

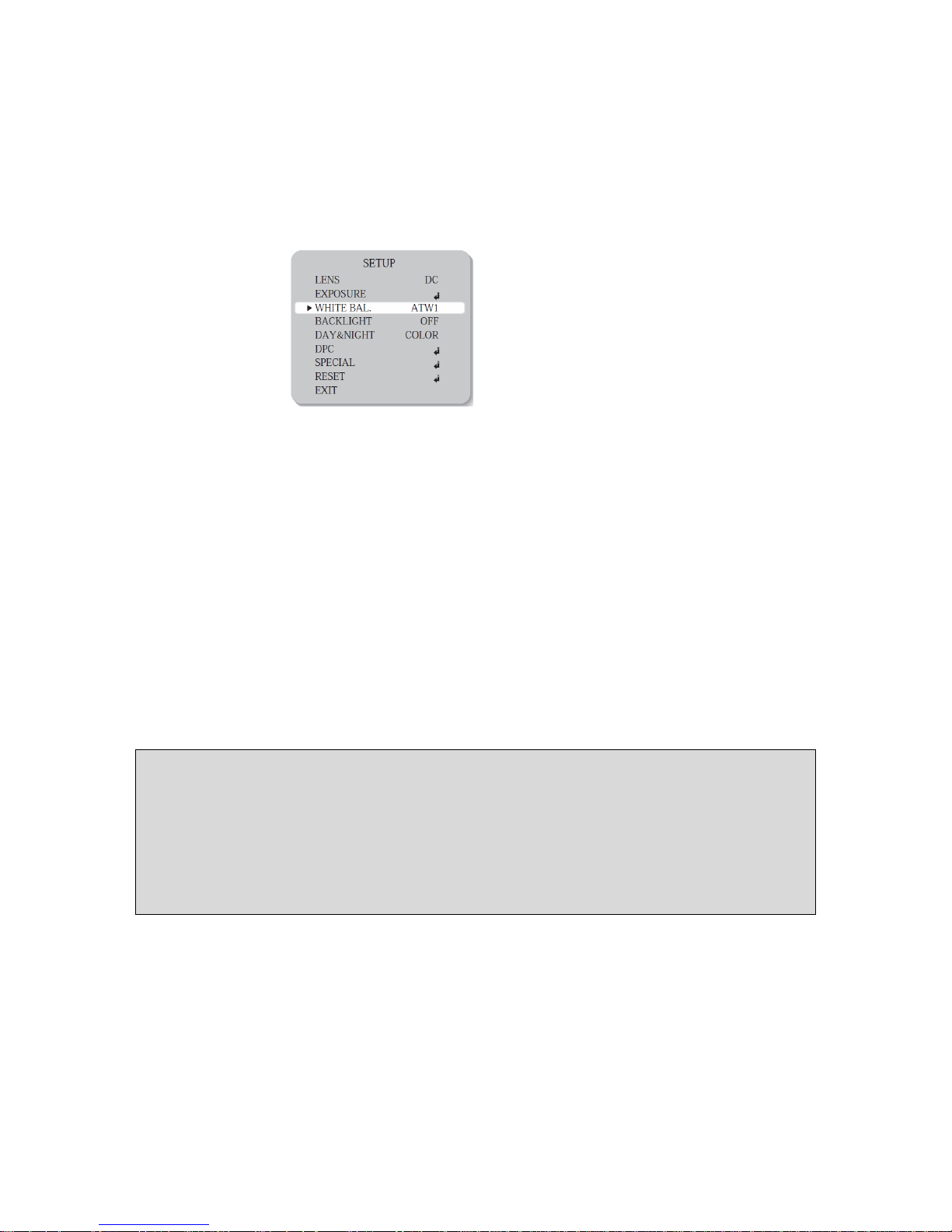

White Balance 15

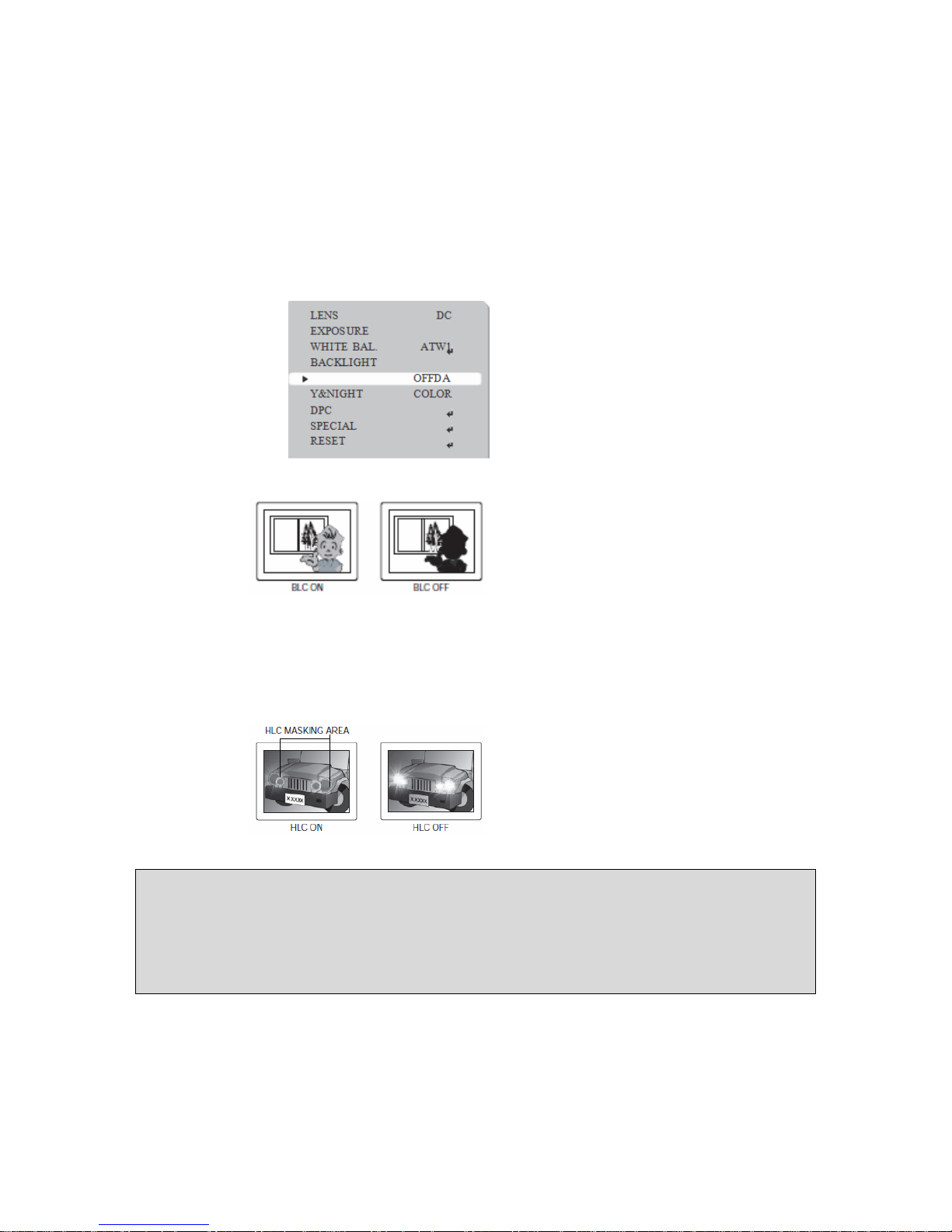

BLC (Back Light Compensation) 16

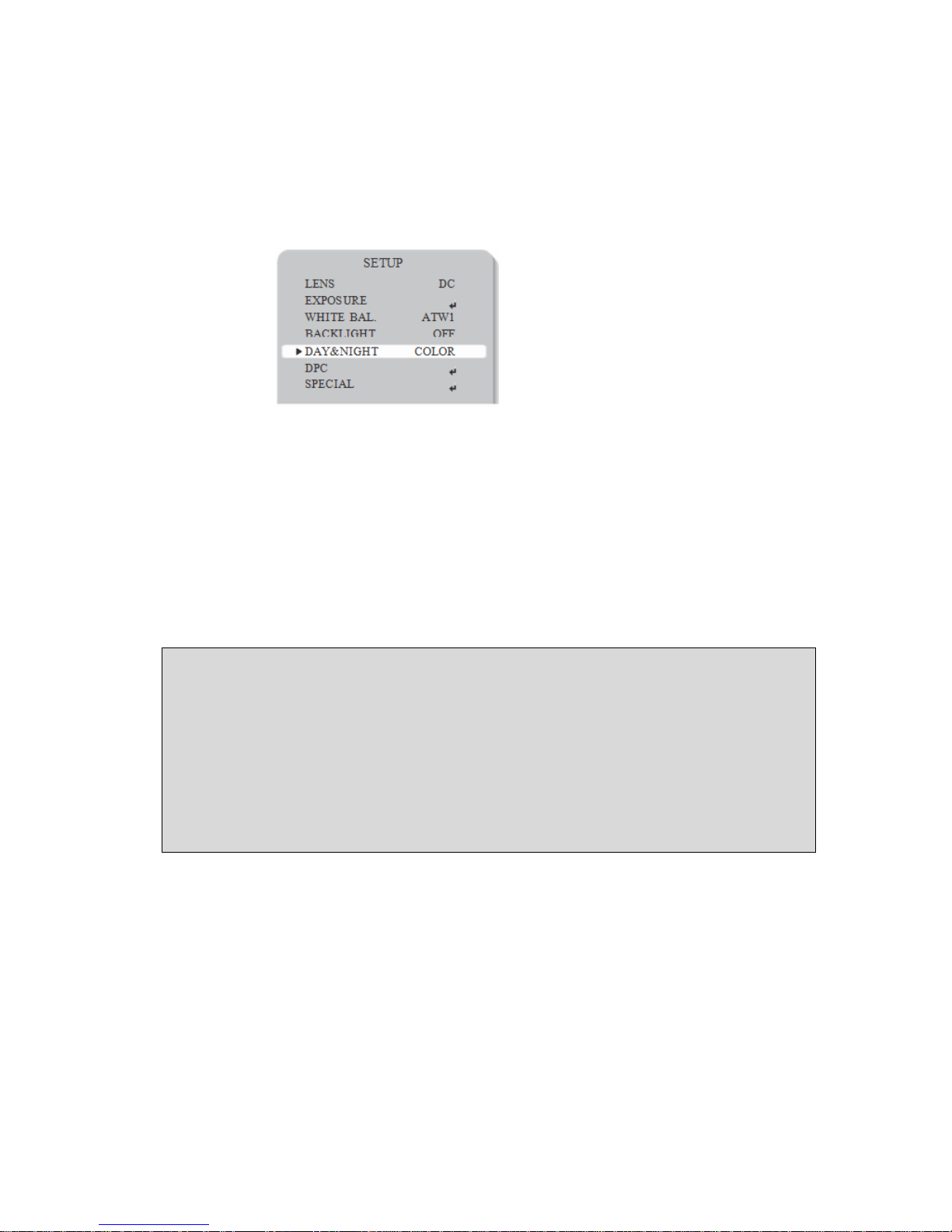

Day / Night 17
DPC (dead pixel compensation) 18

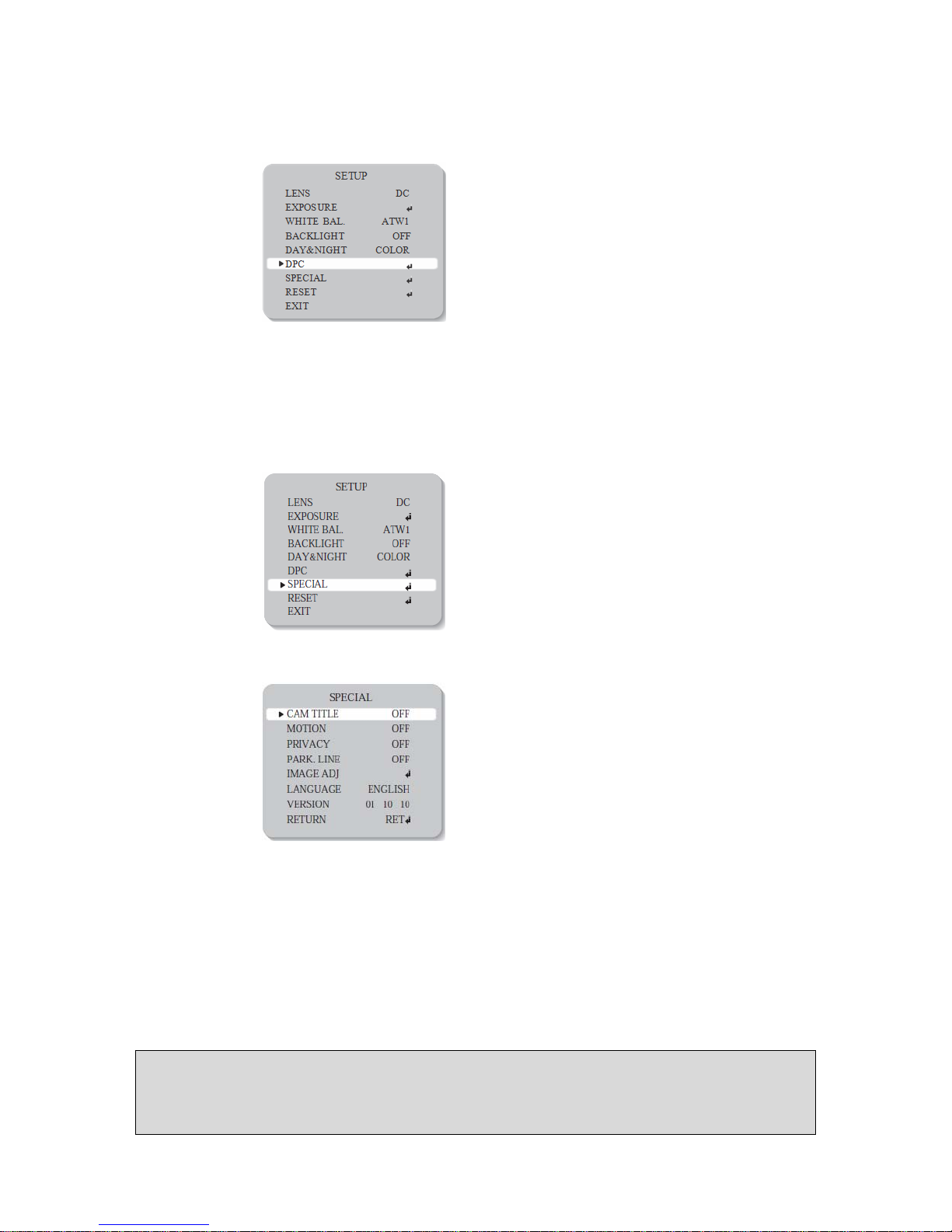

Special 18
Motion 19
Privacy 19
Park. Line 19
Image Adj. 19
Language 20
Return 20
Reset 20
Exit 20

Troubleshooting 21
Specifications 22

Manual CC 5501-E

5

 NOTICE

Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments / Accessories

Do not use attachments or accessories unless recommended by the appliance manufacturer as they
may cause hazards, damage product and void warranty.

4. Water and Moisture

Do not use this product near water or moisture.

5. Installation

Do not place or mount this product in or on an unstable or improperly supported location. Improperly
installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only
with a mounting device recommended by the manufacturer, or sold with the product. To insure proper
mounting, follow the manufacturer's instructions and use only mounting accessories recommended by
manufacturer.

6. Power source

This product should be operated only from the type of power source indicated on the marking label.

Precautions

■ Operating

-Before using, make sure power supply and others are properly connected.

-While operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.

■ Handling

-Do not disassemble or tamper with parts inside the camera.

-Do not drop or subject the camera to shock and vibration as this can damage camera.

-Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.

■ Installation and Storage

-Do not install the camera in areas of extreme temperature, which exceed the allowable range.

-Avoid installing in humid or dusty places.

-Avoid installing in places where radiation is present.

-Avoid installing in places where there are strong magnetic fields and electric signals.

-Avoid installing in places where the camera would be subject to strong vibrations.

-Never expose the camera to rain and water.

Manual CC 5501-E

6

 Features

Ultra High Resolution

By adopting a diagonal 6mm (1/3”) 410,000
(NTSC) pixel, 470,000 (PAL) pixel Sony
CCD the camera produces clear picture
quality with a horizontal resolution of 600

TV lines for colour.

Exellent Sensitivity

The built-in high sensitivity COLOR CCD
enable a clear image even in 0,15 Lux
(color), 0,01 Lux (B/W) or lower
illumination.

Filter Changeable Day & Night

This camera has a function that
automatically selects the mode that is
appropriate for daytime or night-time
conditions. The Color mode operates in
daytime conditions to provide optimum
colors, and BW mode operates in nighttime
conditions to enhance the definition of the
image.

DNR (Digital Noise Reduction)

The amount of low illuminance noise has
been significantly reduced and the signal­to-noise ratio (S/N ratio), as well as
horizontal resolution, have been improved

resulting in a clear and sharp image even in
low light.

Privacy Function

The Privacy function conceals the areas
you do not whish to appear on the screen.

Motion Detection

The camera detects motion and generates
a screen message without an external
sensor.

Video/DC Drive Lens Support

You can select Video or DC Drive Lens
from the menu.

RS-485 Communication Control Support

Remote OSD menu control via an RS-485
interface is supported

Controlled by OSD Menu

The camera can be controlled by selecting
text displayed on the monitor screen.

Additional Functions

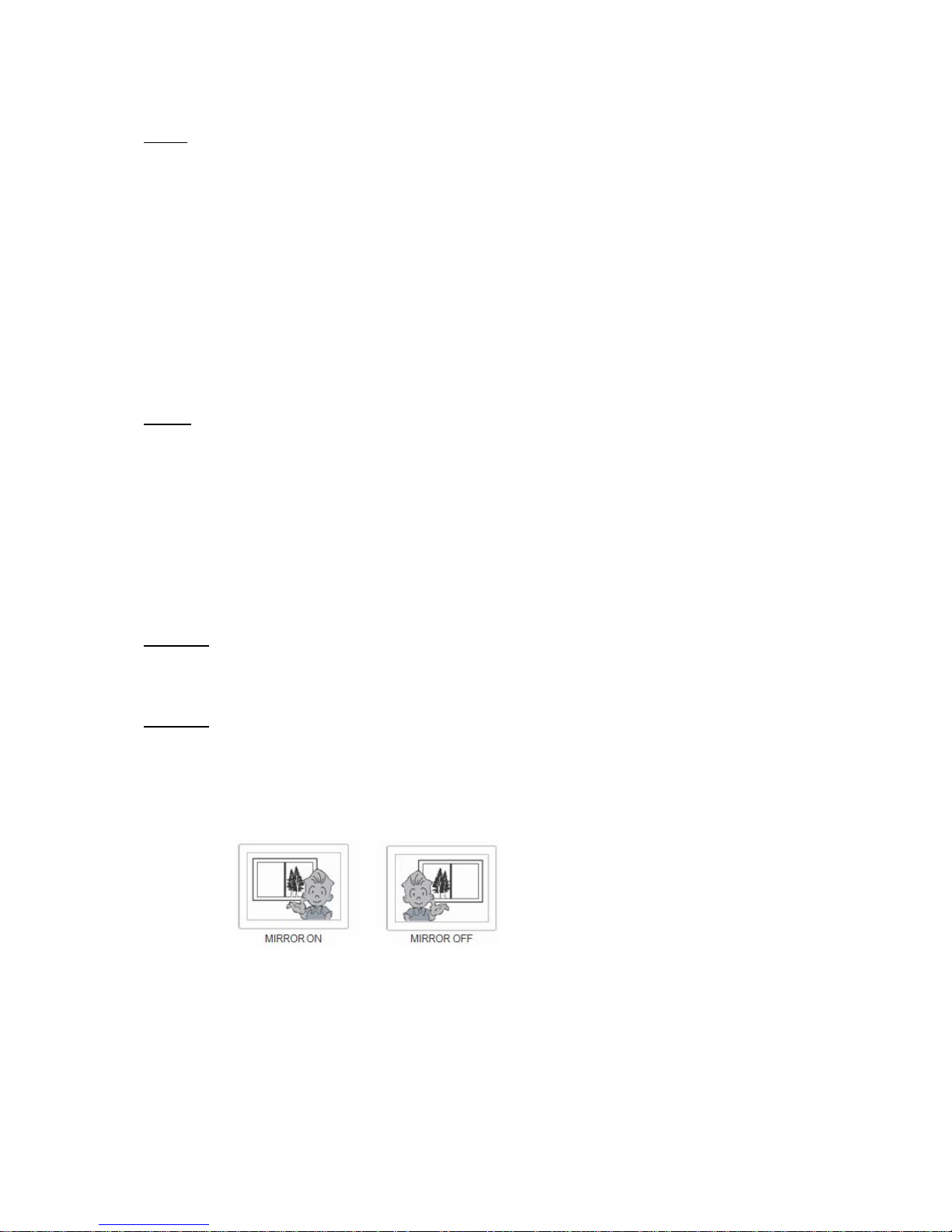

Mirror, Contrast and Sharpness functions
are also available.

.

Manual CC 5501-E

7

 Components and Accessories

1. Ultra High Resolution Day & Night CCD Camera

2. Auto Iris Lens Connector Plug

3. L-Wrench

4. C-Mount Adapter

5. Instruction Manual

 Overview

Front View

1. Lens protection cap

Cover the lens when note in use.

2. C-Mount Lens Adapter

Attach the CS-Mount lens here.

3. Back Focus clamp screw

Loosen the clamp screw with a screwdriver before adjusting the Back Focal length.
