Convision CC-5451 IR User Manual

Download

Manual CC 5451 IR

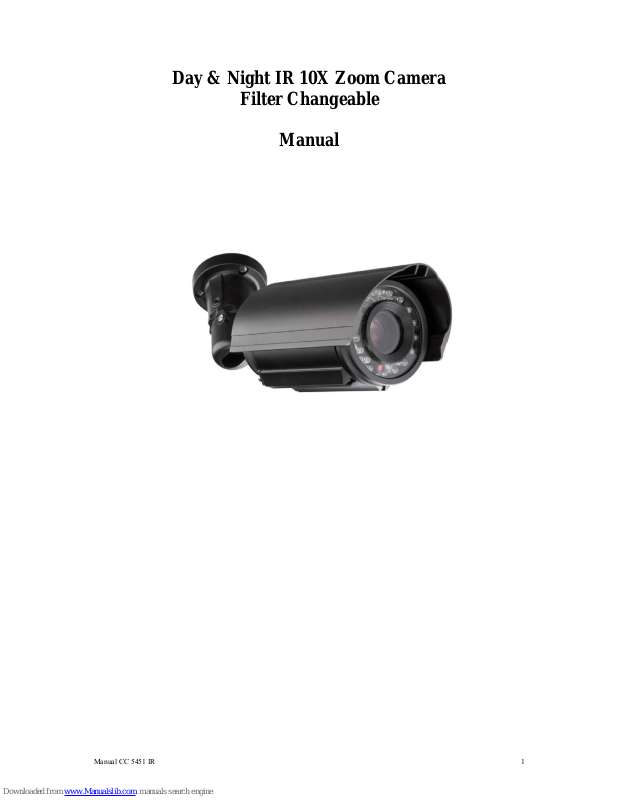

Day & Night IR 10X Zoom Camera

Filter Changeable

Manual

Manual CC 5451 IR

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

 Do NOT use power sources other than those specified.  Do NOT expose this appliance to rain or moisture.

This Installation should be made by a qualified service person and should confirm to all local

codes.

Manual CC 5451 IR

 Features

10x Optical Zoom Lens

The built-in 10X optical zoom lens is very reliable, If features manual focus,

zoom and auto iris function.

Horizontal Resolution 500 TV Lines

Clear image quality has been achieved by employing a SONY CCD with 410,000 (effective) pixels, which provides a horizontal resolution of >500 TV lines.

DAY & NIGHT

This camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions. The COLOUR mode operates in daytime conditions to provide optimum colours, and BW mode operates in night time conditions to enhance the definition of the image.

Electronic IRIS

The electronic IRIS function enables continuous automatic control of the shutter between 1/60~1/120,000 seconds.

PRIVACY Function

The PRIVACY function conceals the areas not required to appear on the image.

High Sensitivity

The built-in high sensitivity SONY COLOUR CCD enables clear images down to

0.7Lux (0.1Lux in B/W)

DNR (Digital Noise Reduction)

The amount of low illuminance noise has been significantly reduced, and the signal-to-noise ratio (S/N ratio) as well as horizontal resolution have been improved, resulting in clear and sharp images displayed even in low light.

Controlled by OSD Menu

The camera functions are controlled by selecting text displayed on the monitor screen.

Built-in RS485

Protocol : PELCO-D Baud Rate : 9,600bps , 19,200bps , 38,400bps.

Weather Proof (IP67)

Manual CC 5451 IR

 Warning

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Stop using your camera when you find it malfunctioning.

If the camera emits smoke or is unusually hot for a long period, a fire may be caused.

Do not install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in a fire or other hazards.

Manual CC 5451 IR

 Contents

Precautions 6

Names and Functions of Parts 7

Dimensions 8

Installation 9

Cable Connections 10

Camera Operation 10

Menu Configuration 10 Settings 11 WHITE BALANCE 14 BACKLIGHT (Backlight Compensation) 15 AGC (Automatic Gain Control) 16 DNR (Digital Noise Reduction) 16 SENS UP (Low illuminance) 17 SPECIAL 18 MIRROR 22 SHARPNESS 22 EXIT 22

Troubleshooting 23

Specifications 24

Manual CC 5451 IR

 Precautions

Do not install the camera in extreme temperature conditions.

Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures.

Do not install the camera in an environment where the humidity is high.

It can cause the image quality to be poor.

Do not install the camera under unstable lighting conditions.

Severe lighting change or flicker can cause the camera to work improperly.

Do not touch the front lens of the camera.

This is one of the most important parts of the camera. Be careful not to leave fingerprints on the lens cover.

Do not drop the camera or protect it from physical shocks.

It can cause malfunctions to occur.

Never Keep the camera pointed directly at strong light.

It can damage the CCD.

Do not expose the camera to rain or spill beverage on it.

If it gets wet, wipe it dry immediately. Liquids can contain minerals that corrode the electronic components.

Do not expose the camera to radioactivity.

If exposed to radioactivity the CCD will fail.

Manual CC 5451 IR

• Names and Functions of Parts

1. Sunshield

2. IR-LED: 33 pieces

3. Lens: 10X Optical Lens

4. Remote Controller

:OSD Modus → Cursor up in the menu screen . Zoom Modus → Zoom control :OSD Modus → Cursor down in the menu screen. Zoom Modus → Zoom control : OSD Modus → Cursor left in the menu screen. → Parameter change

:OSD Modus → Cursor right in the menu screen. → Parameter change

Manual CC 5451 IR

• Names and Functions of Parts

Service connector for easy installation of the camera.

- A service monitor can be connected to the camera, allowing the operator to easily atjust camera angles and settings locally during installation.

 Dimensions

Manual CC 5451 IR

 Installation

1. Bracket & Camera Mounting

- Affix the bracket to the mounting surface.

- Use the supplied screws to attach to the mounting surface using the pre-drilled holes in the bracket.

2. Power Connect & Monitor Impedance

- Use a DC12V/1A regulated PSU or AC24V 1A.

- To avoid fire or shock hazard, always use a CE marked PSU.

- Set the monitor impedance switch to 75Ω. Check the impedance switch if the screen is blurred.

3. Sun-shield Mounting

- Slide the Sun-Shield over the camera.

4. Remote control & VBS EXTRA

- Remove the cap and connect the connector of the remote control andVBS EXTRA to the cable socket.

Manual CC 5451 IR

 Cable Connections

 Camera Operation

Menu Configuration

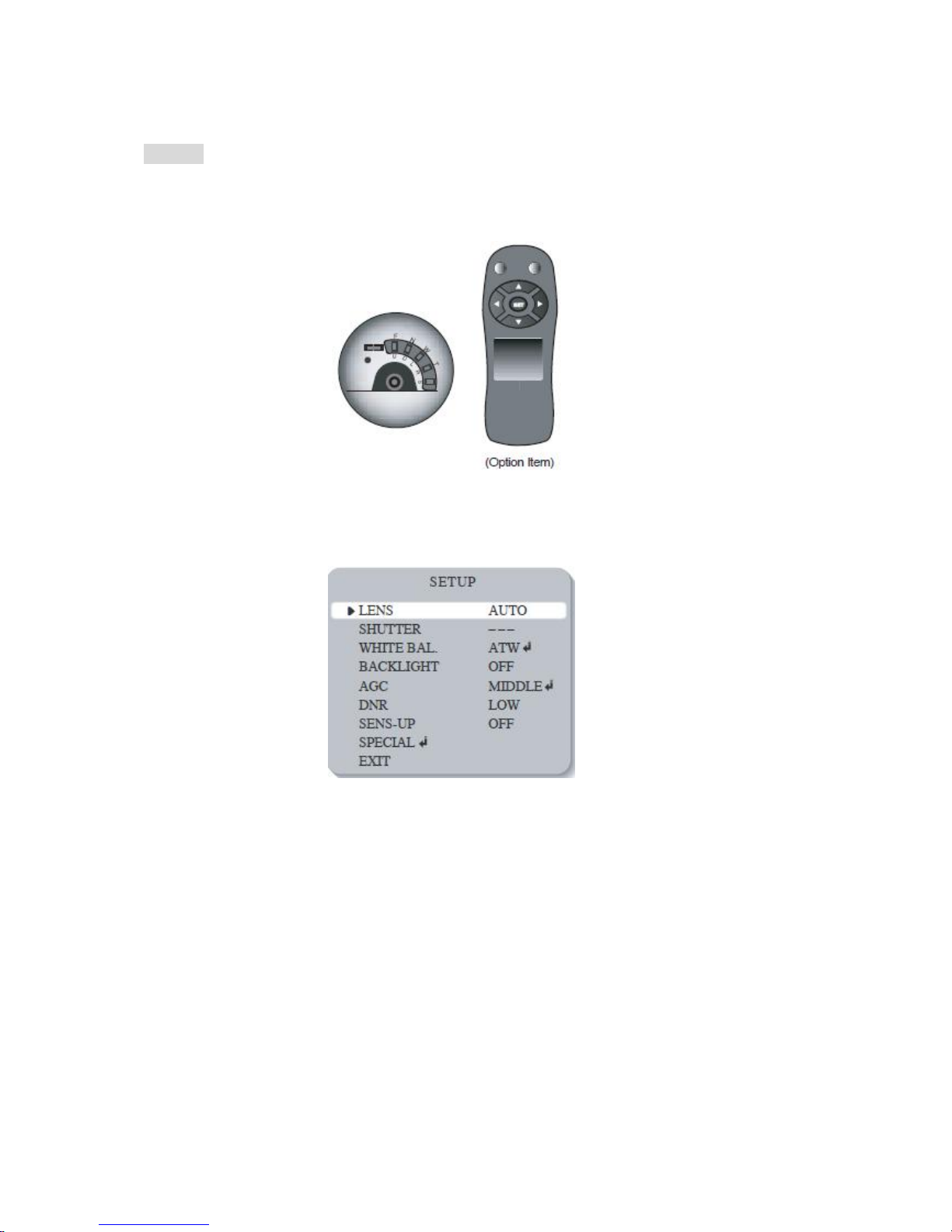

Main Setup Menu

LENS (selection) AUTO MANUAL Shutter ESC MANUAL FLK White Balance ATW AWC Manual Backlight OFF LOW MIDDLE HIGH AGC OFF LOW MIDDLE HIGH DNR OFF LOW MIDDLE HIGH SENS UP OFF AUTO Special Function CAM Title Day/Night Sync

CAM.ID Privacy Morror Digital Zoom Sharpness Reset Return

Exit

Manual CC 5451 IR

Settings

Settings can be made adjusted using the remote controller.

1. Press the Setup button

- Settings can now be made. The SETUP menu is displayed on the monitor.

2. Select a menu item from the list available by using the UP and DOWN buttons.

- The cursor can be moved up or down by using the UP and DOWN buttons. Position the cursor to point to the function requiring adjustment.

Manual CC 5451 IR

 Camera Operation

3. When the LEFT or RIGHT button is pressed, available values and modes are displayed in order. Keep pressing the button until you get to the mode you wish to select.

4. Select 'EXIT' and then press the SETUP button to exit the set up Menu.

Note

If appears at the mode selected, it means that there is a sub-menu which can be selected by pressing the SETUP button. If - - - appears at the mode item, it means that there are no modes available for selection.

LENS (selection)

This function is used to adjust the brightness of the screen.

1. When the SETUP menu is displayed on the screen, position the cursor to point to 'LENS' by using the UP and DOWN buttons.

2. Select the type of the lens setting to use by pressing the LEFT or RIGHT button.

¾ MANUAL : Manual lens selection ¾ AUTO : Auto iris lens selection

Manual CC 5451 IR

Note

• The brightness of the screen can be adjusted in AUTO mode. The brightness can be adjusted within the range of 1 ~ 70. The optimum level of brightness for the user can be achieved by using this adjustment.

• If you select the MANUAL mode, it can be adjusted in ESC mode.

3. Press the SETUP button if you wish to return to the previous menu.

SHUTTER (Condition and Speed Control)

Auto or manual control can be selected.

1. When the SETUP menu is on the screen, position the cursor to point to 'SHUTTER' by using the UP and DOWN buttons.

2. Select the shutter mode by pressing the LEFT or RIGHT button. (only when in LENS MANUAL mode)

¾ FLK: Select 'FLK' mode when flickering occurs on the screen due to an imbalance

between illumination and frequency. NTSC Model:1/100, PAL Model: 1/120

¾ ESC: Auto control of the shutter speed is enabled.

When ESC mode is on, the shutter speed is controlled automatically according to the brightness of the scene.

¾ MANUAL: The shutter speed can be controlled manually.

3. Select 'MANUAL' mode for manual shutter speed adjustment.

• Selectable speeds are from ‘1/60’ to ‘1/120,000’sec (NTSC) and ‘1/50’ to ‘1/120,000’sec (PAL).

4. Press the SETUP button when the settings are completed.

Manual CC 5451 IR

Note

• While using the internal synchronous system, if the shutter setting is on 'ESC' and the camera is directly facing bright fluorescent lights the image on the screen can be adversely affected - therefore choose the installation location carefully.

• When 'MANUAL' mode is on, the SENS UP function cannot be used.

WHITE BALANCE

The screen colours can be adjusted using the WHITE BALANCE function.

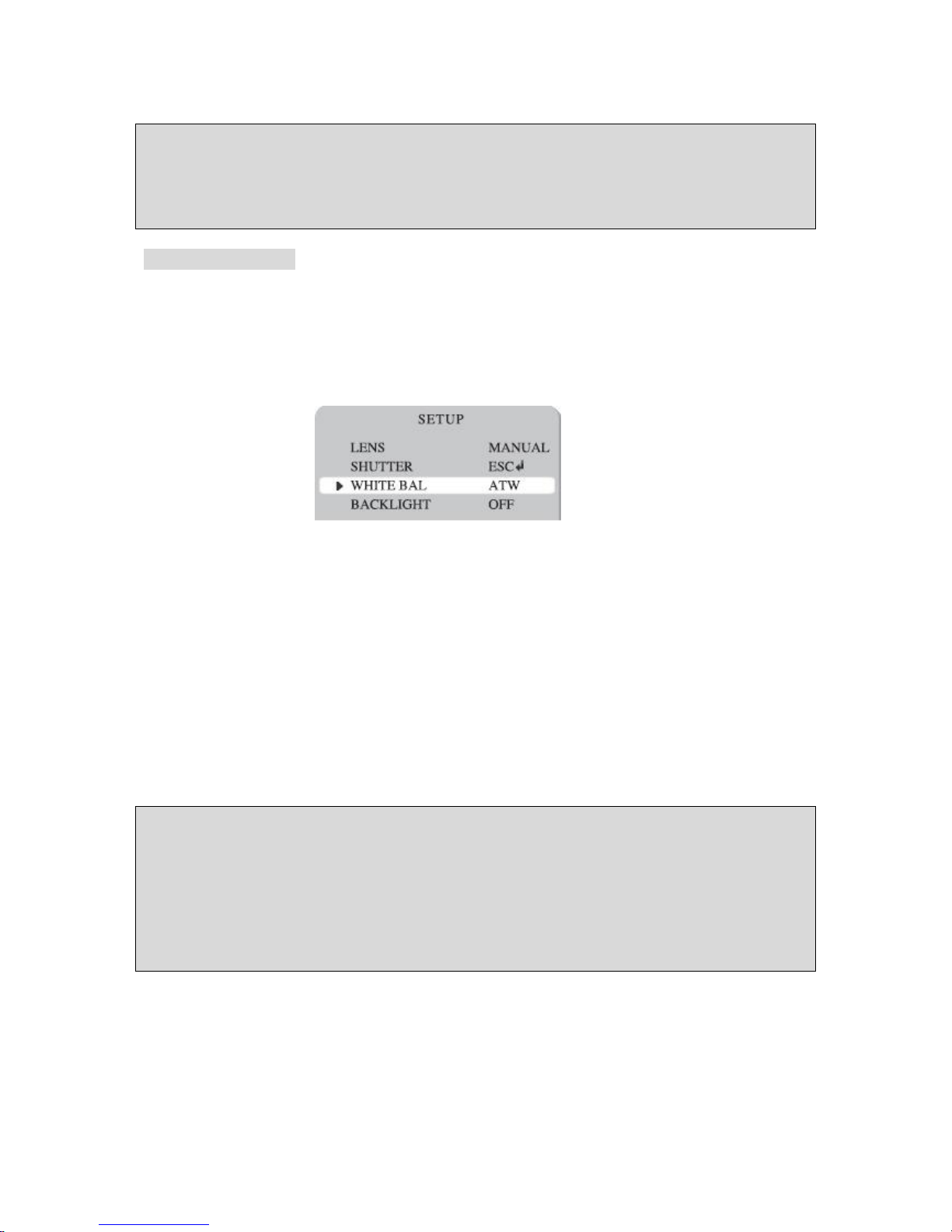

1. Position the cursor to point to 'WHITE BAL' on the SETUP menu by using the UP and DOWN buttons.

2. Select the mode you wish to adjust by pressing the LEFT or RIGHT buttons.

Select one of the 3 modes below.

¾ ATW(Auto Tracking White Balance) : This mode can be used within the colour

temperature range 1,800°K ~ 10,500°K (eg, fluorescent light, outdoor, sodium vapour lamp etc.)

¾ AWC(Auto White Balance Control) : Press the SETUP button while the camera is

directed at a piece of white paper to obtain the optimum state under current illumination. If the environment, including the light source, changes the white balance will need to be adjusted again.

¾ MANUAL : The manual adjustment mode enables finer adjustment. Select ATW or AWC

first then change to manual adjustment mode and press the SETUP button. Set the appropriate colour temperature then increase / decrease the red and blue colour values and monitor the colour changes of the object.

Note

• Under the following conditions the WHITE BALANCE function may not operate properly. In such cases, please select the AWC mode.

1. When the object’s surroundings have a very high colour temperature (eg, a clear sky and

sunset)

2. When the object’s surroundings are dark

3. If the camera directly faces a fluorescent light or is installed in a place where there are

considerable changes in illumination, the WHITE BALANCE function may become unstable.

Manual CC 5451 IR

 Camera Operation

BACKLIGHT (Backlight Compensation)

When there is a strong backlight behind the object, clear images of the background as well as the object can still be obtained by using the Backlight function.

1. Please position the arrow to point to 'BACKLIGHT' on the SETUP menu by using the UP and DOWN buttons.

2. Select the value required by pressing the LEFT or RIGHT button.

 HIGH : The gain increases from 0dB up to 42 dB.  MIDDLE: The gain increases from 0dB up to 30 dB.  LOW : The gain increases from 0dB up to 18 dB.  OFF : BACKLIGHT function does not operate.

Manual CC 5451 IR

AGC (Automatic Gain Control)

1. Position the cursor to point to AGC on the SETUP menu by using the UP and DOWN

buttons.

2. Select the value required by pressing the LEFT or RIGHT button. As the level of gain

increases the screen gets brighter but the level of noise will also increase.

 HIGH: The gain varies between the range of 6dB ~ 42dB.  MIDDLE: The gain varies between the range of 6dB ~ 30dB.  LOW: The gain varies between the range of 6dB ~ 18dB.  OFF: The gain is fixed at 6dB.

DNR (Digital Noise Reduction)

The level of background noise in low light decreases automatically as the level of gain changes.

1. Position the cursor to point to 'DNR' on the SETUP menu by using the UP and DOWN buttons.

2. Select the value required by pressing the LEFT or RIGHT button.

Manual CC 5451 IR

 OFF: There is no reduction in noise level.  LOW: There is a small reduction in noise level with almost no ghost image.  MIDDLE: The most effective mode. There is a sufficient reduction in noise levels

without causing significant ghosting.

 HIGH: The level of noise is reduced greatly, however there is an increase in ghosting.

Note

When AGC is turned off, DNR does not operate.

SENS UP (Low illuminance)

SENS UP helps maintain a bright, clear screen image by automatically detecting changes in

the level of light in low light level conditions.

1. Position the arrow to point to 'SENS UP' on the SETUP menu by using the UP and DOWN buttons.

2. Select the value required by pressing the LEFT or RIGHT button.

● AUTO: Low light level automatic mode.

● OFF: The function does not operate.

Note

When SHUTTER is in the manual or flk mode, SENS UP does not operate. When AGC is turned off, SENS UP does not operate.

3. Press the SETUP button when all the settings are complete.

Manual CC 5451 IR

Note

The maximum storage magnification in low light level movement situations can be adjusted by pressing the SETUP button in AUTO mode. (x2~x128) As the magnification increases the screen gets brighter; however the after image also increases. Of storage magnification is increased while SENS UP is operational, it may cause noise and spots may appear; this is normal.

SPECIAL

1. Position the cursor to point to 'SPECIAL' on the SETUP menu by using the UP and DOWN buttons.

2. Select the mode required by pressing the UP or DOWN button.

● CAMERA TITLE: If a TITLE is input, this camera TITLE appears on the monitor and

recorded footage.

1) Position the cursor to point to 'CAMERA TITLE' by using the UP or DOWN button.

2) Select 'ON' by pressing the LEFT or RIGHT button.

Note

If OFF is selected, the TITLE does not appear on the monitor even if it has been input.

Manual CC 5451 IR

3. Press the SETUP button.

4. Up to 15 characters can be used for the camera TITLE.

- Move the cursor to the letter required by using the UP and DOWN button.

- Select an ID from A,B~Y,Z, a,b~y,z, 0,1~8,9 by using the UP, DOWN, LEFT and RIGHT buttons.

- Lock in the characters by using the SETUP button. Once locked in the cursor moves to the next space in the TITLE.

- Repeat the above steps until the TITLE is complete.

Note

If the wrong name has been input.....

Press the SETUP button after moving the cursor to CLR and all the letters will be erased. If you want to correct a letter move the cursor to the arrow at the bottom left of the screen and press 'SET'. Position the cursor above the letter you wish to correct and then move the cursor onto the letter you wish to choose and press the SETUP button.

5. When the camera TITLE is complete, select a position for the name to be displayed.

• Move the cursor to POS and then press the SETUP button.

Manual CC 5451 IR

• The TITLE will appear in the top left corner.

• Select the position where the TITLE is to be displayed by using

the 4 directional buttons, and then press the SETUP button. Move the cursor to ‘POS’ and press SET button.

6) Select 'END' and press the SETUP button to complete TITLE input.

¾ DAY/NIGHT

- COLOUR: IR - Cut Filter is in position for colour mode.

- B/W: IR - Cut Filter is mechanically removed for B/W mode.

- AUTO: In AUTO mode the external light levels determine whether the camera is in

COLOR or B/W mode, it switches after a stabilisation period of 3~4sec.

Note

When Day/Night mode is set to Auto, under conditions where there are strong IR lights periodically flickering, the IR-Cut filter could malfunction.

SYNC: Two synchronisation modes are available, INTERNAL and EXTERNAL LINE-

LOCK. In LINE-LOCK mode, it synchronises the video signal between cameras without a synchronous generator. The line-lock synchronisation is only used in areas of 60Hz (NTSC Models) / 50Hz (PAL Models).

- INT: Internal synchronisation

- LL: External line-lock synchronisation

• If ‘LL’ is selected, it can be adjusted to the desired phase. Press the SET button.

• Adjust to the desired phase from 0 to 359.

Manual CC 5451 IR

Note

• When the mains frequency is 50Hz, the line-lock mode (NTSC Models) cannot be used.

• When the mains frequency is 60Hz, the line-lock mode (PAL Models) cannot be used.

CAMERA ID:

The Zoom and Focus functions can be remotely controlled by RS-485 communication.

• Press the SETUP button.

• Select the ID of the Camera by pressing the LEFT or RIGHT button.

• The available ID range of the Camera is 1~255.

• The available communication speed is 9,600bps , 19,200bps , 38,400bps

PRIVACY:

This mode conceals up to 4 areas that need to be masked on the screen.

- OFF: Cancels the PRIVACY mode.

- ON: Enables the PRIVACY mode.

• Press the SETUP button.

Manual CC 5451 IR

• Select the area to be masked from the 4 areas in AREA SEL mode.

• Select ON mode for the chosen area.

• Adjust the size and position of the area to be concealed by using the UP, DOWN,

LEFT and RIGHT buttons.

MIRROR

- OFF: Cancels inversion.

- VET: Sets a vertical image inversion.

- V-H: Sets a vertical and horizontal image inversion.

- HOR: Sets a horizontal image inversion.

D ZOOM: Digital Zoom

-Selectable from OFF, 2X, 4X or 8X

SHARPNESS:

The outline of the video image becomes cleaner and more distinctive as the level of SHARPNESS increases. If the level goes up excessively it may affect the video image and generate noise.

• Press the SETUP button.

The available range for sharpness adjustment is between 0 ~ 31.

RESET: Returns the camera to factory settings. RETURN: Saves the SPECIAL menu and returns to the SETUP menu.

EXIT

Save all the setting menu and then exits.

Manual CC 5451 IR

 Troubleshooting

If there are problems in operation, please refer to the items below. If the problem persists, please contact the agent you purchased this product from.

Problems Troubleshooting

Nothing appears on the screen.

• Please check the power connection.

• Please check the video signal line connection.

• Please check and make sure that the auto lens switch is set to DC (VIDEO) when using a VIDEO(DC) lens.

The video image is not clear.

• Please check if the lens is clean. Please clean the lens with a clean cloth or brush.

• Please adjust the contrast feature of the monitor.

• Please make sure that the screen is not exposed directly to a bright light. Please move the camera if necessary.

• Please readjust the back focus of the camera.

The screen is dark.

• Please adjust the contrast feature of the monitor.

• If you have an intermediate device, set the 75 / Hi-z properly, and check the terminals.

• Please check if an auto iris lens is being used and adjust the brightness level.

The camera surface is too hot and black stripes appear on the screen.

• Please check if an appropriate power source to the camera complies with the manufacturer's standard requirement, or if the voltage is fluctuating. Check for ground loops.

The MOTION DETECTION function is not working.

• Please check if 'MOTION DETECTION' mode is turned on.

• Please check if the MD LEVEL is too low.

• Please check the setting of the MD AREA.

Colors are not quite right.

Please check the 'WHITE BAL' setting.

The screen is flickering.

• Please check if the camera is facing directly into sunlight or fluorescent light.

• Please check if an auto iris lens is being used.

• Please check the connection of the lens connector cable.

SENS-UP function is not working.

• Please check if the AGC menu is set to the OFF position.

• Please check if the SHUTTER menu is set to MANUAL mode.

Manual CC 5451 IR

 Specifications

ITEM NTSC PAL

Power Supply DC 12V / AC 24V Dual Power

Power Consumption 800mA (Max) at IR LED ON (DC 12V)

Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Image Sensor 1/4 inch interline transfer CCD

CCD

Scanning System 2:1 Interlace Synchronization INT/LL selectable

sync

Frequency

Horizontal: 15.734 KHz Vertikal: 59.94 Hz

Horizontal: 15.625 KHz Vertikal: 50.00 Hz

Resolution 500 TV Lines: Colour

570 TV Lines: S / W

Video Output

1.0Vp-p/75(Video0.714Vp-p Sync0.286Vp-p)

1.0Vp-p/75(Video0.7VppSync0.3Vp-p)

S/N (Y Signal) 50dB (AGC Off) Min. Illumination 0.7Lux/F1.8(Color), 0.1Lux/F1.8(S/W) Gain Control OFF / LOW / MIDDLE / HIGH White Balance ATW / AWC / MANUAL (1,800°K~10,500°K) Optics

10x, f=3.8 to 38.0 mm (F2.8)

Digital Zoom OFF X2, X4, X8 selectable Angle Field of View H: Appr. 51.2°(Wide) bis 5.58°(Tele)

V: Appr. 39.3°(Wide) bis 4.27° (Tele) Zoom/Focus Manual Iris Control Auto / Manual (Full open) Motion Detection ON /OFF (4 programmable Zones)

ESC(X128~1/60~1/20000) ESC(X128~1/50~1/20000)

Manual

(x128~1/60sec~1/120000)

Manual

(x128~1/50sec~1/120000)

Shutter Speed

Flickerless (1/100 sec.) Flickerless (1/100 sec.)

O.S.D. Built-in Mirror OFF, Horizontal, Vertical, Vertical-Horizontal Privacy Function ON / OFF (4 programmable Zones) Camera Title OFF / ON (displayed 15 characters)

Electrical

Communication RS-485

Operating Temperature -10°C~+50°C / 95% RH max. Weight 900 g

Convision CC-5451 IR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
