Convision CC-5307 User Manual

Page 1
Manual CC 5307 1
Manual
CC-5307
Page 2
Manual CC 5307 2
The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than those specified. Do NOT expose this appliance to rain or moisture.
This Installation should be made by a qualified service person and should confirm to all local codes.
Page 3
Manual CC 5307 3
Warning
The camera requires periodic inspection.
Contact an authorised technician to carry out the inspection.
Stop using your camera when you find it malfunctioning.
If the camera emits smoke or is unusually hot for a long period, a fire may be caused.
Do not install the camera on a surface that can not support it.
If the camera is installed on an inappropriate surface, it may fall and cause injury.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not dis-assemble the camera.
It may result in an electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in a fire or other hazards.
Page 4
Manual CC 5307 4
Contents
NOTICE 5
Important Safeguard 5 Precautions 5
Features 6 Components 7 Names and Functions of Parts 7 Dimension 9 Installation 9 Cable Connection 10 Installation (Adaptor Plate) 11 How to Use the Camera 12
On-Screen Display Menu Structure 12 How to Set up the Functions 12 Lens 14 Exposure 15 White Balance 16 BACKLIGHT 17 DNR (Digital Noise Reduction) 18 Day & Night 19 Image Adjustment 19 Special 21 EXIT 23
Troubleshooting 24 Specifications 25
Page 5
Manual CC 5307 5
NOTICE
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessories
Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
4. Water and Moisture
Do not use this product near water or moisture.
5. Installation
Do not place or mount this product in or on an unstable or improperly supported location. Improperly installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only with a mounting device recommended by the manufacturer, or sold with the product. To insure proper mounting, follow the manufacturer's instructions and use only mounting accessories recommended by manufacturer.
6. Power source
This product should be operated only from the type of power source indicated on the marking label.
Precautions
■ Operating
-Before using, make sure power supply and others are properly connected.
-While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and then contact your local dealer.
■ Handling
-Do not disassemble or tamper with parts inside the camera.
-Do not drop or subject the camera to shock and vibration as this can damage camera.
-Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your quality of camera.
■ Installation and Storage
-Do not install the camera in areas of extreme temperature, which exceed the allowable range.
-Avoid installing in humid or dusty places.
-Avoid installing in places where radiation is present.
-Avoid installing in places where there are strong magnetic fields and electric signals.
-Avoid installing in places where the camera would be subject to strong vibrations.
-Never expose the camera to rain and water.
Page 6
Manual CC 5307 6
Features
Ultra High Resolution
By adopting a double-speed 960H Sony CCD, the camera produces clear picture quality with a horizontal resolution of 650 TV lines for color and 800 TV lines for B/W.
Wide Dynamic Range (WDR)
The camera delivers clear high quality pictures, even when backlight, by increasing exposure in dark areas while decreasing it in bright areas; a corrected image with clear details results.
Excellent Sensitivity
The highly sensitive diagonal 6mm (1/3") CCD and digital signal processing technology, can clearly distinguish the outline and color of a subject even at extremely low luminance levels – for example, under starlight. Since surveillance is possible in places where the light is poor, the camera is appropriate for day and night surveillance either indoors or on the outside of buildings.

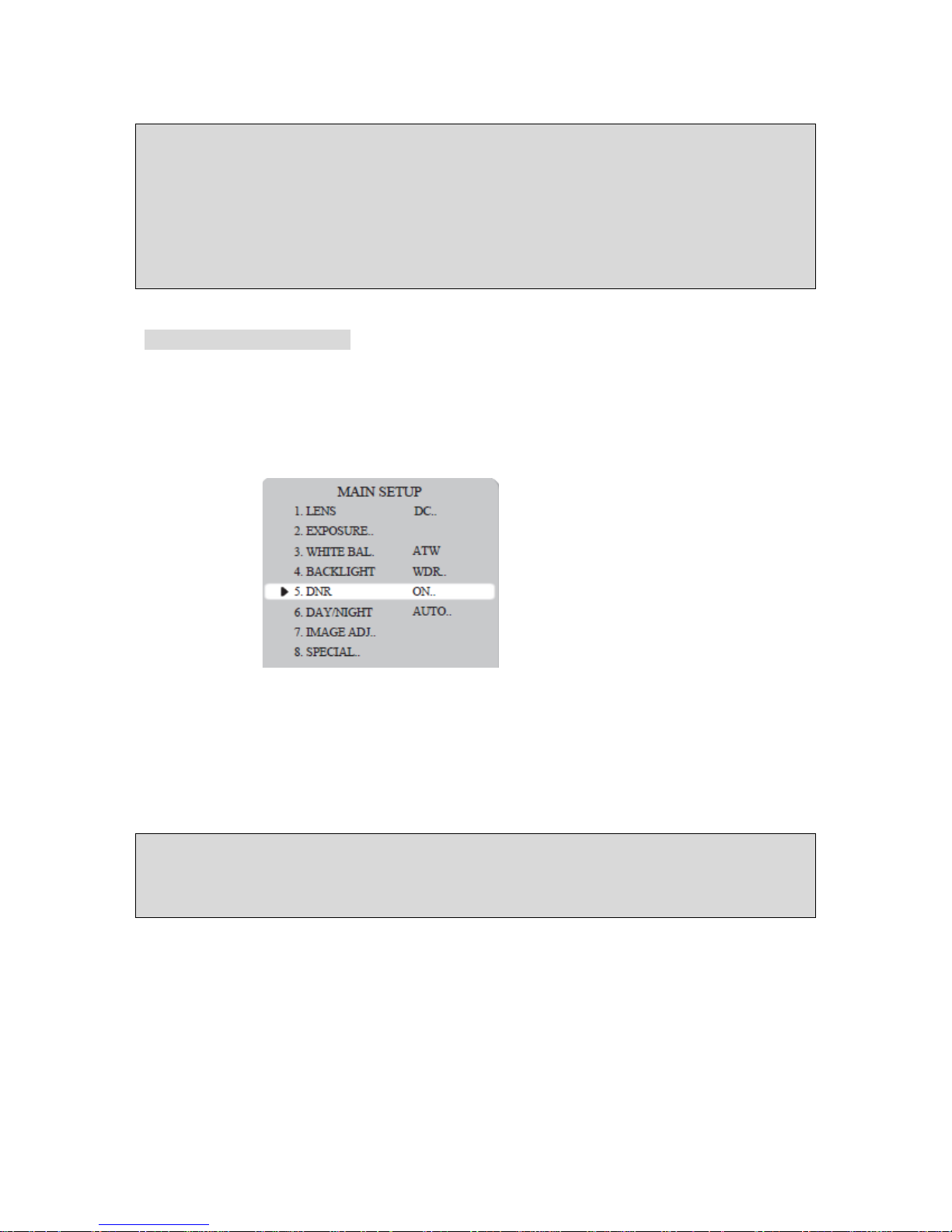

DNR (Digital Noise Reduction)
The amount of low illuminance noise has been significantly reduced and the signal-to-noise ratio (S/N ratio), as well as horizontal resolution,
have been improved resulting in a clear and sharp image even in low light.
Motion Detection
Since the camera detects motion without any additional external sensor, you can monitor activity more efficient.

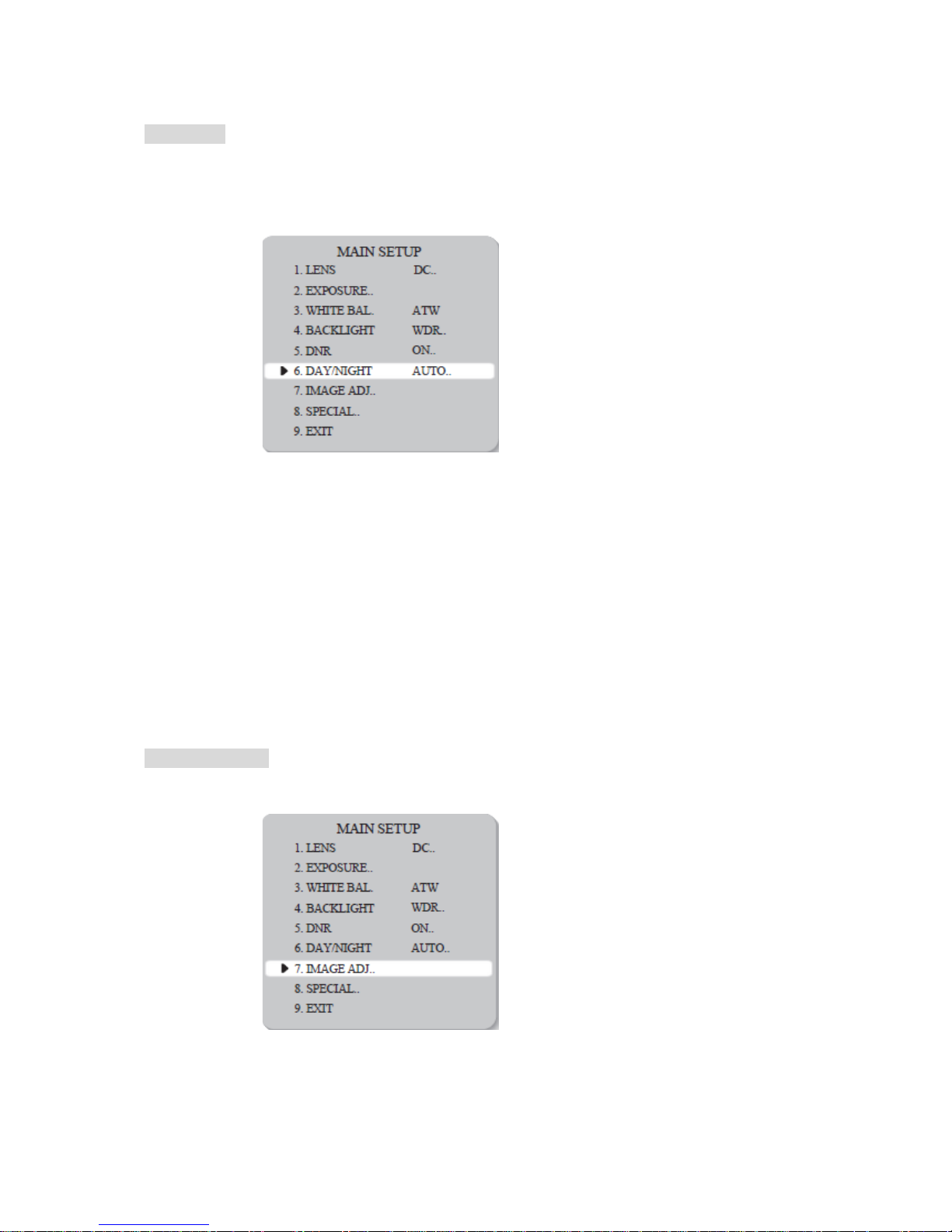

Filter Changeable Day & Night
This camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions. The COLOR mode operates in daytime conditions to provide optimum colors, and BW mode operates in night-time conditions to enhance the definition of the image.
RS-485 Communication Control Support (Optional)
Remote OSD menu control via an RS-485 interface is supported.
3 Axis built-in 100mm Dome Housing Miscellaneous functions
SYNC (INT/LL), SENS-UP, FREEZE, FLIP (H/V-REV), D-ZOOM, SHARPNESS and PRIVACY functions are provided
Page 7
Manual CC 5307 7
Components
1. Color Dome Camera
2. Screws
3. Wire for VBS-Extra
4. Instruction Guide
Names and Functions of Parts
Lens: Vari-Focal Auto Iris Lens
Page 8
Manual CC 5307 8

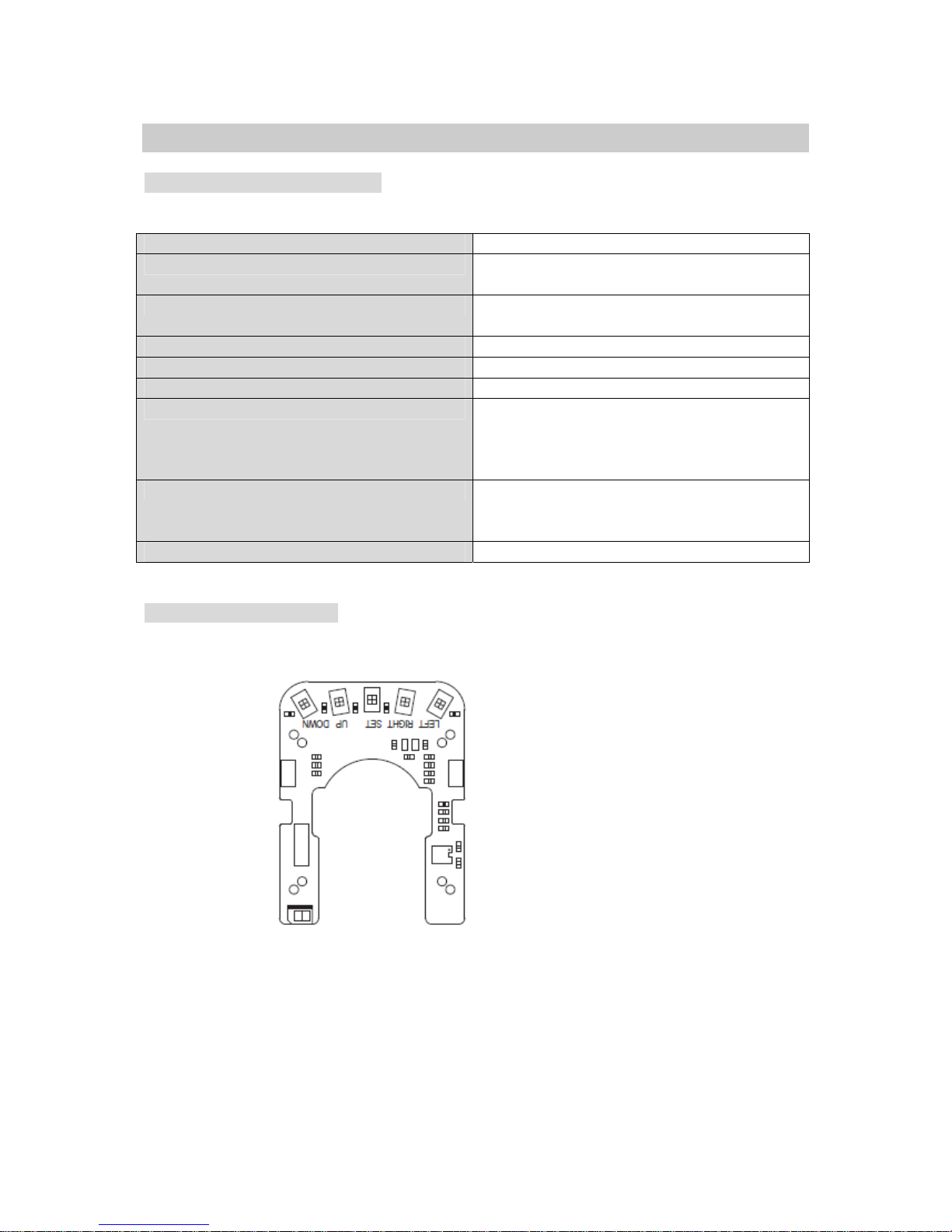

OSD PCB
● SETUP button: Used for the menu display. This button can be used to confirm settings after
changing the value of the selected function or current conditions.
●UP & DOWN buttons: Used for selecting items by moving the cursor up or down on the menu screen.
● LEFT & RIGHT buttons: Used when changing item values, by moving the cursor to the left or right
on the menu screen.
■ VBS-EXTRA FOR CONNECTING TO LCD
Please use the supplied wire when connecting to LCD
■ 3 AXIS BRACKET
Please loosen screws and fix tilted and panned position.
Page 9
Manual CC 5307 9

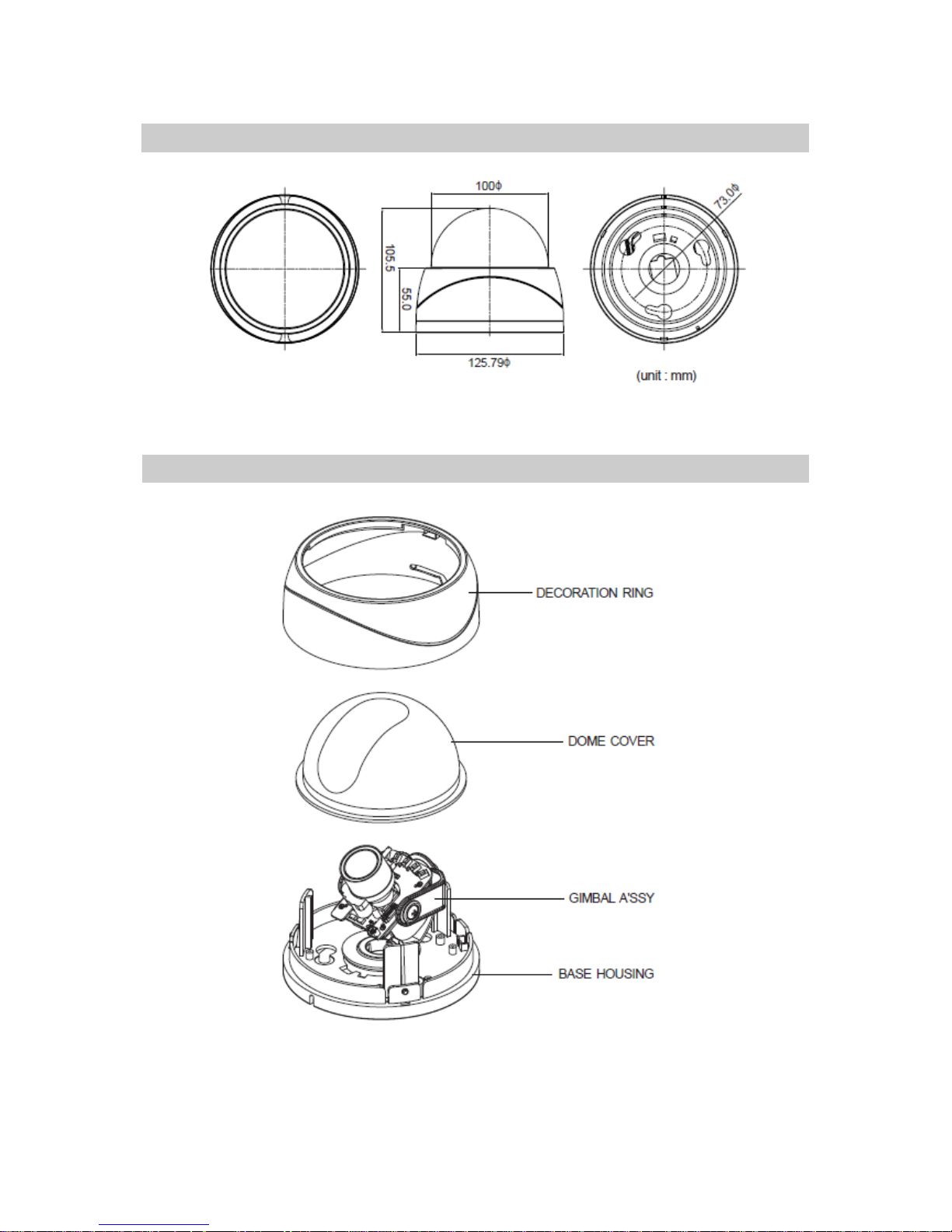

Dimension
Installation
Page 10
Manual CC 5307 10
1. Dome Base Mounting
- Open the dome cover by loosening 3 screws using special wrench provided.
- Mount the base of camera to a sturdy using 4 screws (1.5 inch) and 4 premade holes on the base of the dome.
2. Power Connect & Monitor Impedance
- DC12V/300mA regulated power supply (DC12V only) AC24V Class 2 power supply (AC24/DC12V)
- To avoid fire or shock hazard, must use a UL listed power supply.
- Set the monitor impedance switch to 75Ω. Check the impedance switch when the screen turns blurred.
3. Camera Module Adjustment
- Loosen screws for 3-axis camera bracket and adjust the direction and angle of camera.
- Make sure to retighten the screws for camera bracket.
4. Dome Cover Mounting
- Replace the dome cover to the base and tighten the ring.

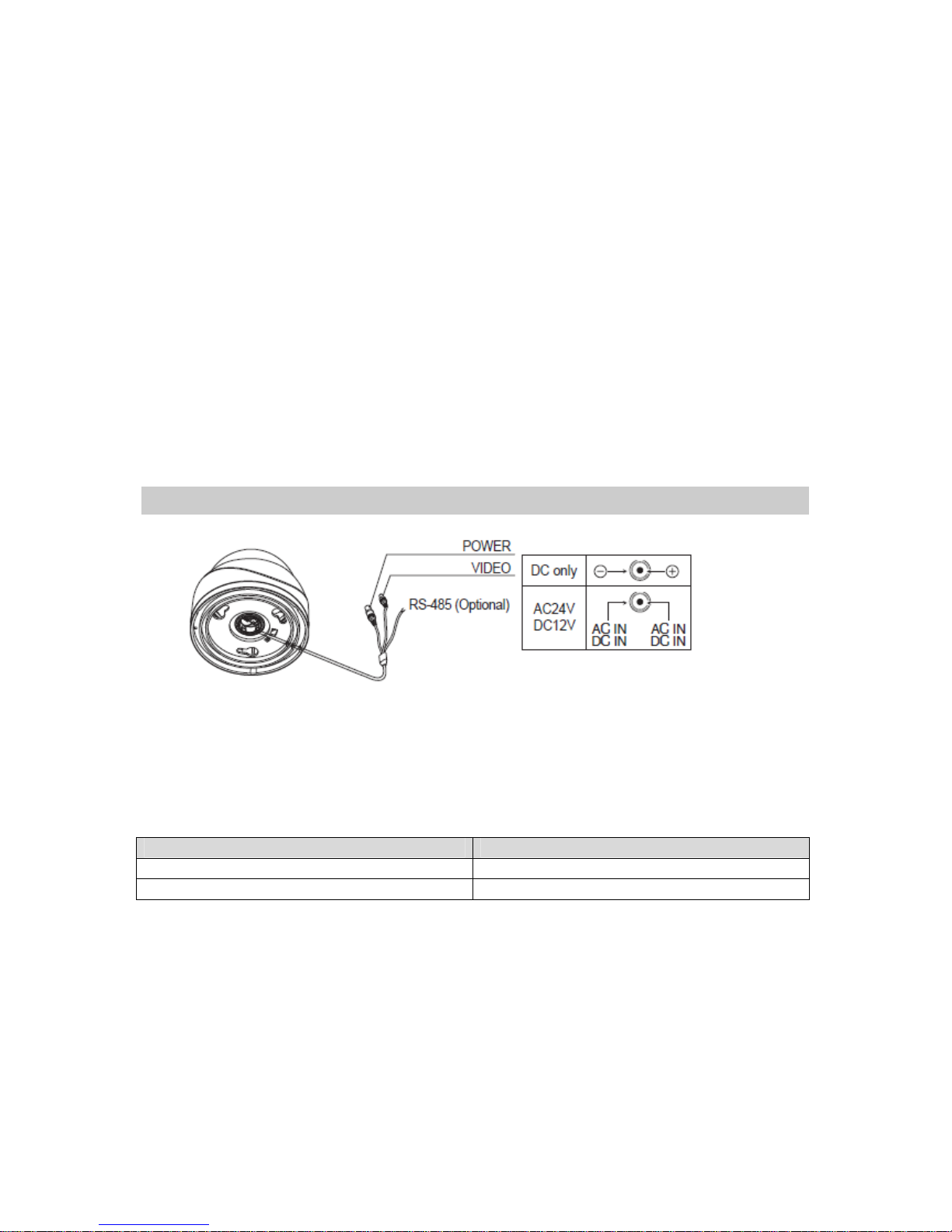

Cable Connection
Control via RS-485 Interface (Optional)
The camera can be controlled by using external controllers like a Remote controller. (RS-485 Communication)
• To control using a DVR or System Controller Connect the RS-485 cable (TRX+, TRX-) to the connection port of the 485 control board that is connected to the DVR or System Controller.
485 Control Board Connection Port RS-485 Control Port
(+) CONNECTION TERMINAL (TRX+) 485+ (- ) CONNECTION TERMINAL (TRX -) 485-
Page 11
Manual CC 5307 11
Note
• To control the camera by constructing an additional controller, use Pelco-D protocol.
(Go Preset 95: Enters into OSD menu or Set key function)

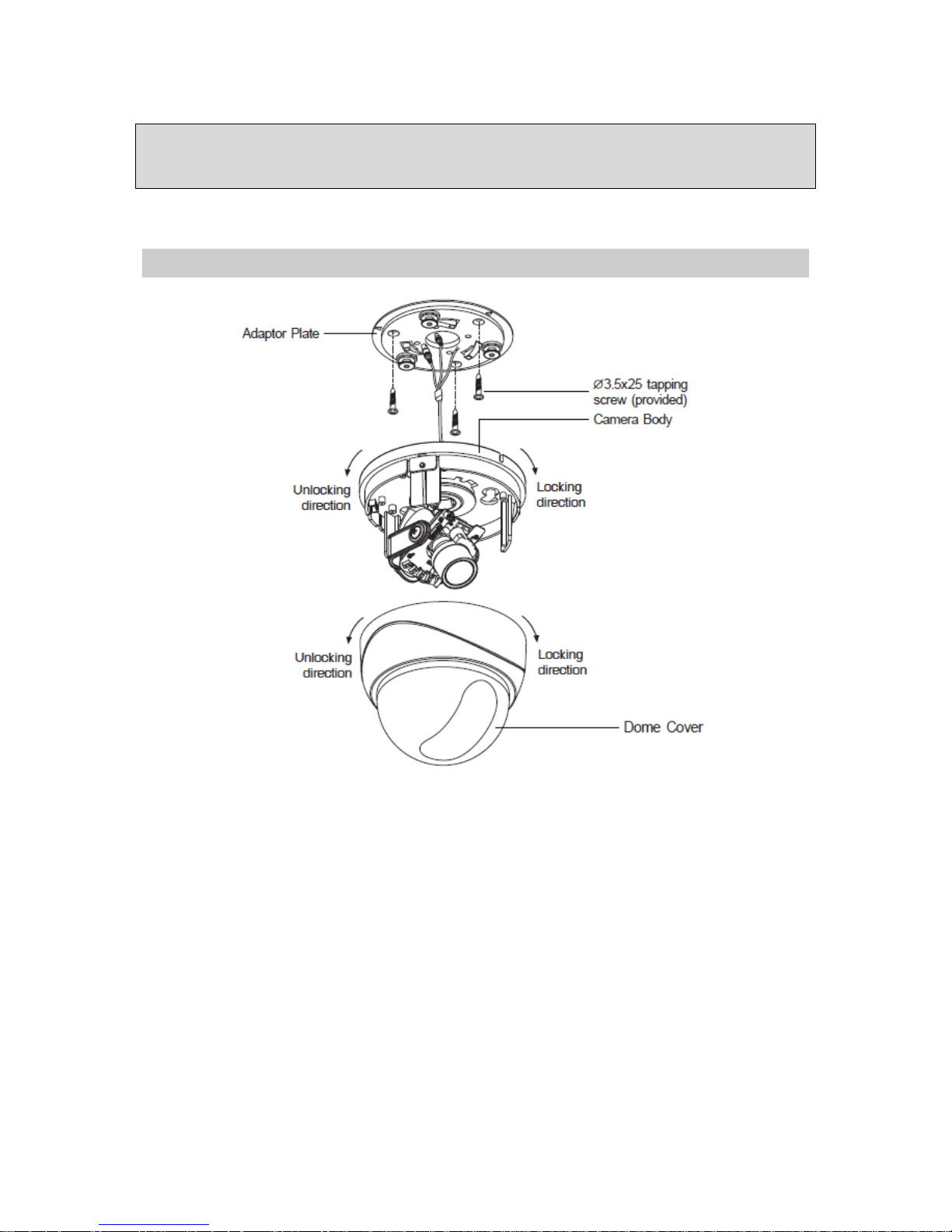

Installation (Adaptor Plate)
* When installing on an adaptor plate bracket.
1. Place the adaptor plate bracket on a flat installation surface and fix it with the screws provided.
2. When placing the camera body onto the plate, insert the plate pin into the corresponding holes on the camera body as shown in figure-1. Lock the camera in place by turning the camera body clockwise.
3. When placing the camera body on the plate, make sure that the power and video cables pass through.
4. After installation and adjustment of the camera is complete, secure the dome cover by turning it clockwise.
Page 12
Manual CC 5307 12
How to Use the Camera
On-Screen Display Menu Structure
Setup menu
Lens Manual DC Exposure SHUTTER AGC SENS-UP
RETURN
White Balance ATW AWC Manual
OUTDOOR INDOOR Backlight OFF WDR BLC DNR OFF ON Day/Night COLOR BW AUTO Image Adjustment FREEZ V-REV H-REV
COLOR GAIN RESOLUTION

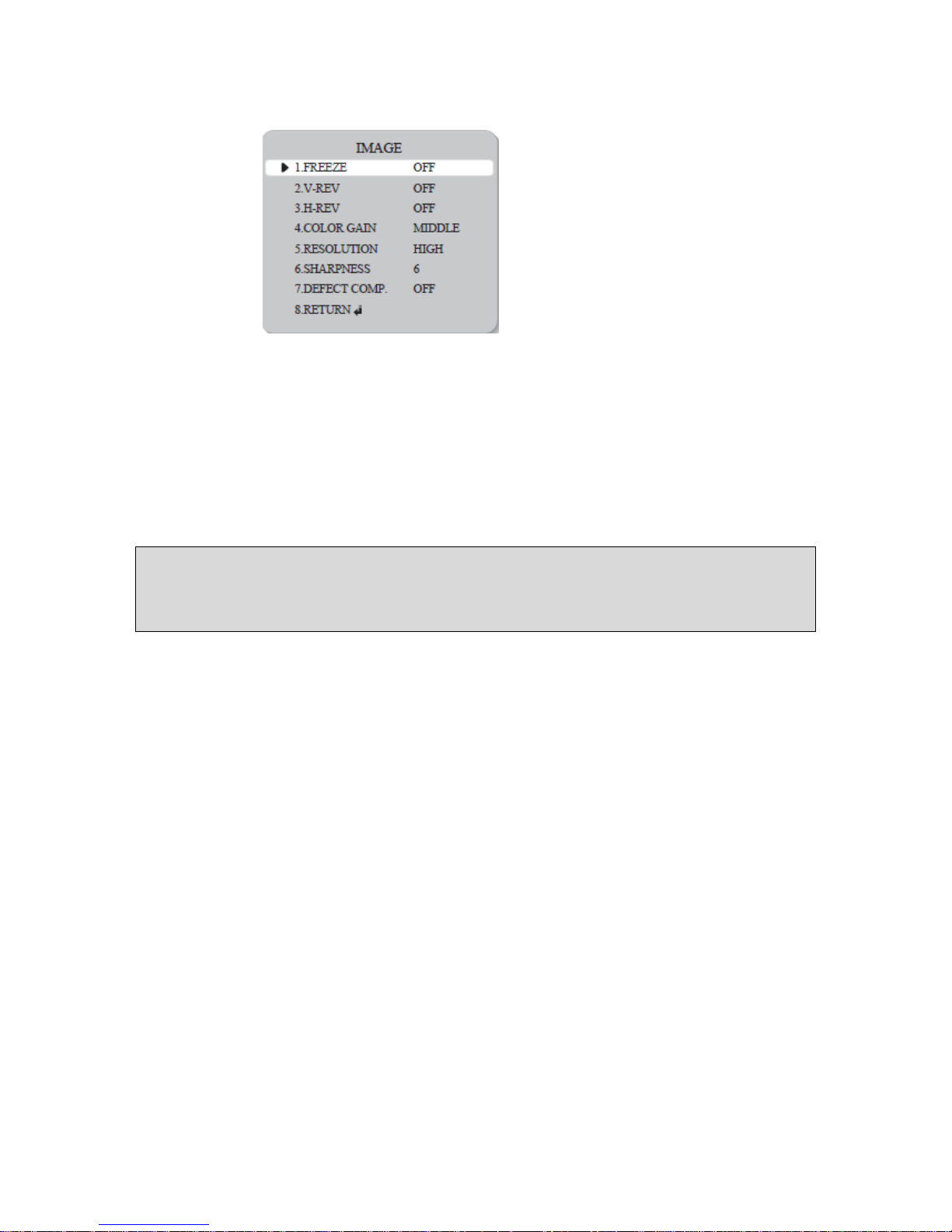

SHARPNESS DEFECT COMP.

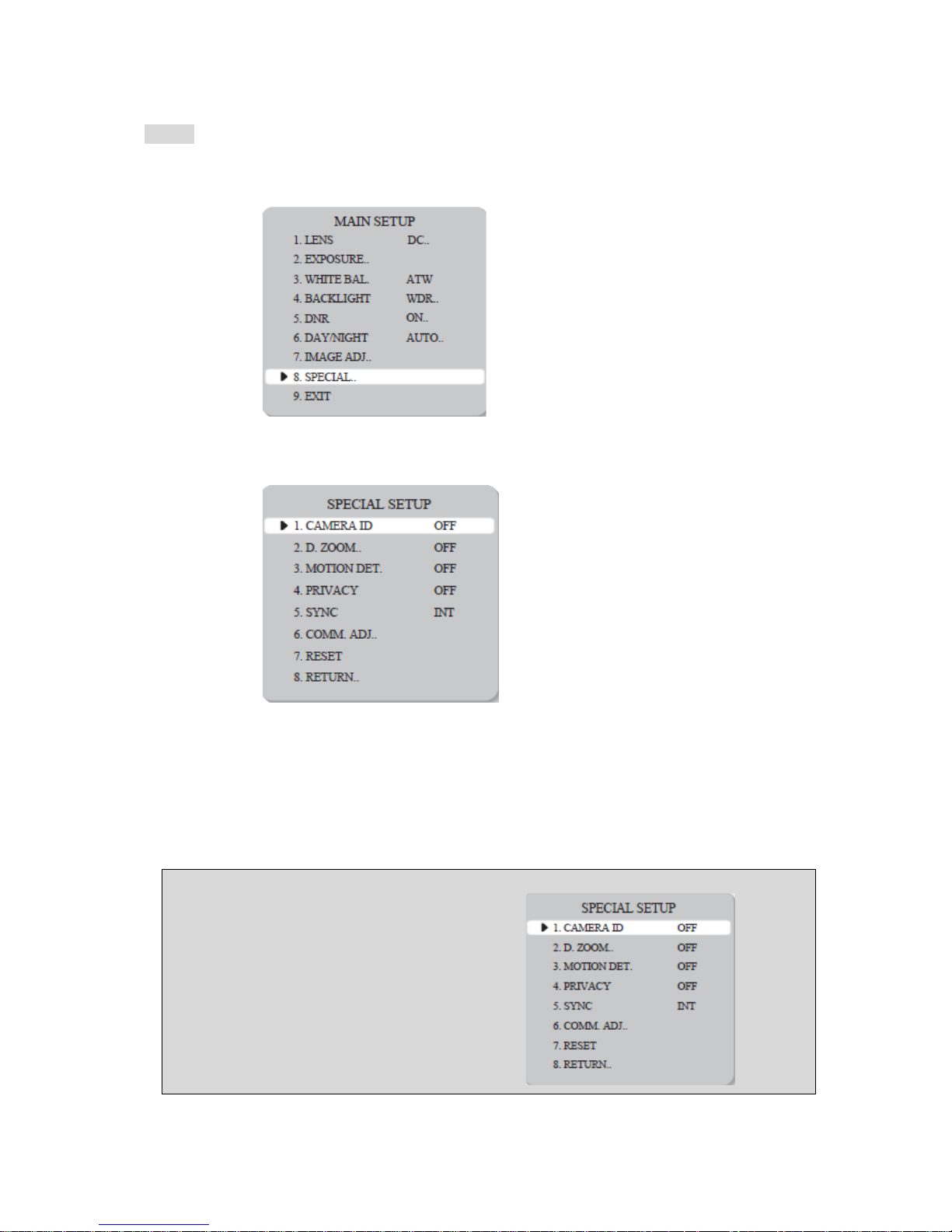

RETURN Special CAMERA ID D. ZOOM
MOTION DET. PRIVACY SYNC
COMM ADJ. RESET RETURN Exit
How to Set up the Functions
Settings can be made using the 5 buttons located in the camera.
Page 13
Manual CC 5307 13
1. Please press the Setup button.
Settings can now be made. The SETUP menu is displayed on the monitor.

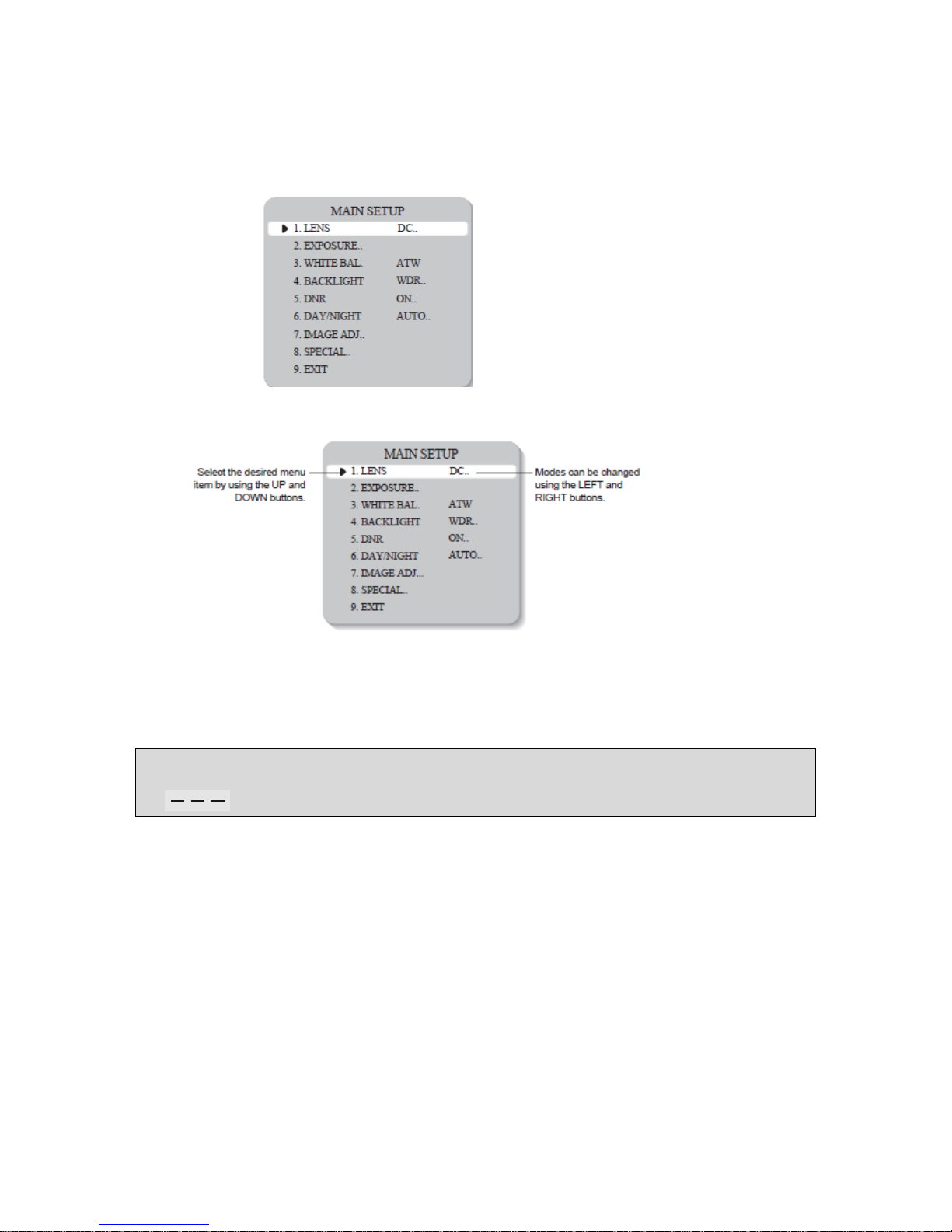

2. Please select any function you wish to activate by using the UP and DOWN buttons.
3. When the LEFT or RIGHT button is pressed, available values and modes are displayed in order. Please keep pressing the button until you get to the mode you wish to operate.
4. Please select 'EXIT' and then press the SETUP button to finish the setting.
Note
• An item with the .. icon also has sub-menus. To select a sub-menu, press the SET button.
• If appears at the mode item, it means that there is no mode available to be selected.
Page 14
Manual CC 5307 14
Lens
This function is used to adjust the brightness of the screen.

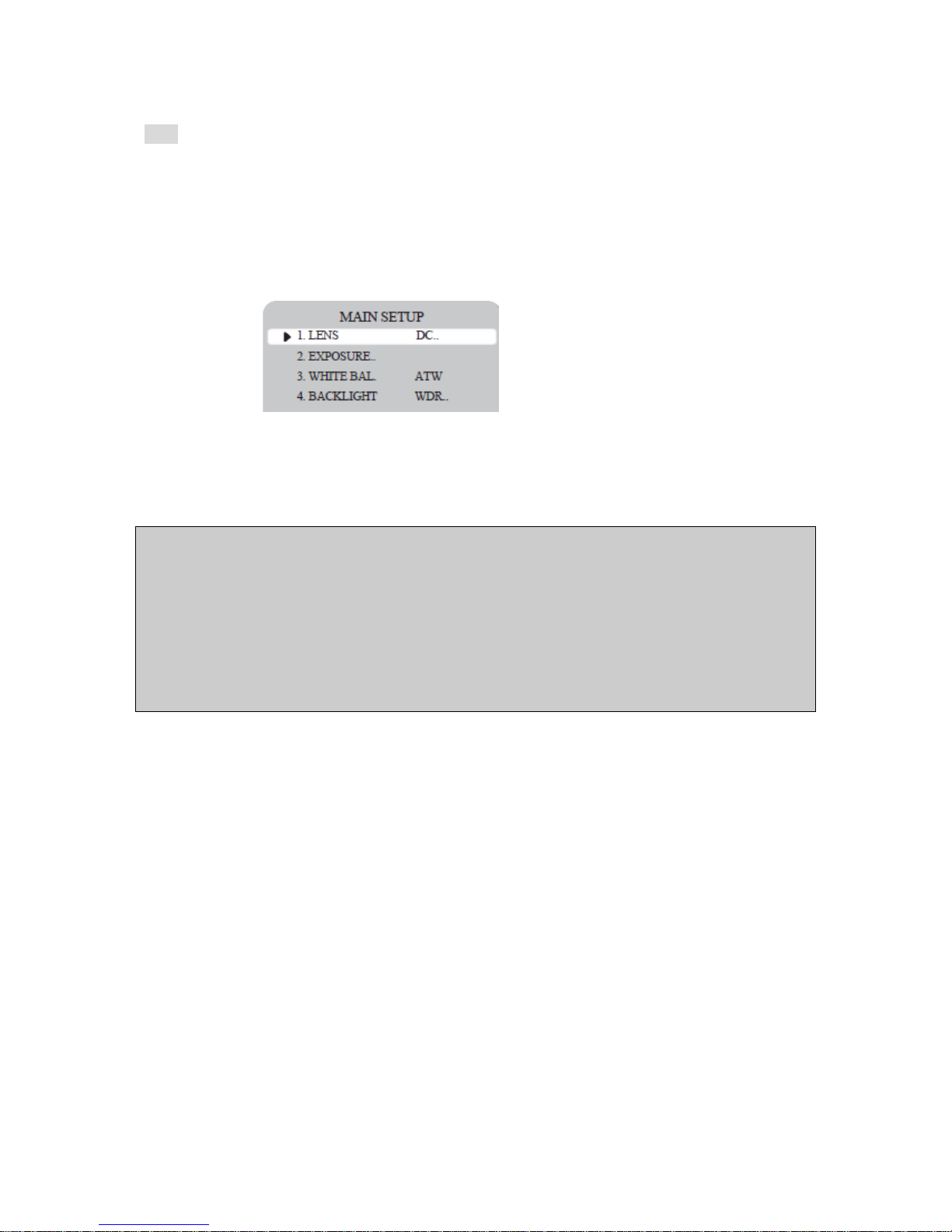

1. When the SETUP menu is displayed on the screen, please position the arrow to point to LENS by
using the UP and DOWN buttons.
2. Please select the type of the lens you wish to use by pressing the LEFT or RIGHT button.
- DC: Select Auto Iris Lens
You can adjust the minimum shutter and maximum value of ESC shutter mode when DC Lens mode is selected.
Note
• Some lenses may not work properly, depending on the settings for the IRIS LEVEL.
• When Using a Video-Type Auto Iris Lens
1. Check that the ALC adjustment on the lens is appropriate. In general, set it to AV (Average).
2. It may not work properly depending on the installed lens. Set the Level VR of the lens to the optimal value.
3. Set AGC / SENS-UP to OFF and adjust the Lens VR to an appropriate brightness.
4. Adjust the Lens VR, adjust the IRIS LEVEL, and then check if the screen brightness changes properly. Otherwise, adjust the Lens VR again.
- Manual: Select Manual Lens
Page 15
Manual CC 5307 15

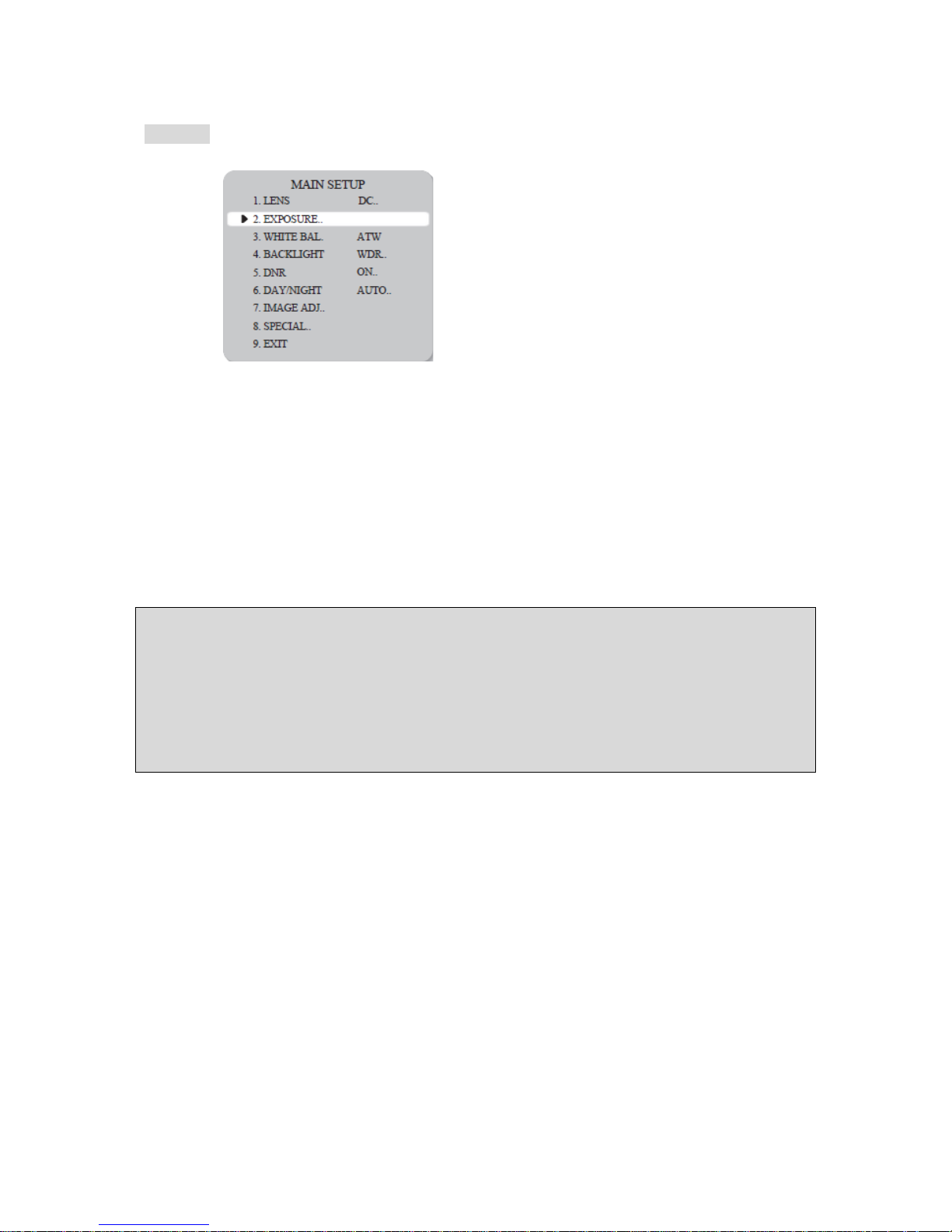

Exposure
1. When the SETUP menu screen is displayed select EXPOSURE using the Up and Down buttons.
2. Select the desired mode using the Left and Right buttons.
● SHUTTER: Select either auto or manual shutter.
- A.FLK: Select this when picture flicker is experienced, which can happen when there is a clash with the frequency of the installed lighting.
- ESC: Select this to control the shutter speed automatically. If ESC is selected, the shutter speed is automatically controlled according to the ambient illumination available.
- MANUAL: The shutter speed is controlled manually.
Note
• To produce better results with A.FLK, do not use it in conjunction with the WDR mode on the BACKLIGHT menu.
• When the SHUTTER is set to ESC, and the camera is set to Internal Synchronisation, the picture may become unstable if the camera faces a bright fluorescent light. Therefore, take care when choosing the installation position.
• ESC modes are only available when the lens is set to MANUAL.
• When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP is disabled.
● AGC (AUTO GAIN CONTROL): The higher the gain level, the brighter the screen - but the higher the noise.
- OFF: Deactivates the AGC function.
- LOW: Allows automatic gain control from 0 to 24dB.
- HIGH: Allows automatic gain control from 0 to 42dB.
● SENS-UP: When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated.
- OFF: Deactivates the SENS-UP function.
- AUTO: Activates the SENS-UP function.
Page 16
Manual CC 5307 16
Note
• If you press the SET button in 'AUTO' mode, You can adjust brightness by increasing or decreasing the shutter speed. (X2~X512)
• Note that the higher the level, the brighter the screen, but the more likely it is that an after-image will appear.
• Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation when the level is increased, this is normal.
● RETURN: It returns to the MAIN menu.
White Balance
The screen colour can be adjusted by using the WHITE BALANCE function.

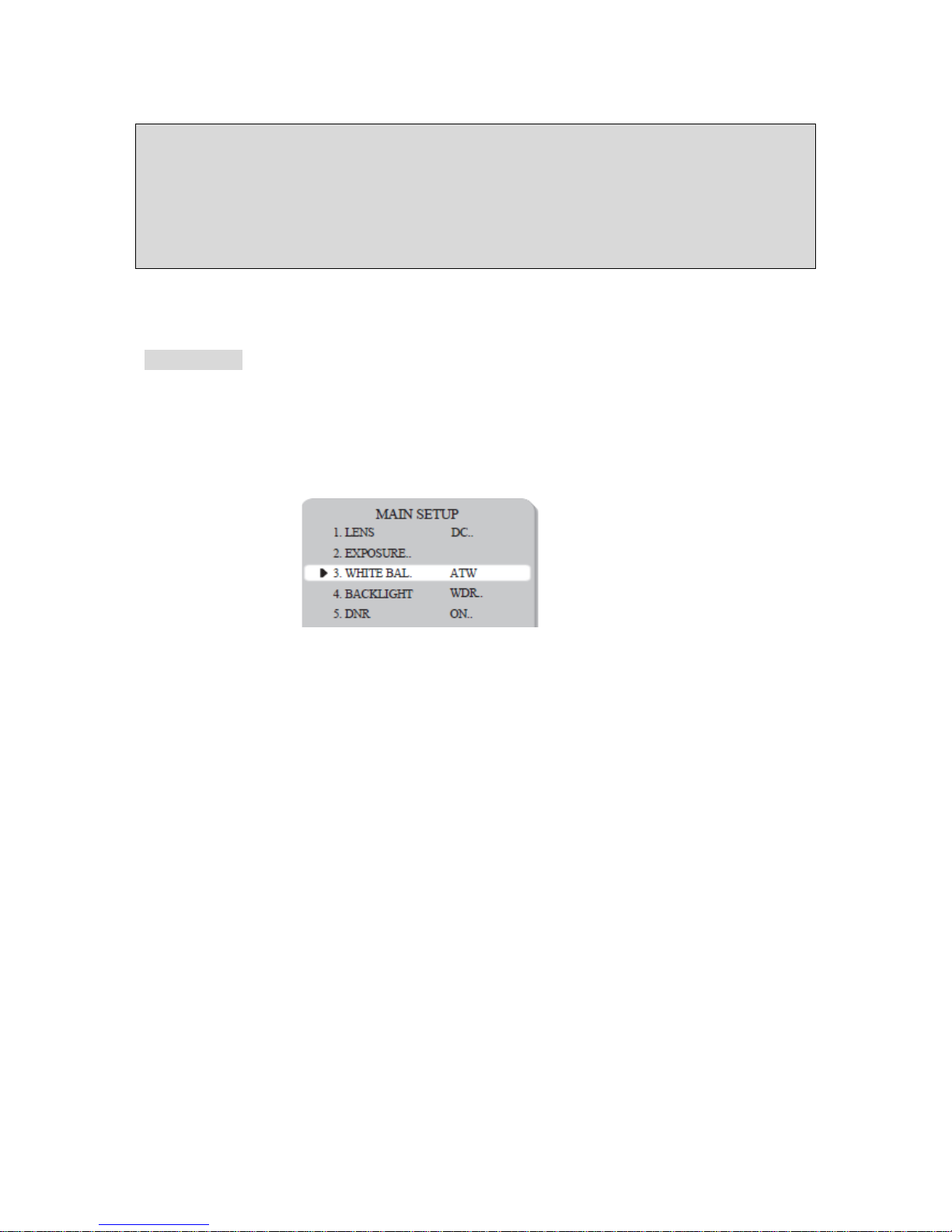

1. Please position the arrow to point to WHITE BAL on the SETUP menu by using the UP and DOWN buttons.
2. Please select the mode you wish to operate by pressing the LEFT or RIGHT button.
¾ Please select on of the 5 modes below.
ATW: Select when the color temperature is between 1800°K and 10500°K. AWC: To obtain the optimum state under the current luminance levels, direct the camera to
point toward a sheet of white paper and press the SET button. If the environment changes, including the light source, the white balance will require re-adjustment.
MANUAL: Select to "fine-tune" the White Balance manually. Set White Balance first using the
ATW or AWC mode. Afterwards switch to MANUAL mode, fine-tune the White Balance and then press the SET button.
INDOOR: Select when the color temperature is between 4500˚K and 8500˚K OUTDOOR: Select when the color temperature is between 1800˚K and 10500˚K. (Sodium light
inclusion)
Page 17
Manual CC 5307 17
Note
• Under the following conditions the WHITE BALANCE function my not operate properly. In such cases, please select the AWC mode.
1. When the objects surroundings have a very high colour temperature (eg, a clear sky and sunset)
2. When the objects surrounding are dark.
3. If the camera directly faces a fluorescent light or is installed in a place where there are considerable changes in illumination, the WHITE BALANCE function may become unstable.

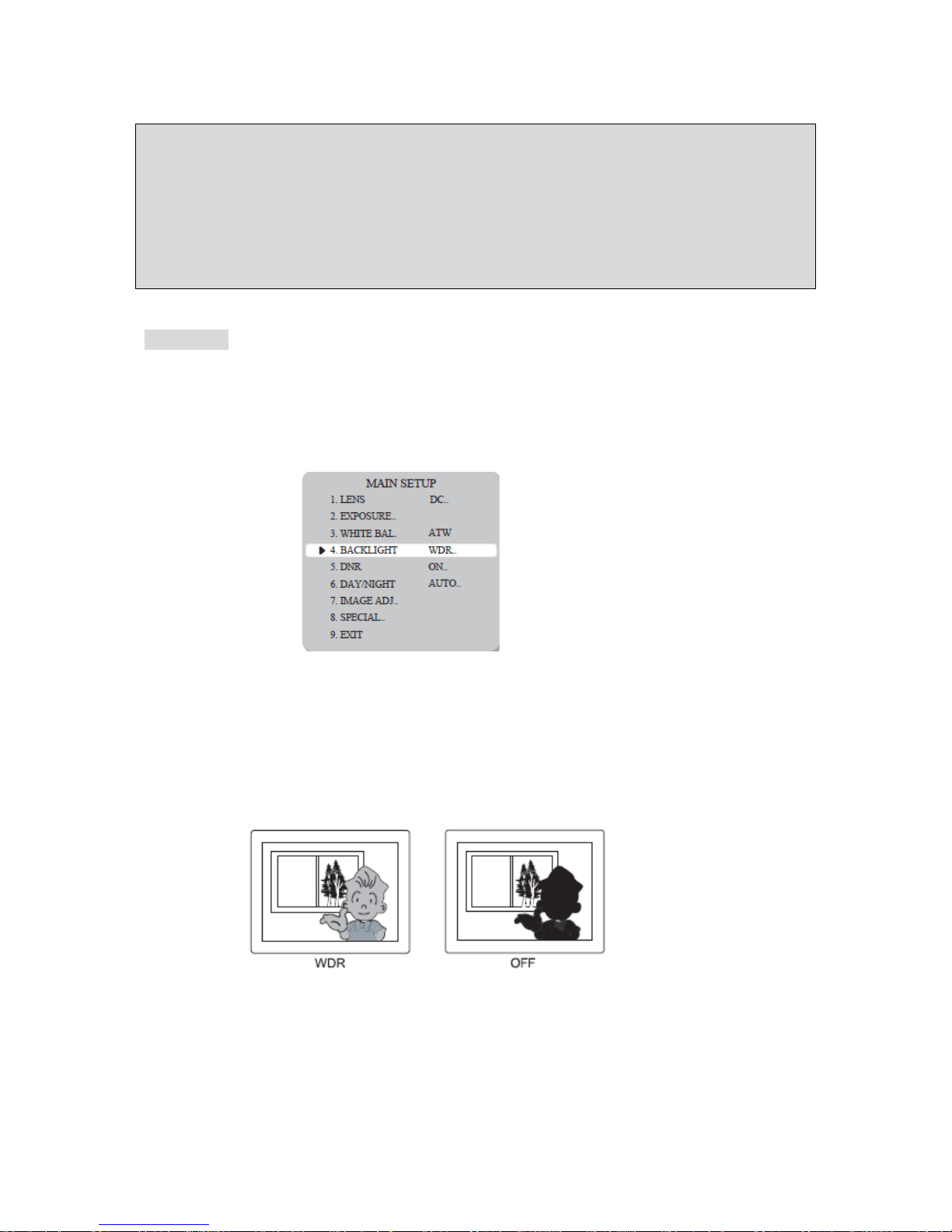

BACKLIGHT
This camera is designed to deliver a clear and distinct image of both subject and background, even when the subject is in a backlight.
1. Position the cursor to point to BACKLIGHT on the SETUP menu screen using the Up and Down buttons.
2. Select the desired mode using the Left and Right buttons.
WDR : When the image has simultaneous bright and dark areas, the Wide Dynamic Range
makes both areas distinct.
OFF : Deactivates the WDR function. BLC : Enables the user to directly select an area of a picture to activate and control.
3. Select the desired mode using the Left and Right buttons and press the SET button.
• Select 'WDR' to adjust the LEVEL, FRONT, BACK.
- LEVEL: It controls entire WDR range.
- FRONT: It controls front WDR range.
- BACK: It controls back WDR range.
Page 18
Manual CC 5307 18
Note
• If the following symptoms occur when WDR is selected, deactivate it.
1. Color of screen changes unnaturally.
2. Noise appears in the brightest part of the screen.
• As the performance of the WDR function can be affected by an area of brightness on the image, optimise the installation angle to eliminate any bright spots for the best performance.
• If LEVEL, FRONT, BACK is increased, the image may become distorted.
• For the best WDR performance use a DC Iris Lens rather than a Manual Lens.
DNR (Digital Noise Reduction)
The background noise in the low light level decreases automatically as the level of gain changes.
1. Please position the arrow to point to DNR on the SETUP menu by using the UP and
DOWN buttons.
2. Please select the mode you wish to operate by pressing the LEFT or RIGHT button.
OFF : Deactivates DNR. Noise is not reduced. ON : Activates DNR so that noise is reduced.
3. Set the DNR mode to 'ON' and press the SET button. The noise reduction level can now be adjusted.
Note
• It does not operate DNR function when the AGC mode in the EXPOSURE menu is 'OFF'.
• When adjusting the noise reduction level in DNR mode, remember that the higher the level is set, the
greater the reduction in noise level, but it also increases the possibility of ghosting.
Page 19
Manual CC 5307 19
Day & Night
Pictures can be displayed in either color or black and white.
1. When the SETUP menu screen is displayed, select 'DAY/NIGHT' using the Up and Down buttons.
2. Select the desired mode using the Left and Right buttons.
● COLOR: The picture is displayed in color.
● B/W: The picture is always displayed in black and white.
● AUTO: This camera has an IR Cut-Filter and automatically changes to the appropriate mode
according to lighting levels. To set up the switching time and switching speed for the AUTO mode press the SET button.
- DWELL TIME: You can select the duration time about changing the day/night mode. → 3sec. ~ 30sec.
- COLOR>BW: It controls COLOR to B/W change level. (1→about 0.8Lux, 2→about 1.2Lux, 3→about
1.5Lux, 4→about 1.7Lux, 5→about 2.0Lux)
Image Adjustment
1. When the SETUP menu screen is displayed, select 'IMAGE ADJ.' using the Up and Down buttons.
2. Select the desired mode using the Left and Right buttons.
Page 20
Manual CC 5307 20
● FREEZE: View still pictures.
● V-REV: Flips the picture vertically on the screen.
● H-REV: Flips the picture horizontally on the screen.
● COLOR GAIN: It controls color gain.
● RESOLUTION: High resolution supports a sharp image and normal resolution supports a soft image.
● SHARPNESS: As this value is increased the picture outline becomes stronger and clearer.
● DEFECT COMP.: If you see white pixels in darkness when the lens is blocked, it is possible to
compensate pixels by operating this function.
● RETURN: It returns to the MAIN menu.
Note
• When H-REV or V-REV is selected, any text in the picture also will be flipped horizontally or vertically.
• If the SHARPNESS level is increased too high the picture may become distorted, or noise may
generated.
Page 21
Manual CC 5307 21
Special
1. Please position the arrow to point to SPECIAL on the SETUP menu by using the UP and
DOWN buttons.
2. Select the desired mode using the Left and Right buttons.
CAMERA ID: If a title is entered, the title appears on the monitor.
1. When the SPECIAL menu screen is displayed, use the Up and Down buttons to point the cursor
to 'CAMERA ID'.
2. Set to 'ON' using the Left and Right buttons.
Note
• When the CAMERA ID menu is 'OFF', no title will be displayed on the monitor screen even if one has been entered.
Page 22
Manual CC 5307 22
3. Press the SET button.
4. Use the 4 directional buttons to move to a character, and select it by pressing the SET button.
Repeat this action to enter multiple characters. Up to 15 alphanumeric characters can be used.
Note
If the cursor is moved to CLR and the SET button pressed, all letters are deleted. To edit a letter, change the cursor to the bottom left arrow and press the SET button. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the SET button.
5. Enter a title, move the cursor to 'POS' and press the SET button. The entered title appears on the screen. Select the position to display the title on the screen using the 4 directional buttons and press the SET button. When the position is determined, select 'END' and press the SET button to return to the SPECIAL menu.
D-Zoom: Digitally zooms, the range is x1~x32. Motion Detection: This camera displays an on-screen message whenever motion is detected.
1. When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the cursor points to MOTION DET.
2. Set up the function using the 4 directional buttons.
- AREA: Up to 4 areas are selectable.
- MODE: Determines whether to use the MD area selected.
- Adjust the size of the area to be observed by selecting the LEFT, RIGHT, TOP or BOTTOM.
- SENSITIVITY: When the SENSITIVITY value is high, motion detection sensitivity is increased to recognise small movements.
- RETURN: It return to the SPECIAL menu.
Note
MD areas show only on the Motion Det menu. Therefore, MD areas are not displayed on the monitor screen.
PRIVACY: Hide an area so that it is not displayed on the monitor.
1. When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the cursor points to 'PRIVACY'.
2. Set up using the 4 directional buttons.
- AREA: Up to 8 areas are selectable.
- MODE: Determines whether to use the area selected in the AREA SEL, and the size and position of the area.
- Adjust the size of the area to be observed by selecting the LEFT, RIGHT, TOP or BOTTOM.
- MASK TONE: Determine area mask tone density.
- RETURN: It return to the SPECIAL menu.
Page 23
Manual CC 5307 23
SYNC: Two synchronisation modes are available, INTERNAL and EXTERNAL LINE-LOCK. In LINE-
LOCK mode, it synchronises the video signal between cameras without a synchronous generator. The line-lock synchronisation is only used in areas of 60Hz (NTSC Models) / 50Hz (PAL Models).
- INT: Internal synchronisation
- LL: External line-lock synchronisation
• If 'LL' is selected, it can be adjusted to the desired phase. Press the SET button.
• Adjust to the desired phase from 0 to 160.
Note
When using AC power, Line-Lock synchronisation can be used. When the power is DC12V, the SYNC menu is fixed to the INT mode.
COMM ADJ. (Pelco-D Protocol):
This function sets up the camera communication status when controlling the camera through an external device.
1. When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the cursor points to 'COMM ADJ'.
2. Set up the mode using the 4 direction buttons.
- CAM ID: Determines the camera's identification number. (between 0 and 255).
- BAUD RATE: Select 2400 / 4800 / 9600 / 19200 / 38400 bps.
Reset: Resets the camera settings to the factory default. Return: It returns to the MAIN menu.
EXIT
Press the SET button in the EXIT menu to save the current settings and exit the SET menu.
Page 24
Manual CC 5307 24
Troubleshooting
If there are problems in operation, please refer to the items below. If the problem persists, please contact the agent you purchased this product from.
Problems Troubleshooting
Nothing appears on the screen. • Please check the power connection.
• Please check the video signal line connection.
• Please check and make sure that the auto lens switch is set to DC (VIDEO) when using a VIDEO(DC) lens.
The video image is not clear. • Please check if the lens is clean. Please clean the
lens with a clean cloth or brush.
• Please adjust the contrast feature of the monitor.
• Please make sure that the screen is not exposed directly to a bright light. Please move the camera if necessary.
• Please readjust the back focus of the camera.
The screen is dark. • Please adjust the contrast feature of the
monitor.
• If you have an intermediate device, set the 75 / Hi-z properly, and check the terminals.
• Please check if an auto iris lens is being used and adjust the brightness level.
The camera is not working properly, and the surface of the camera is hot
• Check that an appropriate power source is connected to the camera.
The MOTION DETECTION function is not working.
• Please check if 'MOTION DETECTION' mode is turned on.
• Please check if the MD LEVEL is too low.
• Please check the setting of the MD AREA.
Colours are not quite right. • Please check the 'WHITE BAL' setting. The screen is flickering. • Please check if the camera is facing directly into
sunlight or fluorescent light.
• Please check if an auto iris lens is being used.
• Please check the connection of the lens connector cable.
COLOR mode is not working. • Please check if the AGC menu is set to the
OFF position.
SENS-UP function is not working. • Please check if the AGC menu is set to the
OFF position.
• Please check if the SHUTTER menu is set to MANUAL mode.
Page 25
Manual CC 5307 25
Specifications
Item NTSC PAL
AC24V/DC12V DC12V AC24V/DC12V DC12V
Power Consumption
380mA(AC24V / 520mA (DC12V)
450mA 380mA(AC24V /
520mA (DC12V)
450mA
Effective Pixels 976(H) x 494(V) 976(H) x 582(V) Image Sensor SONY 1/3“ Super HAD II Vertical Double Scan color CCD
CCD
Scanning System 2:1 Interlace Synchronization INT / LL
sync
Frequency
Horizontal: 15.734 KHz Vertical: 59.94 Hz
Horizontal: 16.625 KHz Vertical: 50.00 Hz
Resolution 650TV Lines (Color), 800 TV Lines (B/W) S/N Ratio 52dB (AGC Off, Weight ON) WDR OFF / ON / Adjustable Strength BLC BLC (Adjustable spot zone) Min. Illumination 0,3 Lux 40IRE (Color), 0,03 Lux 40 IRE (B/W) White Balance ATW / AWC / MANUAL (1700°K~11,000°K) / Push & Hold
/ Preset (Indoor/Out) Shutter Speed 1/60, 1/50 ~ 1/120,000 sec. Sens-Up OFF / AUTO (selectable x2 ~ x512) Gain Control LOW / HIGH / OFF DNR ON / OFF (1 ~ 32 Level) Motion Detection ON /OFF (4 programmable Zone, Alarm Output) Privacy Mask ON / OFF (8 Zones) V-REV ON / OFF H-REV ON / OFF Freeze ON / OFF Day & Night AUTO / COLOR / BW / EXT
Electrical
Digital Zoom OFF / ON (32x)
Operating temperature -10°C~+50°C / 30~80%RH Weight 350 g
Loading...
