Manual CC 5201
1
Manual
CC-5201
Date: January 2011 Convision Systems GmbH
Manual CC 5201
2
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than those specified.
Do NOT expose this appliance to rain or moisture.
This Installation should be made by a qualified service person and should confirm to all local codes.
Manual CC 5201
3
Warning
The camera requires periodic inspection.
Contact an authorised technician to carry out the inspection.
Stop using your camera when you find it malfunctioning.
If the camera emits smoke or is unusually hot for a long period, a fire may be caused.
Do not install the camera on a surface that can not support it.
If the camera is installed on an inappropriate surface, it may fall and cause injury.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not dis-assemble the camera.
It may result in an electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in a fire or other hazards.
Manual CC 5201
4
Contents
NOTICE 5
Important Safeguard 5
Precautions 5
Features 6
Components and Accessories 7
Overview 7
Front View 7
Dimensions 7
Side View 8
Bottom View 8
Rear View 9
Installation Procedure 10
Lens 10
Using an Auto Iris Lens 10
Using a C/CS mount Lens 11
Connecting to a Monitor 12
Connecting to Power 13
Control via the RS-485 Interface 14
Camera Operation 14
Menu 14
Switch 14
Main Menu 15
Exposure 15
White Balance 16
Day / Night 16
Motion 16
Privacy 17
Option 18
Display 19
Sync 19
Internal 19
Exit 19
Troubleshooting 20
Specifications 21
Manual CC 5201
5
NOTICE
Important Safeguard
1. Read Instructions
Read all of the safety and operating instructions before using the product.
2. Retain Instructions
Save these instructions for future reference.
3. Attachments / Accessories
Do not use attachments or accessories unless recommended by the appliance manufacturer as they
may cause hazards, damage product and void warranty.
4. Water and Moisture
Do not use this product near water or moisture.
5. Installation
Do not place or mount this product in or on an unstable or improperly supported location. Improperly
installed product may fall, causing serious injury to a child or adult, and damage to the product. Use only
with a mounting device recommended by the manufacturer, or sold with the product. To insure proper
mounting, follow the manufacturer's instructions and use only mounting accessories recommended by
manufacturer.
6. Power source
This product should be operated only from the type of power source indicated on the marking label.
Precautions
■ Operating
-Before using, make sure power supply and others are properly connected.
-While operating, if any abnormal condition or malfunction is observed, stop using the camera
immediately and then contact your local dealer.
■ Handling
-Do not disassemble or tamper with parts inside the camera.
-Do not drop or subject the camera to shock and vibration as this can damage camera.
-Care must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your
quality of camera.
■ Installation and Storage
-Do not install the camera in areas of extreme temperature, which exceed the allowable range.
-Avoid installing in humid or dusty places.
-Avoid installing in places where radiation is present.
-Avoid installing in places where there are strong magnetic fields and electric signals.
-Avoid installing in places where the camera would be subject to strong vibrations.
-Never expose the camera to rain and water.
Manual CC 5201
6
Features
Ultra High Resolution
By adopting a 410,000 pixel Sony CCD, the
camera produces clear picture quality with
a horizontal resolution of 540 TV lines for
colour and 570 TV lines for B/W.
Fine Picture in Ultra Low Illumination
½ inch CCD allows bright and high quality
images to be captures in ultra low light
condition.
- Color: 0.08Lux / F1.2
- B/W: 0.01Lux / F1.2
- Sens up: 0.001Lux / F1.2
Filter Changeable Day & Night
This camera has a function that
automatically selects the mode that is
appropriate for daytime or night-time
conditions. The Color mode operates in
daytime conditions to provide optimum
colors, and BW mode operates in nighttime
conditions to enhance the definition of the
image.
Electronic IRIS
The electronic Iris function enables
continuous automatic control of the shutter
between 1/60(1/50)~1/120.000 sec.
Privacy Function
The Privacy function conceals the areas
you do not whish to appear on the screen.
DNR (Digital Noise Reduction)
The amount of low illuminance noise
has been significantly reduced, and the
signal-to-noise ratio (S/N ratio) as well as
horizontal resolution have been improved,
resulting in clear and sharp images
displayed even in the dark.
Controlled by OSD Menu
The camera can be controlled by selecting
text displayed on the monitor screen.
Additional Functions
Sens-up, Motion Detection, Mirror,
Sharpness and Sync (INT/AUTO) functions
are also available.
RS-485 Communication Control Support
Remote OSD menu control via an RS-485
interface is supported.
Manual CC 5201
7
Components and Accessories
1. Day & Night CCD Camera
2. Auto Iris Lens Connector Plug
3. C-Mount Adapter
4. Instruction Manual
Overview
Front View
1. Tripod Mounting Bracket Screw Hole
Used to fix Tripod Mounting Bracket to the top of the camera
2. C-Mount Lens Adapter
Install this adapter to use a C-Mount Lens
3. Back Focus Control Lever
Adjust Back Focus using this control lever
Dimensions
Manual CC 5201
8
Side View
4. Auto Iris Lens Connector
Used to connect Auto Iris Lens plug.
Bottom View
5. Tripod Mounting Bracket Screw Hole
Used to fix the camera onto a bracket or tripod.
The screw sizes for this hole are as follows:
The Tripod Mounting Bracket can be unscrewed and installed
on the top or bottom of the camera. Make sure to use the
Tripod Mounting Bracket when fixing the camera to a bracket
or tripod, otherwise the camera may be unstable and the
internal circuitry of the camera may get damaged.
Manual CC 5201
9
Rear View
6. OSD Setup Buttons
Set Button: Displays the menu on the screen. Press this button to confirm status or after
changing a selected item.
Up and Down Button: Used to move the cursor up and down in the menu screen to select a
desired menu item.
Left and Right Button: Used to move the cursor left or right in the menu screen or to change the
value of the selected item.
7. D & N Input Port/GDN: Color, Open: B/W)
Switch to Day or Night Mode by connecting an external signal to this port.
8. MD Output Port
Motion detection signal is output through this port.
9. RS-485 Control Port
The SETUP MENU can be controlled via this port using an external controller that supports RS485 communications.
10. Power LED
When power is properly connected, the LED illuminates.
11. Video OUT Port
Video signals are output through this port. Connect this port to the Video IN port of a
Monitor/DVR.
12. Auto Iris lens selection switch
Used to change between DC or Video depending upon the type of auto iris in use.
13. Power IN Port
Connections for Camera power, as specified for each model.
Manual CC 5201
10
Installation Procedure
Lens
The lens is not supplied with this camera. Purchase a lens suitable for the environment. This camera
accepts an auto iris lens and both C-and CS-mount lenses.
Note
It is recommended to use the DC type Auto Iris Lens to effectively enjoy the major functions of this
camera.
Keep the lens surface clean, as the picture quality suffers if there is dirt or fingerprints on the Lens.
Using an Auto Iris Lens
1. Strip 8mm of insulation from the end of the Auto Iris Lens cable.
2. Strip 2mm of insulation fro each of the cores of the cable.
3. Remove the cover of the Auto Iris Lens connector plug and solder the lens cable to the
connector pins of the plug.
For a Video Drive Lens For a DC Drive Lens
Pin 1: Red (Power) Pin 1: Damping –
Pin 2: NC Pin 2: Damping +
Pin 3: White (Video Signal) Pin3: Drive +
Pin 4: Black (Ground) Pin4: Drive –
Manual CC 5201
11
4. Fit the cover of the auto iris lens connector plug, remove the protective CCD cover from the
front of the camera and fasten the Auto Iris Lens by turning it clockwise.
5. Focus the camera using the Auto Iris Lens controls, combined with fine adjustment using the
Back Focus control.
Using a C/CS mount Lens
Before installing a lens, identify whether the lens to be installed is a C-Mount or CS-Mount. This camera
is set for a CS-Mount Lens by default. To install a C-Mount Lens, a simple modification is required.
When Using a CS Mount Lens
Remove the protective cover from the front of this product and turn the
CS-Mount Lens clockwise to install it. Focus the camera using the
CS-Mount Lens and Back Focus controls.
Note
Use a lens threaded as shown in the following figure. If the dimensions of the thread are incorrect
the camera could be damaged, or the lens may not get installed firmly enough.
If the lens is too heavy the camera becomes unbalanced, which may cause problems. Use a lens
weighing less than 450g.
When adjusting the Automatic Level Control (ALC) of an Auto iris Lens, use Av mode if available. If
Pk mode is used the picture brightness may change continuously.
Manual CC 5201
12
When Using a C-Mount Lens
1. Remove the protective cover at the front of this product and fit the C-Mount Adapter, turn it
clockwise to install it.
2. Turn the C-Mount lens clockwise to install it.
3. Focus the camera using the C-Mount Lens and Back Focus controls.
4. Set the lens selection switch, located on the rear of the camera, to either DC or VIDEO
depending on the type of auto iris lens being used.
Connecting to a Monitor
Connect the video output terminal located on the rear of the camera to the Monitor/DVR.
Manual CC 5201
13
Since the connection procedure may differ depending on the type of monitor or peripheral
device to be connected, refer to the User Manual for the device to be connected.
Make sure to turn off the device to be connected before making any connections.
Turn the 75Ώ/Hi-Z switches of interim display devices to the Hi-Z position, and the switches of
any final device to the 75Ώ position.
Connecting to Power
Since power specifications differ depending on the model, make sure to check your model name and
specifications before connecting power. You can connect power as shown in the following figure.
For AC / DC Power
Check the standard power requirement before connecting to power.
Dual Power Type AC90~230V-50Hz/60Hz 4.5W
(AC 24V/DC 12V, AC 24V Class2)
DC Power Type (DC 12V, 500mA)
When the resistance value of cooper wire is at [20°C(68°F)]
Copper wire size
(AWG)
#24(0.22mm²) #22(0.33mm²) #20(0.52mm²) #18(0.83mm²)
Resistantce value (
/m)
0.078 0.050 0.030 0.018
Voltage drop (V/m) 0.028 0.018 0.011 0.006
As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an
excessively long adaptor output line for connection to the camera may affect the performance of the
camera.
Standard voltage for camera operation: DC 12V ± 10%, AC 24V ± 10%
There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
Manual CC 5201
14
Control via the RS-485 Interface
The camera can be controlled by using an external controller equipped with RS-485 communications.
To control using a DVR or keyboard controller Connect the RS-485 cable (TRX+, TRX-) to the
connection port of the 485 control board in the DVR or controller.
485 Control Board Connection Port RS-485 Control Port
(+) CONNECTION TERMINAL (TRX+) 485+
(- ) CONNECTION TERMINAL (TRX -) 485-
* RS-485 communication default initial values
Item Camera ID Baud Rate Uart Mode Pet Pkt
Initial Value 1 9600 8-NONE-1 ENABLE
Note
To control the camera use Pelco-D protocol.
(Go Preset 95: Enters into OSD menu or Set key function)
Camera Operation
Menu
Main Menu
Exposure Lens, Brightness, Backlight, Shutter, AGC, Sense up, Eclipse, DNR
White Bal WB Mode, Red Cont, Blue Cont, Push Auto
Day / Night D/N Mode, Filter Dly
Motion Detect Mode, Detect Area, Sensitivity, Alarm Time
Privacy Area, Mask, Level, Top, Down, Left, Right
Option Title, Nega/Posi, Sharpness, Mirror, Zoom, Pan/Tilt, Phase
Display Title, Motion Det, Camera ID, Baud Rate
Sync Int, Auto
Initial
Exit
Switch
Set: On or Off of OSD Menu
- It becomes a decision at the title screen
Up / Down: Up or Down of Cursor
Manual CC 5201
15
Left / Right: Sub Menu On or Decision
- When OSD Menu is Off and Pan/Tilt is On, operate by Up, Down, Left, Right
Motion Detect becomes invalid while moving Pan/Tilt.
Main Menu
- Exposure, White Bal, Day/Night, Motion, Privacy, Option and Display has a Sub Menu; UP /
DOWN Cursor. And Sub Menu is displayed by Left /Right
- Sync: Auto or Int can be selected.
- When making Initial from Use to Not Use, all data is initialized.
It doesn’t operate at Not use.
- Exit is non-displayed by Left/Right.
Exposure
- Lens: ELC or DC/VIDEO can be selected
- Brightness: 0 to 60 can be selected
- Backlight: OFF or ON can be selected
- Shutter: 1/60(NT), FLC, 1/250, 500, 1000, 2000, 4000, 10000 can be selected
* When LENS is DC, it is possible to select it. Another becomes NOT USE. It becomes 1/60 at
NTSC. It becomes 1/50 at PAL.
- AGC: AGC OFF, LOW, MID, HIGH can be selected
- Sense Up: PFF, x2, x4, x8, x16, x32 can be selected.
- Eclipse: If there is a high light installed in a limited environment such as an apartment parking
garage or gas station entrance, removing the high light makes it possible to view car license
efficiently.
- Day: In normal daylight conditions, the HLC is not activated.
- Night: If a high light that is larger than a certain size is present on the screen, remove the high
light to see license plates clearly.
- DNR: This function reduces the background noise in a low luminance environment. #
Manual CC 5201
16
OFF: Deactivates DNR. Noise is not reduces.
ON: Activates DNR so that noise is reduced.
- Return: It returns to the Main Menu.
White Balance
- WB Mode: ATW, AWC, MANUAL can be selected
- Red Cont: When it is Manual, 0 to 127 can be selected. Another becomes NOT USE
- Blue Cont: When it is Manual, 0 to 127 can be selected. Another becomes NOT USE
- Push Auto: When it is AWC, OFF to PUSH can be selected. Another becomes NOT USE
- Return: It returns to the Main Menu
Day / Night
- D/N Mode: AUTO, DAY, NIGHT, EXT can be selected
- Filter DLY: When it is AUTO, 4 to 10 can be selected. When AGC is Off, NOT USE. Another
becomes NOT USE.
- Return: It returns to the Main Menu.
Motion
- Detect Mode: Off or On can be selected
* Turning on becomes invalid while displaying OSD. However, it becomes effective only at
Motion Area.
- Detect Area: Motion Area is displayed
- Sensitivity: 0 to 8 can be selected
- Alarm Time: 1 to 60 can be selected
- Return: It returns to the Main Menu
Manual CC 5201
17
o Motion Area
- A thick gray shows the cursor
- When it is transparent, the area becomes effective
* Default is ALL transparent, it is All effective.
- When it is light gray, the area becomes invalidity
- Cursor moved by LEFT or RIGHT
- When UP or DOWN is pushed, it becomes effective or invalid
- MENU is returns to the MOTION
* BLC automatically becomes effective on this screen.
Privacy
- Area: 1 to 4 can be selected
- Mask: OFF or ON can be selected
- Level: When Mask is ON, 0 to 15 can be selected
* It set the same value regardless of a set value of Area
- Top: When Mask is ON, 3 to 124 (NTSC) or 6 to 150 (PAL) can be selected
- Down: When Mask is ON, 5 to 126 (NTSC) or 8 to 152 (PAL) can be selected
- Left: When Mask is ON, 0 to 187 (NTSC) or 0 to 185 (PAL) can be selected
- Right: When Mask is ON, 2 to 189 (NTSC) or 2 to 187 (PAL) can be selected
- Return: It returns to the Main Menu
Manual CC 5201
18

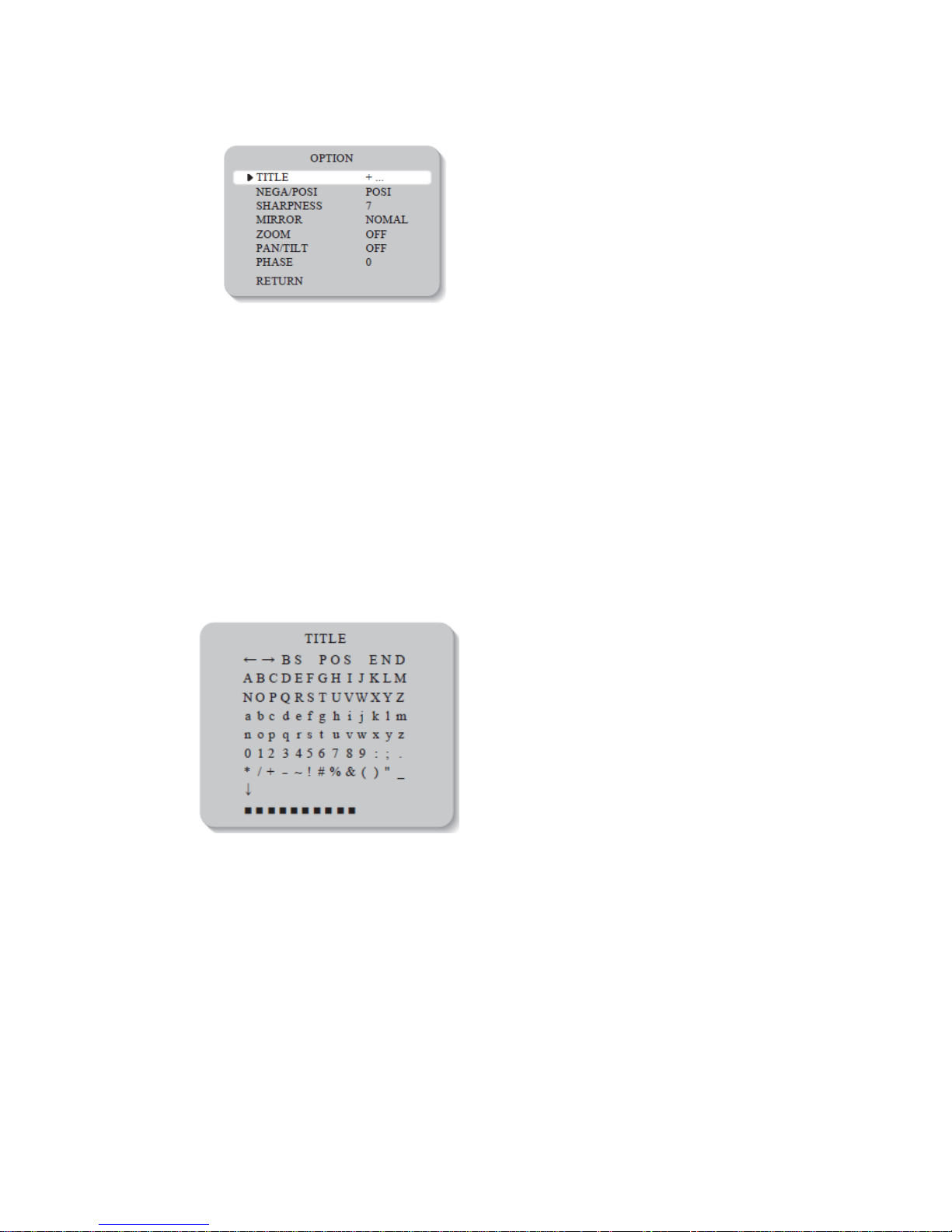

Option
- Title: Title is displayed
- Nega/Posi: Nega or Posi can be selected
- Sharpness: 0 to 15 can be selected
- Mirror: Normal, Mirror, Vertical, Rotate can be selected
- Zoom: Off (x1) and On 1 to On 8 (x4) can be selected
When PAN / TILT is ON, it is NOT USE.
- PAN/TILT: Off or On (x2) can be selected
* When OSD Menu is Off and Pan/Tilt is On, operate by UP, DOWN, LEFT, RIGHT
- Phase: You can select a desired phase between 0 and 524 when the Sync menu is fixed to the
AUTO mode
- Return: It returns to the Main Menu
o Title
- It moves by UP, DOWN, LEFT and RIGHT
- Character is setting by MENU. The character from 1 to 10 can be set.
- When MENU is pushed by ( / ), can move between the set characters.
- When MENU is pushed by BS, one character can be selected.
- When MENU is pushed by POS, Position is displayed.
* Only when you set the character by one character or more
- When MENU is pushed by END, return to the OPTION.
- ■ is brank.
- - is space.
Manual CC 5201
19
o Position
- Title position is changed by UP, DOWN, LEFT, RIGHT
- Menu is returns to the Title
Display
- Title: Off or On can be selected
- Motion Det: Off or On can be selected
- Camera ID: Determines the cameras identification number. (between 0 and 255)
- Baud Rate: You can select 2400/9600 pbs.
- Return: It returns to the Main Menu
Sync
Two synchronisation modes are available, INTERNAL and AUTO.
In AUTO mode, it synchronises the video signal between cameras without
a synchronous generator. The line-lock synchronisation is only used in areas of
60Hz (NTSC Models) / 50Hz (PAL Models).
- INT: Internal synchronisation
- Auto: External line-lock synchronisation
Internal
Returns to the level which was set by the manufacturer for shipment.
Exit
Saves all the settings menus and then exits.
Manual CC 5201
20
Troubleshooting
If there are problems in operation, please refer to the items below. If the problem persists, please
contact the agent you purchased this product from.
Problems Troubleshooting
Nothing appears on the screen. • Please check the power connection.
• Please check the video signal line connection.
• Please check and make sure that the auto lens
switch is set to DC (VIDEO) when using a
VIDEO(DC) lens.
The video image is not clear. • Please check if the lens is clean.
Please clean the lens with a clean cloth or brush.
• Please adjust the contrast feature of the monitor.
• Please make sure that the screen is not exposed
directly to a bright light.
Please move the camera if necessary.
• Please readjust the back focus of the camera.
The screen is dark. • Please adjust the contrast feature of the monitor.
• If you have an intermediate device, set the 75 /
Hi-z properly, and check the terminals.
• Please check if an auto iris lens is being used
and adjust the brightness level.
The camera surface is too hot and black stripes
appear on the screen.
• Please check if an appropriate power source to
the camera complies with the manufacturer's
standard requirement, or if the voltage is
fluctuating. Check for ground loops.
The MOTION DETECTION function is
not working.
• Please check if 'MOTION DETECTION' mode
is turned on.
• Please check if the MD LEVEL is too low.
• Please check the setting of the MD AREA.
Colors are not quite right. Please check the 'WHITE BAL' setting.
The screen is flickering. • Please check if the camera is facing directly into
sunlight or fluorescent light.
• Please check if an auto iris lens is being used.
• Please check the connection of the lens connector
cable.
SENS-UP function is not working. • Please check if the AGC menu is set to the OFF
position.
• Please check if the SHUTTER menu is set to
MANUAL mode.
Manual CC 5201
21
Specifications
ITEM NTSC PAL
½” Ex-view color CCD Sensor
ICX 428AKL ICX 429AKL
Number of Pixel 768 x 494 752 x 582
Scanning 2:1 Interlace
Synchronization Internal
Frequency
Horizontal: 15.734 KHz Vertikal:
59.94 Hz
Horizontal: 15.625 KHz
Vertikal: 50.00 Hz
Resolution 540 TV Lines: Colour
570 TV Lines: B / W
Video out Level 1.0Vp-p/75Ω Video 0.714Vp-p Sync 0.286Vp-p
Burst Level 0.286 Vp-p
S/N 50dB Min. (AGC Correct Off)
Sensitivity 0.08Lux (Color), 0.01Lux (B/W), 0.001Lux (Sens-up) / F1.2
Sense Up Max 32 times
Correction 0.45
AGC + 18dB Max.
Iris Control Electrical Iris / Lens Iris (DC Lens)
Electrical Shutter 1/60 (1/50) ~ 1/120,000 sec.
Power Supply Voltage AG24V/DC12V (+10%, -20%)
Power Supply Current AG24V / DC 12V (Max.350mA / Max. 490mA)
Operating Temperature
Operating Humidity
-10°C~+50°C
90% RH max.
Weight 320g
Loading...
