Convia Type 3 Operating Instructions Manual

Wireless Smoke
Detector

(Typ e 3)

Operating Instructions

Version 1. 0

For Marmitek alarm installations of the
types:

Homeguard MS8000,
Security System MS9470,
Security System MS9770, Protector28
Security System Base Station SC2700,

SC2800

Page 2 of 12

Please read these instructions fully and completely before initial
commissioning; they contain information for the correct installation

of this innovative radio smoke alarm.

© 2003 Convia GmbH, Germany
All rights reserved. This handboo k must not be reproduced in any form, even in excerpts, or

duplicated or processed using electronic, mechanical or chemical procedures without written
permission of the publisher. This handbook may contain mistakes and printing errors. The
information in this handbook is regularly checked and corrections made in the next issue.
We accept no liability for technical mistakes or printing errors, or their consequences. All
trademarks and patents are acknowledged.

Modifications due to technical improvements may be made without prior notification

Page 3 of 12

Table of contents:

Chapter: Page:

1. General and function......................................................................4

2. Intended use ................................................................................4

3. Safety- and maintenance- references................................................5

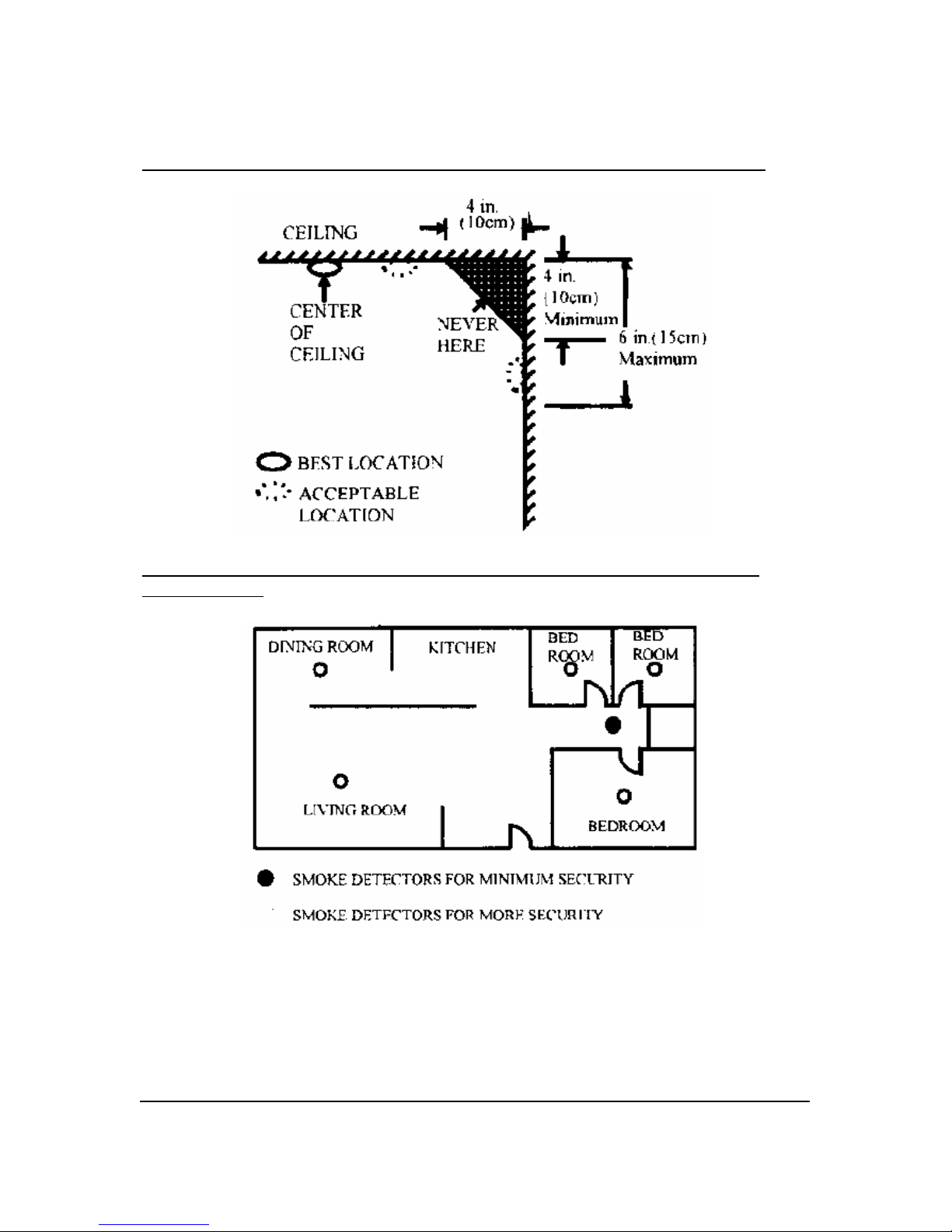

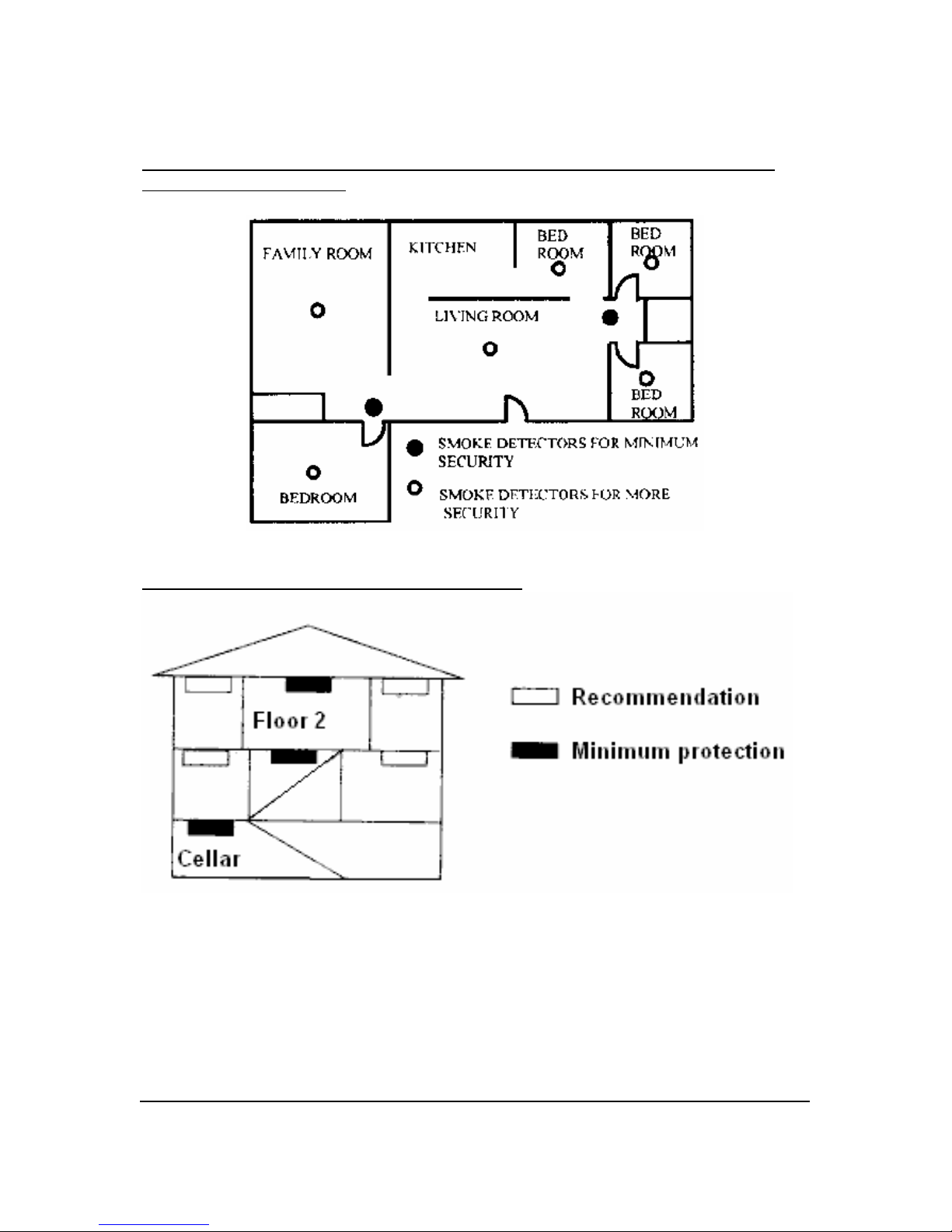

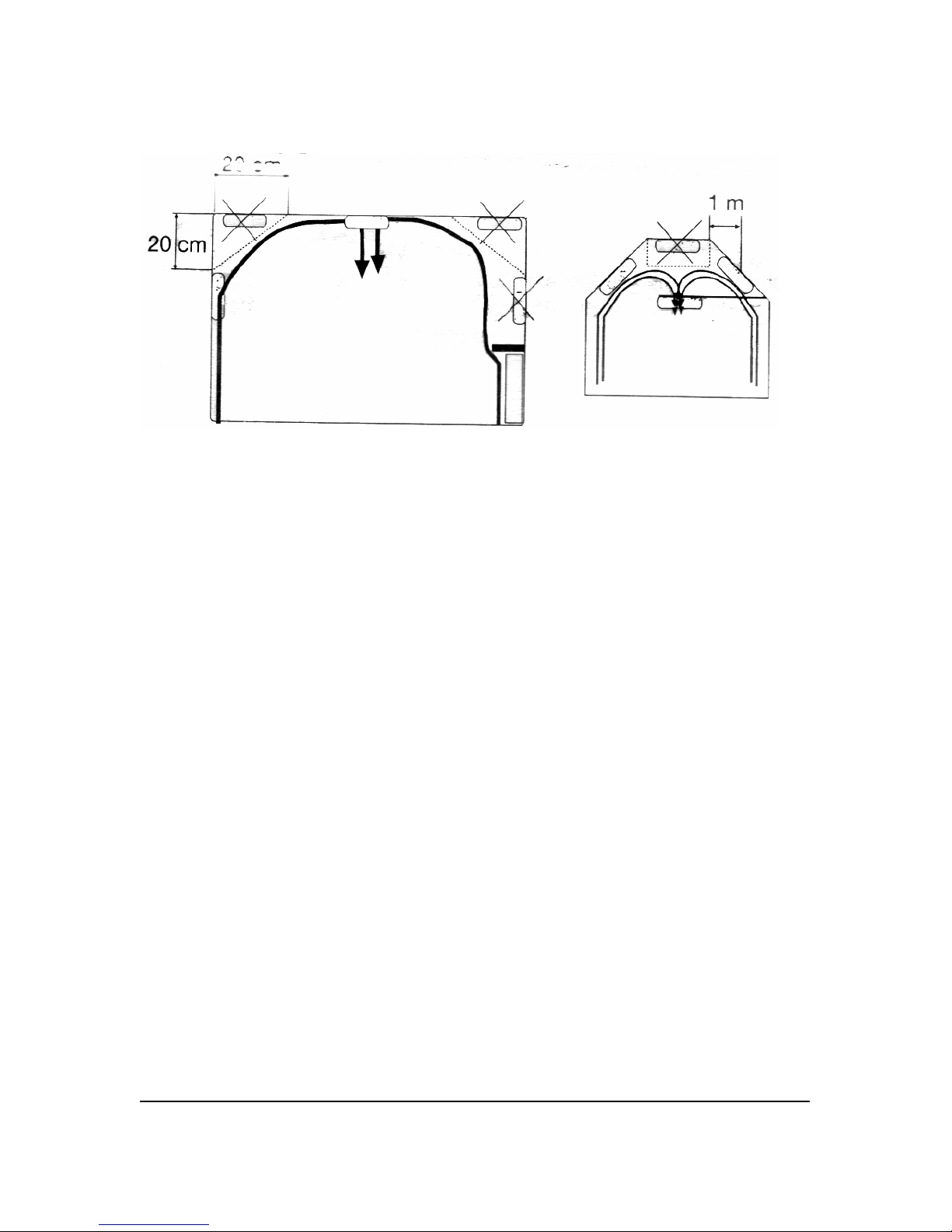

4. Installation places..........................................................................5

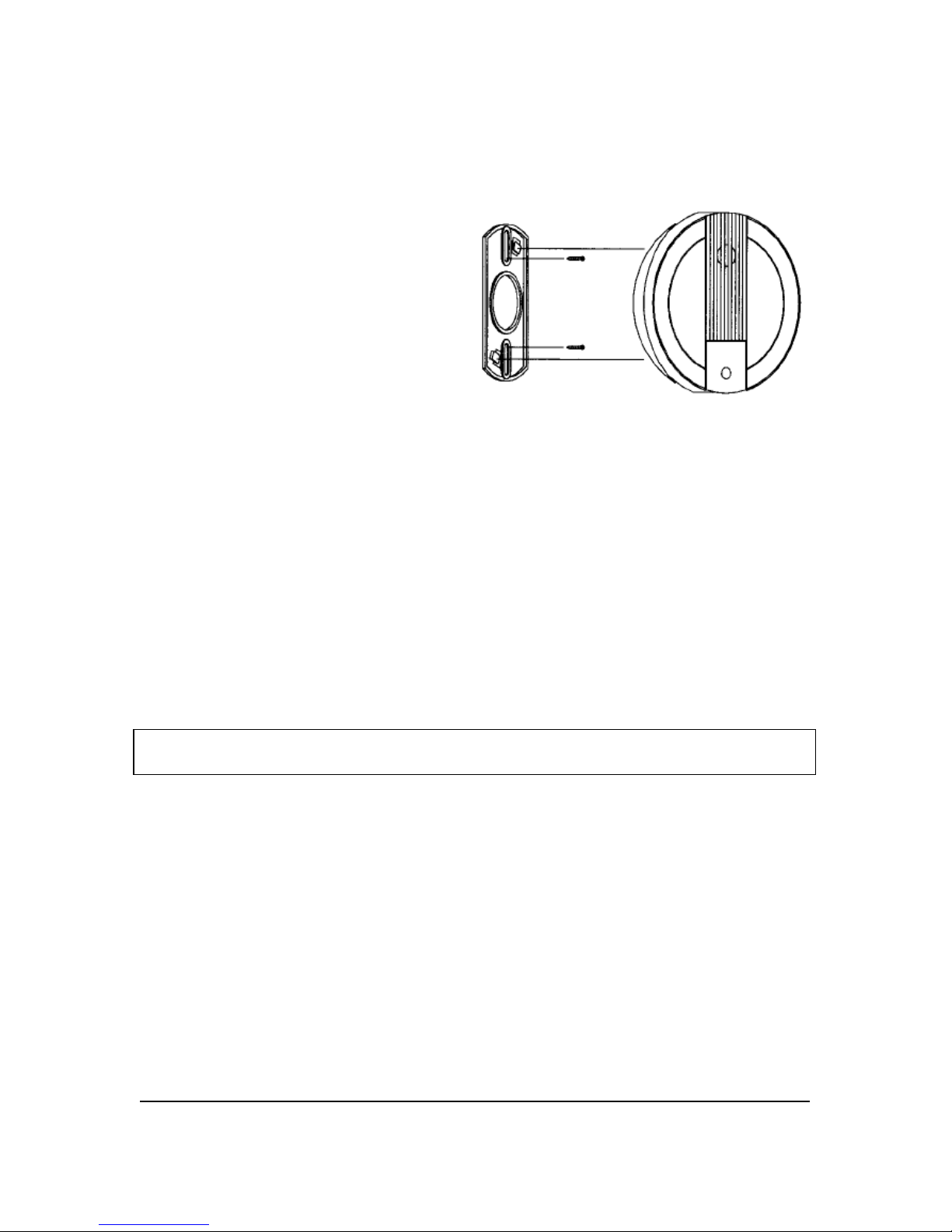

5. Installation ................................................................................... 8

6. Registering the smoke detector with the base stations of the types

„MS9470“, „MS9770“, „SC2700“, „SC2800“.......................................... 10

7. Registering the smoke detector with the base station of the type

„Homeguard MS8000“ ...................................................................... 11

8. Final assembly................................ ............................................ 12

9. Convia smoke detector - technical data ............................................ 12

Page 4 of 12

1. General and function

The optical smoke alarm is available as an optional extra for the Marmitek
security systems of the types: Homeguard MS8000, security system
MS9470, security system MS9770, Marmitek security system base station
SC2700 and SC2800.
It can detect incipient low temperature fires and open fires with smoke
development and should be in installed every room. The smoke detector
operates according to the dispersed light principle. For this a light transmitter
and receiver are arranged in a measuring chamber in such a way that the
transmitter light does not fall directly on the receiver. The development of
smoke causes the light to be dispersed by smoke particles and picked up by
the receiver. In contrast to many products on the market no radioactive
substance is necessary for the optical smoke detection.

The smoke detector will impress you owing to the following features:

• Monitoring of rooms for the development of smoke

• Integrated signal transmitter

• Alarm transmission even for non-activated alarm unit

2. Intended use

The radio smoke detector is intended for signaling of smoke in interiors with
optical and acoustic warning as well as signaling by radio over distances up
to 30 meters (free field range).

It does not sense gas, heat or flame!
The equipment may not be modified under any circumstances (otherwise all

warranty claims have been void!).
