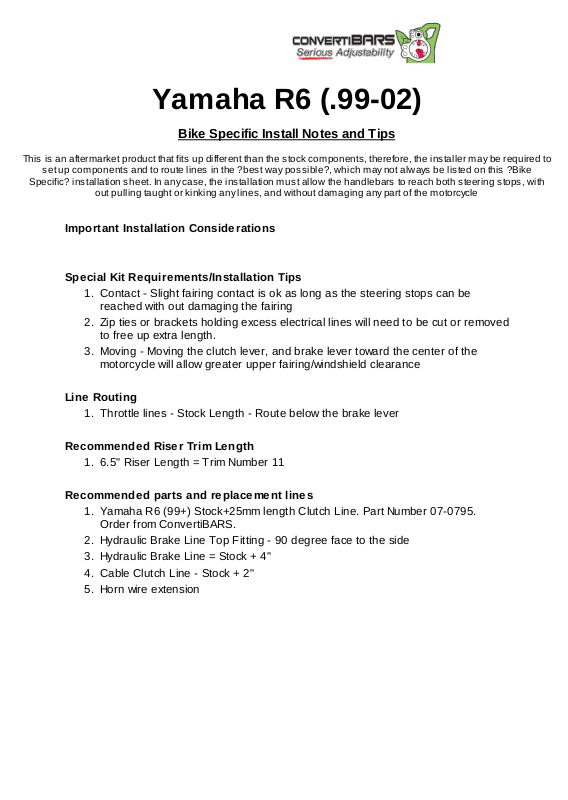

ConvertiBARS R6 User Manual

Yamaha R6 (.99-02)

Bike Specific Install Notes and Tips

This is an aftermarket product that fits up different than the stock components, therefore, the ins taller may be required to

set up components and to route lines in the ?best way pos s ible?, which may not always be listed on this ?Bike

Specific? ins tallation sheet. In any case, the ins tallation mus t allow the handlebars to reach both steering stops , with

out pulling taught or kinking any lines, and without dam aging any part of the motorcycle

Important Installation Conside rations

Special Kit Re quirements/Installation Tips

1. Contact - Slight fairing contact is ok as long as the steering stops can be
reached with out damaging the fairing

2. Zip ties or brackets holding excess electrical lines will need to be cut or removed
to free up extra length.

3. Moving - Moving the clutch lever, and brake lever toward the center of the
motorcycle will allow greater upper fairing/windshield clearance

Line Routing

1. Throttle lines - Stock Length - Route below the brake lever

Recommended Riser Trim Length

1. 6.5" Riser Length = Trim Number 11

Recommended parts and re placement line s

1. Yamaha R6 (99+) Stock+25mm length Clutch Line. Part Number 07-0795.
Order from ConvertiBARS.

2. Hydraulic Brake Line Top Fitting - 90 degree face to the side

3. Hydraulic Brake Line = Stock + 4"

4. Cable Clutch Line - Stock + 2"

5. Horn wire extension
