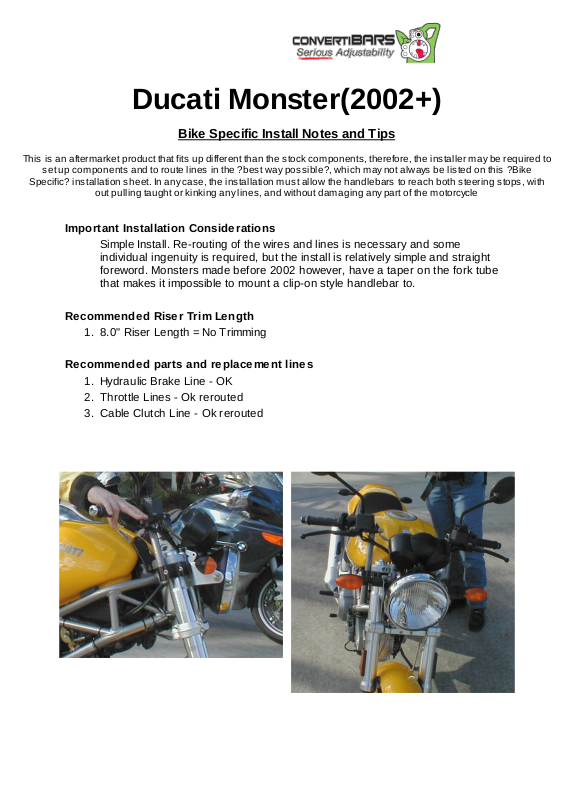

ConvertiBARS Monster User Manual

Ducati Monster(2002+)

Bike Specific Install Notes and Tips

This is an aftermarket product that fits up different than the stock components, therefore, the installer may be required to

set up components and to route lines in the ?bes t way possible?, which may not always be listed on this ?Bike

Specific? ins tallation sheet. In any cas e, the installation mus t allow the handlebars to reach both steering stops, with

out pulling taught or kinking any lines , and without damaging any part of the motorcycle

Important Installation Conside rations

Simple Install. Re-routing of the wires and lines is necessary and some

individual ingenuity is required, but the install is relatively simple and straight
foreword. Monsters made before 2002 however, have a taper on the fork tube
that makes it impossible to mount a clip-on style handlebar to.

Recommended Riser Trim Length

1. 8.0" Riser Length = No Trimming

Recommended parts and re placement lines

1. Hydraulic Brake Line - OK

2. Throttle Lines - Ok rerouted

3. Cable Clutch Line - Ok rerouted
