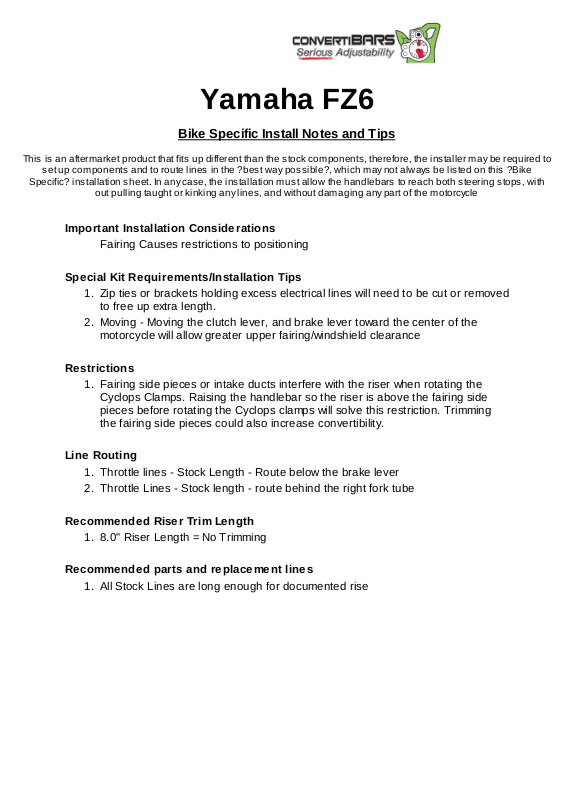

Yamaha FZ6

Bike Specific Install Notes and Tips

This is an aftermarket product that fits up different than the stock components, therefore, the ins taller may be required to

set up components and to route lines in the ?best way pos s ible?, which may not always be listed on this ?Bike

Specific? ins tallation sheet. In any case, the ins tallation mus t allow the handlebars to reach both steering stops , with

out pulling taught or kinking any lines, and without dam aging any part of the motorcycle

Important Installation Conside rations

Fairing Causes restrictions to positioning

Special Kit Re quirements/Installation Tips

1. Zip ties or brackets holding excess electrical lines will need to be cut or removed
to free up extra length.

2. Moving - Moving the clutch lever, and brake lever toward the center of the
motorcycle will allow greater upper fairing/windshield clearance

Restrictions

1. Fairing side pieces or intake ducts interfere with the riser when rotating the
Cyclops Clamps. Raising the handlebar so the riser is above the fairing side
pieces before rotating the Cyclops clamps will solve this restriction. Trimming
the fairing side pieces could also increase convertibility.

Line Routing

1. Throttle lines - Stock Length - Route below the brake lever

2. Throttle Lines - Stock length - route behind the right fork tube

Recommended Riser Trim Length

1. 8.0" Riser Length = No Trimming

Recommended parts and re placement line s

1. All Stock Lines are long enough for documented rise
