ConvertiBARS 900SS User Manual

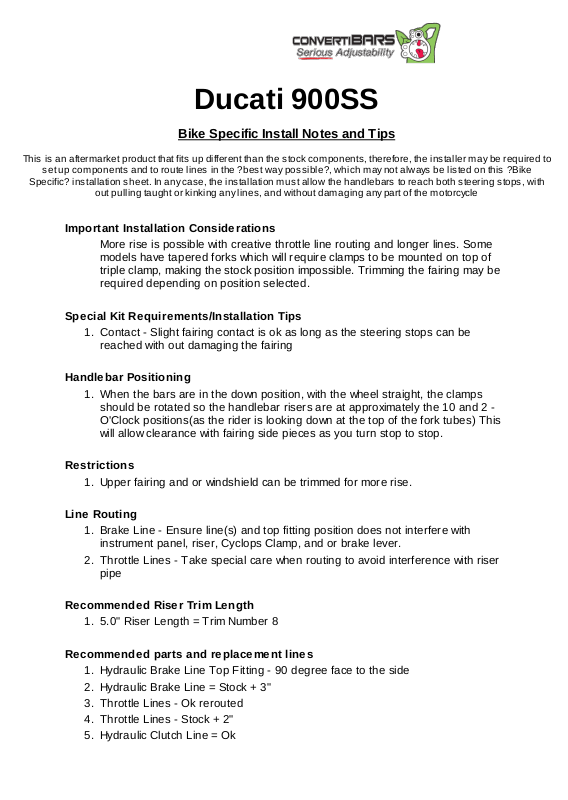

Ducati 900SS

Bike Specific Install Notes and Tips

This is an aftermarket product that fits up different than the stock components, therefore, the installer may be required to

set up components and to route lines in the ?bes t way possible?, which may not always be listed on this ?Bike

Specific? ins tallation sheet. In any cas e, the installation mus t allow the handlebars to reach both steering stops, with

out pulling taught or kinking any lines , and without damaging any part of the motorcycle

Important Installation Conside rations

More rise is possible with creative throttle line routing and longer lines. Some

models have tapered forks which will require clamps to be mounted on top of
triple clamp, making the stock position impossible. Trimming the fairing may be
required depending on position selected.

Special Kit Re quirements/Installation Tips

1. Contact - Slight fairing contact is ok as long as the steering stops can be
reached with out damaging the fairing

Handlebar Positioning

1. When the bars are in the down position, with the wheel straight, the clamps
should be rotated so the handlebar risers are at approximately the 10 and 2 ­O'Clock positions(as the rider is looking down at the top of the fork tubes) This
will allow clearance with fairing side pieces as you turn stop to stop.

Restrictions

1. Upper fairing and or windshield can be trimmed for more rise.

Line Routing

1. Brake Line - Ensure line(s) and top fitting position does not interfere with
instrument panel, riser, Cyclops Clamp, and or brake lever.

2. Throttle Lines - Take special care when routing to avoid interference with riser
pipe

Recommended Riser Trim Length

1. 5.0" Riser Length = Trim Number 8

Recommended parts and re placement lines

1. Hydraulic Brake Line Top Fitting - 90 degree face to the side

2. Hydraulic Brake Line = Stock + 3"

3. Throttle Lines - Ok rerouted

4. Throttle Lines - Stock + 2"

5. Hydraulic Clutch Line = Ok
